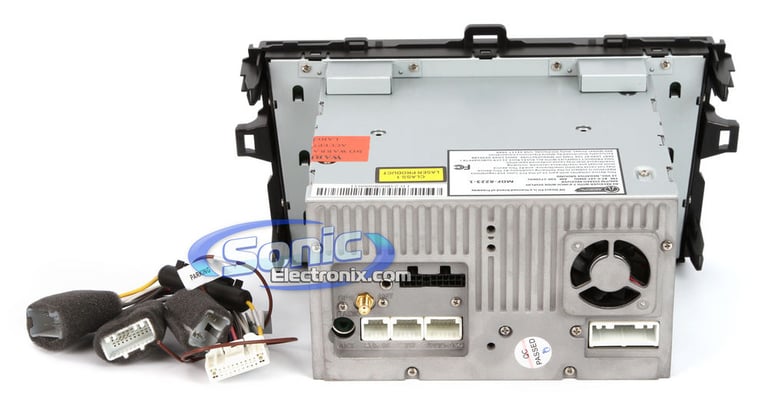

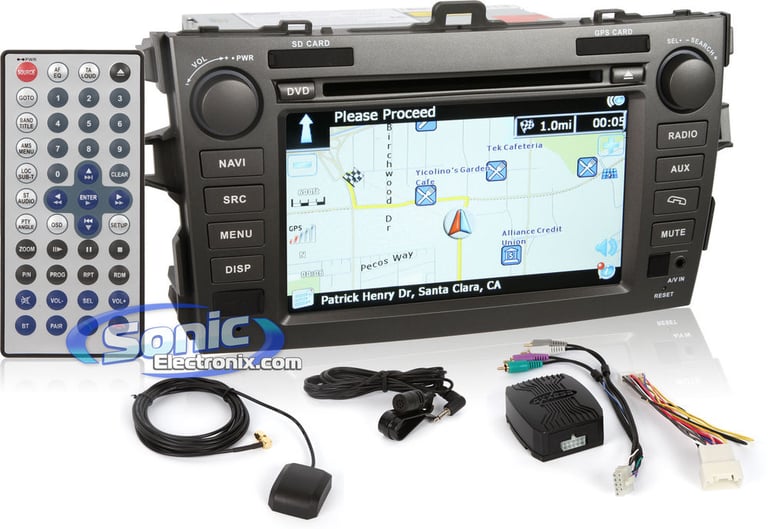

Metra MDF-8223-JBL-1

In-Dash 7" Double DIN Touchscreen Car Receiver w/ Bluetooth & Navigation for Toyota Corolla w/ JBL

Metra
Shop all Metra
Product videos
highlight-star-icon

For 2009-2011 Toyota Corolla w/ JBL • Double DIN In-Dash CD/MP3/WMA GPS Navigation Receiver • 7" LCD Touchscreen Display • 45W x 4 Chan. MAX • 17W x 4 Chan. RMS • 3 Sets of 2V Preamp Outputs • 2-Band Parametric Equalizer • TeleAtlas GPS Navigation • Bluetooth Technology

Learn more about the mdf8223jbl1

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


For 2009-2011 Toyota Corolla w/ JBL • Double DIN In-Dash CD/MP3/WMA GPS Navigation Receiver • 7" LCD Touchscreen Display • 45W x 4 Chan. MAX • 17W x 4 Chan. RMS • 3 Sets of 2V Preamp Outputs • 2-Band Parametric Equalizer • TeleAtlas GPS Navigation • Bluetooth Technology

Description


Metra brand icon

Authorized dealer

Direct OEM Fitment

When it comes to replacing your factory stereo, don't settle for cheap. The MDF series receivers by Metra offer the features of an aftermarket stereo combined with the sleek appeal of a factory receiver. Built-in Bluetooth technology adds convenience to your driver's seat by offering wireless music streaming and hands-free phone call capabilities that will keep your hands on the wheel and your eyes on the road. NavMate GPS navigation software provides excellent turn-by-turn information with voice guidance that will keep you on the right path. If safety is a concern of yours, the camera input on the back of the receiver allows the addition of a rear view backup camera. No stereo would be complete without full iPod and iPhone control. Browse through your favorite playlists with the tips of your fingers on this beautiful LCD screen. All of these features combined with a good quality sound that you'll never grow tired of makes the MDF Series stereo receiver by Metra.

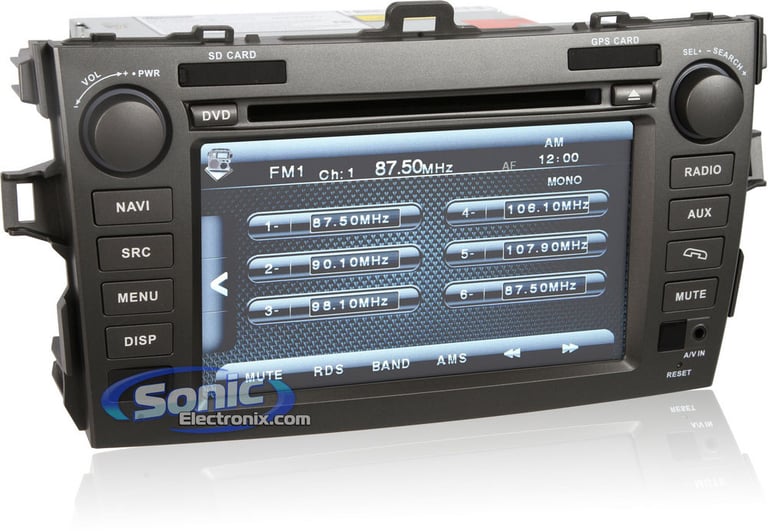

Metra MDF-8223-1

In-Dash 7" Double DIN Touchscreen Car Receiver
Quantity: 1











Vehicle Compatibility:
  • 2009 Toyota Corolla w/ JBL
  • 2010 Toyota Corolla w/ JBL
  • 2011 Toyota Corolla w/ JBL

General Features:

  • In-dash AM/FM, CD, MP3, WMA Receiver with Remote
  • Full-color 7" LCD touchscreen display
  • White illuminated button lighting
  • CEA-2006 compliant amplifier

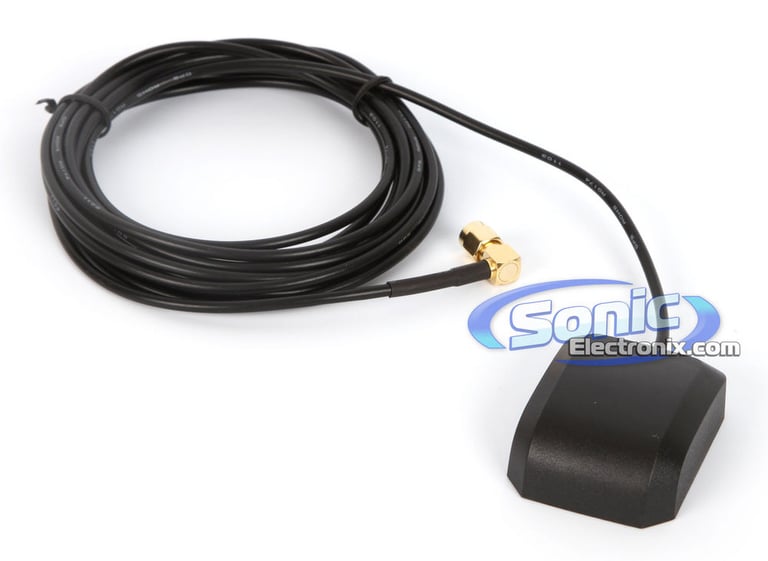

  • GPS Navigation with NavMate software and TeleAtlas maps
  • A2DP music streaming from any Bluetooth enabled device
  • iPod and iPhone ready via USB connection
  • Power Output:
    • Peak: 45 watts x 4 channels
    • RMS: 17 watts x 4 channels

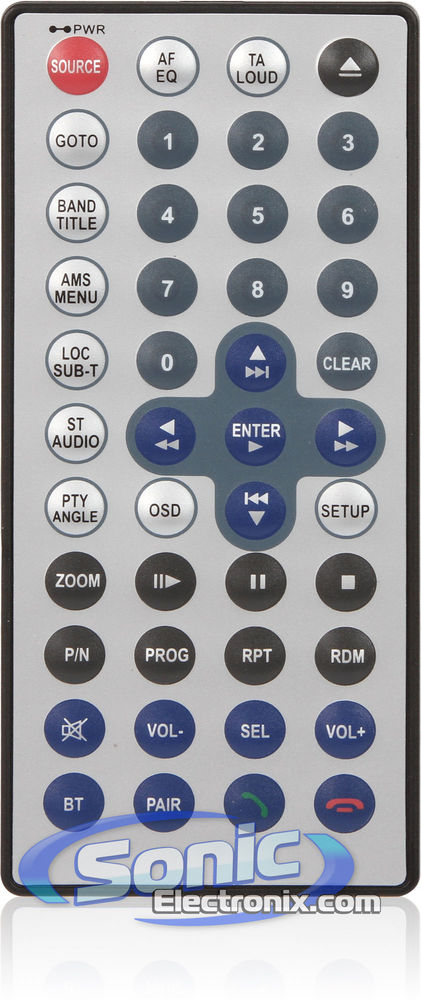

  • Wireless remote control included
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • Playback of DVD, VCD, MPEG-4, CD, CD-R, CD-RW, MP3 and WMA
  • Playback of region #1 DVD discs
  • AM/FM tuner with 18FM/12AM presets
  • Electronic Shock Protection (ESP)
  • 2-band parametric equalizer with 4 selectable tone curves (3 Preset, 1 User)

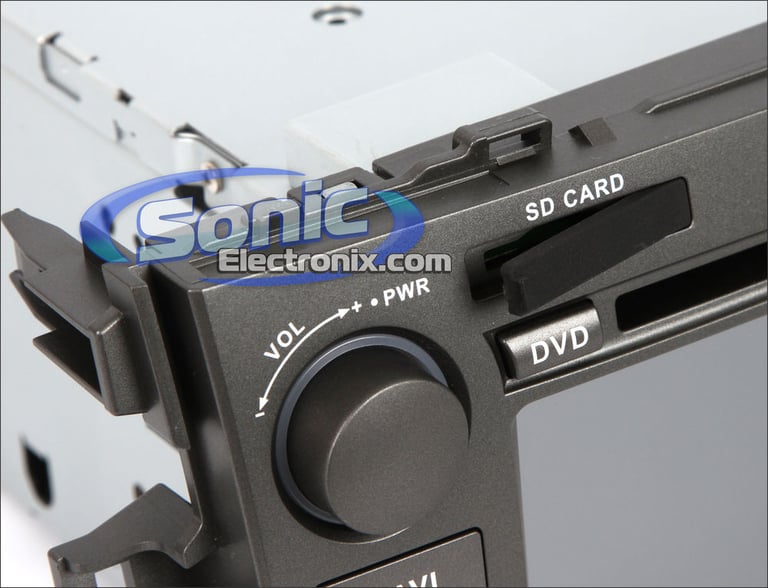

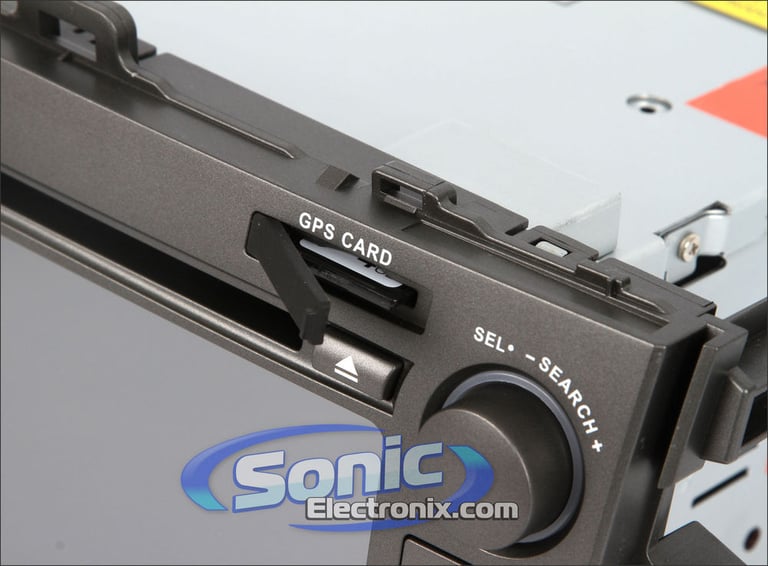

  • SD Card reader for audio and video playback

Expandability Options:

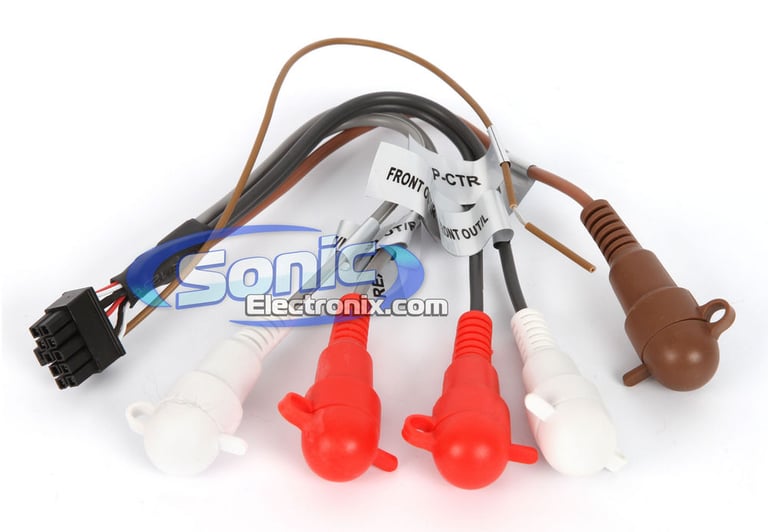

  • 3 Sets of 2V preamp outputs (front, rear and mono subwoofer)
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone

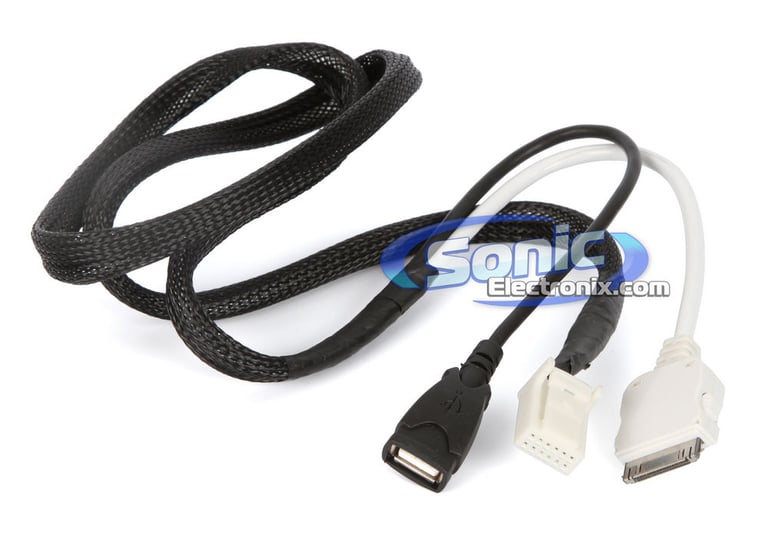

  • iPod and iPhone Ready: Standard USB-to-iPod Cable compatible

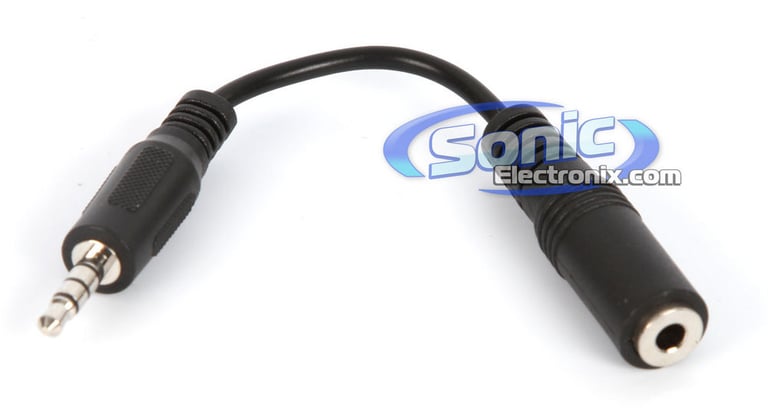

  • Front Auxiliary Input: 3.5mm headphone jack allows connection to portable media devices such as MP3 players

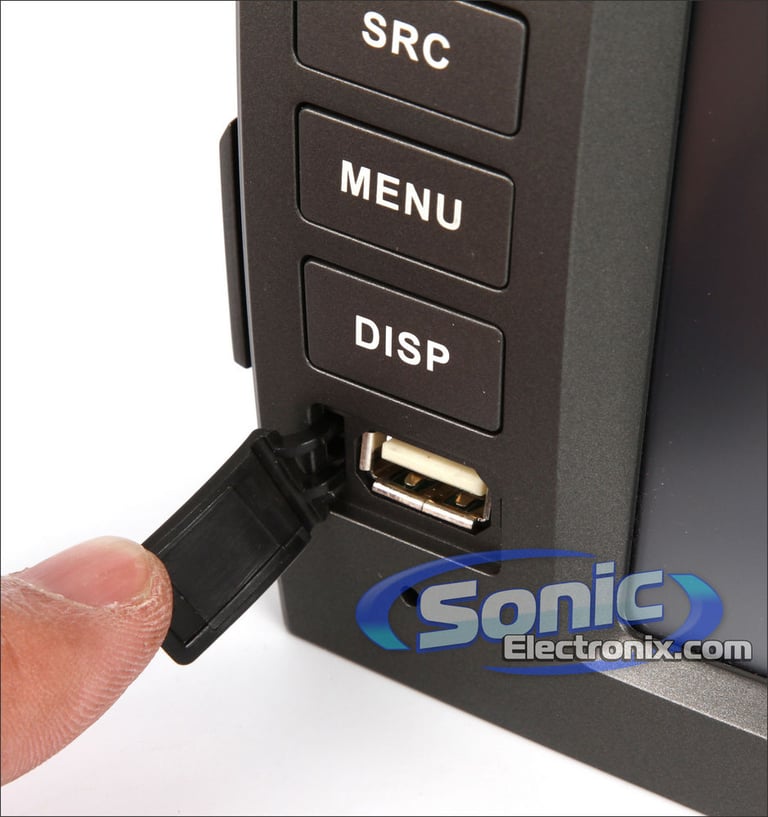

  • Front and Rear USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.

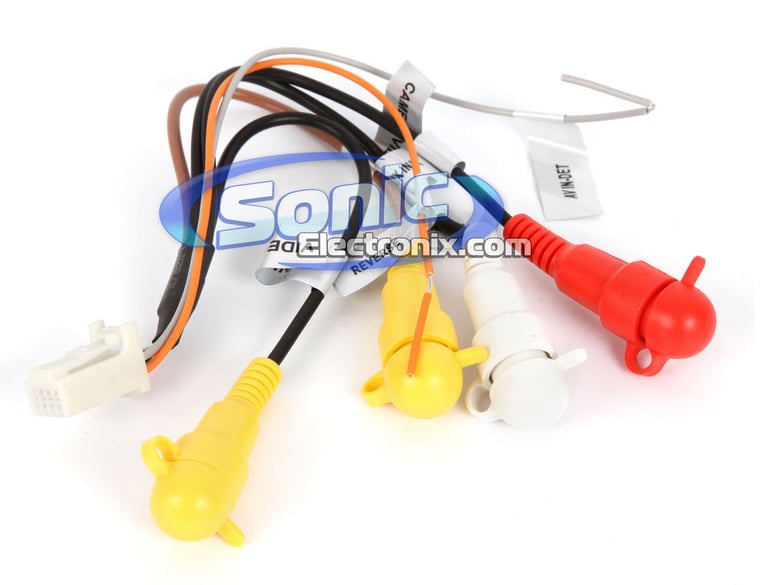

  • Backup Camera Input: Used for universal rear view cameras with an RCA composite input
  • Steering Wheel Control Ready: The Axxess ASWC required and sold separately

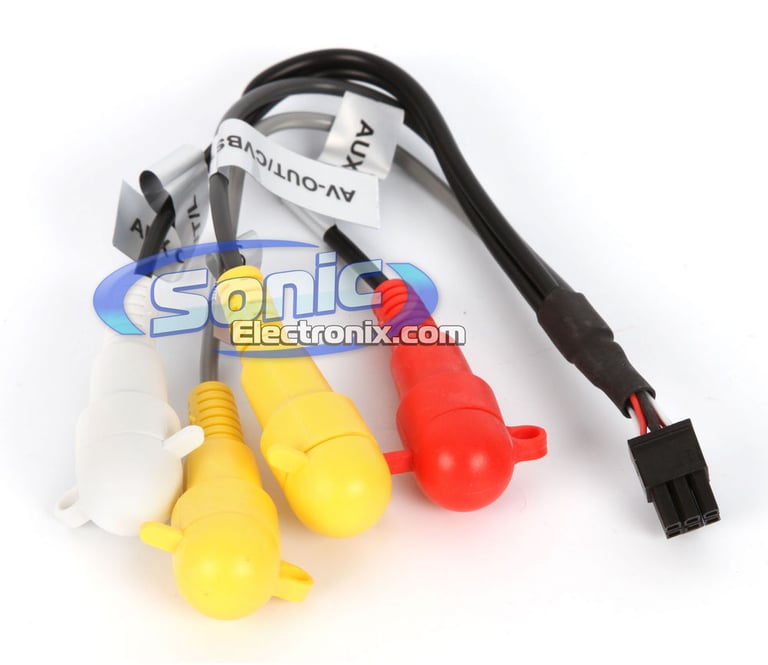

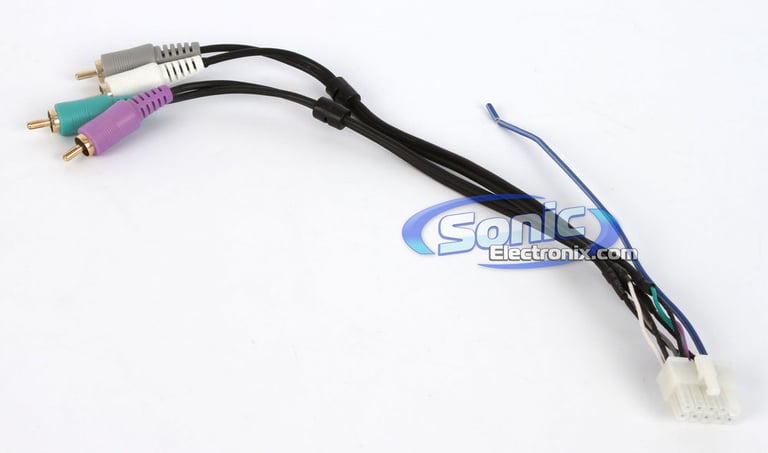

  • 2 Rear RCA Audio and Video Outputs: Used for connection to separate monitors and devices
  • Rear RCA Audio/Video Inputs: Used for connecting video accessories such as game consoles, video cameras, etc.

Navigation Features:

  • NavMate Software
  • 11 million Points of Interest (POI)
  • POI and address search capabilities
  • Longitude and Latitude searching
  • Built-in GPS diagnostics displays the number of satellites in view
  • Voice guidance with multiple voices
  • Trip Odometer for measuring travel distance
  • Computer gives elevation, trip related timing, clock and current speed information
  • NavUtil Navigation Software Utility allows you to upload, backup and restore POI's from your computer

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 2.0 +EDR certified
  • Bluetooth range up to 32.8 ft.
  • Supports A2DP audio streaming
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • HSP: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • Works with most Bluetooth enabled cell phones

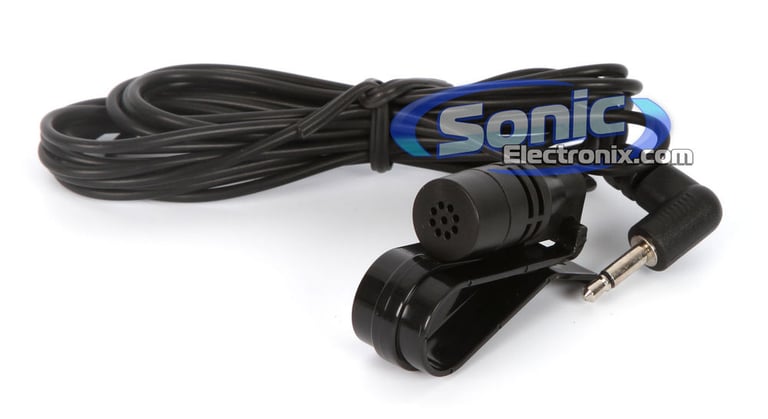

  • Includes a wired microphone for clear, distortion-free talking
Also Found As: MDF8223-JBL-1, MDF-8223JBL-1, MDF-8223-JBL1, MDF8223JBL-1, MDF-8223JBL1, MDF8223-JBL1, MDF8223JBL1

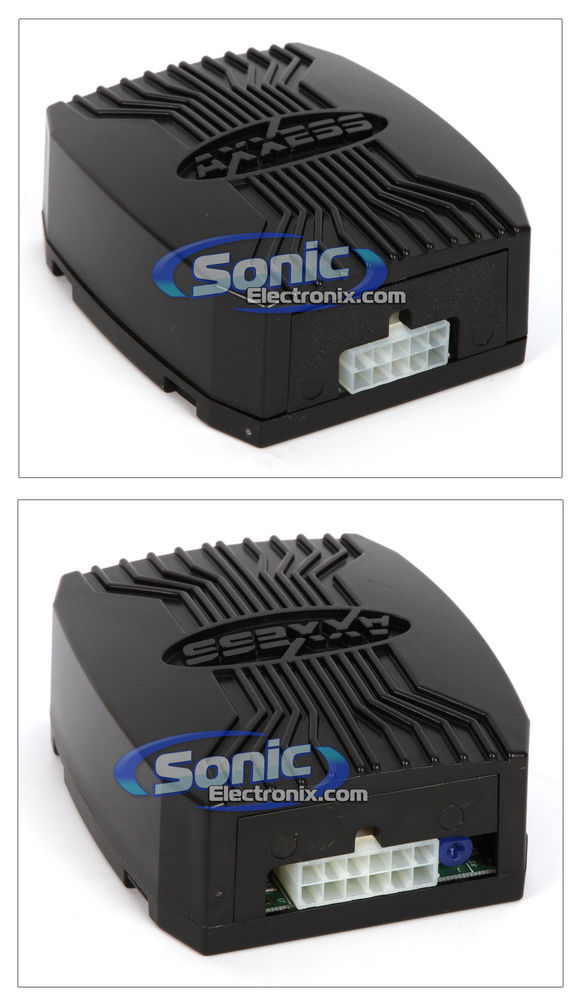

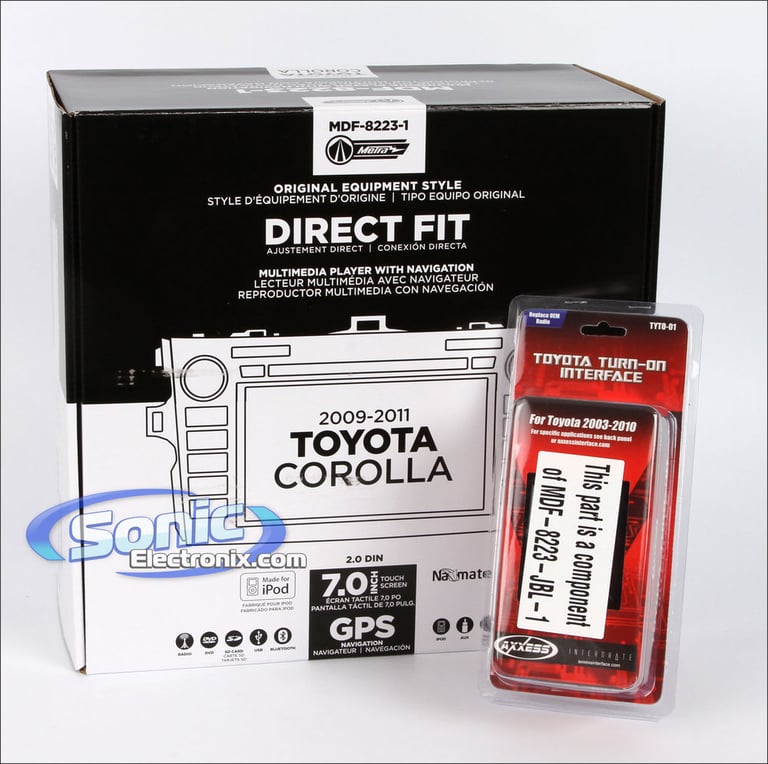

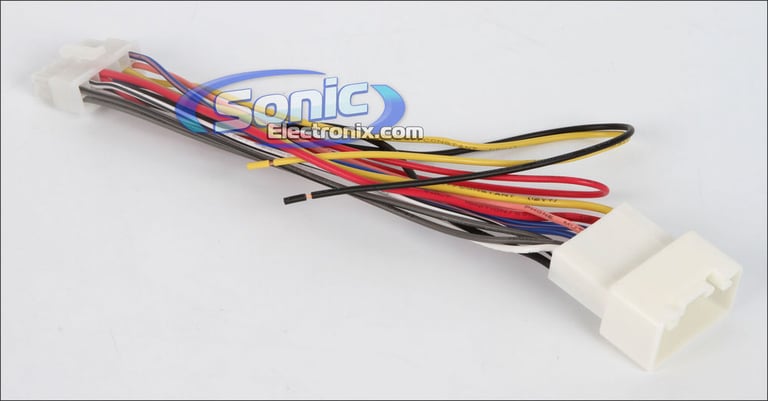

Axxess TYTO-01

Wiring Harness for select Toyota Vehicles
Quantity: 1

Products Features:

  • Turn-on Adapter Wiring Harness
  • For select Toyota Vehicles with JBL Synthesis Audio Systems
  • Adjustable input gain
  • compatible for USB update
  • 10 pin harness with RCA's
  • 12 pin to 20 pin Toyota harness
  • Allows the installation of an aftermarket unit in select 2003-2007 Toyota vehicles, while still making use of the JBL and JBL Synthesis amplified audio system
  • 1-year Manufacturer’s Warranty

Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.96

List price $2282.96

DAX800XR small

Kenwood eXcelon DAX800XR

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from GMC, Chevrolet, Nissan
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(1)

$999.00

List price $1500.00

RB10TUN14 small

Stinger HEIGH10 - RB10TUN14 for 2014-2021 Tundra

• 10.1" Single DIN and Double DIN In-Dash Digital Multimedia Receiver
• Compatible with select 2014-2025 Tundra and Tundra i-Force Max
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• iGo Navigation System-ready (Optional)
• 3 sets of 4 volts preamp outputs
• 15 Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Wireless streaming audio with aptX for better sound quality

$999.00

List price $999.00

D9-MST2015L-64GB small

Dynavin D9-MST2015L-64GB

• Replaces the 4" factory screen with a 10" touchscreen
• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(2)

$899.99

List price $899.99

DAX8000S small

Kenwood DAX8000S

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from GMC, Chevrolet, Nissan
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• 4 Camera Inputs Function

$949.00

List price $1450.00

SRXGM14128 small

Stinger HORIZON12 - SRX-GM14128 for 2014-2019 Silverado/Sierra Trucks

• Single DIN and Double DIN Bluetooth Digital Multimedia Receiver
• 12.8 Capacitive Touchscreen Display
• Wired or Wireless Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• Four (4) sets of 4.5 volts preamp outputs
• 15-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready

$1999.00

List price $2199.00

KW-Z1000AW small

JVC KW-Z1000AW

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ram, Jeep, Ford
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

$1449.00

List price $1699.00

D9-SP-MOST-64GB small

Dynavin D9-SP-MOST-64GB

• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(1)

$769.99

List price $699.99

D9-SLK small

Dynavin D9-SLK

• Custom Fit Bluetooth Digital Multimedia Receiver
• Compatible with select 2004-2010 vehicles from Mercedes-Benz
• 7" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• Built-in Navigation via Dynaway
• 3 sets of 3 volts preamp outputs
• 16-Band Equalizer

$935.99

List price $799.99

Specifications & Details


General features
CEA-2031 Compliant
No
Receiver Size
Double DIN
Anti-Theft Security
Detachable Controls
Motorized Faceplate
No
Wireless Remote
Yes
Peak Power Output
45 watts x 4 channel
RMS Power Output
17 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
2 volts
Built-In Equalizer
2-band parametric equalizer
Display Type
TFT-LCD Display
Display Color
Full Color
CD Signal-to-Noise
60 dB
Playback features
Dual Zone
No
FM Presets
18
AM Presets
12
CD-R/RW Playback
Yes
MP3 Playback
Yes
WMA Playback
Yes
DVD Region Number
1
AM/FM Tuner
Yes
Audio/video inputs
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Backup Camera
USB Input
Front and Rear
Monitor screen features
Display Adjustment
Brightness
Monitor Angle Adjustment
None
Screen Size
7"
Touchscreen
Yes
Navigation features
Customizable POI
Yes
Maps
Complete 50 USA
Canada
Navigation During Audio Playback
Yes
Navigation During Video Playback
No
Languages
English
Spanish
French
Map Dimensional Display
2D
Speed Display
Yes
Search Options
Address
City
Coordinates
Favorites
Home
Intersection
Map Browsing
Point-of-Interest (POI) Name
Points-of-Interest (POI) Type
Quick Search
Route
Map Source
SD Card
Text-to-Speech
Yes
Traffic Tuner
No
Points of Interest
11 Million
Map Database
Tele Atlas
Expandability features
Memory Card Slot
SD
Outputs
Composite Video (RCA)
RCA Audio
Satellite Radio
No
HD Radio
No
Bluetooth Connectivity
Yes (Built-in/Included [Bluetooth Controls, Adapter and/or Microphone Included])
Steering Wheel Control Compatible
DO NOT USE - Universal (Accessory required and sold separately)
CD Changer Controls
No
Rear View Camera Input
Yes (Universal)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MDF-8223-JBL-1

Weight:

12.50lbs

Internal SKU:

mdf8223jbl1

Internal Product ID:

44901

Product and How-to Videos


  • Metra Direct-Fit MDF & MFK Car Stereos | OEM Replacement
  • How To Install a Car Stereo (Single & Double DIN) | Car Audio 101

Customer Ratings & Reviews


Metra MDF-8223-JBL-1 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


165-KR2 small

Focal K2 Power 165 KR2

6-1/2" K2 Power 2-way Component Speakers Kit (165KR2 KR2 Power Series)

(1)

$599.99

List price $999.99

RD-CE0999N4E small

SquareTrade RD-CE0999N4E

4-year Warranty - Consumer Electronics between $900 and $999.99

(1)

$120.99

List price $120.99

11KM6250.2 small

Kicker 11KM6250.2 (KM6250.2)

6" 2-Way KM Series Marine & Boat Component Speakers System

$139.99

List price $299.95

AMP-GM21 small

PAC AMP-GM21

Cable Used to Connect Aftermarket Stereos To Factory Amplifiers In Select 1988-1998 GM Vehicles

$7.95

List price $13.99

F-10KIT (BLK) (with gig bag) small

ESP F-10 KIT (BLK)

Black Finish Guitar Package

$119.99

List price $242.00

HEMISPHERE5 small

Chauvet HEMISPHERE5

Multi-Colored Centerpiece Stage Lighting Effect with Red, Green, Blue, White & Amber LEDs

$159.99

List price $229.99

08S10L72 small

Kicker Solo-Baric S10L72 (08S10L72)

10" Dual 2 ohm Solo-Baric L7 Series Car Subwoofer

(20)

$151.48

List price $349.95

CDJ-350 small

Pioneer CDJ-350

Professional DJ Digital Multi Player

$529.99

List price $800.00

VT1000B small

Clarion VT1000B (Black)

10.2" TFT-LCD Overhead Flip-Down Monitor w/ Built-in DVD, MP3, WMA Player and 2 IR Wireless Headphones

(1)

$529.99

List price $799.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2024 Audi A6

1979 Dodge D50

1996 Saturn SC1

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
