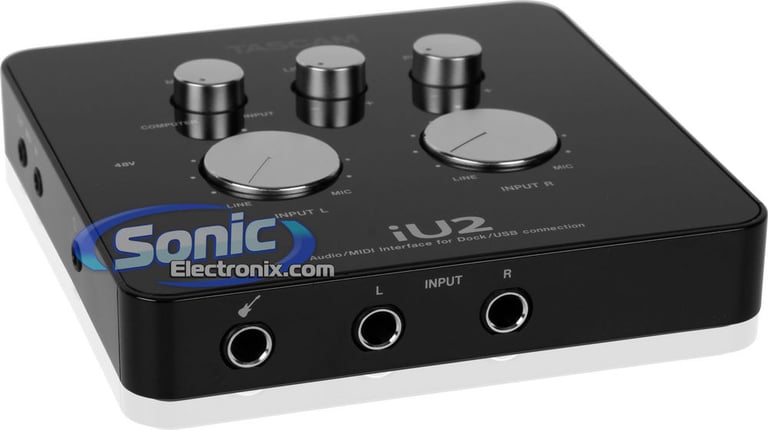

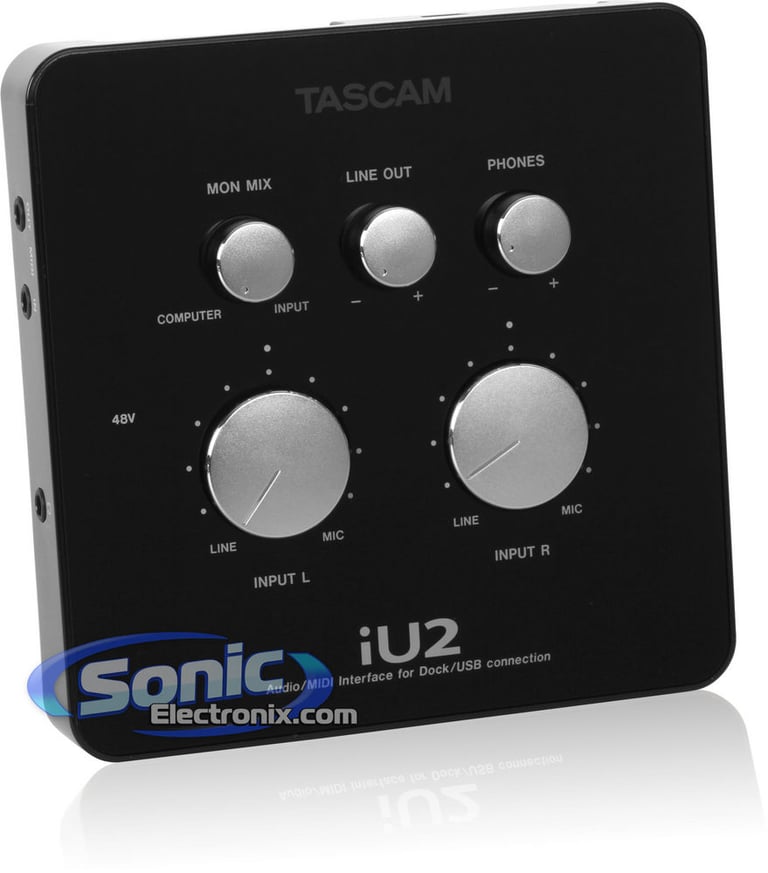

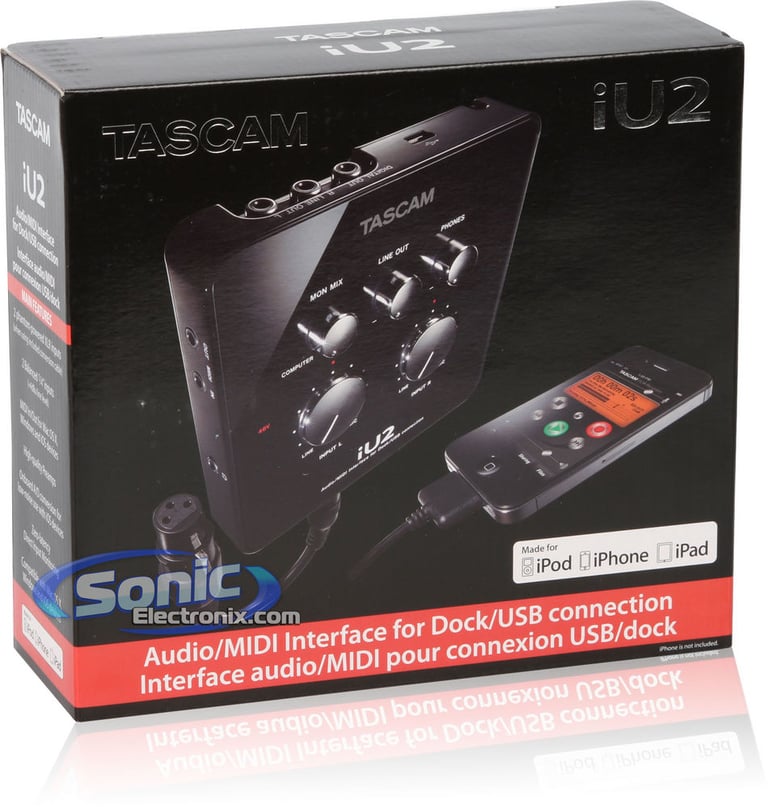

Tascam iU2

Product Features:

• Audio/MIDI Interface for Mac, Windows and iOS devices
• Compatible with iPhone, iPad and iPod Touch

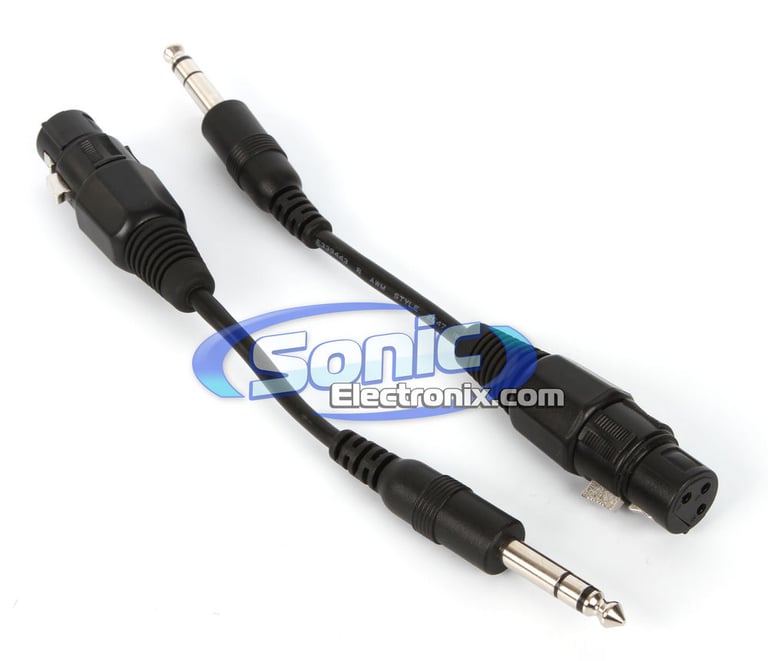

• Two XLR mic inputs with phantom power
• Two balanced line inputs
• Instrument-level input for guitar or bass
• MIDI in and out
• Onboard A/D conversion for low-noise and
  distortion when recording with iOS devices
• Zero-latency direct monitoring
• S/PDIF Digital Output
• Also found as: iU-2
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Specifications:

Analog Input & Output Ratings:

• INPUT L and/or R switch set to MIC:
• Balanced
• Connector: 1/4" (6.3 mm) TRS standard jack
  (Tip: HOT, Ring: COLD, Sleeve: GND)
• Input Impedance: 2.2 k ohm
• Nominal Input Level: -63 dBu to -17 dBu
• Maximum Input Level: -1 dBu
• Line L and/or R switch set to LINE:
• Balanced
• Connector: 1/4" (6.3 mm) TRS standard jack
  (Tip: HOT, Ring: COLD, Sleeve: GND)
• Input Impedance: 10 k ohm
• Nominal Input Level: -38 dBu to +8 dBu
• Maximum Input Level: +24 dBu
• Guitar Input (INPUT L switch set to GUITAR):
• Unbalanced
• Connector: 1/4" (6.3 mm) TRS standard jack
  (Tip: HOT, Ring: COLD, Sleeve: GND)
• Input Impedance: 1 M ohm
• Nominal Input Level: -55 dBV to -12 dBV
• Maximum Input Level: +4 dBV

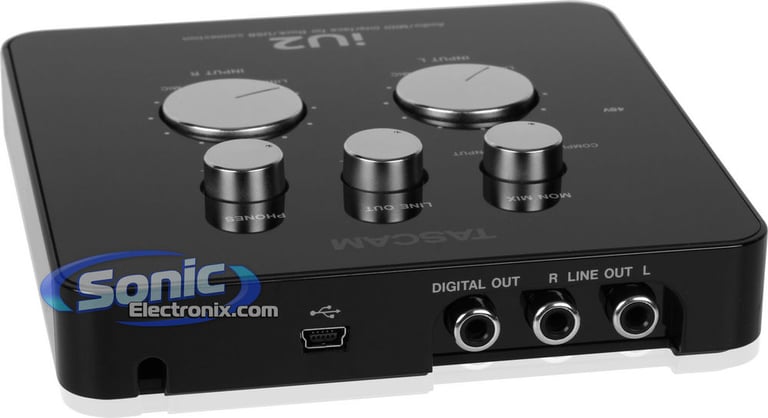

• Line Output (LINE OUT L/R):
• Unbalanced
• Connectors: RCA pin jack
• Output Impedance: 100 ohm
• Maximum Output Level: +6 dBV
• Headphone Output:
• Connector: 1/8" (3.5 mm) stereo mini jack
• Maximum Output: 10 mW + 10 mW

Digital Output Ratings:

• Coaxial (DIGITAL OUT):
• Connector: RCA pin jack
• Format: IEC 60958-3 (S/PDIF)
• Output Impedance: 75 ohm
• Level: 0.5 Vp-p/75 ohm

Control Input/Output Ratings:

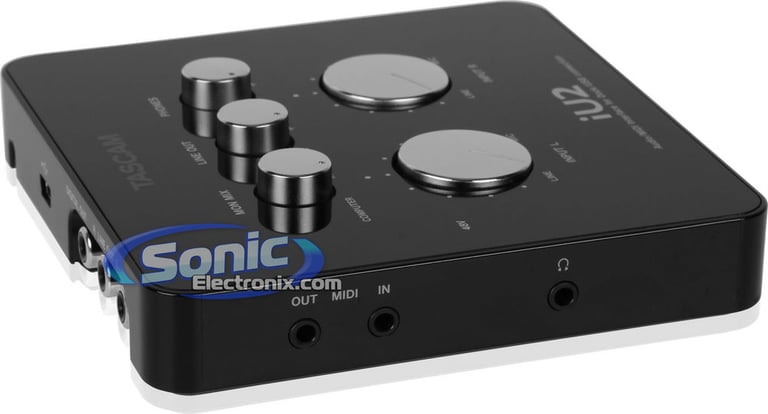

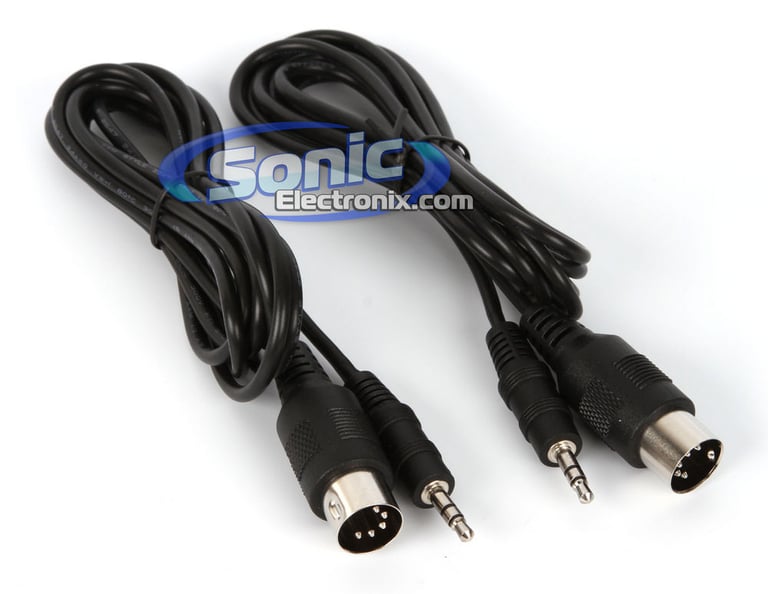

• MIDI Input (MIDI IN):
• Connector: 1/8" (3.5 mm) stereo mini jack
• Format: Standard MIDI format
• MIDI Output (MIDI OUT):
• Connector: 1/8" (3.5 mm) stereo mini jack
• Format: Standard MIDI format

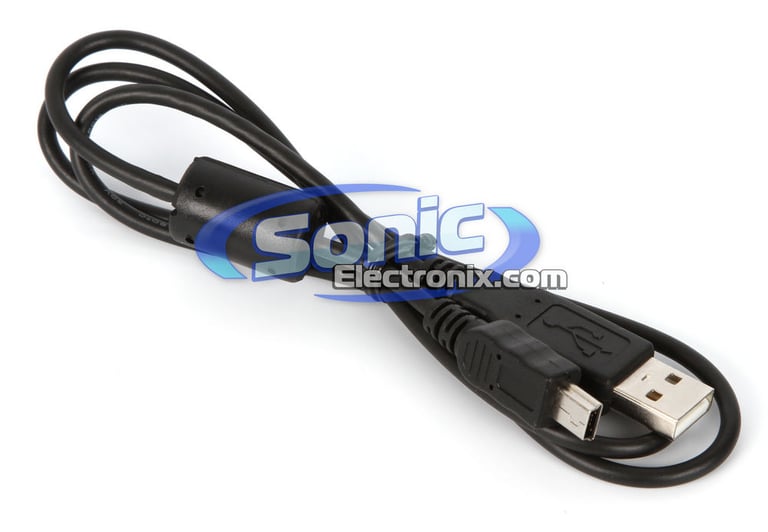

• USB (HOST switch set to COMPUTER):
• Connector: Mini-B type 5 pin
• Format: USB 2.0 Full Speed (12 Mbps)
• iOS Dock (Dock Cable) (HOST switch set to iOS DEVICE):
• Connector: iOS Dock type 30 pin
• Format: USB 2.0 Full Speed (12 Mbps)

Audio Performance:

• Frequency Response:
• 20 Hz to 20 kHz +1/-3 dB
• (Mic/Line input to Line output, JEITA)
• Signal-to-Noise (S/N) Ratio:
• 90 dB or more
• (Mic/Line input to Line output, JEITA)
• Total Harmonic Distortion:
• 0.02% or less
• (Mic/Line input to Line output, JEITA)

General:

• Sampling Frequency: 44.1/48 kHz
• Quantization Bit Rate: 16-bit
• Power: Supplied by iOS device via the
  dock connector cable or by computer
  via USB cable
• Power Consumption: 2.5 W
• Size & Weight:
• Weight: 7-3/4 oz. (220 g)
• Width: 5-15/16" (110 mm)
• Depth: 5-1/16" (110 mm)
• Height: 1-5/8" (20 mm)
• Operating Environment Temperature: 5-35°C (41-95°F)
