Refurbished - MTX RFL1200D 2400W Max RFL Series Class D Monoblock Car Amplifier

by MTX

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

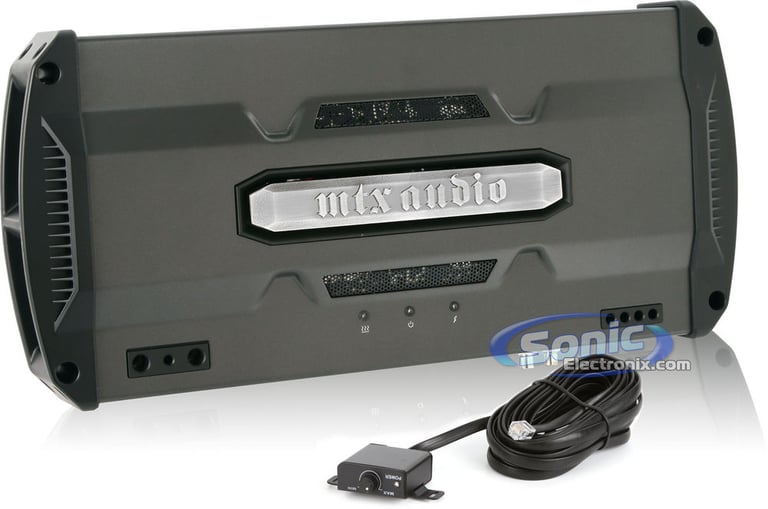

MTX RFL1200D R/B Image 1 — MTX RFL1200D R/B

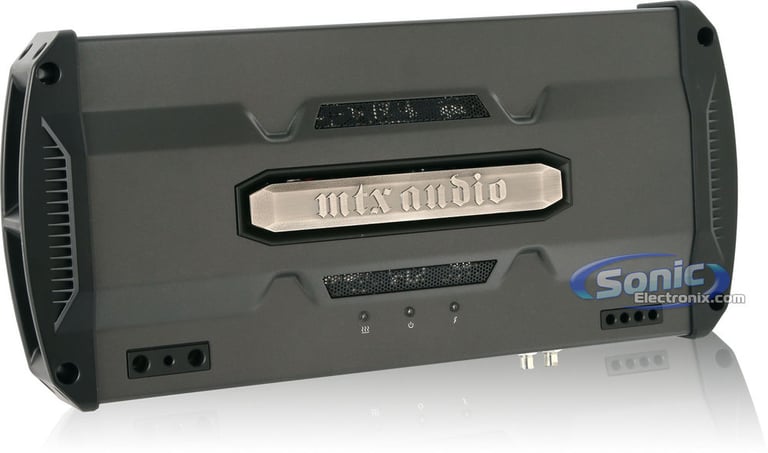

MTX RFL1200D R/B Image 2 — MTX RFL1200D R/B

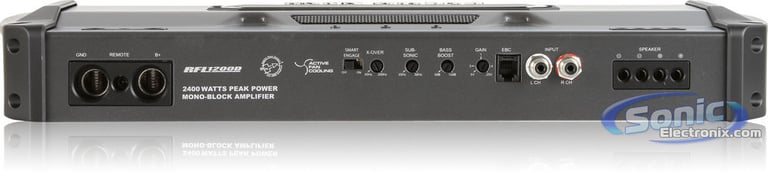

MTX RFL1200D R/B Image 3 — MTX RFL1200D R/B

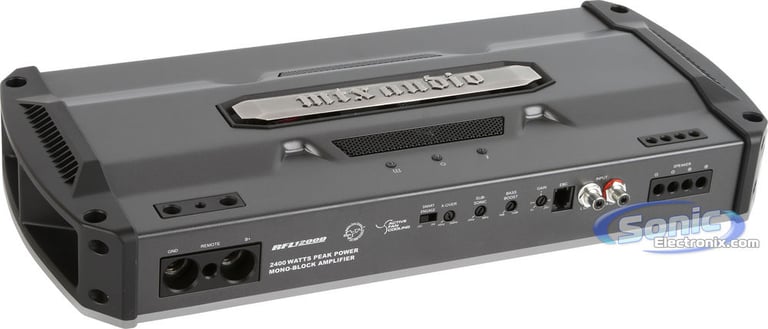

MTX RFL1200D R/B Image 4 — MTX RFL1200D R/B

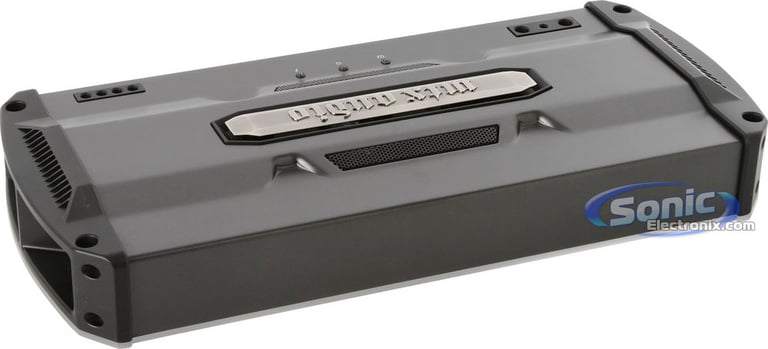

MTX RFL1200D R/B Image 5 — MTX RFL1200D R/B

MTX RFL1200D R/B Image 6 — MTX RFL1200D R/B

MTX RFL1200D R/B Image 7 — MTX RFL1200D R/B

MTX RFL1200D R/B Image 8 — MTX RFL1200D R/B

MTX RFL1200D R/B Image 9 — MTX RFL1200D R/B

MTX RFL1200D R/B Image 10 — MTX RFL1200D R/B

Product videos

Product highlights

RFL Series Monoblock Class D Car Amplifier • 400W x 1 Chan @ 4 Ohm • 800W x 1 Chan @ 2 Ohm • 2400W Max • Electronic Bass Control • Gun Metal Gray Chassis • Black End Caps • Stackable Design • Smart Engage Technology

Learn more about the LS-RFL1200D-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Stays Cool Under Pressure

Driving an amplifier to its fullest capabilities is common in car audio. Obtaining the most power from your amplifier possible is a necessity sometimes, and it’s always best to find an amplifier that can meet up with our ever-growing demand. MTX Audio’s RFL1200D is the perfect amplifier to power any compatible car subwoofer matchups efficiently. With Active Fan Cooling technology the amplifier will have a fan that changes speeds depending on how hard the amplifier is working. The louder your music, the faster the fan spins!

An integrated fan isn’t going to be the only thing to keep an amplifier cool. Active Fan Cooling also integrates air inlets along the top of the amplifier to provide a consistent airflow. Integrated heat-sinks keep all of your important electronics protected and the coolest of all. Combine all of this with MTX’s notorious reputation for rock-solid amplifiers that can meet up with car audio’s demand for durability and you have yourself one reliable amplifier.

RFL Series Monoblock Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 400 watts x 1 chan.
- 2 ohm: 800 watts x 1 chan.
- 1 ohm: 1200 watts x 1 chan.
Max power output: 2400 watts x 1 chan.
MOSFET power supply

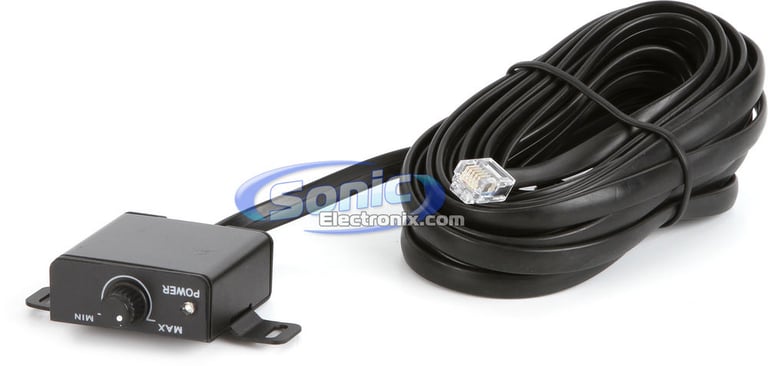

Electronic Bass Control allows the user to adjust the bass from a remote controller that can be installed near the drivers seat
Power and protection LED indicators
Tuned Bass EQ (0-12 dB bass boost)
1 channel operation
Active Fan Cooling technology has air inlets along the top of the amp and hot air outlets on the sides
Gun metal gray chassis
Black end caps
Large brushed MTX Audio Gothic logo

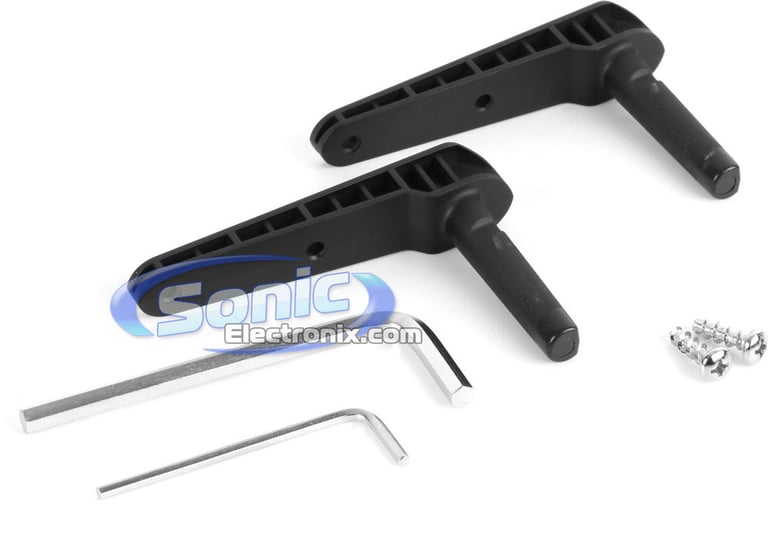

Unique stackable design that allows them to be installed multiple configurations
Smart Engage technology makes it easy to add RFL amplifiers to any factory or aftermarket system
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Variable low-pass filter (40-200 Hz, 24 dB/octave)
Subsonic Filter (20-50 Hz, 12 Hz)
CEA-2006 compliant amplifier
Frequency Response: 20-200 Hz
Signal-to-Noise Ratio: 62 dB
THD (Total Harmonic Distortion): <1%
Maximum Input Signal: 5V
Maximum Sensitivity: 250mV
Dimensions: 17-3/8"L x 8"W x 2-3/8"H
0/1-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90 Day Manufacturer's warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

400 watts x 1 channel

RMS Power @ 2 ohms

800 watts x 1 channel

RMS Power @ 1 ohm

1200 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

2400 watts

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<1%

Speaker Level Inputs

Yes

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 200 Hz

Subsonic Filter

20 - 50 Hz

Signal-to-Noise Ratio

62 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
