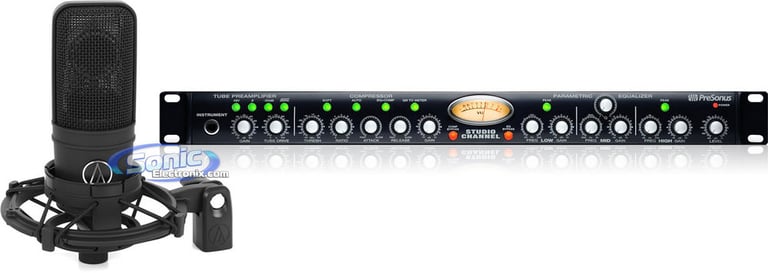

Audio Technica AT4033/CL & Presonus Studio Channel Package

1. The 2-micron-thick, vapor-deposited gold diaphragm undergoes a five-step aging process so the optimum characteristics achieved remain constant over years of use.
2. Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity.
3. Floating-construction capsule assembly provides isolation from noise and vibration.
4. Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections.
5. Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of highspeed transients.
6. State-of-the art surface-mount electronics ensure compliance with A-T’s stringent consistency and reliability standards.

What's In The Box?

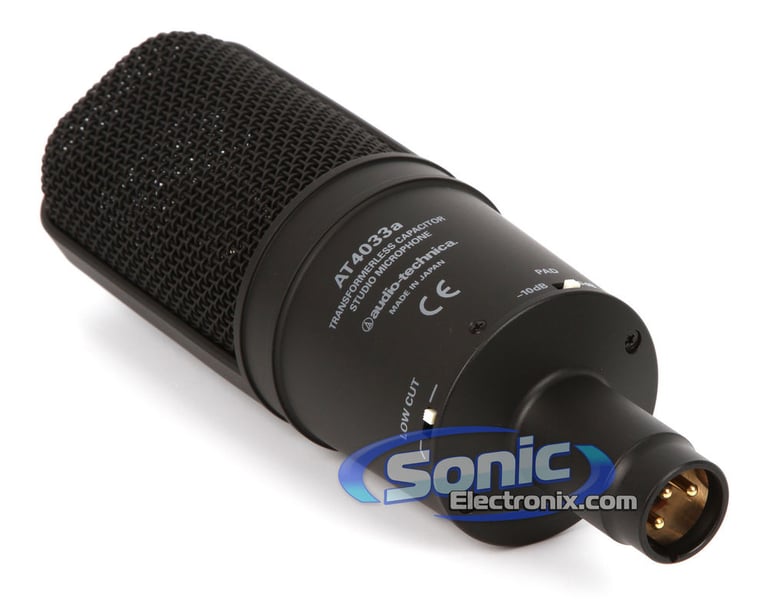

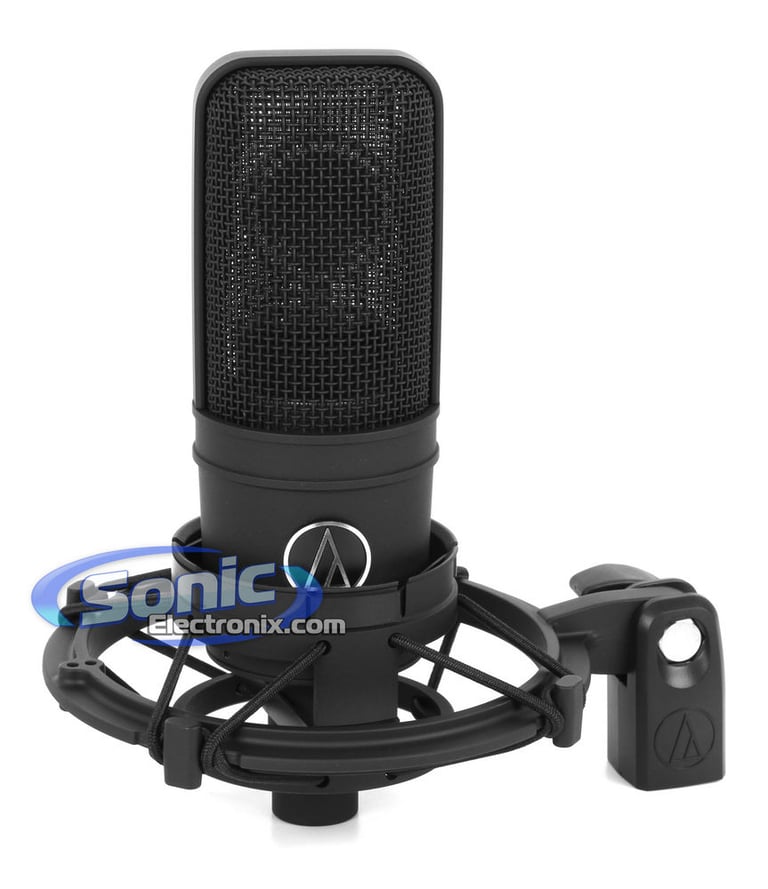

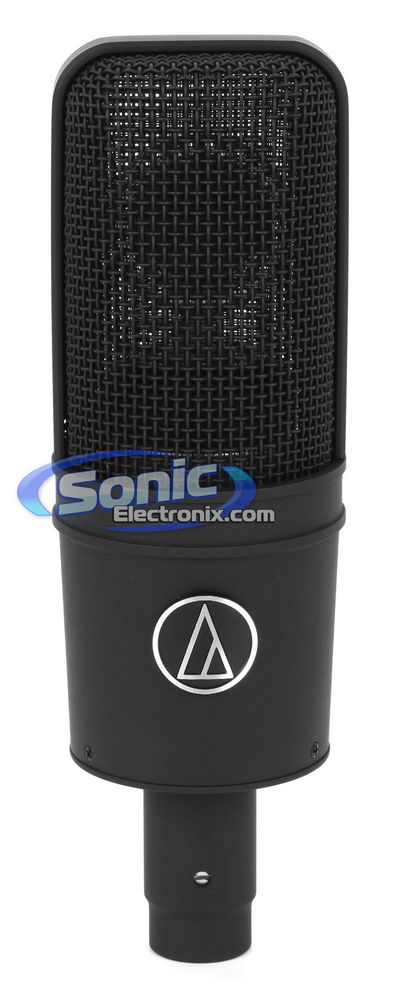

1. (1) AT4033/CL Side-Address Cardioid Condenser Microphone

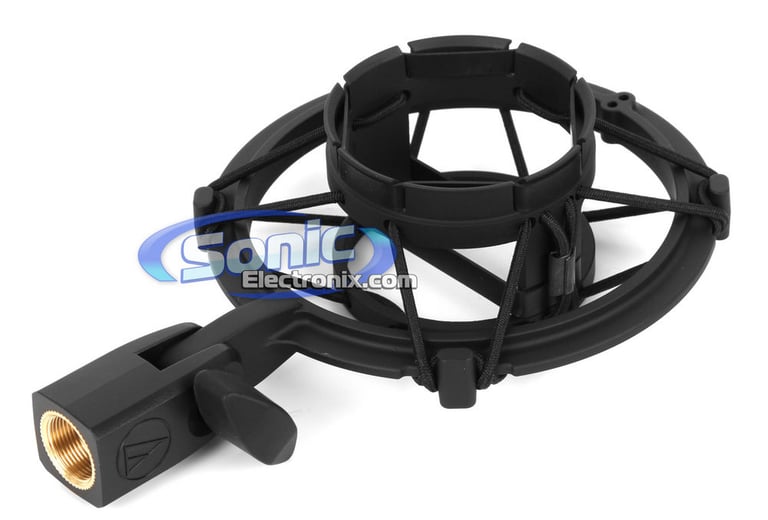

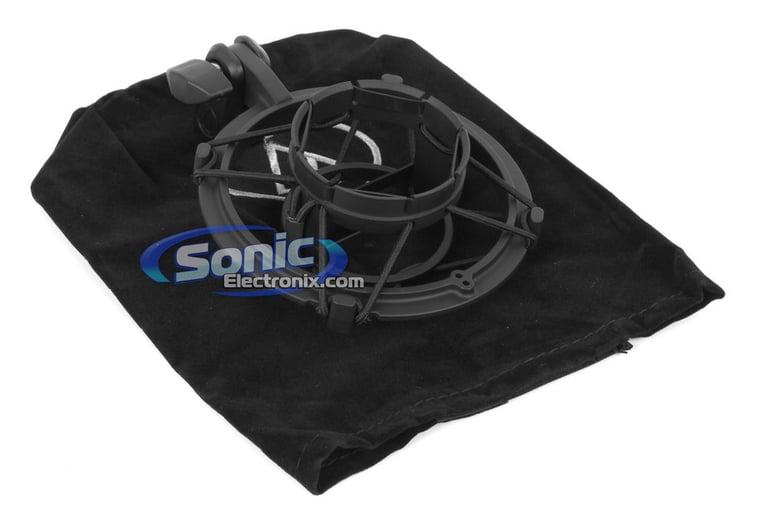

2. (1) AT8449 Shock Mount for 5/8"-27 Threaded Stands
3. (1) Microphone Dust Cover

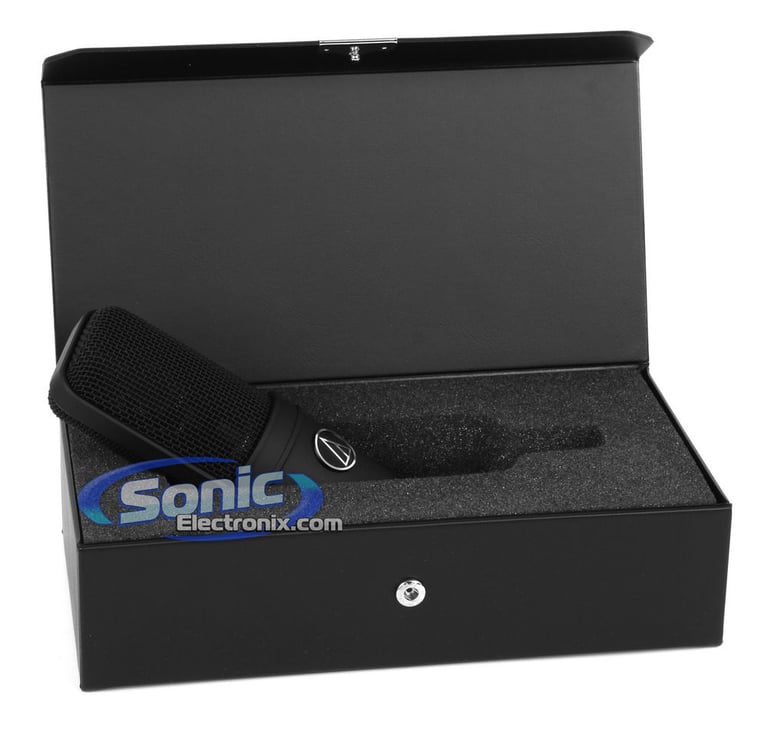

4. (1) Protective Carrying Case

Audio Technica 4033/CL Specifications:

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 30-20,000 Hz
• Low Frequency Roll-Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -32 dB (25.1 mV) re 1V at 1 Pa
• Impedance: 100 ohm
• Maximum Input Sound Level:
• 145 dB SPL, 1 kHz at 1% T.H.D.
• 155 dB SPL, with 10 dB pad (nominal)
• Noise: 17 dB SPL
• Dynamic Range (Typical): 128 dB, 1 kHz at Max SPL
• Signal-To-Noise Ratio: 77 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 3.2 mA typical

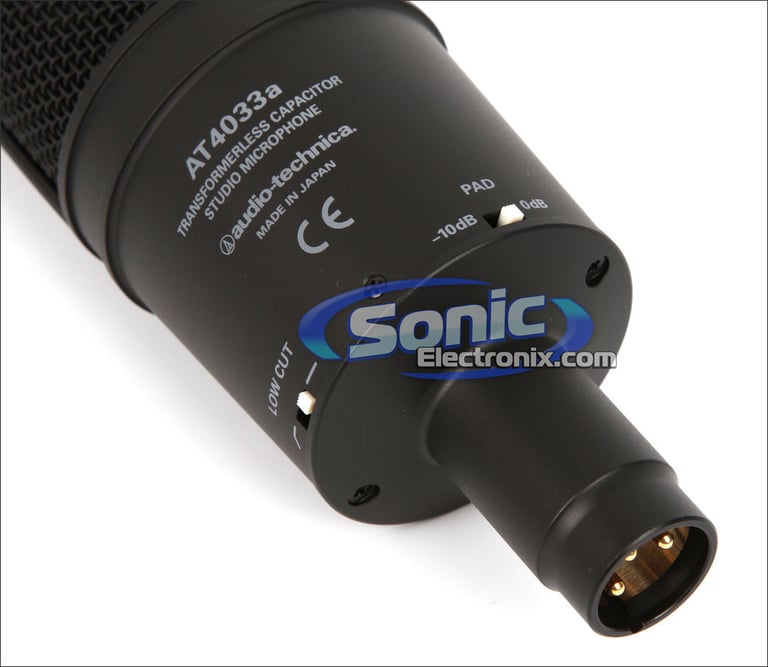

• Switches: Flat, roll-off; 10 dB pad (nominal)
• Size & Weight:
• Weight: 13.4 oz (380 g)
• Height: 6.69" (170.0 mm)
• Diameter: 2.10" (53.4 mm)
• Output Connector: Integral 3-pin XLRM-type
• Audio Technica Case Style: R1
• Also found as: AT-4033, AT4033-CL, AT4033CL, AT-4033-CL, AT-4033CL
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

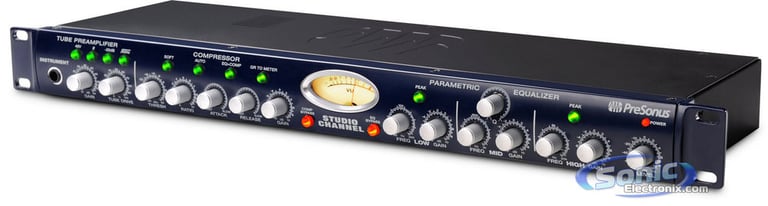

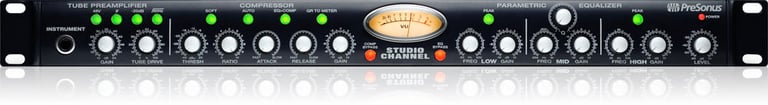

PreSonus Studio Channel Features:

• Professional Channel Strip with Class A Preamplifier, VCA Compressor and 3-Band Parametric Equalizer
• Three-band parametric Equalizer:
• Smooth highs, deep lows and clear midrange sound
• Variable Q controls the width around the center of the frequency
• High/low frequency bands with the option for selecting peak/dip or shelving frequencies
• Precision analog VU Meter for gain reductions and output
• Variable VCA Compressor (Threshold, ratio, attack, release, make up, gain, auto, soft)
• Dual gain and tube drive control for a wide range of sounds
• Low noise design for use in quiet areas
• Rugged metal chassis for long-lasting use
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Specifications:

• Number of Channels: 1
• Dynamic range: >115dB
• Frequency response: 10-50,000Hz
• Microphone Preamp:
• Gain: -6dB to +66dB
• Noise floor: -96dBu
• THD: <0.050%
• +48V Phantom power
• Switchable hi-pass filer: -3dB at 80Hz
• Compressor:
• Threshold: -40dBu to +2dBu
• Gain: -10dB to +10dB
• Metering: Analog VU (Gain reduction/output)
• Equalizer:
• Low frequency: 40-500,000Hz (Variable)
• Low gain: +/- 10dB (Variable)
• Mid frequency: 200-3,000Hz (Variable)
• Mid gain: -10dB to +10dB (Variable)
• High frequency: 2,000-20,000Hz (Variable)
• High gain: +/- 10dB (Variable)
• Master output fader: -80dB to +10dB
• Master output impedance: 51 ohm
• Linear power supply
• Dimensions: 5-1/2"D x 19"W x 1-3/4"H
