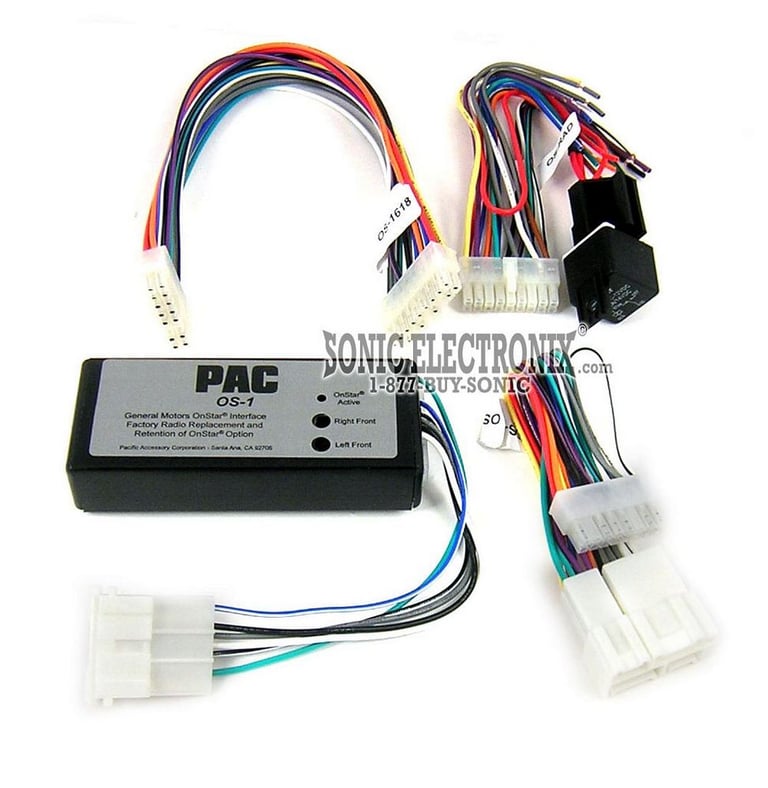

PAC OS-1

Add an Aftermarket Radio and Retain OnStar in Select 1996-2003 GM and Pontiac Vehicles

PAC
Shop all PAC
highlight-star-icon

• OnStar Interface
• Retains OnStar Usage For Aftermarket Stereos
• Remote Wire Output
• Will Not False Trigger
• LED Indicator

Learn more about the os1

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Description


PAC brand icon

Authorized dealer

Harness Features:

  • OnStar® interface
  • Maintains operation of OnStar for aftermarket stereos
  • Incorporates a microcontroller that communicates directly with OnStar's serial data protocal to prevent false triggering thus eliminating unwanted audio noise through speakers
  • Onboard amplifier will drive two, 4 ohm speakers in stereo
  • Use with existing speakers in front doors or use external/separate speakers
  • 12 volt remote out to turn on factory amplifier and mute wire to attenuate the aftermarket stereo
  • LED indicator and volume control
  • Built in audio isolation circuit eliminates engine noise
  • Will not false trigger
  • Note: The OS-1 will not work with OnStar® equipped vehicles that have factory radios with RDS (Class 2 headunits). Factory radio's with RDS can be indendified by locating an RDS logo on the front face of the factory radio. OS-1 currently supports trucks and SUV's from 1996-2001 and 1999-2002 Pontiac Gran Prix. Pontiac Grand Prix with Bose® requires a OEM-1 and a AMP-GM21B wire harness
  • 1-year SonicElectronix.com warranty

Compatibility List:

  • Cadillac:
    • 1999 - 2000 Escalade
    • 2002 Escalade
  • Chevrolet
    • 2002 Avalanche
    • 1999 - 2001 Blazer (S-10)
    • 1998 - 2002 Silverado
    • 1998 - 2002 Suburban
    • 1998 - 2002 Tahoe
    • 1998 - 2000 Venture
  • GMC
    • 1998 - 2002 Sierra
    • 1998 - 2002 Yukon
  • Pontiac
    • 1999 - 2002 Grand Prix
    • 1998 - 1999 Montana
    • 1998 - 2000 Silhouette
Notes: Not compatible in vehicles equipped with an RDS Radio

Connections:

  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
