See all parts that fit your 2012 Commander 800R XT

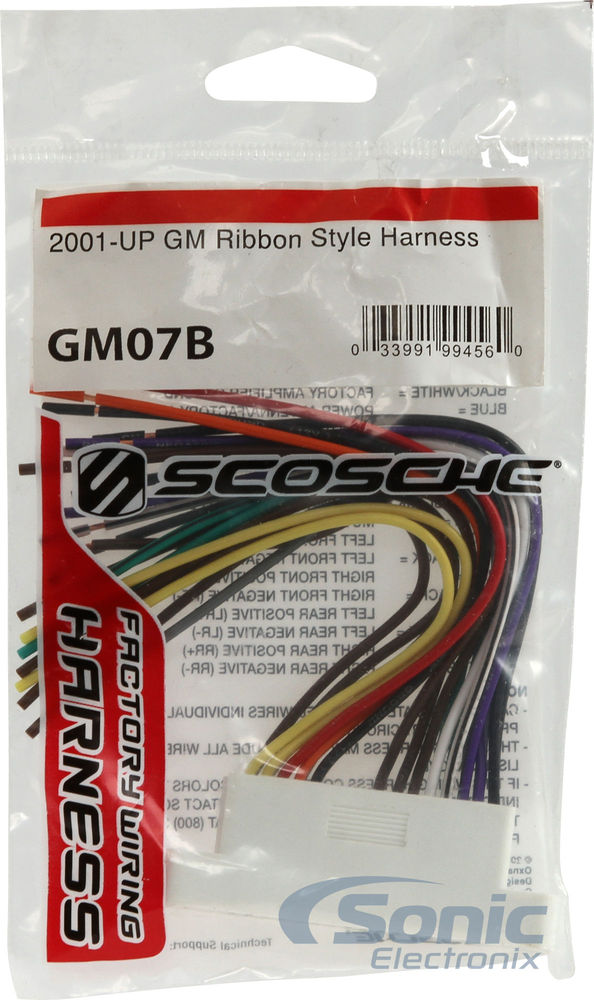

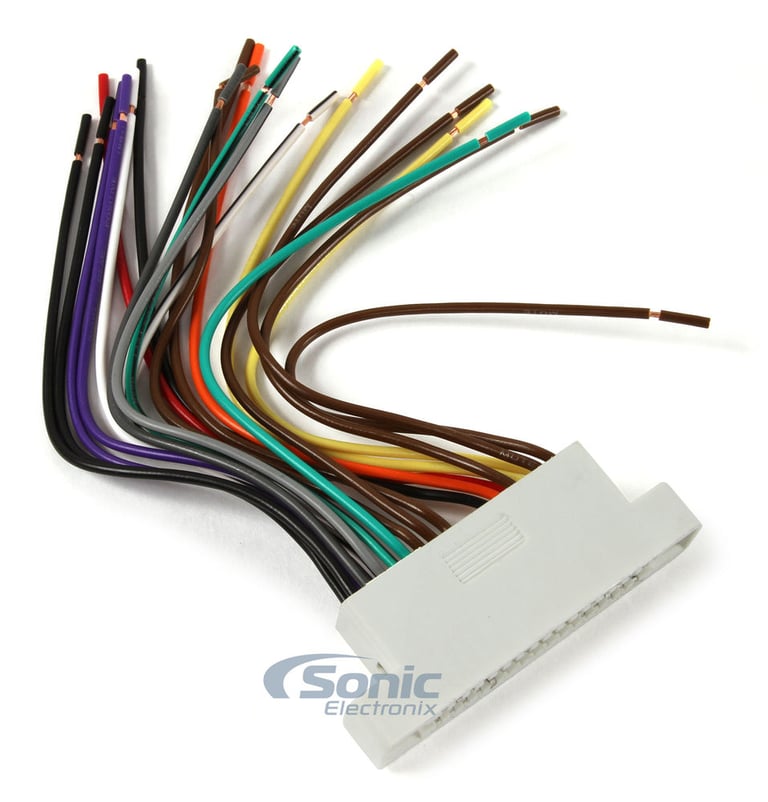

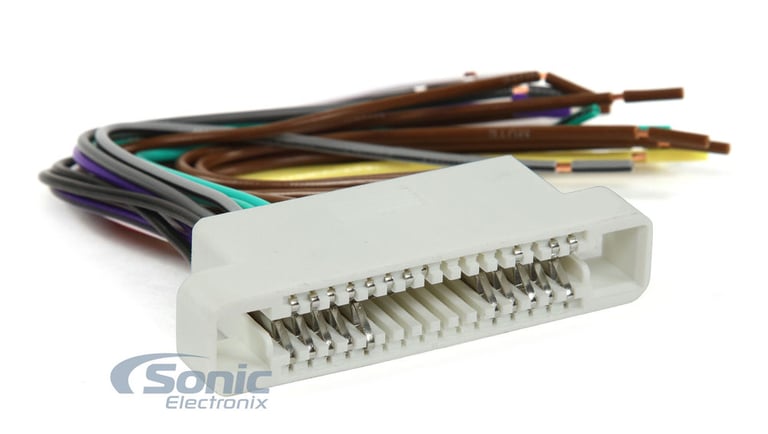

Scosche GM07B Wiring Harness

Install a new car stereo in select 2000-2005 LeSabre and Bonneville and Park Avenue

Scosche
Shop all Scosche
highlight-star-icon

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

See compatible vehicles Learn more about the gm07b

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Description


Scosche brand icon

Authorized dealer

Product Features:

Connections:

  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 2012 Can-Am Commander 800R XT is not compatible. Change vehicle or See list of compatible similar products


Best selling similar products

DKGM-49 small

Crux DKGM-49 Stereo Replacement Interface

• Stereo Replacement Interface with Dash Kit
• Fits select 2006-2020 vehicles from GMC, Chevrolet, Buick Vehicles
• Accommodates ISO Double DIN Mount
• Retain steering wheel controls and chime functions

(41)

$129.60

List price $201.60

70-1761 small

Metra 70-1761 Wiring Harness

• Direct connection to the factory radio harness
• Color coded wires for easy installation
• No cutting or splicing required

(97)

$5.99

List price $6.99

70-1771 small

Metra 70-1771

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(51)

$12.99

List price $6.99

70-5520 small

Metra 70-5520 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(56)

$9.95

List price $6.99

RP4-CH11 small

PAC RP4-CH11

• Direct connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(12)

$152.99

List price $379.00

GM02B small

Scosche GM02B Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(246)

$7.95

List price $8.99

70-1858 small

Metra 70-1858 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(63)

$9.95

List price $6.99

C2R-CHY4 small

PAC C2R-CHY4 Wiring Interface

• Provides 12-Volt accessory power (RAP)
• Designed for non-amplified and amplified models
• Retains balance and fade
• Pre-wired for steering wheel audio controls

(25)

$99.99

List price $299.00

70-7552 small

Metra 70-7552 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(34)

$10.99

List price $12.99

SWRTY-61C small

Crux SWRTY-61C

• Direct connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(2)

$112.05

List price $174.30

Specifications & Details


Harness Features
Main Harness Function
Connect/Install an Aftermarket Car Stereo
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

GM07B

Weight:

0.17lbs

Internal SKU:

gm07b

Internal Product ID:

5580

Customer Ratings & Reviews


Scosche GM07B Wiring Harness thumbnail image

5 star
43%
4 star
29%
3 star
29%
2 star
0%
1 star
0%



Durability
4.3
Value
4
Features
3.9
Design
4.5
Usability
4.2

Customer Reviews

Sort by:

Loading...

Effective

Overall the product is effective, however, it does not connect to the key "power" to turn it off and on with the key.

By Clifford on September 30, 2014

34 found this helpful


Recommended by sonic and amazon, but wrong harness

I have a 1998 Oldsmobile Bravada.
Both sonic and a***** listed this harness for my vehicle.
However, it's the wrong harness...totally different shape.
Luckily I only needed to splice in the power, and used an amp for the speakers or it would have been a nightmare.
Just a heads up for people that have a bravada.
Wasn't sure what to rate, as it's not the harness' fault that it didn't fit.

By Dan on January 21, 2013

32 found this helpful


Great product

Great product. Solved all my problems. A little pricey though

By Greg on August 12, 2010

28 found this helpful


Does the job, mostly

This does the job; however if you wish to retain accessory power after the car is turned off or some of the other features in your GM vehicle, you may need a special box. You should do some research and see if you vehicle uses the GM dock and Lock system, if so you will likely need the box to retail all features of your car.

By sam on July 26, 2010

28 found this helpful


Scosche GM07B

Seems to work just fine & it was definitely the right plug for my car.

By Anonymous on October 12, 2018 Checkmark Icon Verified purchase

16 found this helpful


By robert on September 26, 2022 Checkmark Icon Verified purchase

13 found this helpful


Looks good but didn't work as planned it doesn't mount to dashboard

Bonneville evidently has a unique install this kit was a good starting point but needed alterations.

By Dave on March 15, 2024 Checkmark Icon Verified purchase
