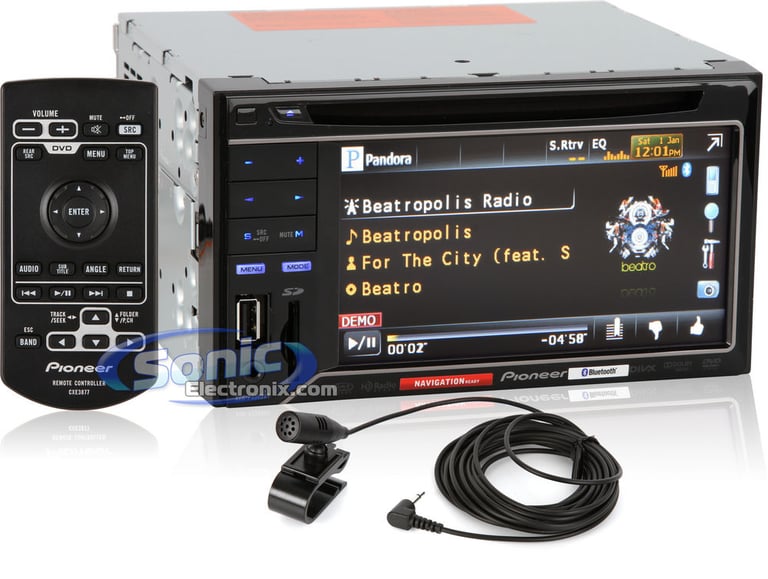

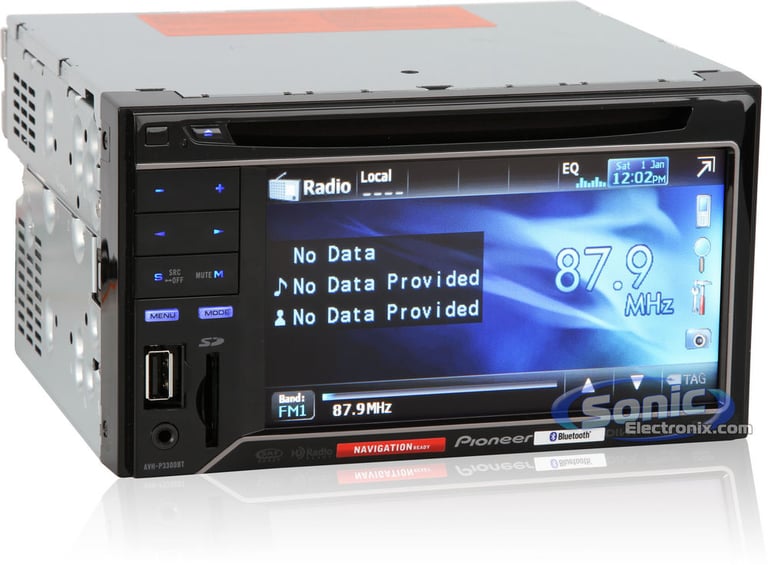

Pioneer AVH-P3300BT R/B

General Features:

• In-dash with DVD, AM/FM, CD, MP3, WMA controls
• Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
• Pandora Link integrates your car stereo with your iPhone and Pandora Internet Radio
• Double-DIN fixed face
• 5.8" full color display

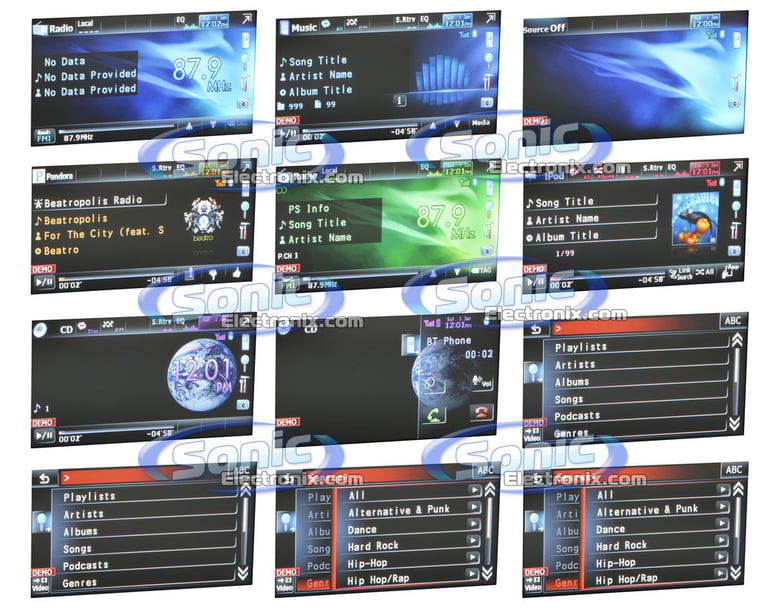

• Advanced and intuitive touchscreen operation

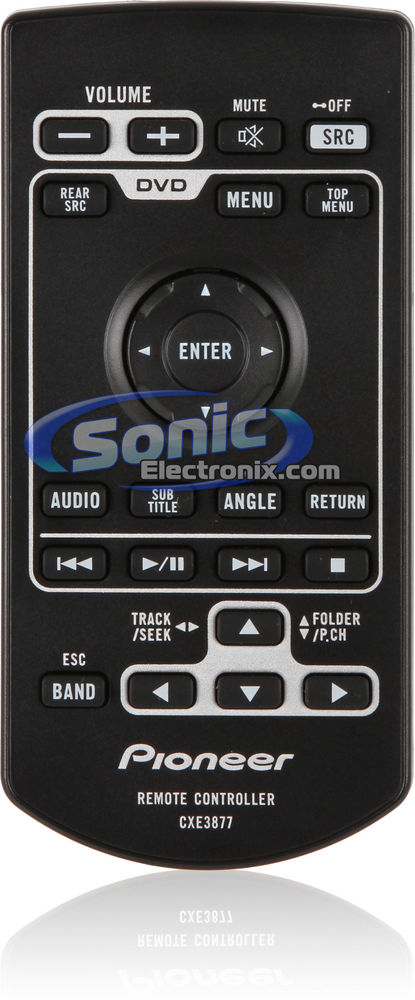

• Wireless remote control included
• 112 Variable color illumination button lighting
• 5 Selectable and customizable background display colors
• CEA-2006 compliant amplifier
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 22 watts x 4 channels (Pioneer Certified)
• RMS: 14 watts x 4 channels (CEA Certified)
• Rear channels can power a subwoofer directly from the speaker wires on the Pioneer harness (70 watt x 1 chan. @ 2 ohm)
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)
• 30-Day Sonic Electronix warranty

Playback and Audio Features:

• Playback of DVD, DVD-R, DVD-RW, DivX, VCD, CD, CD-R, CD-RW, MP3, and WMA
• Tuner with 18FM/6AM presets
• Dynamic Soundstage Organizer
• 8-Band parametric equalizer with 7 preset tone curves
• On-board high-pass and low-pass filters for greater acoustic customization
• With the optional Pioneer CD-MC20, the Pioneer AVH-P3300BT will automatically equalize the sound and tailor the acoustics
• Bass boost adjustment for extra subwoofer output
• Advanced Sound Retrieval technology restores the lost frequencies that come with digital compression of music

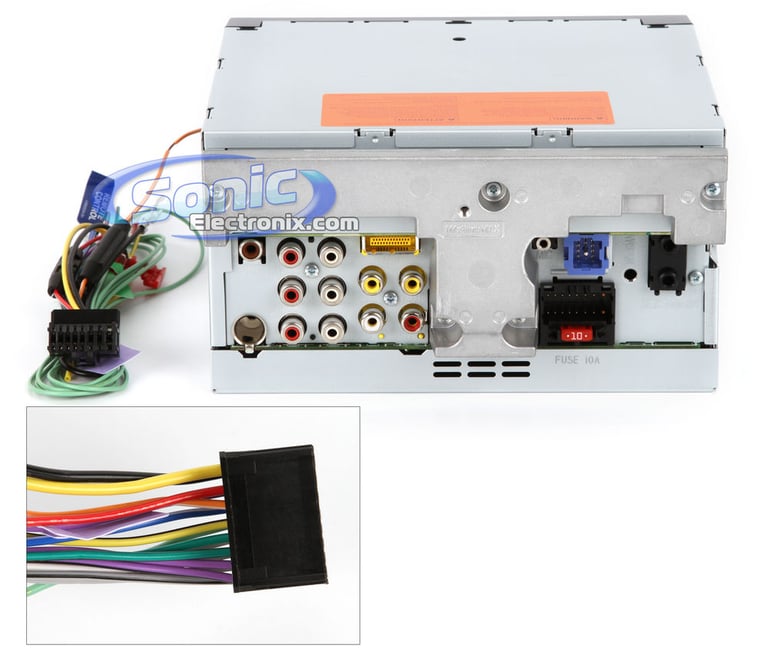

Expandability Options:

• 3 Sets of 4V preamp outputs (front, rear and subwoofer)

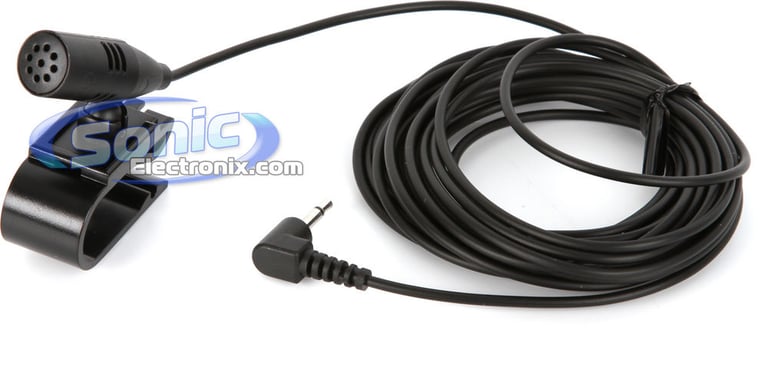

• Integrated Bluetooth: Enables phones to be paired for hands free calling with included voice microphone
• Navigation Ready: Pioneer AVIC-U220 required and sold separately
• SIRIUS or XM Satellite Radio Ready: SIRIUS Radio Package or the XM Radio Tuner required and sold separately
• HD Radio Ready: Pioneer GEX-P20HD required and sold separately
• iPod Ready:
  • Audio Playback: Pioneer CD-iU50 recommended, however a standard USB-to-iPod Cable is compatible
  • Audio & Video: Pioneer CD-IU50V required and sold separately
• Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
• Front-panel USB input
• Rear auxiliary video input: Rear video composite input
• Rear auxiliary video output: Rear video composite output for external monitors
• Rear auxiliary input: 2-Channel RCA audio input allows connection to portable media devices such as MP3 players, etc.
• Back-up camera ready: Pioneer ND-BC4 or the Pioneer ND-BC20PA recommended and sold separately
• Steering wheel remote ready: PAC SWI-PSv1 or the Axxess ASWC required and sold separately
• Front SD card slot

Key Features And Comparison Chart

	AVH-P6300BT	AVH-P4300DVD	AVH-P3300BT	AVH-P2300DVD	MVH-P8300BT	MVH-P7300
Display	7" Widescreen QVGA	7" Widescreen QVGA	5.8" Widescreen QVGA	5.8" Widescreen QVGA	3" Widescreen QVGA	3" Widescreen QVGA
Pre-amp Outputs	3 Sets (4 Volts)	3 Sets (4 Volts)	3 Sets (4 Volts)	2 Sets (2 Volts)	3 Sets (4 Volts)	3 Sets (4 Volts)
Playback (DVD/CD)	DVD/CD	DVD/CD	DVD/CD	DVD/CD
Video Format (DivX)					USB/SD	USB/SD
Audio Format (MP3/WMA/AAC)
SD Memory Card Slot
USB Interface	FRONT	REAR	FRONT	FRONT	FRONT	FRONT
iPod/iPhone Audio Direct Control Via USB				Requires CD-IU50V
8-Band Graphic Equalizer				5-Band Graphic EQ
Advanced Sound Retriever
Bluetooth Built-In		Requires CD-BTB200		Requires CD-BTB200		Requires CD-BTB200
Satellite Radio Ready
HD Radio Ready	Requires GEX-P20HD	Requires GEX-P20HD	Requires GEX-P20HD	Requires GEX-P20HD	Requires GEX-P20HD	Requires GEX-P20HD
RDS Tuner
Dual Zone Video Playback
Back-up Camera Ready
Navigation Ready	Requires AVIC-U220	Requires AVIC-U220	Requires AVIC-U220	Requires AVIC-U220
iPhone Pandora App Control
