Race Sport Accessories HID-R-8K

General Features:

• High Intensity Discharge (HID) Xenon Reverse Light Kit
• More than 3 times the light output of the traditional halogen bulb
• Requires no modification to factory components
• Direct plug-and-play installation
• QC tested to the latest standards
• Short start up time

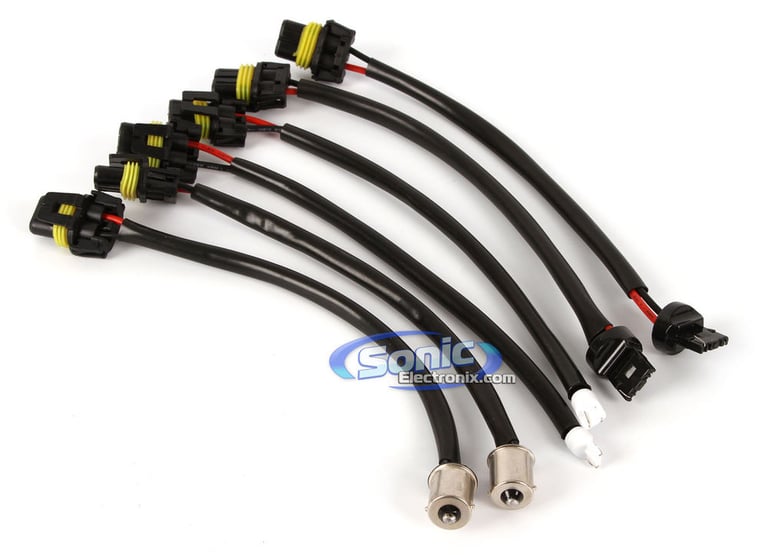

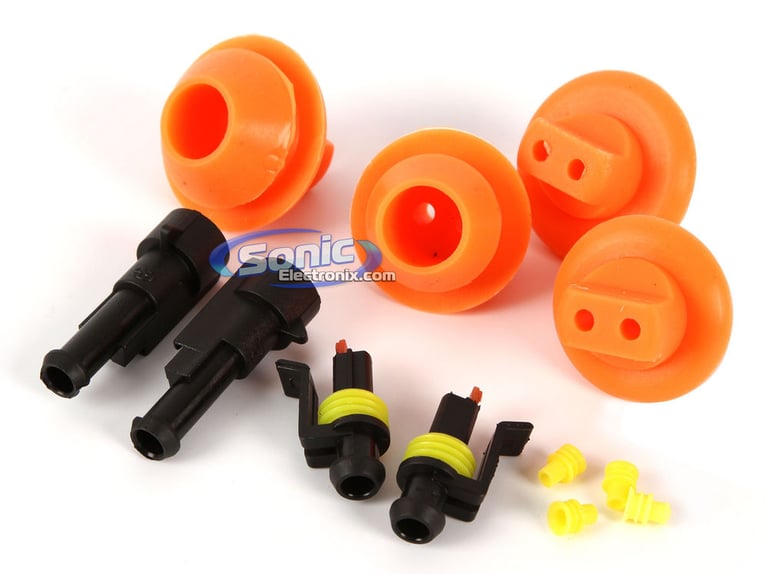

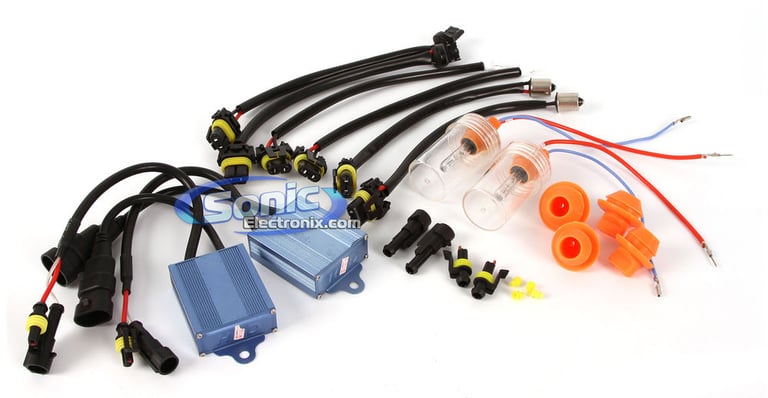

• Kit includes HID Bulbs, Ballasts, Wiring Harnesses and Mounting Hardware
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

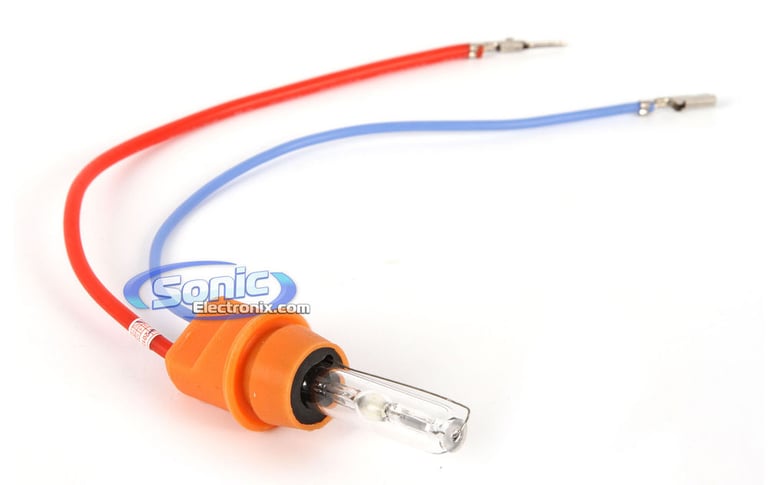

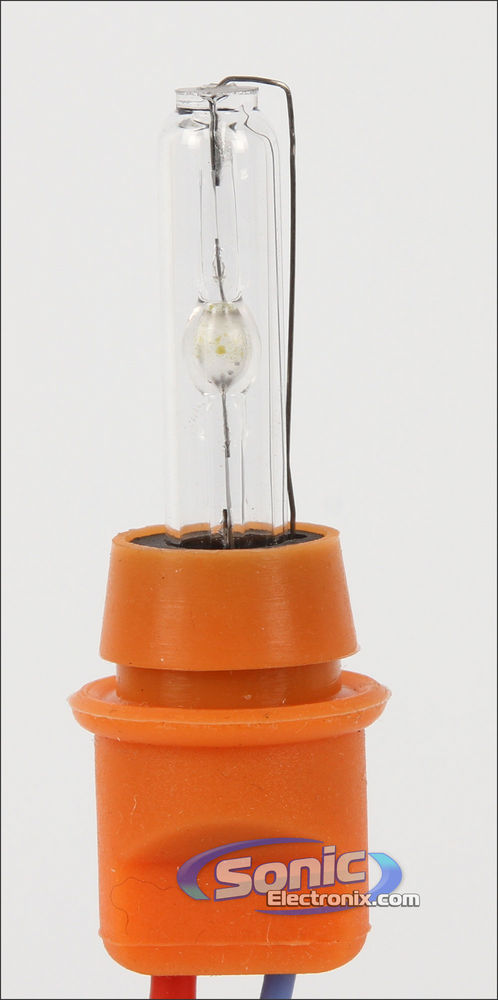

Bulb Features:

• High Intensity Discharge (HID) Xenon Light Bulbs
• Illumination: 2,500 ~ 3,500 lm
• Seamless integration in factory locations
• Lifespan > 3000 hours, 5 times longer than halogen bulbs
• UV-CUT resistant ultraviolet radiation block quartz glass
• Compatible with 3157/3156/7440/7443/1156/1157/194/921 bulb types
• Color: 8,000K (European Blue)
• Also Available In:
  • 4,300K (Pure White)
  • 6,000K (Crystal White)
  • 8,000K (European Blue)

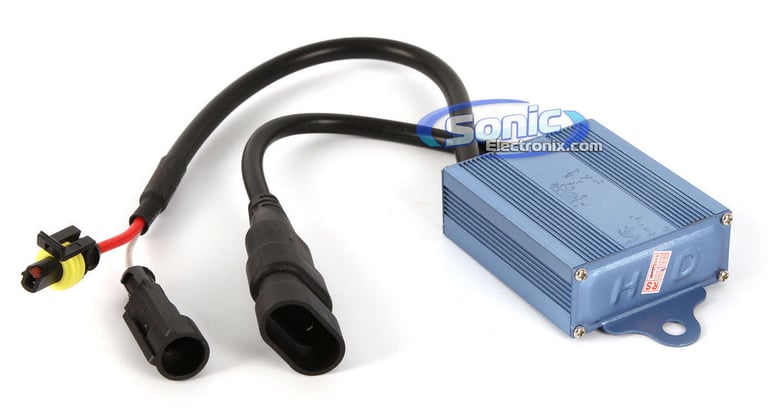

Ballast Features:

• Electronic control gear for Xenon light bulbs
• High quality AC component technology
• Combined ballast and burner
• Ignition coil built-in integrated design
• Automatic 3 second short circuit protection
• Voltage and output over pressure protection
• Water, dust, and vibration resistant design
• EMI Interference Protection: S95/54/EC standards
• Working Voltage: 12V AC
• Input Voltage: 5.5-16V AC
• Cold Startup Current: 5.2A
• Hot Startup Current: 4A
• Input Current: 3.5A AC (13.2V)
• Working Temperature: -40C -/+ 105C
• Efficiency: >83% (13.2V)
• Average Lifespan: >3000 hours
• Brightness: 2500 - 3500 Lumens
• Output Power: 15W
• Output Voltage Frequency: 250Hz
• Start Time: 90% in 3's

HID Color Temperature Chart

Searching for the right color of HID headlights and reverse lights can be a difficult task. It is hard to get a good visual of what that particular color would look like on your car. The chart below is designed to help you accurately see the true color of each HID bulb.

To learn more about HID Light colors, read our Knowledge Base article entitled HID Color Temperature.

Note: These kits are designed for off-road use only. When installing the HID lights and the ballast, please be careful to confirm the polarity of the power cable. The positive side of the plug corresponds with the "+" side on the ballast.
