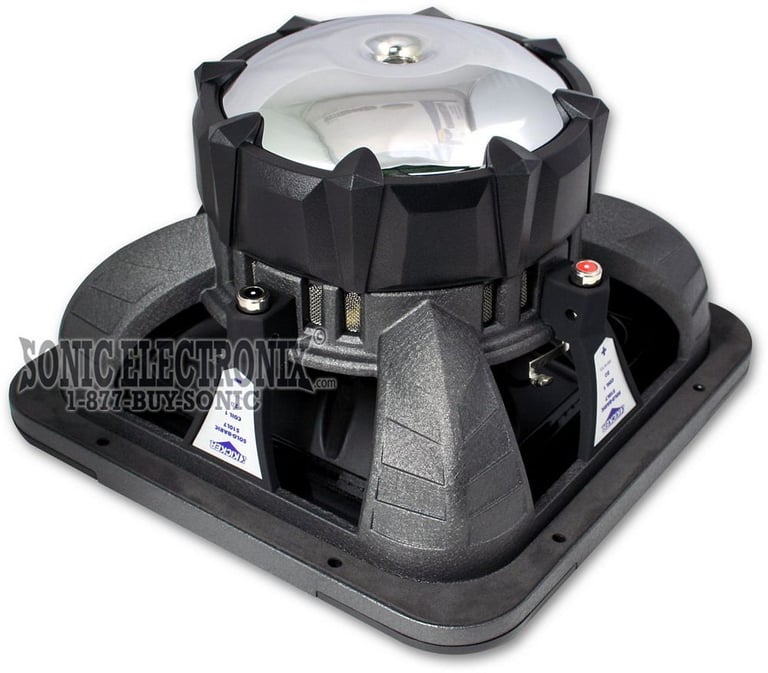

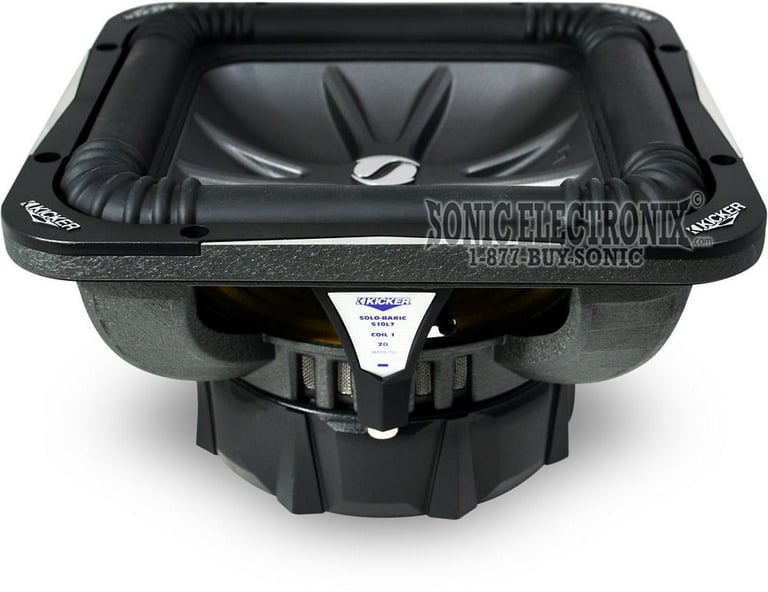

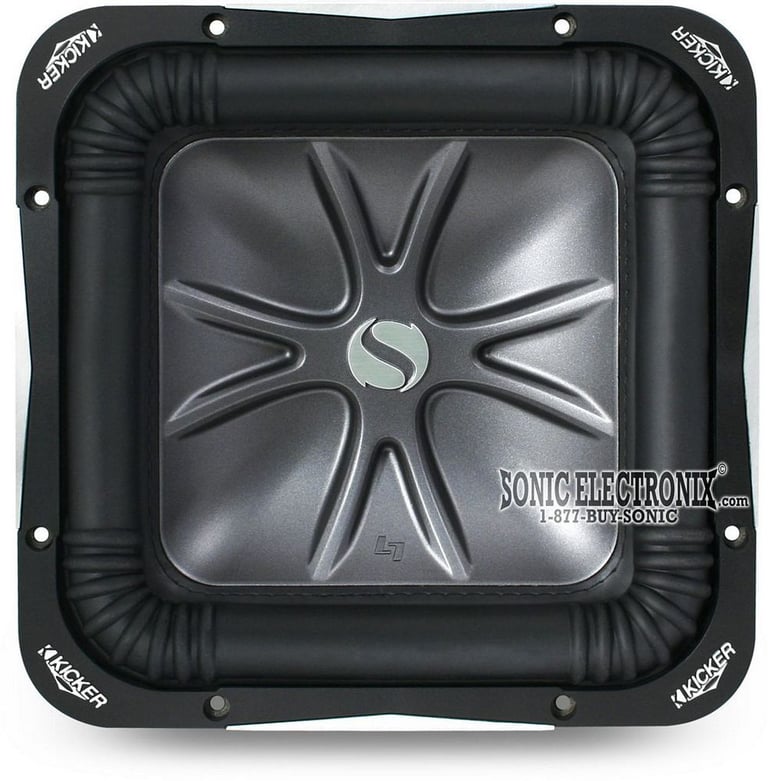

Kicker 06S10L72 Solo-Baric L7 Series

2 ohms DVC 10" L7 Solo-Baric Subwoofer S10L7 S10L72

Kicker
Shop all Kicker
Product videos
highlight-star-icon

10" Dual 2-ohm voice coils • aluminum deposit cone • rubber surround • 1200W / 600W RMS power handling • 24-100 Hz frequency response • square design

Learn more about the 06s10l72

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

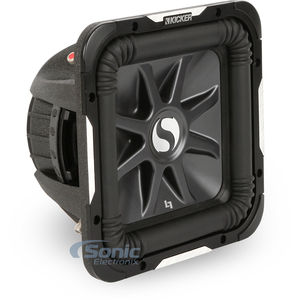

11s10l72 thumbnail

Kicker Solo-Baric L7 2-Ohm (11S10L72)

OUR PRICE: $199.95

View item

Loading...

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Crunch CS653

600W Peak (120W RMS) 6.5" CS Series 3-Way Coaxial 4-ohm Car Speakers

21
-9.09%

$29.99

List price $32.99

Pioneer AVH-240EX

6.2" Double DIN DVD Touchscreen Multimedia Receiver Built-in Alexa

8
-13.16%

$329.99

List price $380.00

Product Highlights


10" Dual 2-ohm voice coils • aluminum deposit cone • rubber surround • 1200W / 600W RMS power handling • 24-100 Hz frequency response • square design

Description


Kicker brand icon

Authorized dealer

  • dual 2 ohm voice coils for wiring flexibility (with a compatible amp)
  • aluminum deposit cone -- a beautiful look with less cone flex and less distortion
  • rear-cone brace for added strength to reduce cone flex under stress
  • Santoprene rubber surround
  • Massive surround radius provides increased excursion for low bass output and higher SPL
  • BAM (Basket and Motor) Enhanced Assembly: new for 2004 -- cast aluminum basket featuring low profile/open design that provides a solid anti-resonant foundation for the motor assembly
  • Perimeter venting which relieves pressure for a more linear response and aids in keeping the voice coils cool
  • Patent Pending Stitched Surround that aids in preventing cone/surround separation at high excursions
  • Sleeved high-power tinsel lead wires to resist lead breakage
  • Spring-loaded nickel plated terminals for solid connections with large gauge speaker wire
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

Kicker 11S10L72 thumbnail
(newest, current model)
Kicker 08S10L72 thumbnail
(previous model, replaced by Kicker Solo-Baric L7 2-Ohm (11S10L72))
Kicker 06S10L72 thumbnail
(previous model, replaced by Kicker Solo-Baric S10L72 (08S10L72))
Kicker 04S10L72 thumbnail
(previous model, replaced by Kicker 06S10L72 Solo-Baric L7 Series)
Kicker S10L72 thumbnail
(previous model, replaced by Kicker 04S10L72)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker 06S10L72 Solo-Baric L7 Series Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker 06S10L72 Solo-Baric L7 Series Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker 06S10L72 Solo-Baric L7 Series Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Kicker 06S10L72 Solo-Baric L7 Series Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
24 - 100 Hz
Sensitivity
86.1 dB
Xmax (millimeters)
13.2 mm
Subwoofer Design
Square
Main Cone Color
Black
Woofer Composition
Mica Filled Polypropylene coated with Titanium Deposit
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
6-3/16"
Cutout Diameter
9-7/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

06S10L72

Weight:

21.00lbs

Internal SKU:

06s10l72

Internal Product ID:

6396

Product and How-to Videos


Customer Ratings & Reviews


Kicker 06S10L72 Solo-Baric L7 Series thumbnail image

5 star
82%
4 star
18%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.1
Features
4.7
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Clean Bass

The following review is for 11S10L72, which is a part of the bundle you are viewing.

I have 1 of these in my daily driver and it compliments my components very well.

By bill on February 22, 2012

20 found this helpful


BEAUTIFUL

The following review is for 11S10L72, which is a part of the bundle you are viewing.

Just bought 3 of these in a custom ported box, ridiculous on how loud and great they sound. I was speechless.....

By Ralphy on June 22, 2011

21 found this helpful


Recommend

The following review is for 11S10L72, which is a part of the bundle you are viewing.

This is the best sub I ever owned. Everyone thought I had 2 15in subs but it was only this 1 L7. Loved it until it died 18 months from date of purchase.

By thinkbigent on June 25, 2012

18 found this helpful


surprze

The following review is for 11S10L72, which is a part of the bundle you are viewing.

My buddy had 1 of these but the l5 and it blew away my 2 12" memphis so i got one of the l7 and i dont have an amp yet so i hooked it up to a buddys amp and after a few hits it sent buddys amp in to protect. Amp wasnt 1 ohm stable :( but for the few seconds i did hear it it was pounding.

By sir_anton on January 4, 2012

18 found this helpful


slammn

The following review is for 11S10L72, which is a part of the bundle you are viewing.

I had 2 of these with an m-1000 and they slammed. Hit harder than 2 12" subs my friend had. Sweet but don't last long.

By joshua on February 21, 2012

14 found this helpful


decent

The following review is for 11S10L72, which is a part of the bundle you are viewing.

i only have 1 in a slot ported box and unless you wanna be a sh!t disturber thats all u need. hits hard and most of the time accurate. plays dubstep and rap no problem. but when it comes to the quick punches of heavy metal is where its downfall is. it just cant keep up. i notice that it just misses notes. so if yer into rap and dubstep. then this is the sub for u.

By steve on January 8, 2013

13 found this helpful


Just wow...

I have two of these in a custom ported box in my Ford Ranger Super Cab, and all I can say is wow! The power these things put out is unreal. I have a Hifonics TXi 1508D powering them and thought I might need two(one for each sub) and after playing A Milli on them I didnt think twice, I was sold. I can only turn my bass boost maybe 3/4 the way before I think my windows will break. One will do it but hey, go big or go home.

By Ethan on September 19, 2008

10 found this helpful


wow

purchased 2 of these from sonic cudnt be more happy with the product and service they pund twice as hard as my 10"alpine type r's way to go sonic!!!!

By Richard on July 3, 2006

10 found this helpful


Kicker 10" L7

The following review is for 11S10L72, which is a part of the bundle you are viewing.

This sub exceeded my expectations. My cousin has an L5 that is the same size and I wasn't expecting there to be much difference. Once we fired it up, I immediately noticed how much louder it was than his. Don't hesitate to buy this. Just do it and be happy.

By CP on April 27, 2015

10 found this helpful


Rediculously loud

I have always loved kicker, but never bought l7's becuase i always thought they were to expensive. But you get what you pay for and them some on these. I have these in a large ported enclosure sending 550 solid watts to them and wow they are bone chattering, ear bleeding, window shattering loud. They are way louder then i anticipated. I use to own kicker comps which were nice for what you payed for but these put those to shame, great buy, also these thing take a beating like no other. I'm very pleased.

By BigB on March 15, 2009

8 found this helpful




KDC-348U small

Kenwood KDC-348U Factory Refurbished

In-Dash CD Receiver w/ SAT Ready and Illuminated Front USB and AUX Inputs

(3)

$79.99

List price $169.99

SB-J-LBRTY/12W3v3/TN small

JL Audio SB-J-LBRTY/12W3v3/TN (KHAKI)

Jeep Liberty 2005-2007, 12" 4 ohms Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with 1 12W3v3-4 Subwoofer

$699.95

List price $699.95

11S10L72 small

Kicker Solo-Baric L7 2-Ohm (11S10L72)

1200W Peak (600W RMS) 10" Solo-Baric L7 Series Dual 2 ohm Subwoofer

(7)

$199.95

List price $349.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Suzuki SX4

1991 Mazda B2600

1988 Mazda B2600

2018 Nissan Maxima

1988 Buick Skyhawk

1998 BMW 740iL

2007 Mazda 3

1989 Dodge Ram 50

1971 Ford Thunderbird

2015 Dodge Charger

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
