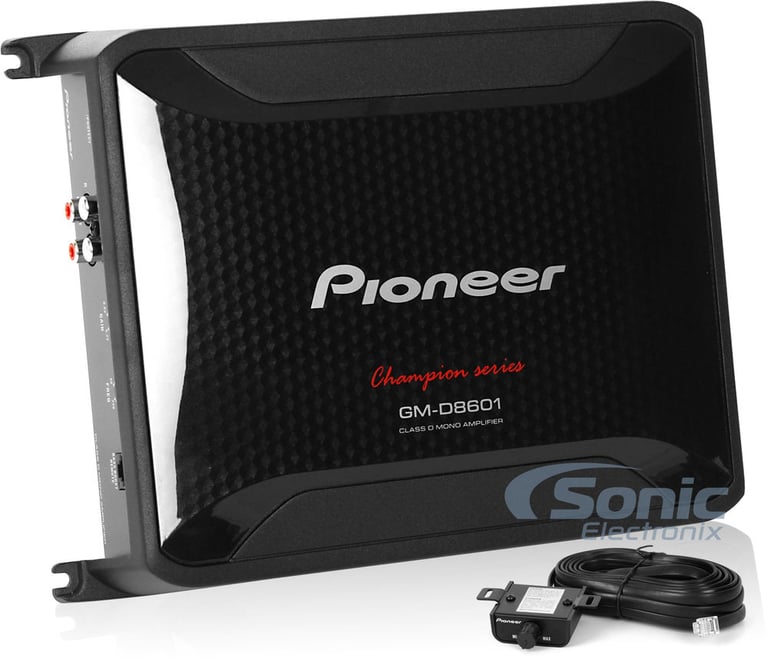

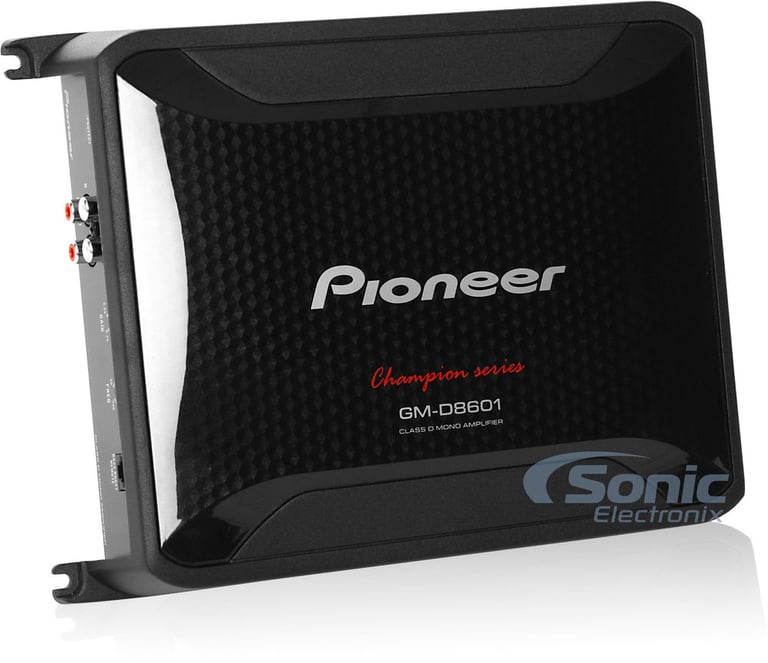

GM-D8601 | Monoblock 800W Class-D Amplifier | Pioneer

Pioneer GM-D8601 (Ships as 2019 model: Pioneer GM-D8701)

800W RMS Class D Monoblock GM Digital Series Amplifier

800W RMS Class D Monoblock GM Digital Series Amplifier

• RMS: 300W x 1 @ 4 ohms, 500W x 1 @ 2 ohms, 800W x 1 @ 1 ohm
• Total Peak Power: 1500W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB
• Class D Circuitry
• Dimensions: 10-7/16"W x 2-3/8"D x 7-7/8"H

4.7

(400)
List price $220.00
Save: $20.00

$200.00

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Pioneer

Authorized dealer



Pioneer GM-D8701

800W RMS Class D Monoblock GM Digital Series Amplifier
Quantity: 1

General Features:

  • GM Digital Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 300 watts x 1 chan.
    • 2 ohms: 500 watts x 1 chan.
    • 1 ohm: 800 watts x 1 chan.
  • Max power output: 1500 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

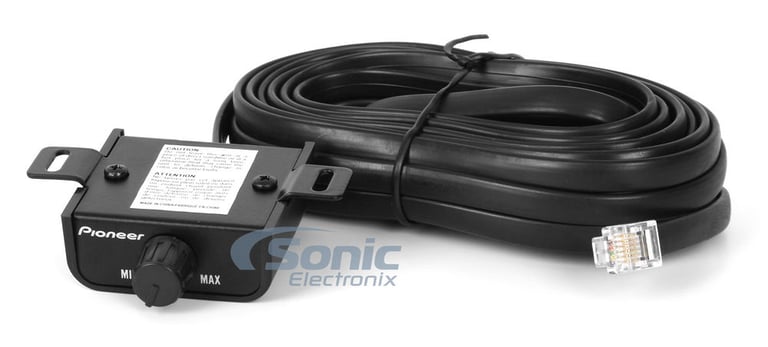

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)

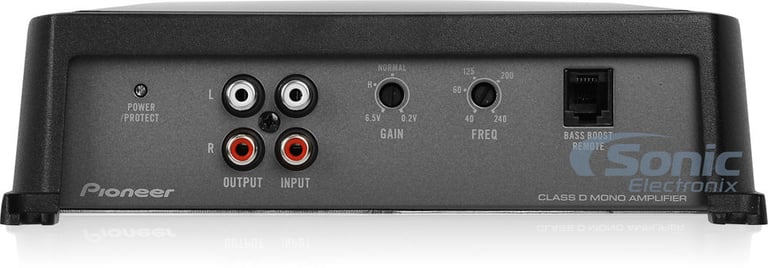

  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • High-density split-dome convection heat-sink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-6.5V
    • High level: 0.8V-16V
  • Variable low-pass filter (40-240 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-240 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10-7/16"W x 2-3/8"D x 7-7/8"H
  • 1-year Sonic Electronix Warranty

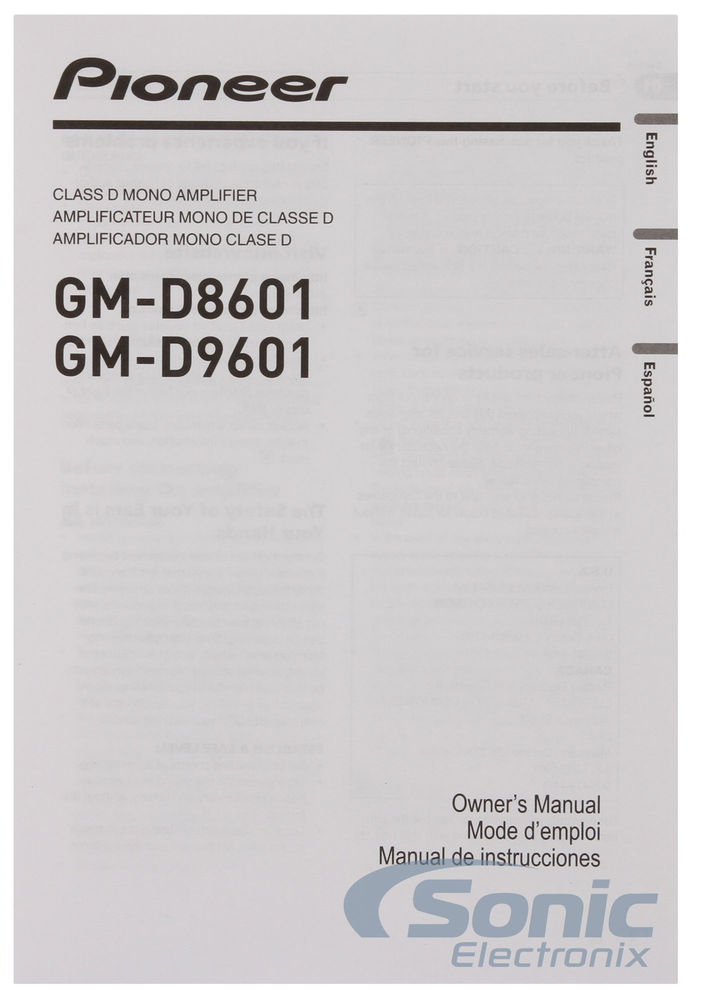

Check out the Pioneer GM-D8701 Owner's Manual

Product history:

Pioneer GM-D8701 thumbnail
(newest, current model)
Pioneer GM-D8601 thumbnail
(previous model, replaced by Pioneer GM-D8701)
Pioneer GM-D7500M thumbnail
(previous model, replaced by Pioneer GM-D8601 (Ships as 2019 model: Pioneer GM-D8701))
Pioneer GM-D7400M thumbnail
(previous model, replaced by Pioneer GM-D7500M)
Pioneer GM-7300M thumbnail
(previous model, replaced by Pioneer GM-D7400M)
Pioneer GM-7200M thumbnail
(previous model, replaced by Pioneer GM-7300M)
FEATURES & SPECS
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channels
RMS Power @ 2 ohms
500 watts x 1 channels
RMS Power @ 1 ohm
800 watts x 1 channels
Amplifier Specifications
Amplifier Series
GM Digital (Pioneer)
Marine Certified
No
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
10 - 240 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Bass/Gain Remote
Yes
Fan Cooled
No

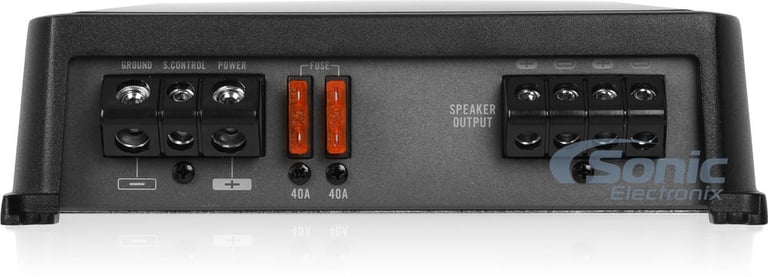

Fuse Rating
40A x 2
Strappable
No
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix
