Name: Rockford Fosgate R150X2 Open Box
Brand: Rockford Fosgate
SKU: LS-r150x2-OB
Price: 69.99 USD
Availability: Discontinued

by Rockford Fosgate

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

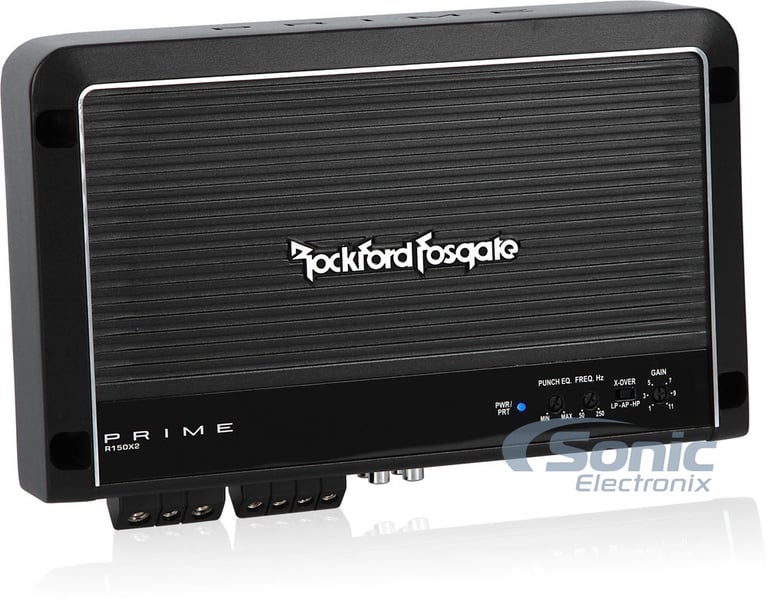

Rockford Fosgate R150X2 Open Box Image 1 — Rockford Fosgate R150X2 Open Box

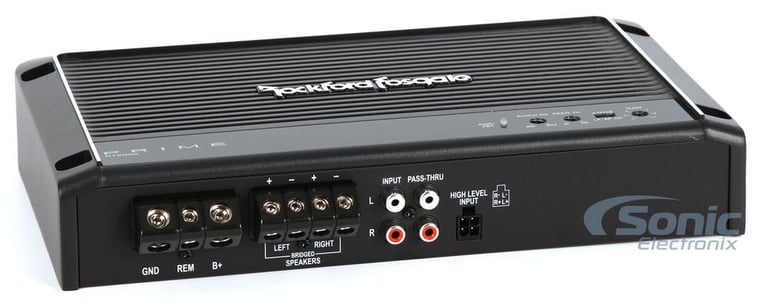

Rockford Fosgate R150X2 Open Box Image 2 — Rockford Fosgate R150X2 Open Box

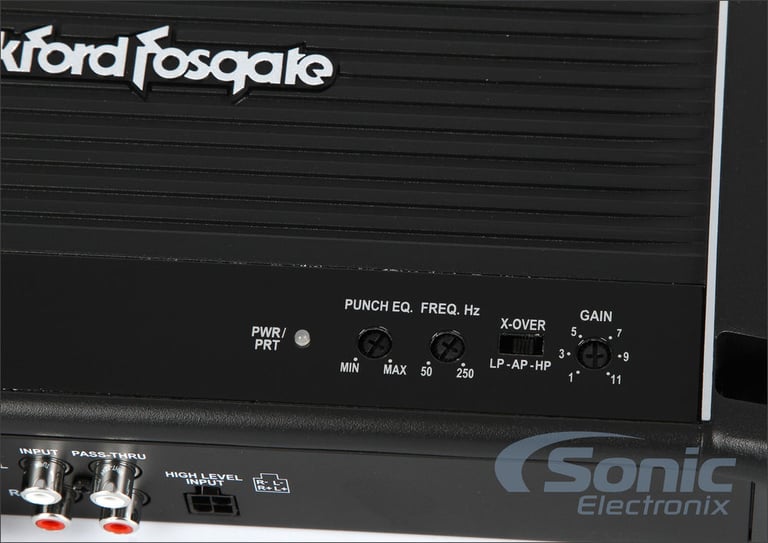

Rockford Fosgate R150X2 Open Box Image 3 — Rockford Fosgate R150X2 Open Box

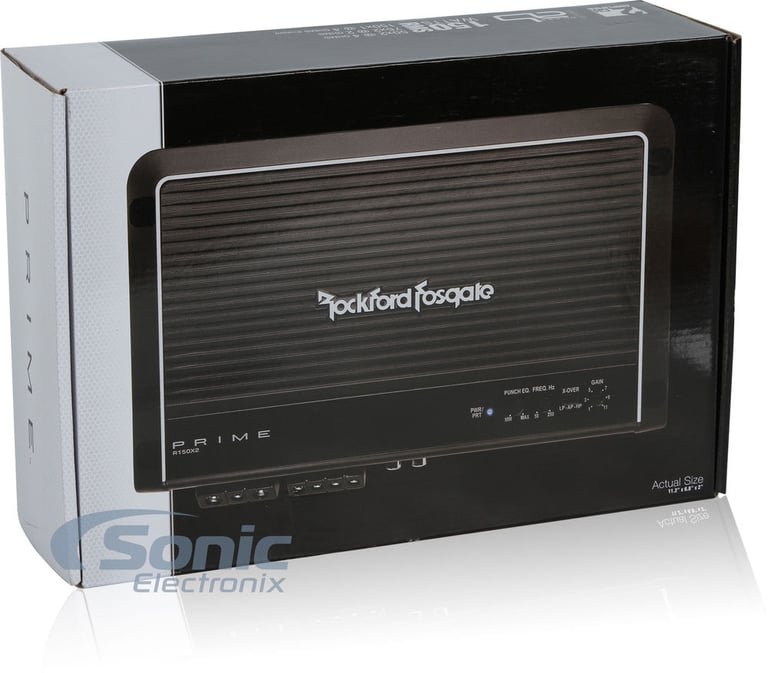

Rockford Fosgate R150X2 Open Box Image 4 — Rockford Fosgate R150X2 Open Box

Product videos

Product highlights

• Prime Series Full Range Class AB 2-Channel Car Amplifier
• 50W x 2 Chan. @ 4 ohm
• 75W x 2 Chan. @ 2 ohm
• 150W x 1 Chan. @ 4 ohm Bridged
• Variable Bass Boost
• Variable High-Pass Crossover
• CEA-2006 Compliant
• Soft-Start Turn On

Learn more about the LS-r150x2-OB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

The PRIME Choice

Rockford Fosgate amplification at an unbelievable value. The R150X2 2-channel amplifier pumps out more than enough to power a set full-range or component speakers, or you can bridge it into a 4-ohm load to produce 150 watts for a single R1S410 10" or R1S412 12" woofer.

Class-AB

An amplifier topology with the best of both worlds; a Class A preamp and Class B output stage. Class A topologies area great for sound quality but can require alot of current. Class B designs are great for power delivery. Amplifier designs utilizing a Class A/B topology reaps the benefit of great sound quality in the front-end (preamplifier stage) while delivering great power in the output stages (MOSFET drivers).

INSTALLED SCREW MARKS

General Features:

Prime Series Full Range Class AB 2-Channel Car Amplifier
RMS Power Rating:
- 4 ohm: 50 watts x 2 chan.
- 2 ohm: 75 watts x 2 chan.
- Bridged, 4 ohm: 150 watts x 1 chan.
MOSFET power supply
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
Soft Start Turn-on
4/2 channel switch
20 Amp In-line fuse is highly recommended
Heavy duty cast aluminum alloy heatsink for extreme heat dissipation
Variable high-pass filter (50-250 Hz, Butterworth 12 dB/octave)
Variable low-pass filter (50-250 Hz, Butterworth 12 dB/octave)
CEA-2006 compliant amplifier
Dimensions: 11-1/4"L x 6-3/4"W x 2"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90-Day SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

50 watts x 2 channel

RMS Power @ 2 ohms

75 watts x 2 channel

Bridged RMS Power

150 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total RMS Power Output

150 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

1.0%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 250 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Signal-to-Noise Ratio

100 dB

Channel Separation

50 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Strappable

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
