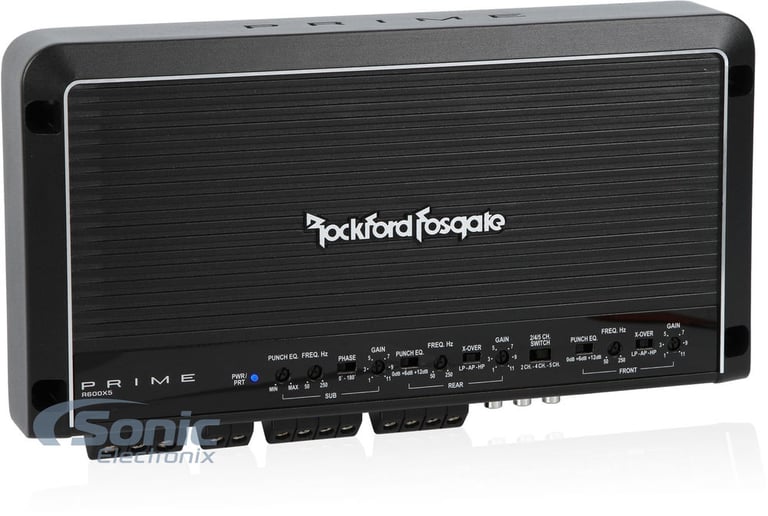

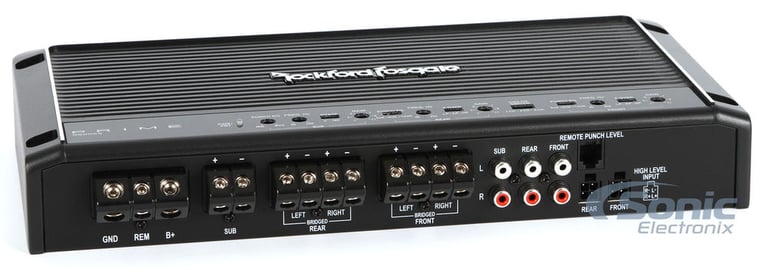

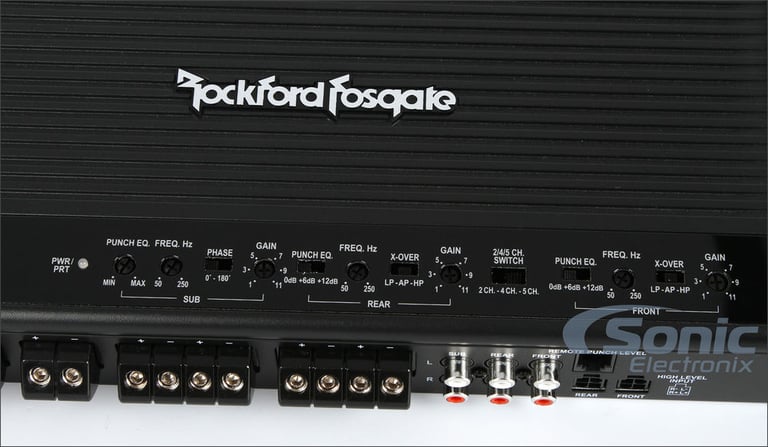

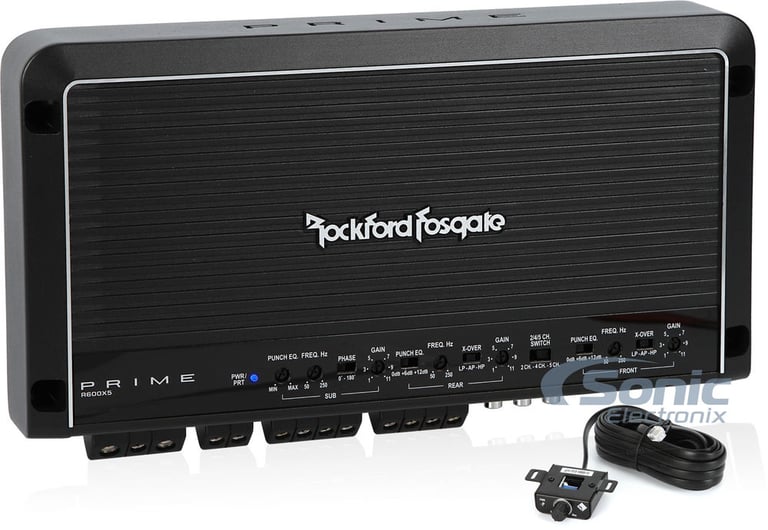

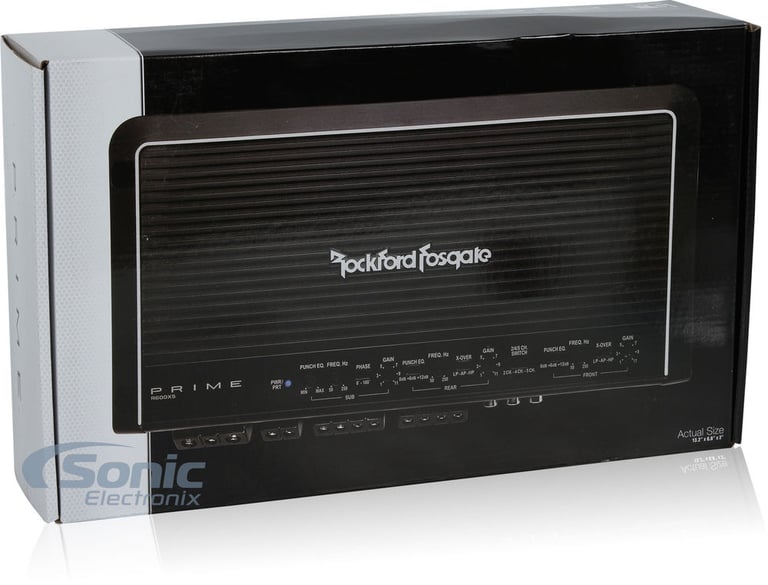

Rockford Fosgate R600X5 OPEN BOX COMPLETE Image 1 — Rockford Fosgate R600X5 OPEN BOX COMPLETE

Rockford Fosgate R600X5 OPEN BOX COMPLETE Image 2 — Rockford Fosgate R600X5 OPEN BOX COMPLETE

Rockford Fosgate R600X5 OPEN BOX COMPLETE Image 3 — Rockford Fosgate R600X5 OPEN BOX COMPLETE

Rockford Fosgate R600X5 OPEN BOX COMPLETE Image 4 — Rockford Fosgate R600X5 OPEN BOX COMPLETE

Rockford Fosgate R600X5 OPEN BOX COMPLETE Image 5 — Rockford Fosgate R600X5 OPEN BOX COMPLETE

Rockford Fosgate R600X5 OPEN BOX COMPLETE Image 6 — Rockford Fosgate R600X5 OPEN BOX COMPLETE

Rockford Fosgate R600X5 OPEN BOX COMPLETE Image 7 — Rockford Fosgate R600X5 OPEN BOX COMPLETE

Rockford Fosgate R600X5 OPEN BOX COMPLETE Image 8 — Rockford Fosgate R600X5 OPEN BOX COMPLETE

Rockford Fosgate R600X5 OPEN BOX COMPLETE Image 9 — Rockford Fosgate R600X5 OPEN BOX COMPLETE

Rockford Fosgate R600X5 OPEN BOX COMPLETE Image 10 — Rockford Fosgate R600X5 OPEN BOX COMPLETE

Rockford Fosgate R600X5 OPEN BOX COMPLETE Image 11 — Rockford Fosgate R600X5 OPEN BOX COMPLETE

Rockford Fosgate R600X5 OPEN BOX COMPLETE Image 12 — Rockford Fosgate R600X5 OPEN BOX COMPLETE

Rockford Fosgate R600X5 OPEN BOX COMPLETE-video

Product videos

Product highlights

Item Condition: Open box complete

• 50W x 4 Chan. + 200W x Sub Chan. @ 4 ohm
• 75W x 4 Chan. + 300W Sub Chan. @ 2 ohm
• 700W x 5 Chan. RMS
• Sub Channel Variable Bass Boost 0-12 dB
• Hybrid Class A/B with added Class D Subwoofer Channel! Learn more about the LS-r600x5-OBCra216773

Product Highlights

Item Condition: Open box complete

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Go for PRIME

The Prime R600X5 amplifier produces up to 75 Watts into each of its 4-channels plus 300 Watts into a dedicated 5th (subwoofer) channel. This 5-channel design makes it the perfect amplifier when you want one amplifier to run it all! The Prime series offers quality and power from Rockford Fosgate at a great price. Car Audio Fanatics rock out!

General Features:

Item Condition: Open box complete

Original packaging damaged and replaced
Prime Series 5-Channel Class AB Car Amplifier with Class D Subwoofer Channel
Channel 1-4 RMS Power Rating:

4 ohm: 50 watts x 4 chan.
2 ohm: 75 watts x 4 chan.

Subwoofer Channel RMS Power Rating:

4 ohm: 200 watts x 1 chan.
2 ohm: 300 watts x 1 chan.

MOSFET power supply

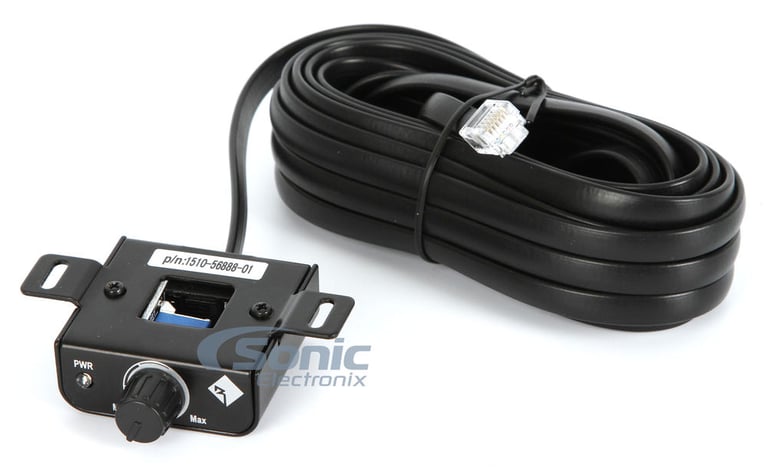

Wired remote bass level control included
LED power (green) and protect (red) indicators
Full-Range Channels Selectable Bass Boost (0/6/12 dB @ 45 Hz)
Sub Channel Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
Soft Start Turn-on
Mono channel operation
50 Amp In-line fuse is highly recommended
Heavy duty cast aluminum alloy heatsink for extreme heat dissipation
Variable high-pass filter (50-250 Hz, Butterworth 12 dB/octave)
Variable low-pass filter (50-250 Hz, Butterworth 12 dB/octave)
CEA-2006 compliant amplifier
Dimensions: 13-3/16"L x 6-3/4"W x 2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

50 watts x 4 channel

RMS Power @ 2 ohms

75 watts x 4 channel

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

200 watts x 1 channel

RMS Power @ 2 ohms

300 watts x 1 channel

Amplifier Specifications

Series

Prime Series

Amplifier Class

AB / D

Number of Channels

5-Channel

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

THD at Rated RMS Power

1.0%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 250 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Strappable

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
