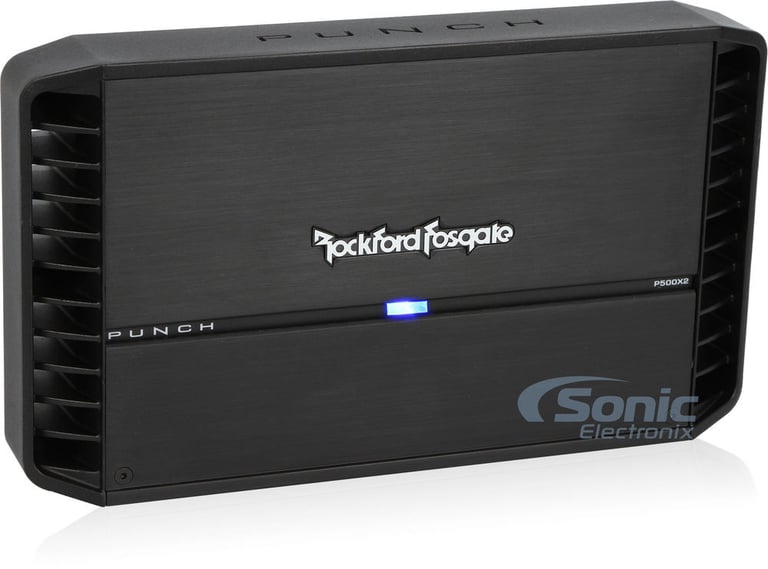

Rockford Fosgate P500X2-OPEN BOX Image 1 — Rockford Fosgate P500X2-OPEN BOX

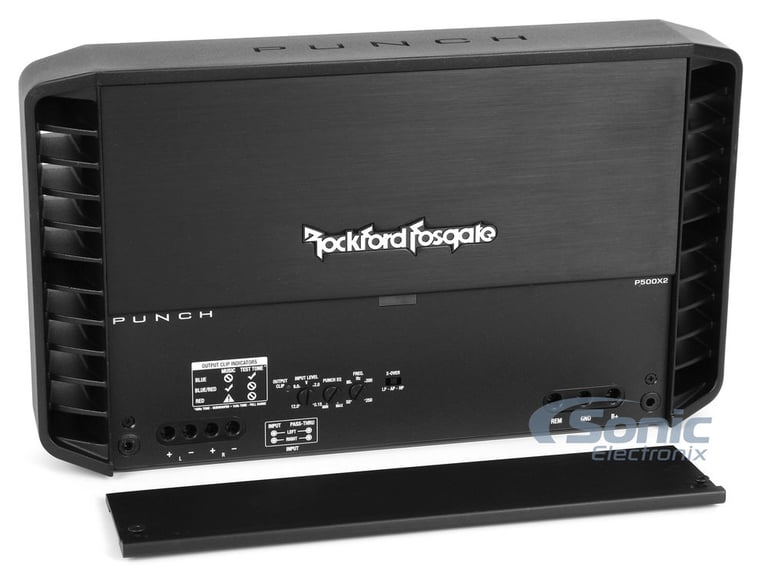

Rockford Fosgate P500X2-OPEN BOX Image 2 — Rockford Fosgate P500X2-OPEN BOX

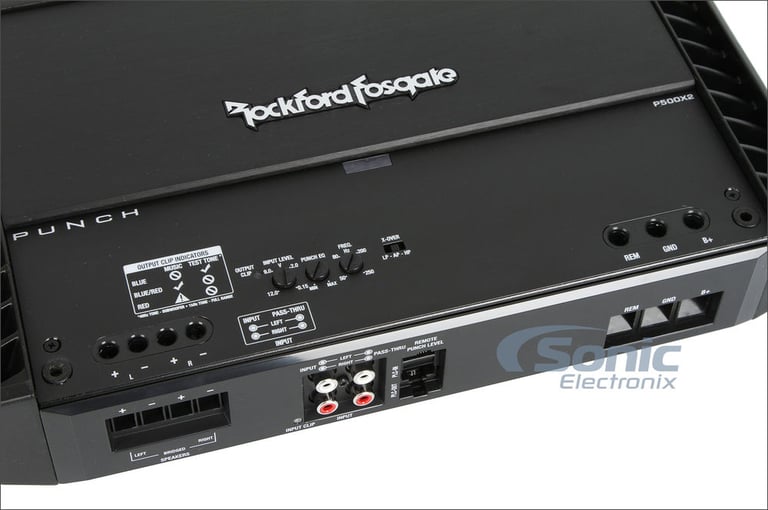

Rockford Fosgate P500X2-OPEN BOX Image 3 — Rockford Fosgate P500X2-OPEN BOX

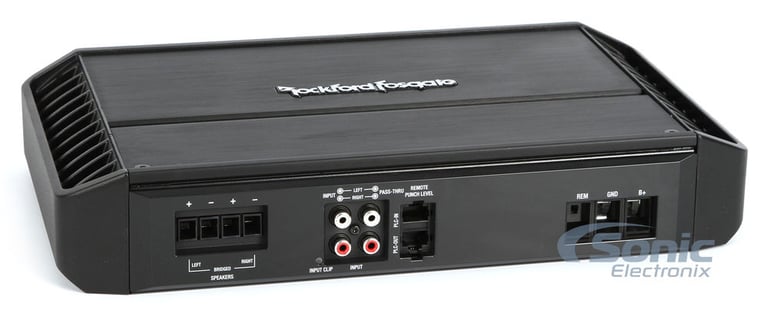

Rockford Fosgate P500X2-OPEN BOX Image 4 — Rockford Fosgate P500X2-OPEN BOX

Rockford Fosgate P500X2-OPEN BOX Image 5 — Rockford Fosgate P500X2-OPEN BOX

Rockford Fosgate P500X2-OPEN BOX Image 6 — Rockford Fosgate P500X2-OPEN BOX

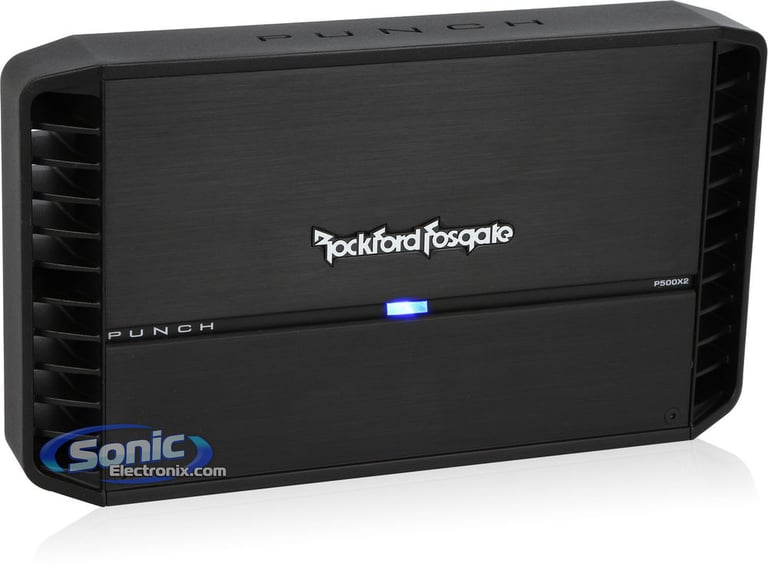

Rockford Fosgate P500X2-OPEN BOX Image 7 — Rockford Fosgate P500X2-OPEN BOX

Rockford Fosgate P500X2-OPEN BOX Image 8 — Rockford Fosgate P500X2-OPEN BOX

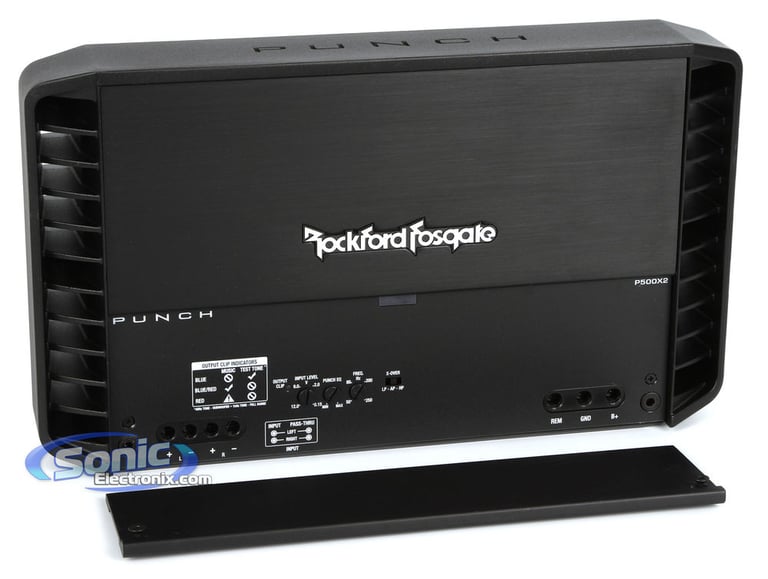

Rockford Fosgate P500X2-OPEN BOX Image 9 — Rockford Fosgate P500X2-OPEN BOX

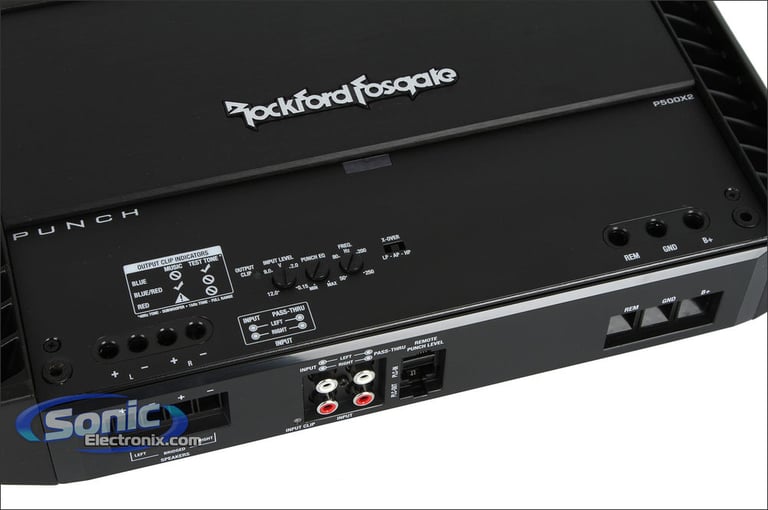

Rockford Fosgate P500X2-OPEN BOX Image 10 — Rockford Fosgate P500X2-OPEN BOX

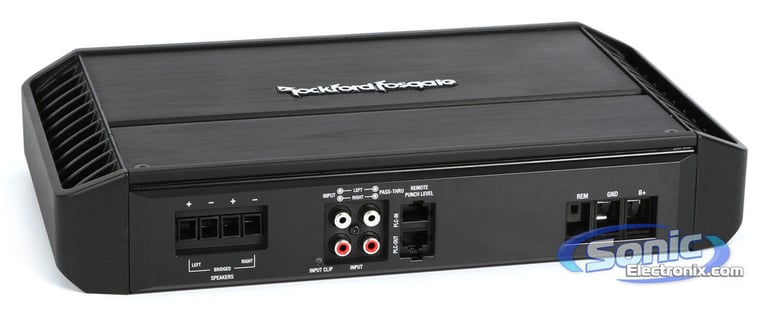

Rockford Fosgate P500X2-OPEN BOX Image 11 — Rockford Fosgate P500X2-OPEN BOX

Product videos

Product highlights

• 150W x 2 Chan. @ 4 ohm
• 250W x 2 Chan. @ 2 ohm
• Built In NOMAD "Real Time" Analog Computer
• 2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• MESHA3 Reduces MOSFET Temperatures for Improved Durability

Learn more about the LS-p500x2-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Feel the Punch!

The P500X2 is a solid choice if you're looking to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the P300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system.

General Features

Punch Series 2-Channel Class AB Car Amplifier
RMS Power Rating:

4 ohm: 150 watts x 2 chan.
2 ohm: 250 watts x 2 chan.
Bridged, 4 ohm: 500 watts x 1 chan.

MOSFET power supply
Remote bass level input (remote level control sold separately)
LED power, thermal, and protect indicators
Tuned Bass EQ (0-18 dB bass boost at 45 Hz or 0-14 dB bass boost at 12 kHz depending on crossover selection)
On-board differential inputs eliminates noise picked up by the signal cable
2 or Mono channel operation
Integrated Trans•ana technology simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality
RCA Pass-thru outputs
MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span
DSM (Discrete Surface Mounted Components) utilize 1% tight-tolerances improving efficiency of the circuit and lowers operating temperature and potential for noise - similar to circuit boards designed by aerospace manufacturers
Built in NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across entire amplifier heatsink to efficiently keep the amplifier temperatures low
Nickel-plated RCA level inputs
Nickel-plated captive C-clamp terminals
Variable high-pass filter (50-250 Hz, Butterworth, 12 dB/octave)
Variable low-pass filter (50-250 Hz, Butterworth, 12 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-20000 Hz
Dimensions: 15"L x 7-3/4"W x 2-3/8"H
4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

150 watts x 2 channel

RMS Power @ 2 ohms

250 watts x 2 channel

Bridged RMS Power

500 watts x 1 channel

Amplifier Specifications

Series

Punch Series

Amplifier Class

A/B

Number of Channels

2-Channel

Total RMS Power Output

500 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

1.0%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 250 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Signal-to-Noise Ratio

105 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Strappable

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
