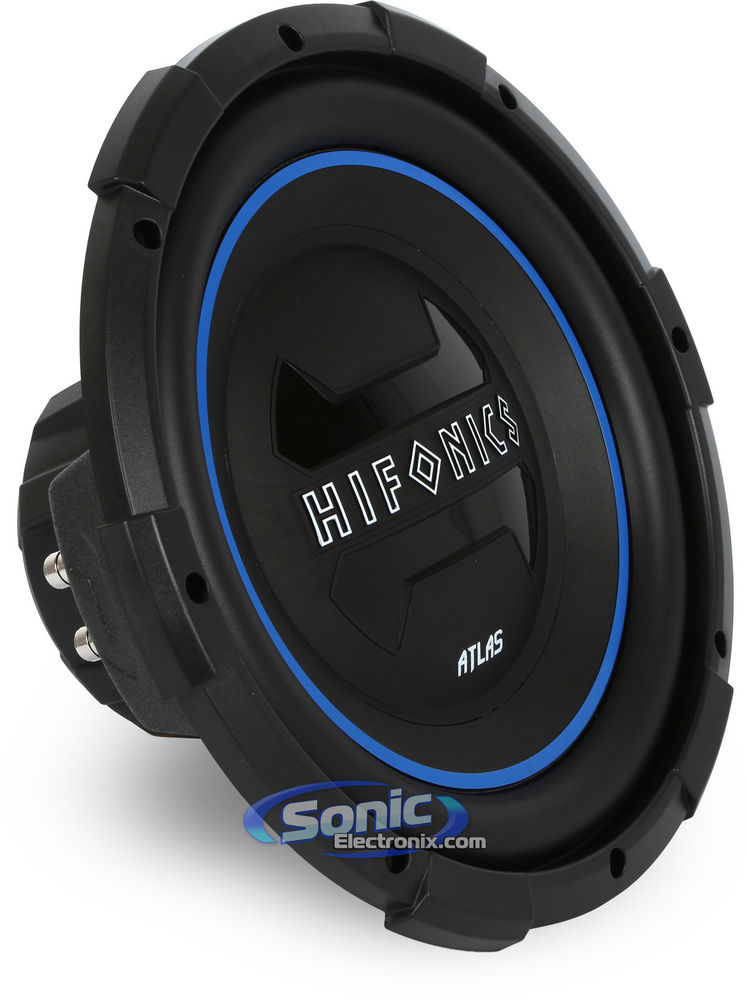

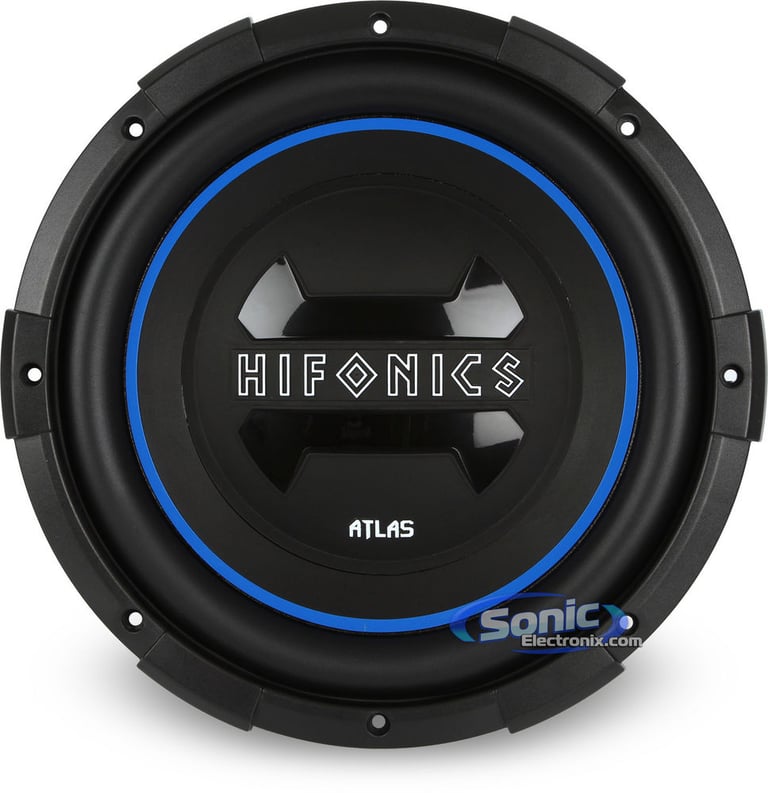

Hifonics ASW12D4

400W 12" Atlas Series Dual 4 ohm Subwoofer

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• 800W Peak
• 400W RMS
• Polypropylene Cone
• Rubber Surround
• Blue Cotton Spiders
• Push and Insert Speaker Terminals
• 2" High-Temperature Voice Coil

Learn more about the asw12d4

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


• 800W Peak
• 400W RMS
• Polypropylene Cone
• Rubber Surround
• Blue Cotton Spiders
• Push and Insert Speaker Terminals
• 2" High-Temperature Voice Coil

Description


Hifonics brand icon

Authorized dealer

  • 12" Dual 4 Ohm Atlas Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: 4 Ohm
  • Heavy duty polypropylene cone & injection molded dust cap
  • UV Resistant butyl rubber surround
  • Blue cotton spider
  • Push & insert style speaker terminals

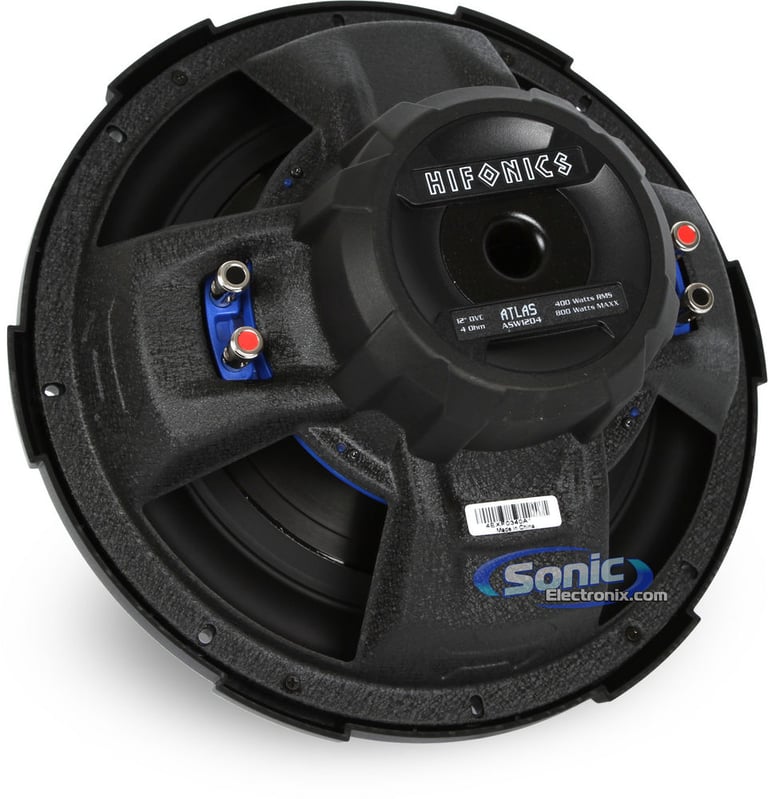

  • Heavy duty ABS protective motor cap
  • Powder coated deep draw stamped steel basket
  • ABS rim ring with blue illumination
  • Operates in sealed and ported enclosures
  • 2" High temperature voice coil
  • 41 oz Vented motor
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics ASW12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics ASW12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics ASW12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics ASW12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Atlas Series
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
84 dB
Xmax (millimeters)
9.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.15 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
2.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-5/16"
Cutout Diameter
10-15/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
27.16 Hz
Equivalent Compliance (Vas)
81.09 liters
Total Speaker Q Value (Qts)
0.61
Electrical Q Value (Qes)
0.82
Electrical Resistance of Voice Coil (Re)
8.652 ohm
Mechanical Q Value (Qms)
2.4
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ASW12D4

Weight:

9.30lbs

Internal SKU:

asw12d4

Internal Product ID:

67942

Product and How-to Videos

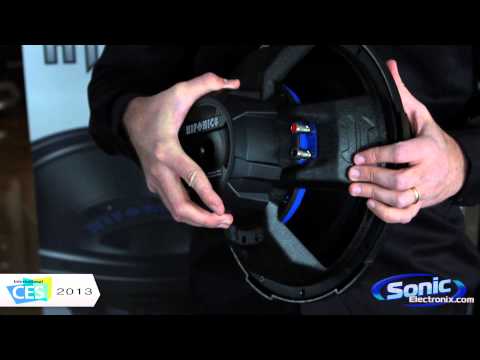

  • Hifonics Atlas Car Subwoofer | Maxxsonics @ CES 2013
