JVC KD-AVX77 Open Box

General Features:

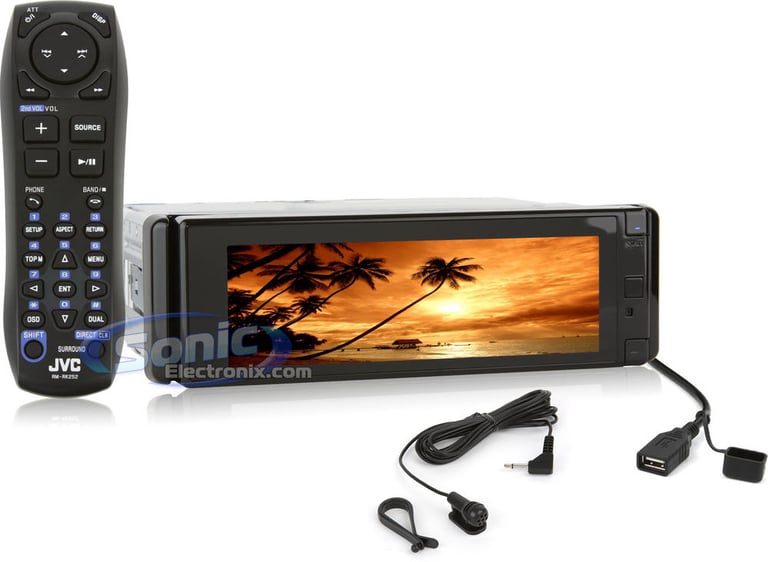

• In-Dash DVD, CD, MP3, WMA Receiver with Built-in Ultra-Widescreen Monitor, Bluetooth Wireless Technology and Remote

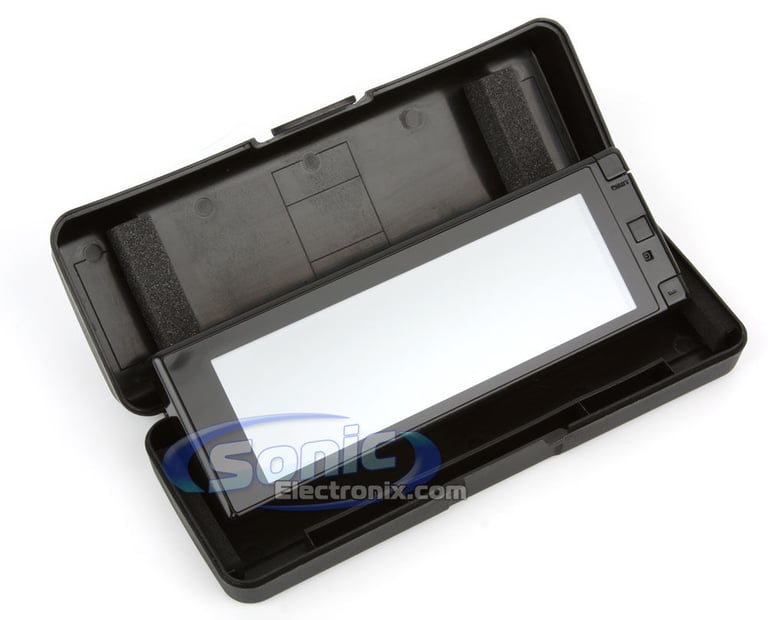

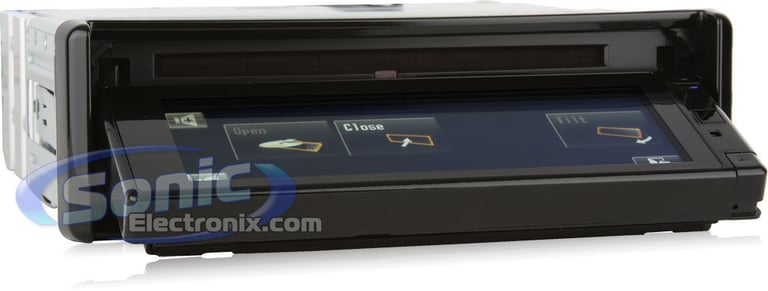

• Motorized, detachable face

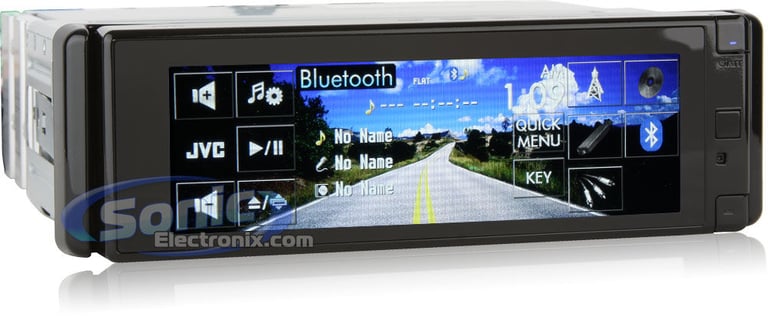

• 5.4" Ultra-wide touchscreen
• Full color LCD monitor
• Proximity sensor

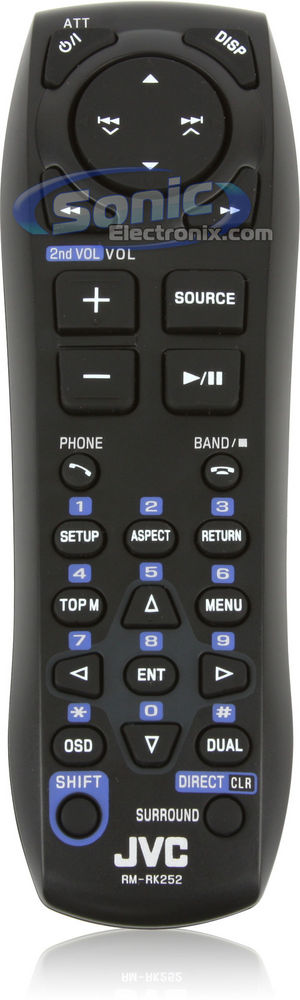

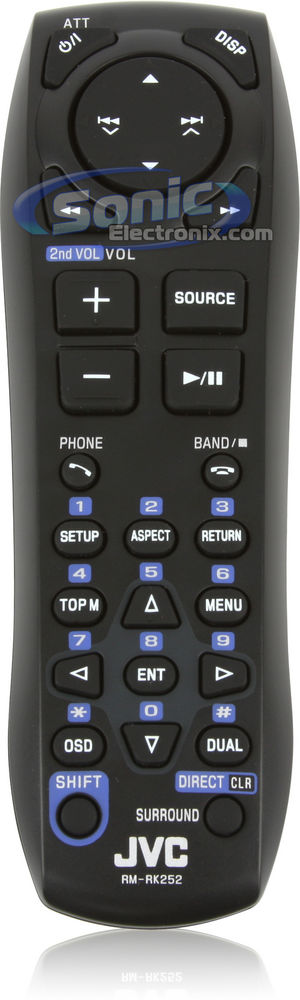

• Wireless remote control included
• CEA-2006 compliant amplifier
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 20 watts x 4 channels
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)

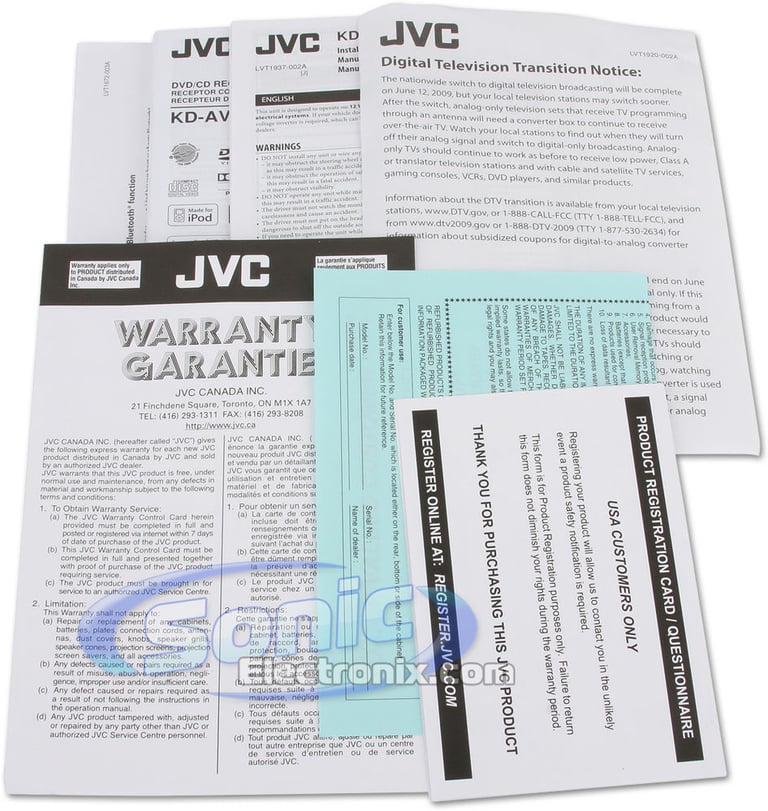

• 1-year Manufacturer's warranty

Playback and Audio Features:

• Playback of DVD, CD, CD-R, CD-RW, MP3, and WMA
• HS-IVi tuner with 18FM/6AM presets
• 5.1 Channel Dolby Digital/Dolby Pro Logic II
• iEQ 7-Band equalizer with preset tone curves
• High-pass filter

Expandability Options:

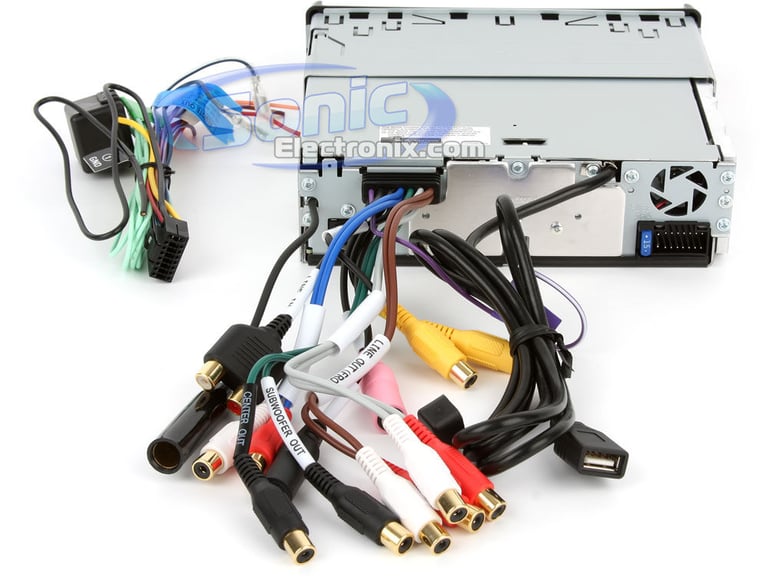

• 3 Sets of 5V preamp outputs:
• Front speakers
• Rear speakers
• Mono-subwoofer and mono-center cahnnel
• SIRIUS or XM Satellite Radio Ready: A subscription is required for service as well as purchase of either the JVC SIRIUS Satellite Radio Package or JVC XM Radio Package
• HD Radio Ready: JVC KT-HD300 HD Radio tuner required and sold separately
• iPod/iPhone Ready: USB-to-iPod cable will work with most iPods. The following adapters may be required for select iPods or if you want video playback:
• Audio/Video Playback: JVC KS-U30
• Audio Playback for Select iPods: JVC KS-PD100 (View the JVC compatibility list for details)
• Streams music stored on the iPhone 5 via Apple’s supplied Lightning-to-USB cable
• Bluetooth Ready: Built-in controls
• Hands free call
• Audio streaming
• SMS (Short Message Service) display
• Phonebook transfer (100 max.)

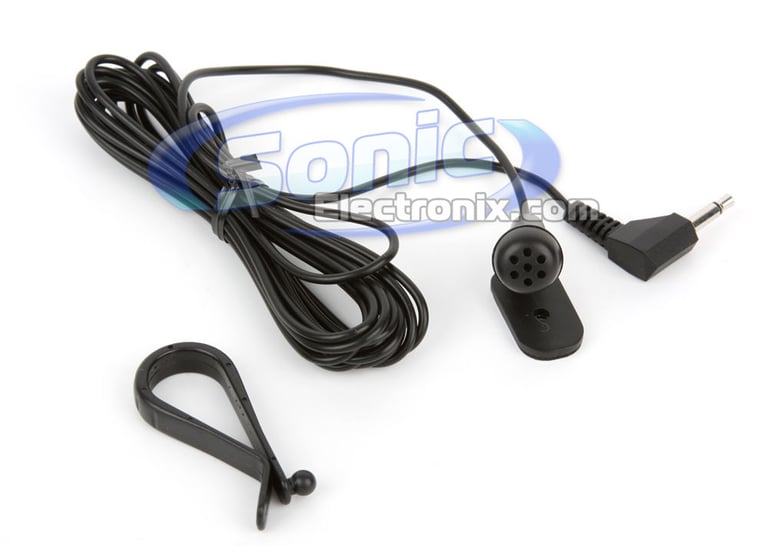

• Voice recognition dialing (voice recognition compatible cell phone required
• Gold-plated A/V Input terminals
• Gold-plated preout terminals
• Steering wheel remote control ready: The PAC SWI-JACKv1 is required and sold separately
• CD Changer controls (compatible with the JVC CH-X1500 CD/MP3 changer)

Key Features:

• Touch-panel operation
• Split-screen mode to view both a rearview camera and video at the same time
• Wallpaper capture
• Dual-zone function
• Mutli-lingual display (English/Spanish/French/German/Italian/Dutch/Portuguese/Swedish/Danish/Russian)
• Headphone surround
• Source specific volume control
• Contrast control
• Switchable dimmer

Any iPods/iPhones released after January 27, 2009 have not been tested by the manufacturer and/or Sonic Electronix for compatibility. Therefore we do not guarantee compatibility in regards to, but not limited to: playback, video, charging, and response time. Check out the KD-AVX77 blog for more info!

Key Features And Comparison Chart

	KW-NT50HDT	KW-NT30HD	KW-AVX840	KW-ADV794	KW-AVX740	KW-AVX640	KD-AVX77
Display	6.1" LCD Touchscreen	6.1" LCD Touchscreen	7" LCD Touchscreen	6.1" LCD Touchscreen	6.1" LCD Touchscreen	6.1" LCD Touchscreen	5.4" LCD Monitor
Navigation			Motion X	Motion X	Motion X	Motion X
Variable Color Illumination
Pre-amp Outputs	3 Pairs (2.5 Volts)	3 Pairs (2.5 Volts)	3 Pairs (4 Volts)	3 Pairs (4 Volts)	3 Pairs (4 Volts)	3 Pairs (4 Volts)	3 Pairs (5 Volts)
Video Playback	DVD	DVD	DVD, VCD, DivX	DVD, VCD, DivX	DVD, VCD, DivX	DVD, VCD, DivX	DVD, VCD
Audio Playback	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA
Bluetooth	Built-In	Built-In	Built-In	Built-In	Built-In	KS-BTA100 Required	Built-In
USB Interface	FRONT	FRONT	REAR	REAR	REAR	REAR	REAR
Auxiliary Input (Mini-Jack)	FRONT	FRONT		FRONT	FRONT	FRONT
HD Radio	Built-In	Built-In	KT-HD300 Required	KT-HD300 Required	KT-HD300 Required	KT-HD300 Required	KT-HD300 Required
Satellite Radio Ready
2-Way iPod Control
Equalizer	7-Band iEQ	7-Band iEQ	3-Band iEQ	3-Band iEQ	3-Band iEQ	3-Band iEQ	7-Band iEQ
Digital-to-Analog Converter	192kHz/24bit	192kHz/24bit	192kHz/24bit	192kHz/24bit	192kHz/24bit	192kHz/24bit	192kHz/24bit
Dolby Digital Sound	2-Channel	2-Channel	2-Channel				5.1-Channel
AM/FM Presets	18FM / 6AM	18FM / 6AM	18FM / 6AM	18FM / 6AM	18FM / 6AM	18FM / 6AM	18FM / 6AM
Dual Zone
iTunes Tagging
