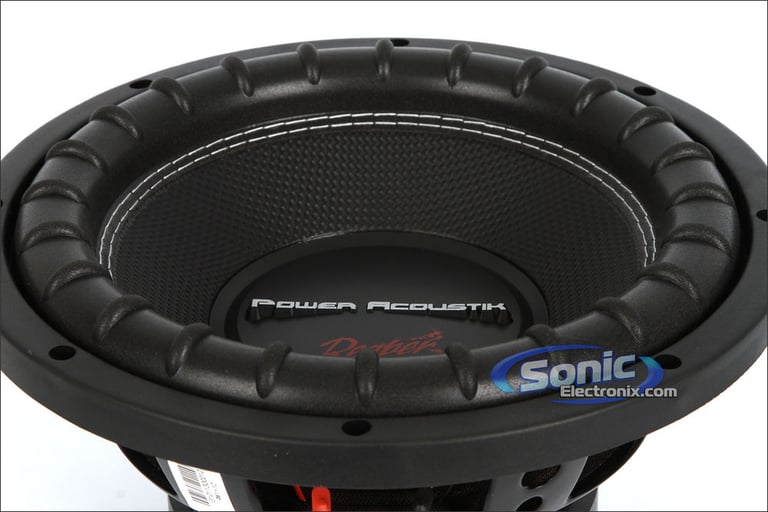

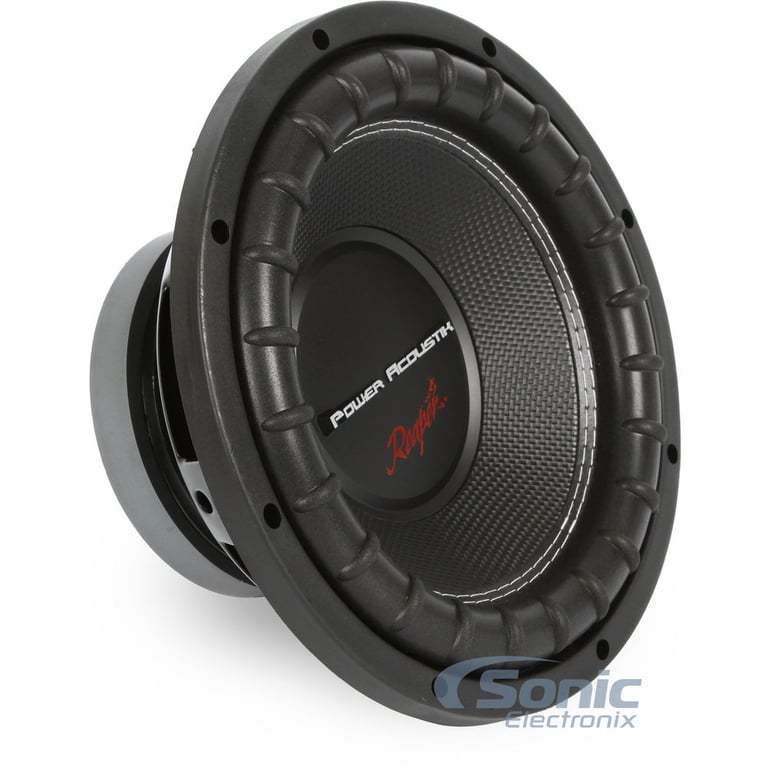

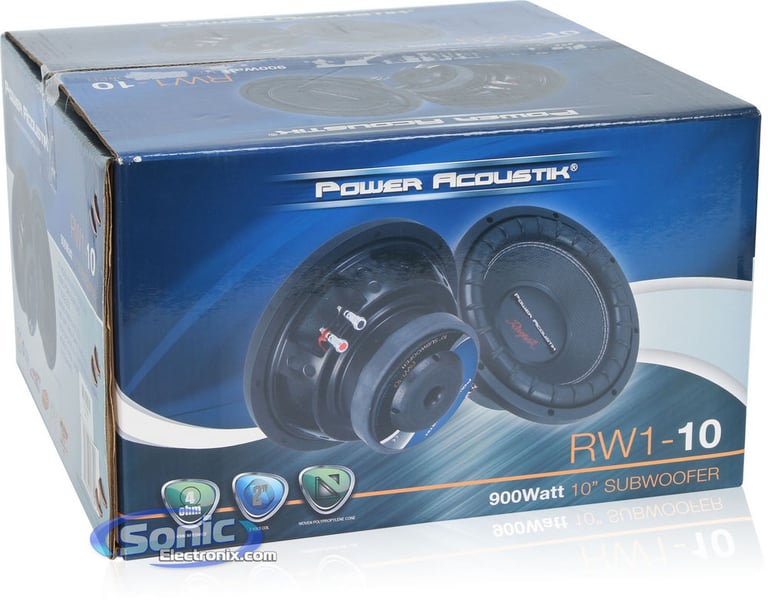

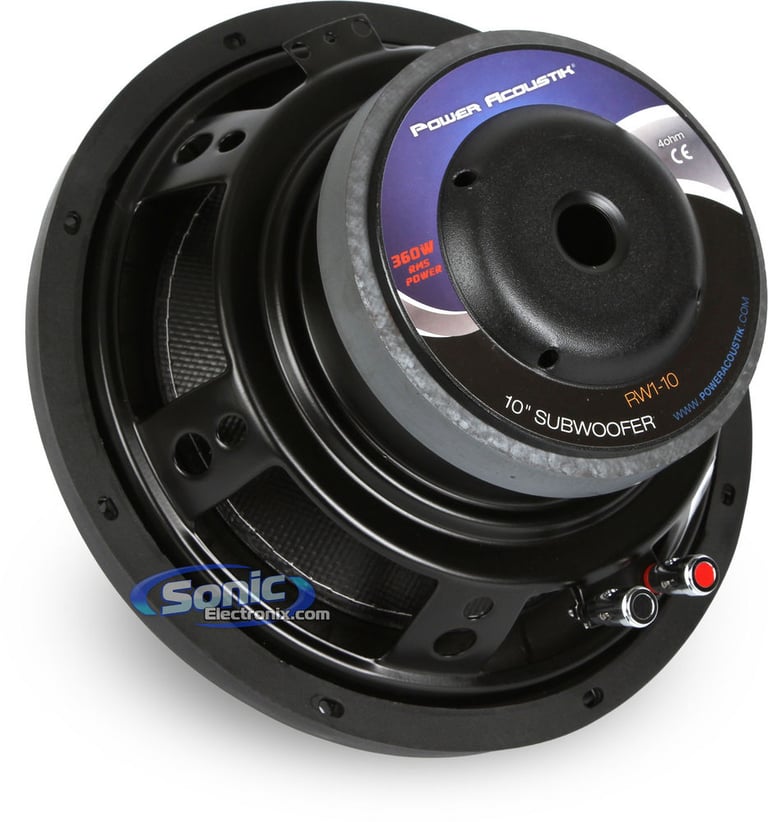

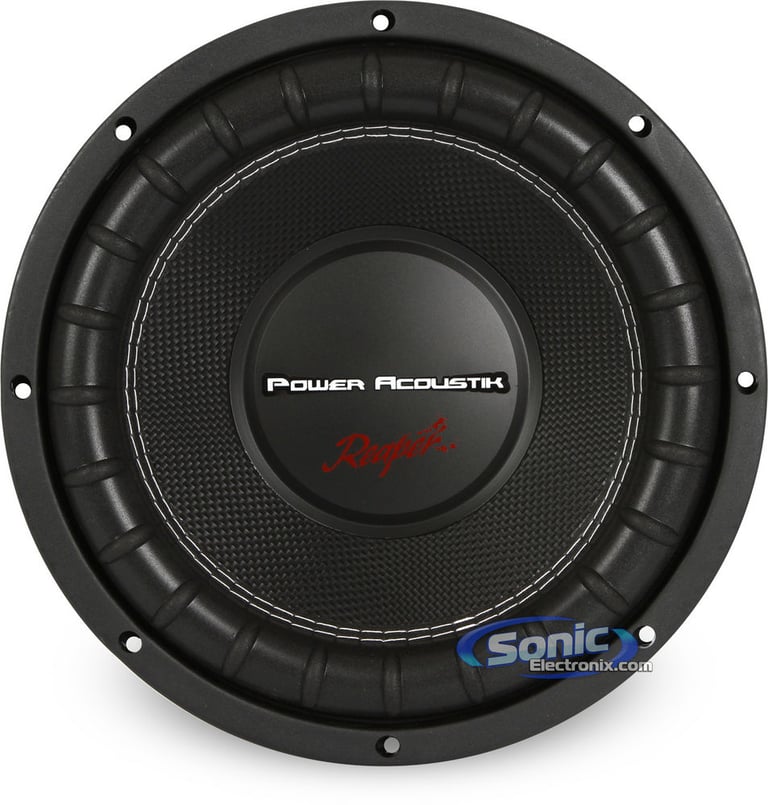

Power Acoustik RW1-10

360W 10" Reaper Series Single 4 Ohm Subwoofer

Product videos
highlight-star-icon

• 900W Peak
• 360W RMS
• Single 4 ohm 2" 4-Layer Voice Coil on Aluminum Former
• Polypropylene Cone
• Ribbed Foam Surround
• Nickle Plated 8 Gauge Compression Terminals
• Woven Polypropylene Dust Cap

Learn more about the rw110

We apologize

This item has been discontinued


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Product Highlights


• 900W Peak
• 360W RMS
• Single 4 ohm 2" 4-Layer Voice Coil on Aluminum Former
• Polypropylene Cone
• Ribbed Foam Surround
• Nickle Plated 8 Gauge Compression Terminals
• Woven Polypropylene Dust Cap

Description


Power Acoustik brand icon

Authorized dealer

General Features:

  • 10" Single 4 Ohm Reaper Series Subwoofer
  • Power Handling:
    • Peak: 900 watts
    • RMS: 360 watts
  • Impedance: 4 ohm
  • Polypropylene cone
  • Ribbed foam surround
  • 2" 4-layer voice coil on aluminum former
  • Nickel plated 8 gauge compression terminals
  • 104oz. single magnet motor structure
  • Vented t-yoke back plate
  • Woven polypropylene dust cap
  • Textured basket with voice coil cooling
  • Poly-cotton suspension spider
  • Resonance Frequency (Fs): 30
  • Top-mount depth: 4-7/8"
  • Sensitivity: 87 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Power Acoustik RW1-10 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Power Acoustik RW1-10 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Power Acoustik RW1-10 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Power Acoustik RW1-10 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

Specifications & Details


Subwoofer Specifications
Series
Reaper Series
Subwoofer Size
10"
Peak Power Handling
900 watts
RMS Power Handling
360 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
87 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Ribbed Poly-Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Optimum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
4-7/8"
Cutout Diameter
9-9/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
86.54 liters
Total Speaker Q Value (Qts)
0.60
Electrical Q Value (Qes)
0.68
Electrical Resistance of Voice Coil (Re)
3.93 ohm
Mechanical Q Value (Qms)
5.45
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RW1-10

Weight:

10.00lbs

Internal SKU:

rw110

Internal Product ID:

68818
