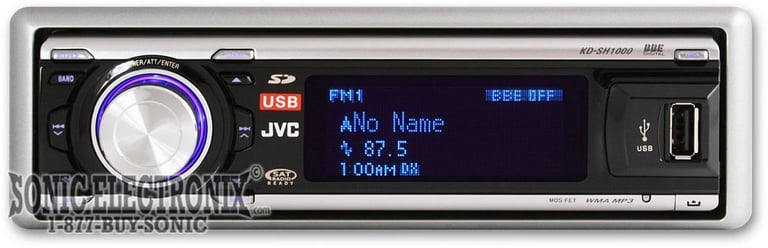

JVC KD-SH1000

CD/MP3/WMA Receiver with Remote, SD + USB Ports and Full-Motion Graphics

JVC
Shop all JVC
Product videos
highlight-star-icon

CD/MP3/WMA Receiver • 20W x 4 chan. RMS • 50W x 4 chan. Peak • motorized slide-out faceplate • gold-plated input/output terminals • Blue dot-matrix display • iPod-ready • satellite radio-ready

Learn more about the kdsh1000

We apologize

This item has been discontinued

Product Highlights


CD/MP3/WMA Receiver • 20W x 4 chan. RMS • 50W x 4 chan. Peak • motorized slide-out faceplate • gold-plated input/output terminals • Blue dot-matrix display • iPod-ready • satellite radio-ready

Description


JVC brand icon

Authorized dealer

General Features:

  • In-dash AM/FM, CD, MP3, WMA player with Remote

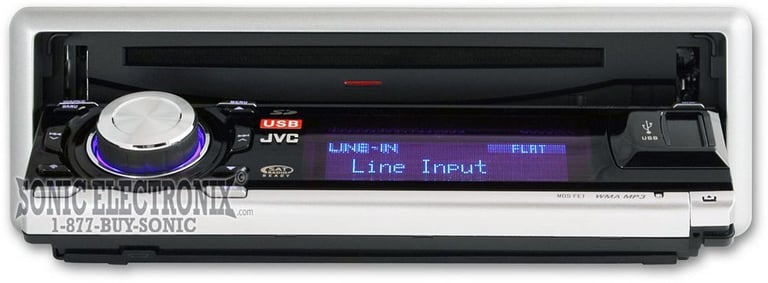

  • Motorized, detachable face
  • Blue dot-matrix display

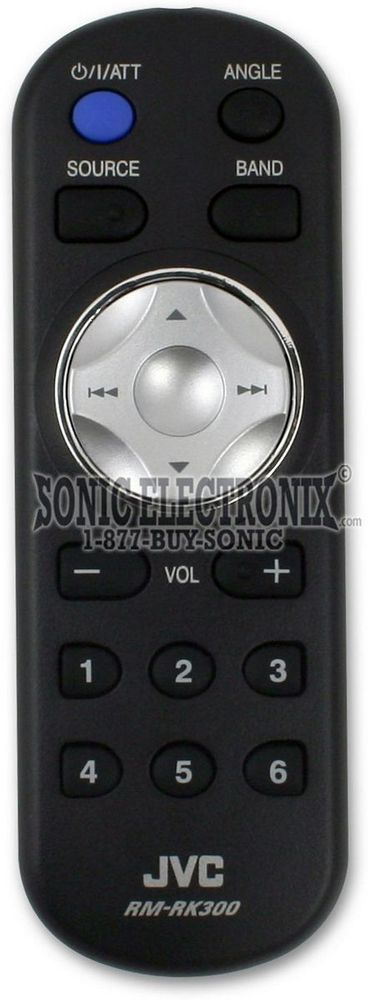

  • Wireless remote control included
  • Blue button lighting
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 20 watts x 4 channels
  • MOSFET Power amplifier
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Playback and Audio Features:

  • Playback of CD, CD-R, CD-RW, MP3, and WMA
  • DiAS Digital Tuner with 18FM/6AM presets
  • iEQ (Digital 9-band parametric equalizer with advanced DSP w/ BBE High-definition sound)

Expandability Options:

  • 3 Sets of 5V preamp outputs (front, rear and subwoofer)
  • SIRIUS or XM Satellite Radio Ready: A subscription is required for service as well as either the JVC SIRIUS Satellite Radio Package or JVC XM Radio Package
  • iPod Ready: JVC KS-PD100 iPod adapter is required and sold separately

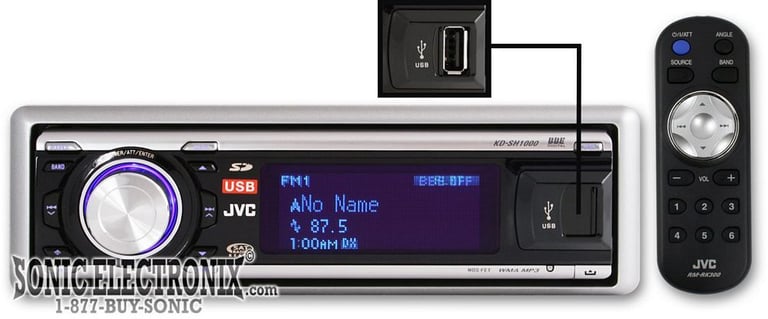

  • Front USB Input for music file playback

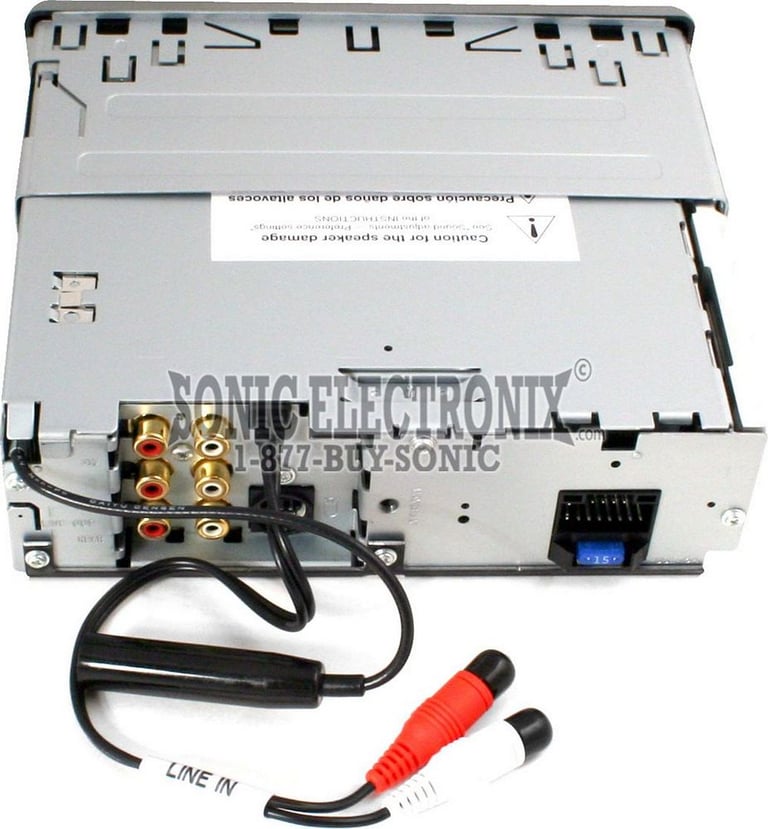

  • Rear auxiliary input: RCA Audio Input
  • Front SD Card slot
  • CD Changer controls

Key Features:

  • Gold plated front and rear output terminals
  • Gold plated subwoofer output terminals with level/frequency controls
  • Gold-plated adjustable line input terminals
  • Time alignment
  • Multi-control rotary encoder

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
20 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
5 volts
Built-In Equalizer
Digital 9 Band iEQ, Advanced DSP w/ BBE High-Definition Sound
Display Type
Dot-Matrix Text Display
Expandability Features
Inputs
Auxiliary (Rear)
Memory Card Slot
SD
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KD-SH1000

Weight:

5.00lbs

Internal SKU:

kdsh1000

Internal Product ID:

6914

Product and How-to Videos


  • JVC Bluetooth Stereo Control Receivers | CES 2014
  • How To Install a Car Stereo (Single & Double DIN) | Car Audio 101

Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.5
Design
5
Usability
4.5

Customer Reviews

Sort by:

Loading...

I Love It!!!

I love this head unit! I've had it installed in my '07 Tacoma for a couple of months and am very happy with it.

The controls are intuitive and easy to use. The volume/data knob has a rubber surround for easy gripping and is large enough to actually grip it, as opposed to some manufacturers' knobs where you have to use the tip of your finger on the surface of the knob. It may seem like a trivial feature to add to a review, unless of course you've ever had the frustration of trying to adjust your stereo with your fingertip and hit a bump in the road.

The built in features of this deck are fabulous. Time alignment, 3 way crossover with adjustable slopes, parametric EQ, mp3, wma, USB, SD card, song title display, 2 aux inputs, 3 X 5V line out with adjustable sub, etc...

I put my absolute favorite songs on an SD card and that stays in all the time. I have CDs full of mp3 and wma files that I carry with me. I also have a jump drive that I can add/delete current songs. I have so many options for listening to the music that I love I haven't even used the FM tuner.

How's it sound? Beautiful! I have the Front and Rear outputs going to a classic (old) Orion Cobalt 430 amp and into a set of new (from SonicElectronix, of course) JL Audio TR650CSi components (6.5" mids, .5" tweets). The sub out goes into a classic (old) Pioneer 760W amp and into a classic (ancient, 15+ years old) Orion eXtreme 10" sub in a ported box. On an RTA the response is pretty flat. The adjustable sub out makes it nice for songs that have too much or too little bass.

To summarize;
Pros - tons of features. Reasonable price (Thanks SonicElectronix!!)
Cons - only one. My dash is at an angle so it is hard to fit my fat finger into the small space to remove the faceplate (which I do EVERY TIME I leave my vehicle).

I would certainly recommend this product to anyone.

By Rick on July 11, 2008

7

found this helpful.

this deck freakin great

this deck rocks it has some great dsp options. and the display is great it has some ba visualizations.
the only feature that is missing is pause button and if there is one i cant find it. but who cares that will be the least of your worries.
it has 4 different angles that it can be at so u can see it. i have a ford escort and because of the angles there is no glare.

do yourself a huge favor and get this deck u wont be dissapointed

By Heidi on September 19, 2008

5

found this helpful.
