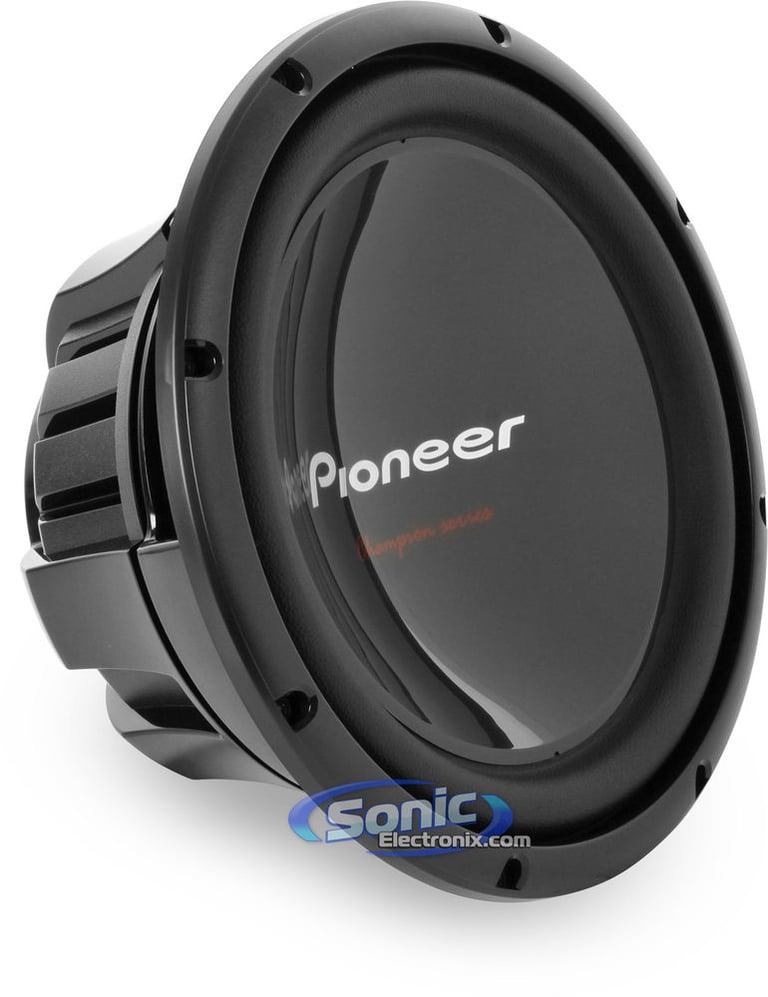

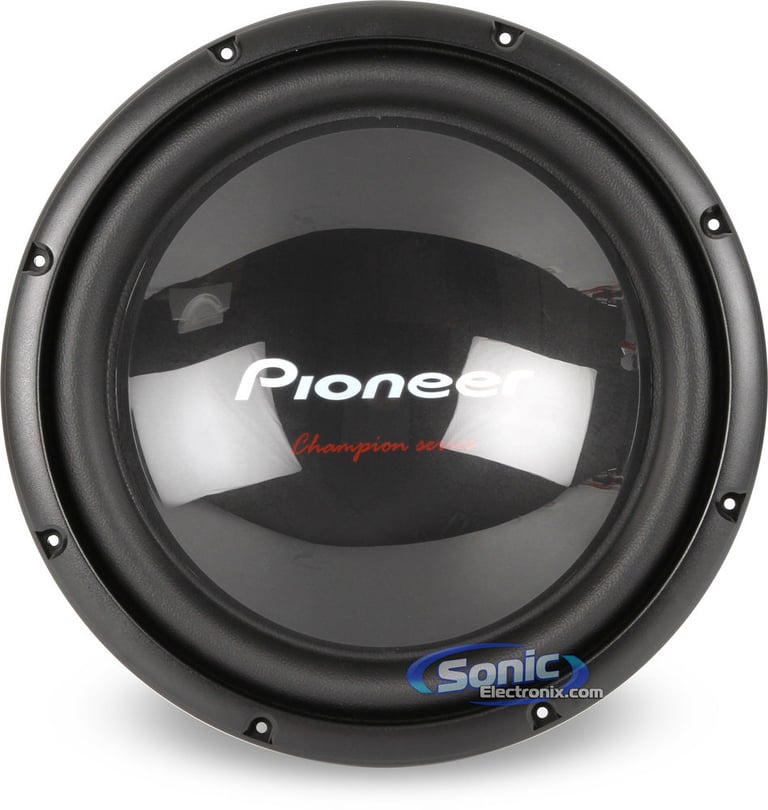

Pioneer TS-W309D2

12" Dual 2 Ohm Champion Series Car Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 1400W Peak
• 400W RMS
• IMPP Cone
• Dual Layer Elastic Polymer Surround
• Large Double Stacked High Energy Magnets
• Spring Loaded Push Terminals

Learn more about the tsw309d2

We apologize

This item has been discontinued


Loading...
SAC656 main

Scosche SAC656

Add 5-1/4" or 6-1/2" Speakers to Factory 7" Mounting Locations

50
-6.69%

$13.95

List price $14.95

RP4-CH11 main

PAC RP4-CH11

Install New Car Stereo and Retain Steering Wheel Controls, Entertainment System, and Other Factory Features in select 2004-2018 vehicles from Dodge, Jeep, Chrysler

12
-59.63%

$152.99

List price $379.00

72-6515 main

Metra 72-6515

Install New Speakers in select 1999-2024 vehicles from Dodge, Jeep, Chrysler

11
-10.01%

$8.99

List price $9.99

PNW1 main

AudioControl PNW1

125W RMS 1" PNW Series Component Car Tweeters

3
-13.42%

$129.00

List price $149.00

TWPZ main

DS18 TWPZ

80W Peak (40W RMS) 1" Slim Dome Super Tweeters

6
43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

33
-14.29%

$119.99

List price $139.99

PRO-X6.4BMPK main

DS18 PRO-X6.4BMPK

1000W Peak (500W RMS) 6.5” PRO-X Series 4-ohm Pro Audio Component Speakers Set

4
iLX-407 main

Alpine iLX-407

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

7
-16.93%

$539.95

List price $650.00

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

IBR74 main

Install Bay IBR74

Dual USB Pass Through Extension Panel

-10.53%

$33.99

List price $37.99

Product Highlights


• 1400W Peak
• 400W RMS
• IMPP Cone
• Dual Layer Elastic Polymer Surround
• Large Double Stacked High Energy Magnets
• Spring Loaded Push Terminals

Description


Pioneer brand icon

Authorized dealer

  • 12" Dual 2 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1,400 watts
    • RMS: 400 watts
  • Impedance: Dual 2 ohm
  • Seamless Injection Molded Polypropylene (IMPP) composite cone

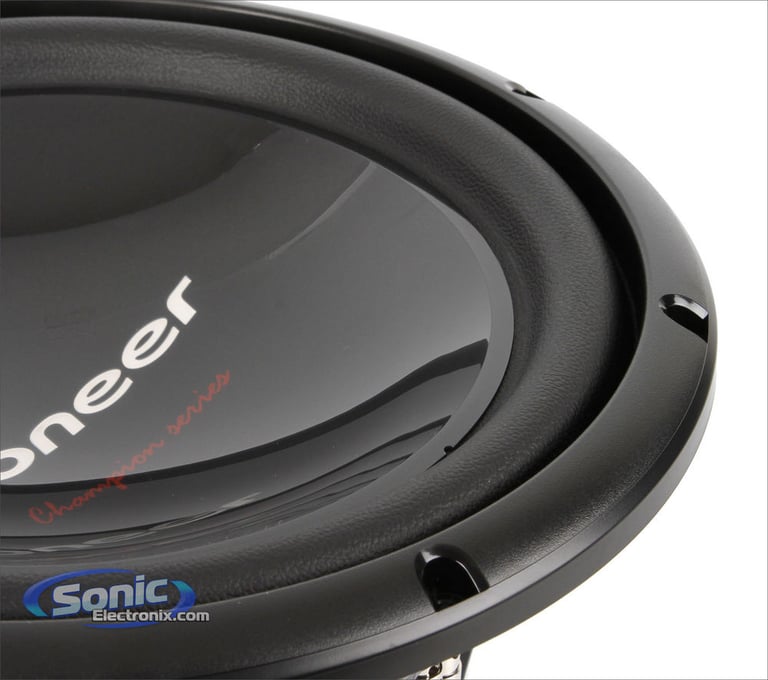

  • Dual layer, fiber reinforced elastic polymer surround

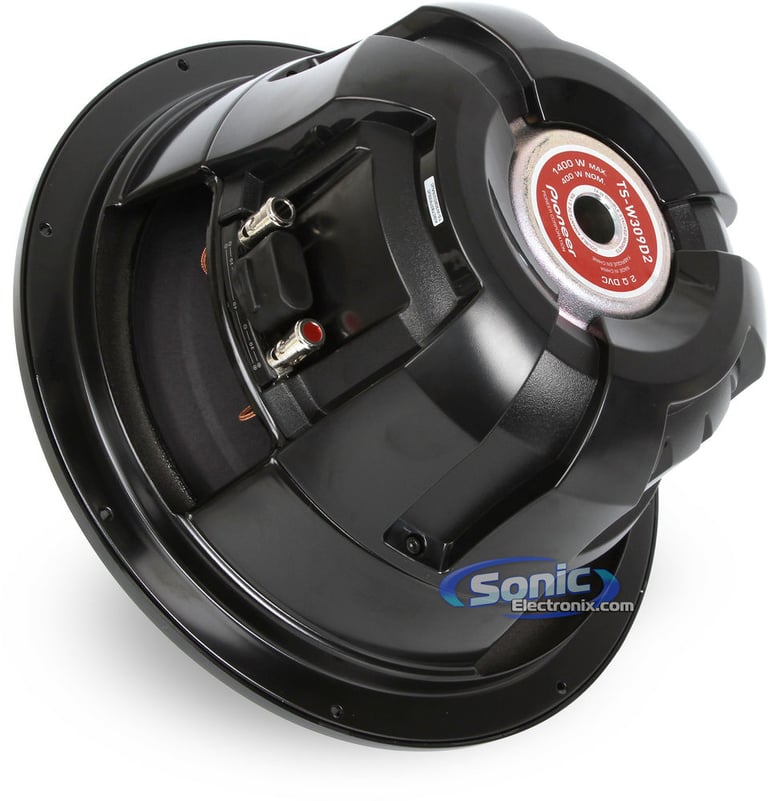

  • Large spring loaded, push style binding posts
  • High temperature voice coil
  • Large double stacked high energy magnets
  • Designed for sealed, ported, or bandpass enclosures
  • Recommended enclosure volume:
    • Sealed: 1.25 cu. ft
    • Ported: 1.5 cu. ft
    • Bandpass: 0.9 cu. ft in front / 0.9 cu. ft in rear
  • Frequency response: 20-220 Hz
  • Sensitivity: 94 dB
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W309D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W309D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W309D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W309D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.29%

$211.34

List price $232.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1400 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 220 Hz
Sensitivity
94 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.85 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W309D2

Weight:

13.50lbs

Internal SKU:

tsw309d2

Internal Product ID:

69889
