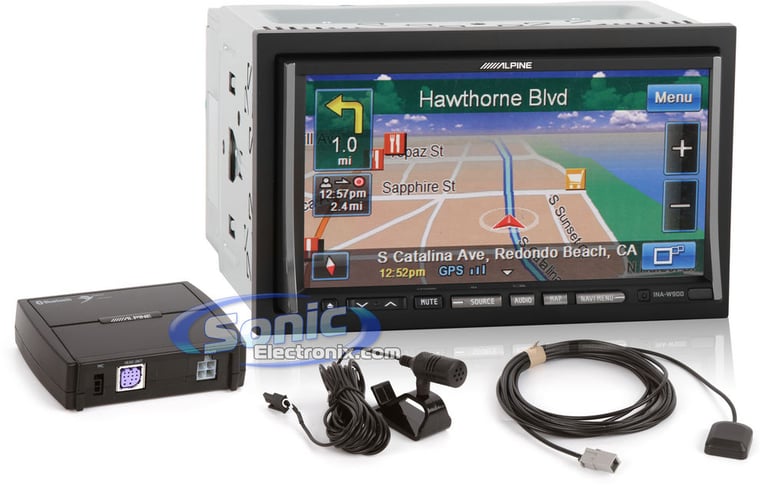

Alpine INA-W900BT R/B

General Features:

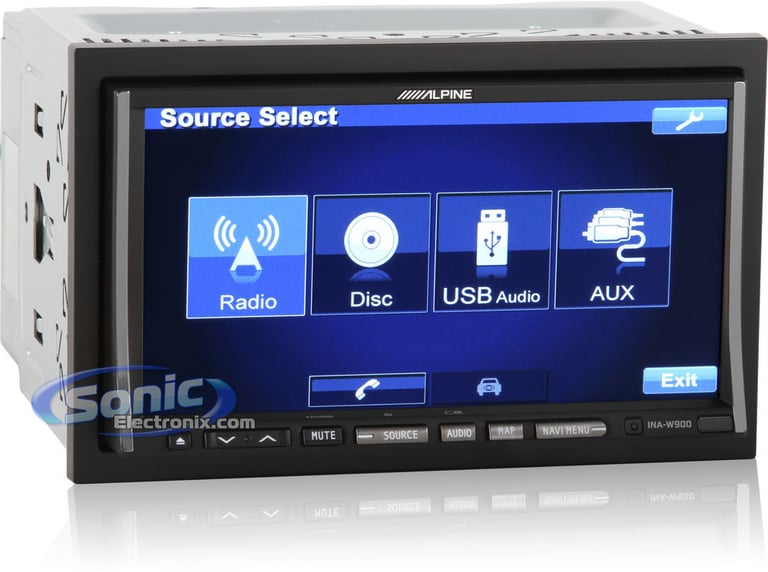

• In-Dash Double DIN DVD, CD, MP3 Receiver with GPS Navigation

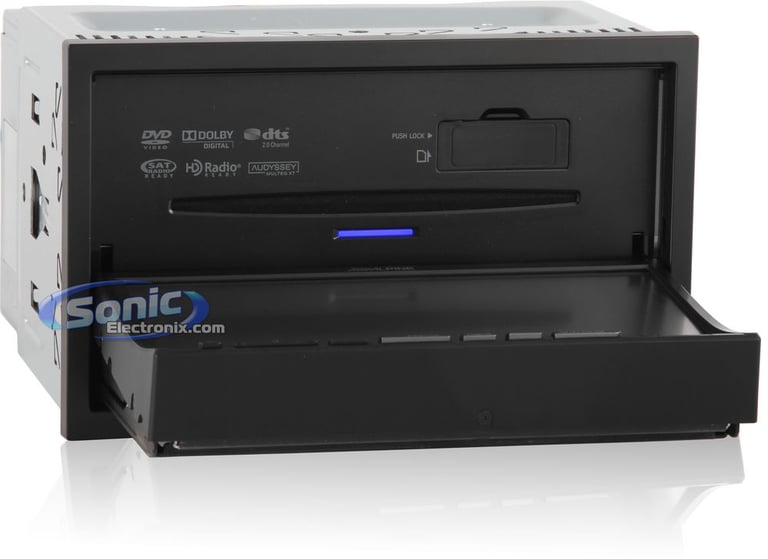

• Motorized, flip down faceplate
• 7" Full color TFT active matrix transparent type TN WVGA display
• LED back-lit for the brightest picture
• 800 x 480 resolution with 1,152,000 picture elements
• Multiple background colors (blue, red, green, and amber)
• White illuminated button lighting
• SiRF Titan CPU for fast GPS loading speeds
• CEA-2006 compliant amplifier
• Power Output (14.4V):
  • Peak: 50 watts x 4 channels
  • RMS: 45 watts x 4 channels (w/ Alpine KTP-445)
  • RMS: 18 watts x 4 channels
• Quick boot-up time of 6 seconds
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)
• 1-year SonicElectronix.com warranty

Playback and Audio Features:

• Playback of CD, CD-R, CD-RW, DVD, DVD-R, DVD-RW MP3, MPEG-1/2, WMA, ACC-LC(m4a)
• Playback of Region 1 DVD discs
• Tuner with 12FM/6AM presets
• FM Tuning Range: 87.7-107.9 MHz
• AM Tuning Range: 530-1,710kHz
• 24-Bit Burr-Brown DAC
• IMPRINT audio processor control
• Subwoofer Level Adjustment: -15dB to 0dB (1dB steps)
• Bass Center Frequency: 60/80/100/200Hz (Selectable)
• Equalizer: 5 Band Parametric (20Hz - 20KHz, 1/3 oct. Steps)
• Crossover: Off, 80Hz, 120Hz, 160Hz (12dB/oct)
• DX Selection seek mode
• Bass, treble, fader and balance controls
• Quick Search Technology: Find playlist, artist, album, song, podcast, genre, composer and even radio stations quickly and easily

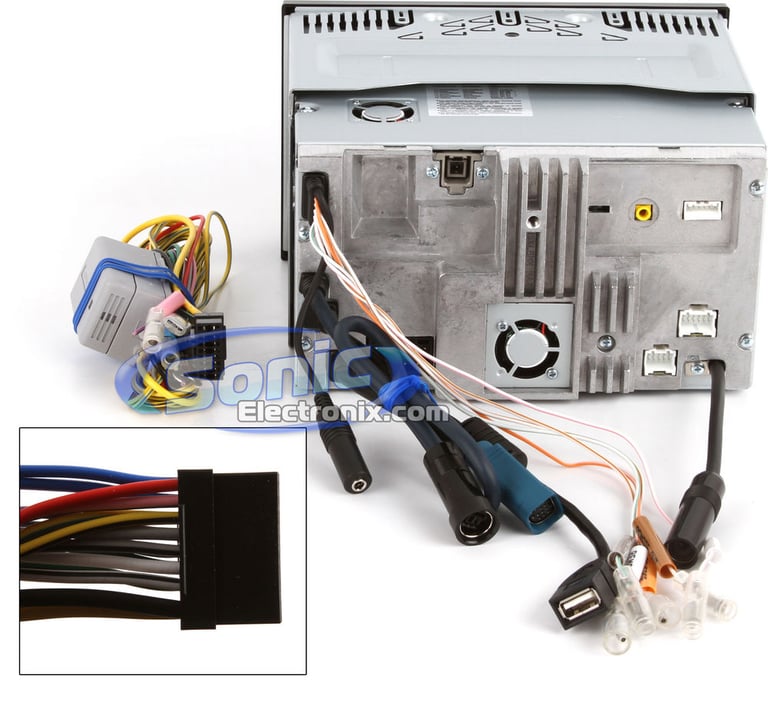

Expandability Options:

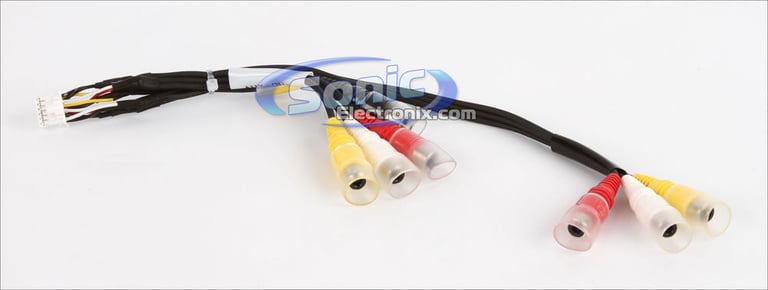

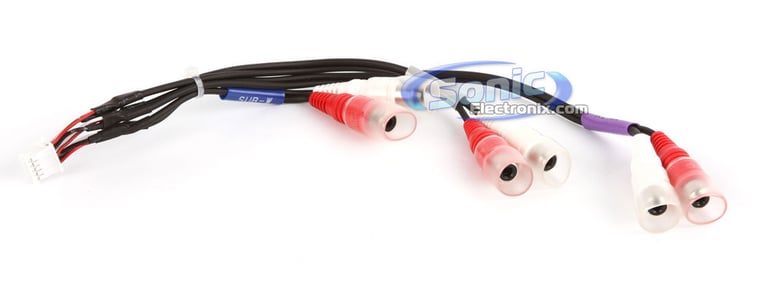

• 3 Sets of 2V preamp outputs (front, rear and subwoofer)
• SIRIUS or XM Satellite Radio Ready: SIRIUS Satellite Radio Combo Package or XM Satellite Radio Combo Package required and sold separately
• HD Radio Ready: Alpine TUA-T550HD tuner and antenna required and sold separately

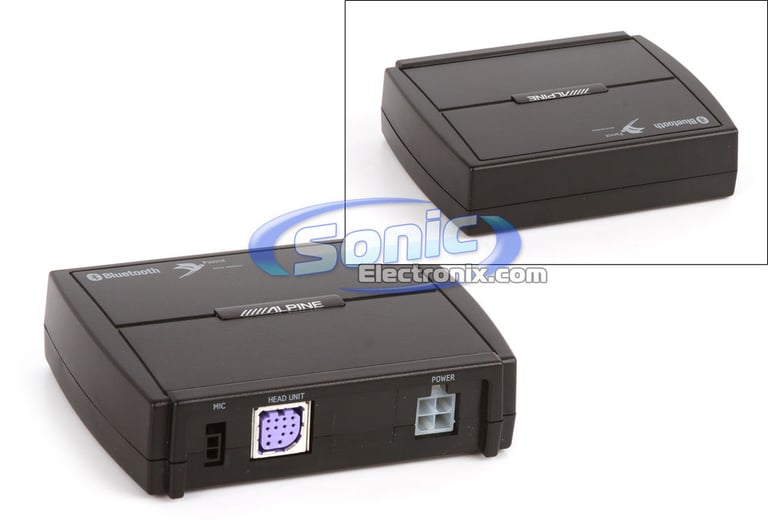

• Bluetooth Ready: Built-in Bluetooth adapter for hands-free calls in your vehicle

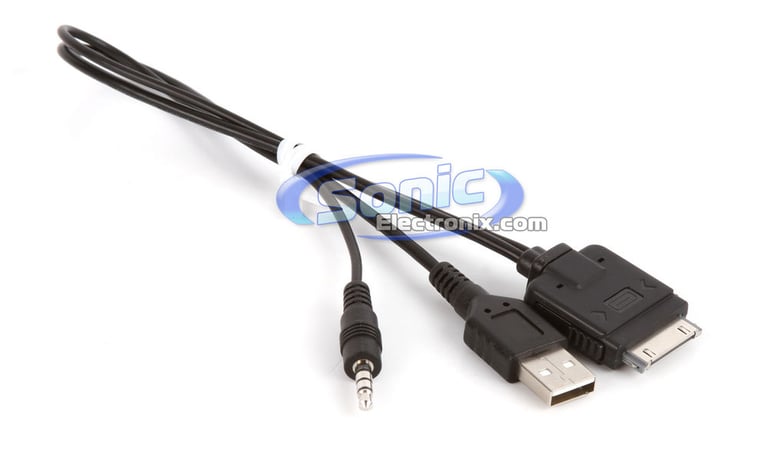

• iPod/iPhone Ready: Built-in iPod/iPhone control and playback functionality
• Rear auxiliary input: RCA Audio Input
• Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately
• CD Changer controls
• Audio Processor Ready: Alpine Alpine PXA-H100 required and sold separately
• Tuning Kit Ready: Alpine KTX-H100 tuning kit required and sold separately

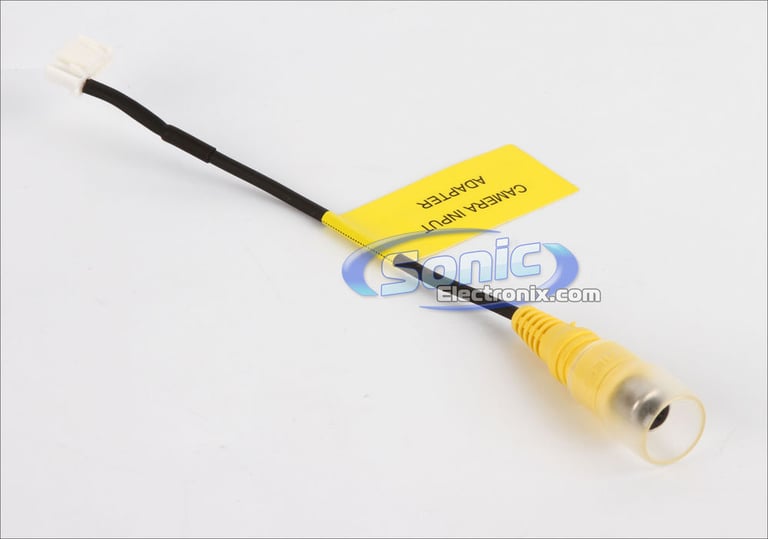

• Rearview Camera Ready: Alpine HCE-C107D for best results, however universal cameras such as the Alpine HCE-C105 are compatible

Navigation Features:

• 6 million POI's (Points of Interest)

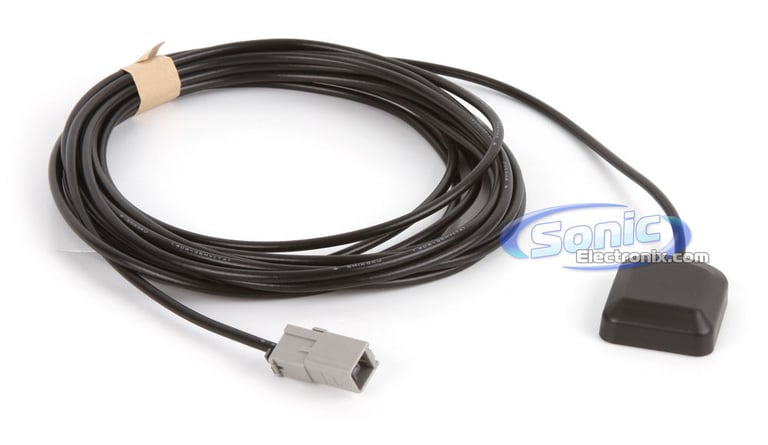

• GPS: 12 channel (32 channel acquisition) receiver
• Internal Storage: Built-in flash memory with Pre-loaded Maps of US (includes Alaska and Hawaii), Canada, Puerto Rico, and the Virgin Islands
• Multiple viewing options: 3D mapping, 2D full map, split map, and turn-by-turn arrow view
• GuideView Window gives you a convenient picture-in-picture navigation window while the unit is in audio display/mode
• OnPoint™ Advanced GPS Positioning ensures accurate positioning on the map even with low GPS reception
• turn-by-turn instructions by Text-to-Speech (TTS) technology delivered by Loquendo
• Directions are available in English, Spanish, or French
• Choose from 8 different map colors

Bluetooth Features:

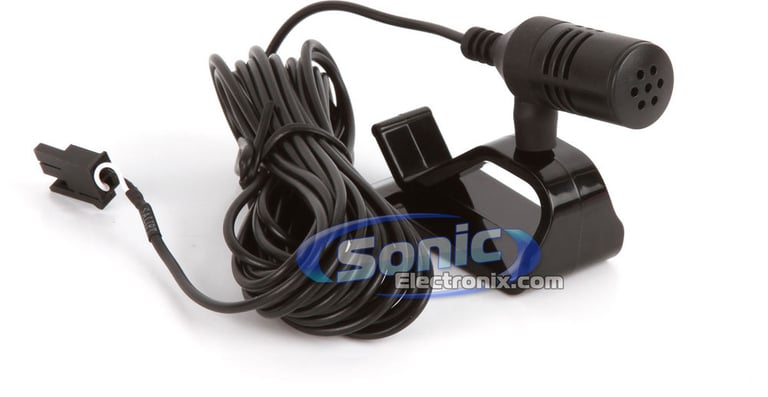

• Built-in Bluetooth technology for hands-free wireless communication
• Bluetooth profiles supported:
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
