See all parts that fit your 2008 535xi

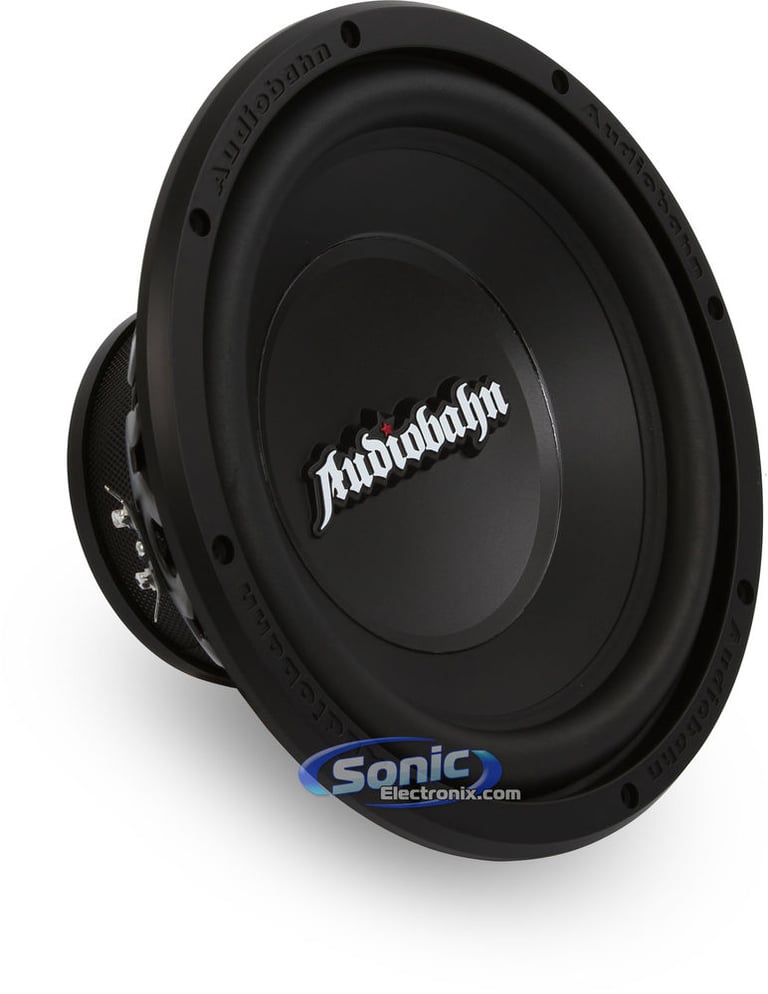

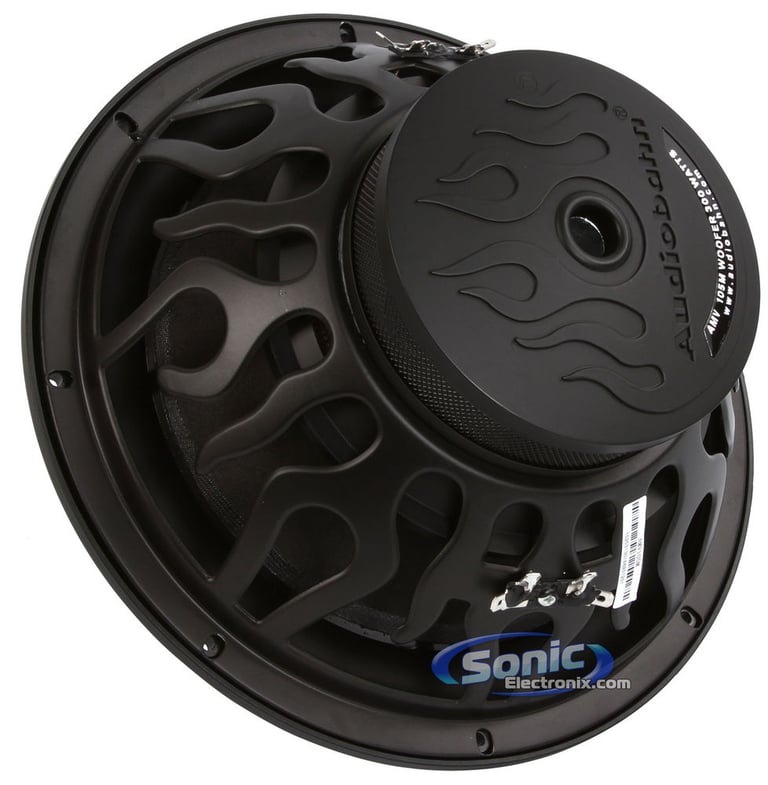

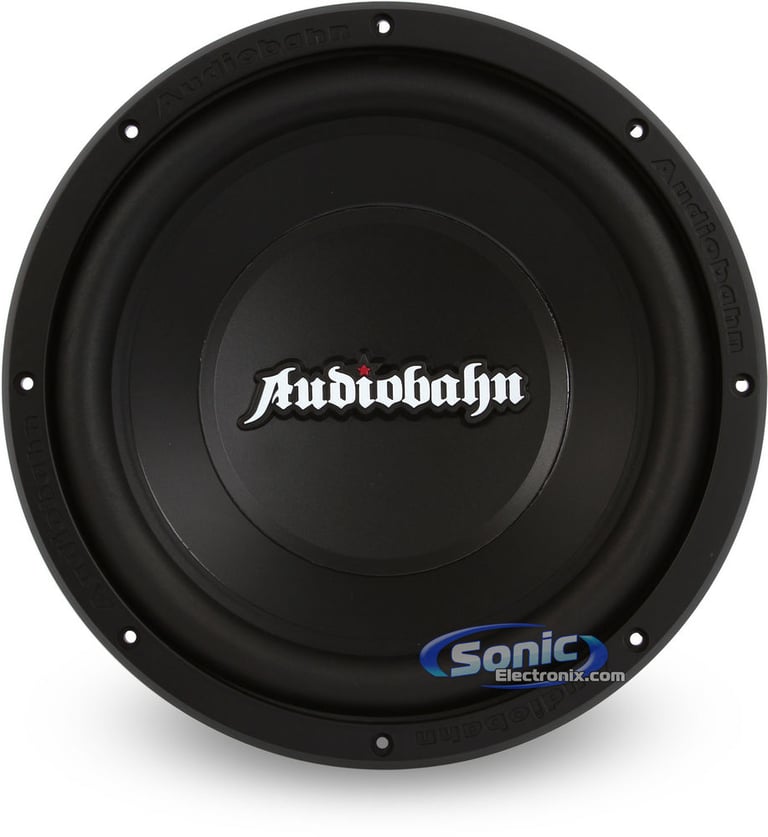

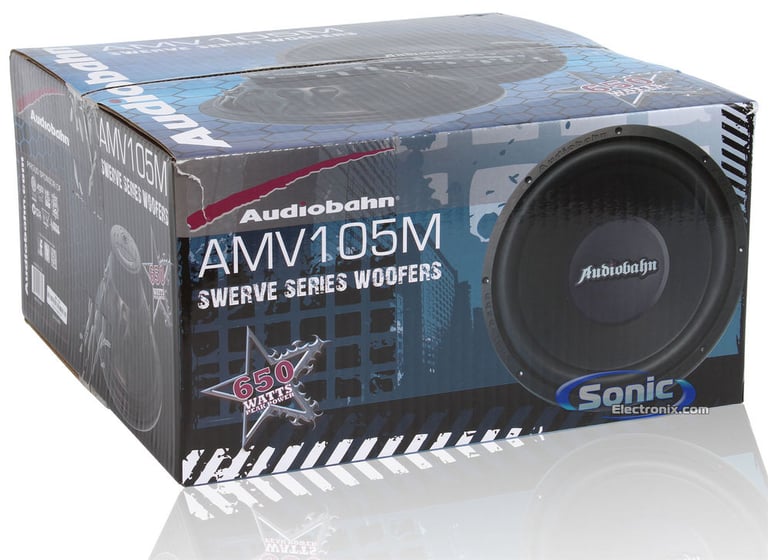

Audiobahn AMV105M

10" Dual 4 Ohm Swerve Series Car Subwoofer

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

• 300W Peak
• Dual 4 ohm Voice Coil
• Polypropylene Cone
• EPDM Rubber Surround
• Extended Pole Piece
• 2" 4-Layer AVS Voice Coil
• Vented Oversized Backplate

Learn more about the amv105m

We apologize

This item has been discontinued


Loading...
TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

NSP4 main

NVX NSP4

300W Peak (100W RMS) 4" N-Series 2-Way Coaxial Car Speakers

25
-25.00%

$44.99

List price $59.99

Product Highlights


• 300W Peak
• Dual 4 ohm Voice Coil
• Polypropylene Cone
• EPDM Rubber Surround
• Extended Pole Piece
• 2" 4-Layer AVS Voice Coil
• Vented Oversized Backplate

Description


General Features:

  • 10" Dual 4 Ohm Swerve Series Subwoofer
  • Power Handling:
    • Peak: 300 watts
  • Polypropylene cone
  • EPDM Rubber surround
  • Extended pole piece
  • Vented oversized back plate for more excursion without bottoming out and additional cooling
  • Flat spider
  • Spade terminals
  • 2" 4-Layer AVS voice coil
  • Resonance Frequency (Fs): 34.3 Hz
  • Top-mount depth: 4-3/4"
  • Sensitivity: 90.4 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide



Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

MEX-N5300BT main

Sony MEX-N5300BT

Single DIN CD Receiver with Bluetooth and Built-in NFC

4

$158.00

List price $159.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

ZXI-44 main

DS18 ZXI-44

300W Peak (100W RMS) 4" ZXI Series 2-way 4-ohm Coaxial Car Speakers

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

Limited time!
DCPA1013 main

Dual DCPA1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

5
-24.48%

$289.99

List price $383.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Swerve Series
Subwoofer Size
10"
Peak Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
28 - 1000 Hz
Sensitivity
90.4 dB
Xmax (millimeters)
7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
EPDM Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
0.625 cubic feet
Optimum Ported Box Volume
1.3 cubic feet
Maximum Ported Box Volume
2.33 cubic feet
Top-Mount Depth (Mounting Depth)
4-3/4"
Cutout Diameter
10-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34.3 Hz
Equivalent Compliance (Vas)
30.78 liters
Electrical Q Value (Qes)
0.68
Electrical Resistance of Voice Coil (Re)
3.3 ohm
Mechanical Q Value (Qms)
3.27
Efficiency Bandwidth Product (EBP)
51
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AMV105M

Weight:

7.00lbs

Internal SKU:

amv105m

Internal Product ID:

72386
