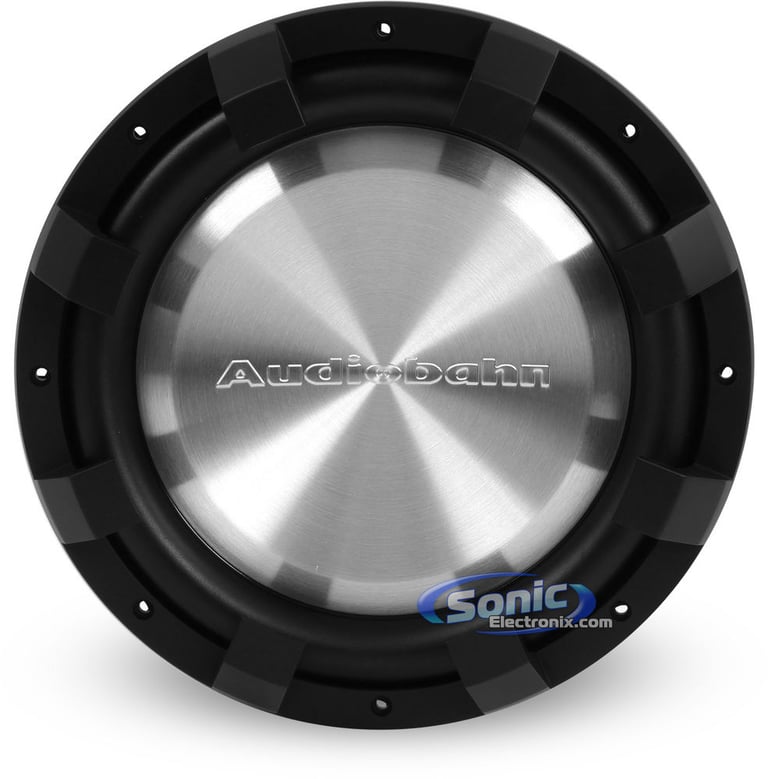

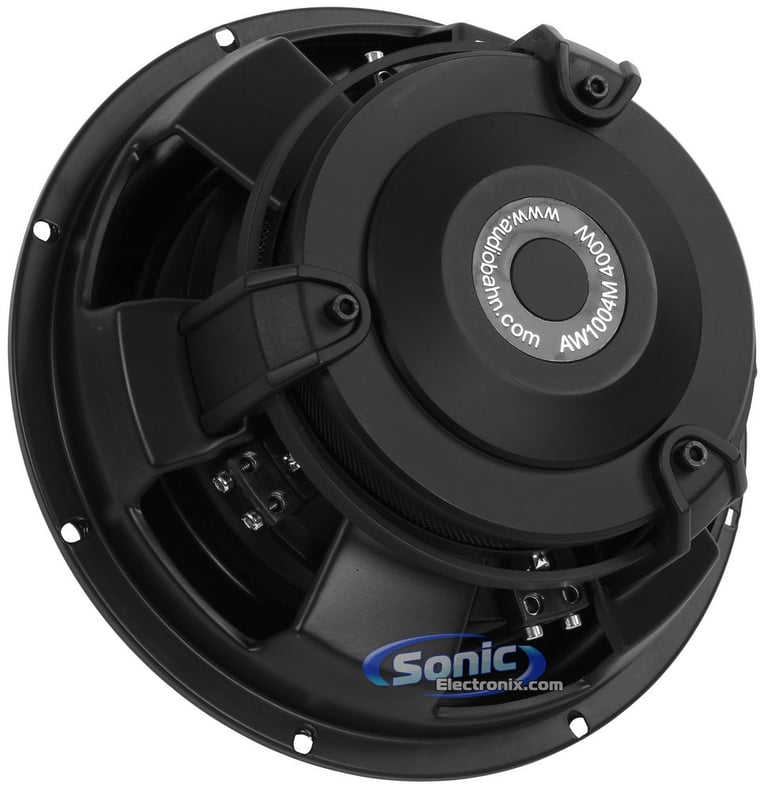

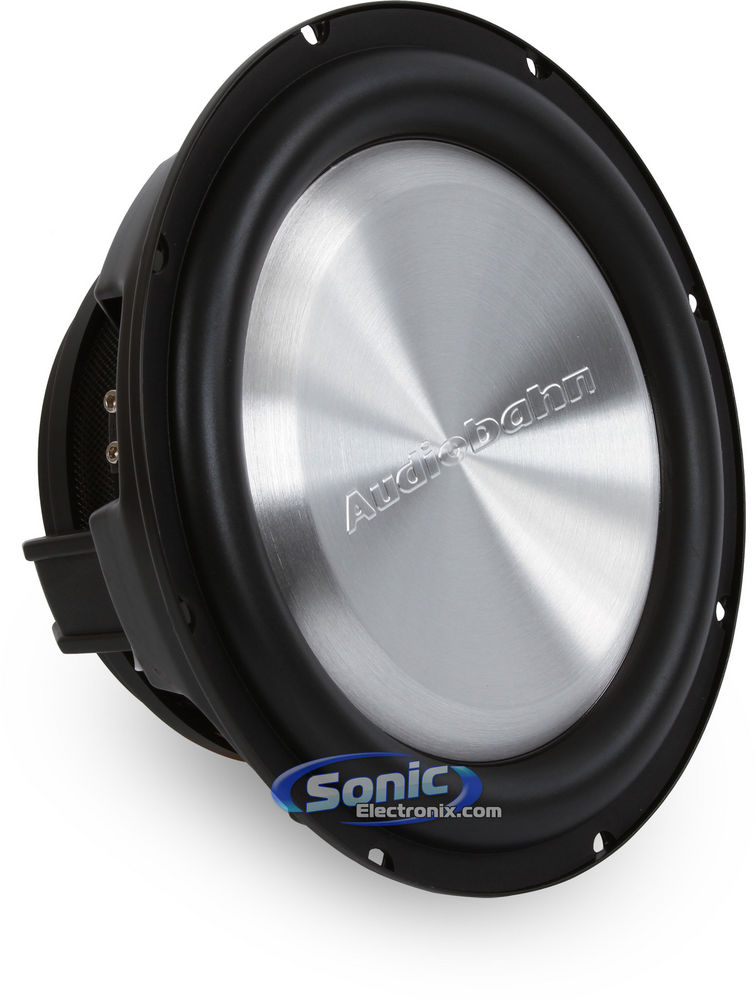

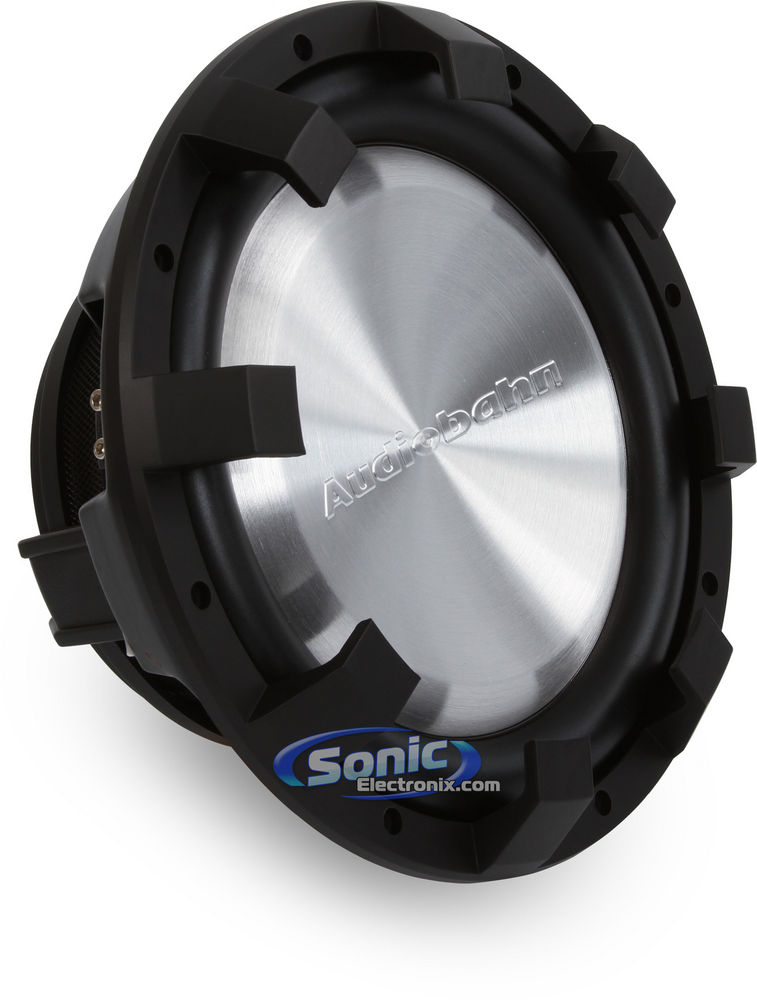

Audiobahn AW1004M

10" Dual 4 Ohm AW Series Low-Profile Car Subwoofer

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

• 1000W Peak
• 500W RMS
• Dual 4 ohm Voice Coil
• Spun Aluminum 1-Piece Cone
• EPDM Surround
• Stamped Steel Basket
• Dual Lug Terminals
• 4-Layer voice Coil with Aluminum Former

Learn more about the aw1004m

We apologize

This item has been discontinued


Loading...
95-6511-17 main

Metra 95-6511-17 Dash Kit

Install a new Double-DIN car stereo in select 2007-2020 vehicles from Dodge, Jeep, Chrysler

8
-48.02%

$12.99

List price $24.99

72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

82-6901 main

Metra 82-6901

5.25” or 6.5” Speaker Mounting Adapters for select 1977-2024 vehicles from Dodge, Chevrolet, Chrysler

39
-34.80%

$14.99

List price $22.99

AXUSBM-B main

Axxess AXUSBM-B USB

Factory USB Port Retention Adapter in select 2009-2023 vehicles from GMC, Chevrolet, Dodge

3
-12.51%

$13.99

List price $15.99

RP4-CH11 main

PAC RP4-CH11

Install New Car Stereo and Retain Steering Wheel Controls, Entertainment System, and Other Factory Features in select 2004-2018 vehicles from Dodge, Jeep, Chrysler

12
-59.63%

$152.99

List price $379.00

CR1291B main

Scosche CR1291B (CR1291) Dash Kit

Install a new Double-DIN car stereo in select 2007-2019 vehicles from Dodge, Jeep, Chrysler (Black)

71
-23.17%

$9.95

List price $12.95

Limited time!
KFC-X3C main

Kenwood eXcelon KFC-X3C

240W Peak (100W RMS) 3.5" Excelon Series 2-way 4-ohm Coaxial Car Speakers for select 2002-2024 vehicles from Toyota, Dodge, Chevrolet

2
-32.73%

$74.00

List price $110.00

SAT-01 main

PAC SAT-01 Antenna Adapter

Connect your factory SiriusXM antenna to a new aftermarket radio for select 2004-2024 vehicles from Ford, Audi, GMC

1
-44.86%

$15.99

List price $29.00

MET-CH14 main

Metra MET-CH14

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in

-10.38%

$94.99

List price $105.99

ACC-NAV4 main

iDataLink Maestro ACC-NAV4 Antenna Adapter

Connect Factory GPS Antenna to Select Alpine and Kenwood Stereos

1
-22.74%

$16.99

List price $21.99

Product Highlights


• 1000W Peak
• 500W RMS
• Dual 4 ohm Voice Coil
• Spun Aluminum 1-Piece Cone
• EPDM Surround
• Stamped Steel Basket
• Dual Lug Terminals
• 4-Layer voice Coil with Aluminum Former

Description


General Features:

  • 10" Dual 4 Ohm AW Series Low-Profile Shallow Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Spun aluminum 1-piece cone
  • EPDM Surround
  • Flat spider
  • Stamped steel basket
  • Dual lug terminals
  • 4-Layer voice coil with aluminum former
  • Resonance Frequency (Fs): 34.80 Hz
  • Top-mount depth: 4-11/16"
  • Sensitivity: 92 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiobahn AW1004M Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiobahn AW1004M Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiobahn AW1004M Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiobahn AW1004M Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
SB-D-CHLGR/12W3v3 main

JL Audio Stealthbox® SB-D-CHLGR/12W3v3

Custom fit subwoofer enclosure for select 2009-2023 Challenger

1

$1,149.99

KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

187
-38.19%

$255.10

List price $412.71

82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.29%

$211.34

List price $232.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
AW Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
26 - 1000 Hz
Sensitivity
92 dB
Xmax (millimeters)
16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Spun Aluminum 1-Piece Cone
Woofer Surround
EPDM Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
0.5 cubic feet
Optimum Ported Box Volume
1.3 cubic feet
Maximum Ported Box Volume
2.3 cubic feet
Top-Mount Depth (Mounting Depth)
4-11/16"
Cutout Diameter
9.13"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34.80 Hz
Equivalent Compliance (Vas)
32.16 liters
Electrical Q Value (Qes)
0.82
Electrical Resistance of Voice Coil (Re)
3.2 ohm
Mechanical Q Value (Qms)
0.7
Efficiency Bandwidth Product (EBP)
42
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AW1004M

Weight:

10.00lbs

Internal SKU:

aw1004m

Internal Product ID:

72406

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn AW1004M thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

sweet subs

I have 2 in a sealed 2 cubic ft box with a hifonics 1500 watt amp at 1 ohm. They slam! The subs fit well behind the seat in my reg cab pickup.They seem a little power hungry because I can't get em to distort and the chrome looks dang cool too! Very good subs for the money!

By Jacob on August 31, 2014

8 found this helpful




ELECTRA LED small

American DJ ELECTRA LED

LED Scanning Barrel Mirrored Moonflower with Sharp Red, Green & Blue High Output Colored Beams

$69.99

List price $139.95

SWHOM-DRIVEA-GL small

Swann SWHOM-DRIVEA-GL

Driveway Alert Alarm

$15.99

List price $39.99

AHC351K small

Denon AH-C351K

In-Ear Stereo Headphones with Neodymium Drivers and Multiple Ear Tips (Black) (AHC351)

$36.99

List price $49.99

MA-1UVP small

Marathon MA-1UVP

1U Vent Rack Panel

$5.99

List price $19.99

FZUTWBL small

Odyssey FZUTWBL

Black Label STAKPAK Utility Truck Pack DJ Case with Foam Lined Interior & Wheels

$639.99

List price $879.99

OCCHV08-10 small

Sonic Sub Box: OCCHV08-10

Dual 10" Up Firing Sub Enclosure for 2000 & UP Chevrolet and GMC Full-Size Crew Cab Pickup Truck CK1500, CK2500, CK3500

(1)

$59.99

List price $229.99

FDH-F1B small

RYDEEN FDH-F1B

Rydeen Latchcam for select 2014 F-150

$179.99

List price $199.99

GX1724 small

XO Vision GX1724

17" Widescreen TFT-LCD Flipdown Overhead Ceiling-Mount Monitor with Built-in IR Transmitter (GX-1724)

$319.99

List price $999.99

AT60J small

Audiobahn AT60J

5/8" (16mm) Silk Dome Tweeters

$26.99

List price $44.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Dodge Challenger

2012 Chevrolet Silverado 2500 HD

1981 Dodge D50

2025 Subaru BRZ

2012 MINI Clubman

2005 Chevrolet Aveo

2008 Mercury Mariner

1980 Ford Mustang

2004 Dodge Sprinter

2008 BMW 750i

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
