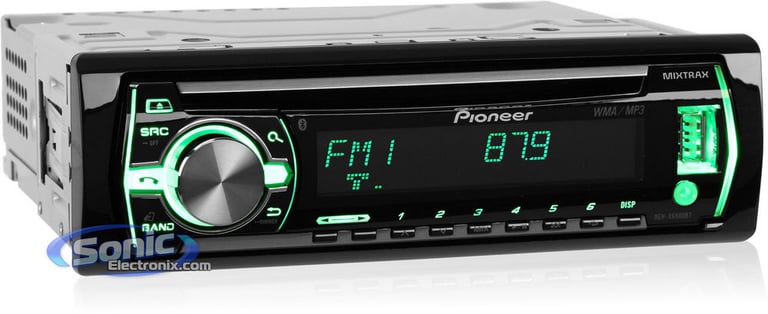

Pioneer DEH-X6500BT R/B

In-Dash CD/MP3/USB Car Stereo Receiver w/ A2DP Bluetooth, Pandora Link, MIXTRAX, iPod Support & AUX

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

In-Dash CD/MP3/USB Receiver • Multi-Line, Multi-Segmented LCD Display • 50W x 4 Chan. MAX • 14W x 4 Chan. RMS • 2 Sets of 2V Preamp Outputs • 5-Band Parametric Equalizer • Advanced Sound Retriever • Bluetooth Technology • iPod and iPhone Ready

Learn more about the LS-dehx6500bt-RB

We apologize

This item has been discontinued

Product Highlights


In-Dash CD/MP3/USB Receiver • Multi-Line, Multi-Segmented LCD Display • 50W x 4 Chan. MAX • 14W x 4 Chan. RMS • 2 Sets of 2V Preamp Outputs • 5-Band Parametric Equalizer • Advanced Sound Retriever • Bluetooth Technology • iPod and iPhone Ready

Description


Pioneer brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Commercial Free Pandora Listening Through 2013

Pioneer Electronics is now helping consumers enjoy Pandora Internet Radio service in their vehicles – commercial free! More than 20 Pioneer in-dash receivers offer built-in Pandora control, providing users full control and playback of the Pandora app through a compatible iPhone or Android smartphone device. Simply launch the Pandora app on the device and connect to a compatible Pioneer car stereo via a hardwired connection or Bluetooth streaming on compatible receivers to receive commercial-free listening through the end of 2013. Pioneer's way of saying thanks!




















General Features:

  • In-Dash AM/FM, CD, MP3, USB Receiver with Remote
  • Multi-line, multi-segmented LCD display with LED back light is 35% larger
  • 2-way iPod control allows control from the iPod or the stereo
  • Bluetooth technology allows wireless phone calls and music streaming
  • MIXTRAX application will create a non-stop mix of your music library with DJ inspired effects
  • Pandora Link integrates your car stereo with your iPhone and Pandora Internet Radio
  • App Mode allows you to listen to content on select compatible apps from a connected iPhone or iTouch
  • Variable Color illuminated button lighting
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 14 watts x 4 channels

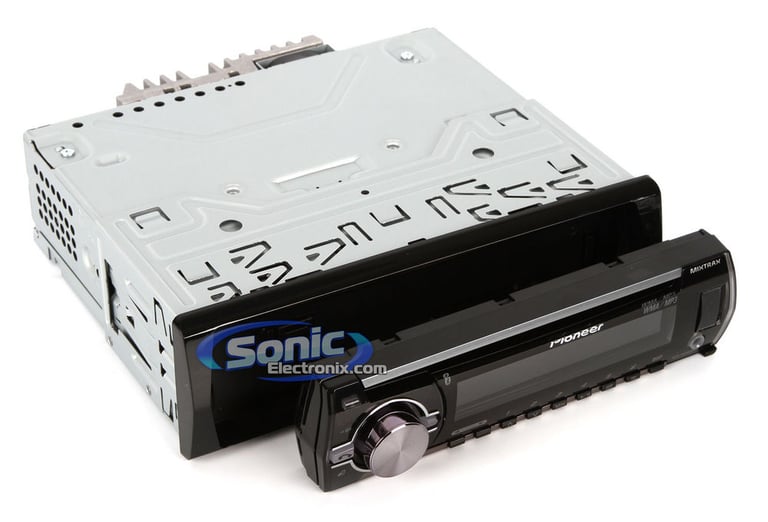

  • Theft-deterrent, detachable face plate with anti-dust design

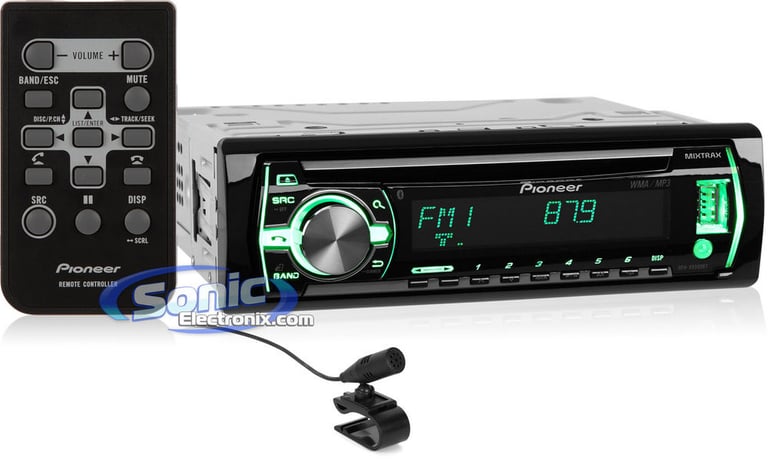

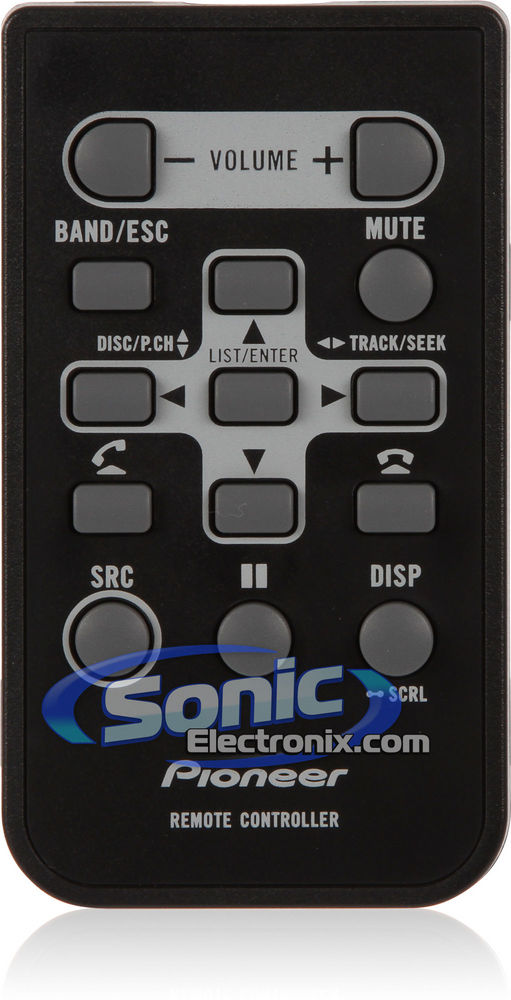

  • Wireless remote control included
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year Sonic Electronix Warranty

Playback and Audio Features:

  • Playback of CD, CD-R, CD-RW, MP3, WAV and WMA
  • AM/FM tuner with 18FM/6AM presets
  • Advanced Sound Retriever with Spectrum Analyzer
  • Electronic Shock Protection (ESP)
  • 5-band parametric equalizer with 7 selectable tone curves (5 Preset, 2 User)
  • 24bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
  • SD Card reader for audio playback
  • Built-in High-Pass and Low-Pass crossover filters
  • Android Media Access when you connect a compatible Android smartphone via USB

Expandability Options:

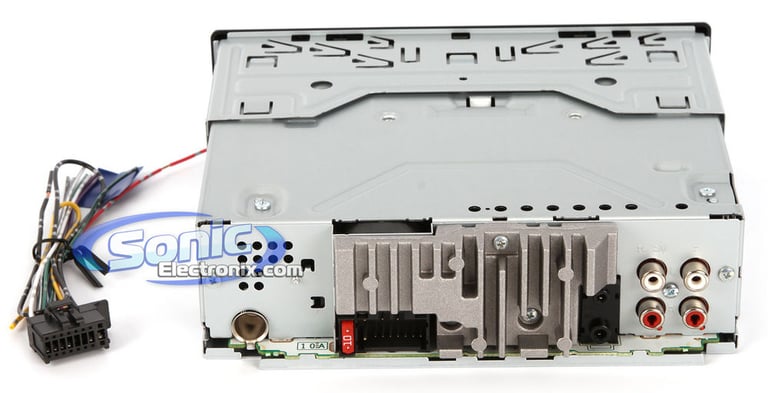

  • 2 Sets of 2V preamp outputs (front and switchable rear/subwoofer)
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
  • iPod and iPhone Ready: Standard USB-to-iPod Cable compatible, however Pioneer CD-iU51 is recommended
  • Front Auxiliary Input: 3.5mm headphone jack allows connection to portable media devices such as MP3 players
  • Front USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
  • Steering Wheel Control Ready: PAC SWI-PSv1 or the Axxess ASWC required and sold separately

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 3.0 +EDR certified
  • Bluetooth range up to 32.8 ft.
  • Supports SMS message notifications and A2DP audio streaming
  • Apple iPhone voice control when connected to Bluetooth
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • HSP: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
  • Works with most Bluetooth enabled cell phones

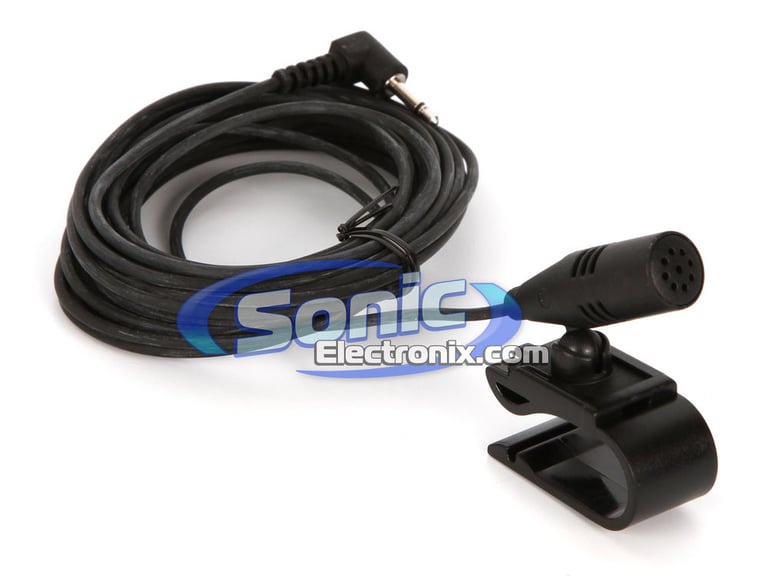

  • Includes an external wired microphone for clear, distortion-free talking

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
14 watts x 4 channel
Preamp RCA Outputs
2 Sets (4-Channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
2 volts
Built-In Equalizer
5-Band parametric equalizer
Display Type
LCD Text Display
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Memory Card Slot
SD
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
  • PAC SWI-PSv1: Pioneer Specific, Manual Programming Interface
  • Axxess ASWC: Universal, Automatic Programming Interface
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

DEH-X6500BT-RB

Weight:

3.40lbs

Internal SKU:

LS-dehx6500bt-RB

Internal Product ID:

72553
