JVC KW-R500 (Factory Refurbished)

Double DIN In-Dash Car Stereo Receiver w/ Front USB iPod Connection, Aux Input and Pandora Control

JVC
Shop all JVC
Product videos
highlight-star-icon

• Double DIN 50W x 4 Chan. Max
• 20W x 4 Chan. RMS
• 3 Sets of 2.5V Preamp Outputs
• 3-Band Parametric Equalizer
• 24bit Digital Analog Converter
• Bluetooth Adapter Ready
• Integrated Pandora Control

Learn more about the LS-kwr500-RB

We apologize

This item has been discontinued

Product Highlights


• Double DIN 50W x 4 Chan. Max
• 20W x 4 Chan. RMS
• 3 Sets of 2.5V Preamp Outputs
• 3-Band Parametric Equalizer
• 24bit Digital Analog Converter
• Bluetooth Adapter Ready
• Integrated Pandora Control

Description


JVC brand icon

Authorized dealer
















General Features:

  • In-dash AM/FM, CD, MP3, WMA Receiver with Remote
  • 4-line Dot-Matrix text display
  • Integrated Pandora internet radio control with attached iPhone
  • 2-location Variable Color Illumination with 30,000 color options
  • Supports Android phones with downloaded JVC app
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 20 watts x 4 channels

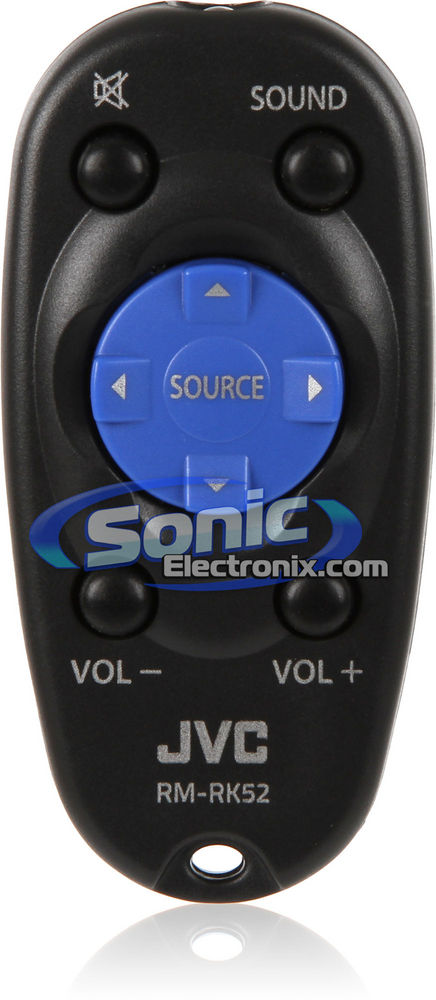

  • Remote control included
  • CD text information display
  • 12 or 24 hours digital clock display
  • Separate night and day illumination
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • CD/CD-R/RW, MP3/WMA Playback
  • AM/FM tuner with 18FM/12AM presets
  • Electronic Shock Protection (ESP)
  • 3-band parametric equalizer with 6 selectable tone curves (5 Preset, 1 User)
  • 24bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
  • Low Pass and High Pass crossover filter control
  • Separate subwoofer level control

Expandability Options:

  • 2 Sets of 2.5V preamp outputs (front, switchable rear/subwoofer)
  • Bluetooth Ready: JVC KS-BTA100 required and sold separately
  • iPod and iPhone Ready: Standard USB-to-iPod Cable compatible
  • Plays music stored on the iPhone 5 via Apple’s supplied Lightning-to-USB cable
  • 3.5mm Front Auxiliary Input
  • Front USB Input
  • Steering Wheel Control Ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Detachable Controls
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
20 watts x 4 channel
Preamp RCA Outputs
2 Sets (4-Channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
2.5 volts
Built-In Equalizer
3-band parametric equalizer
Display Type
Dot-Matrix Text Display
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

LS-KWR500-RB

Weight:

4.85lbs

Internal SKU:

LS-kwr500-RB

Internal Product ID:

81022

Product and How-to Videos


  • JVC Bluetooth Stereo Control Receivers | CES 2014
  • How To Install a Car Stereo (Single & Double DIN) | Car Audio 101

Customer Ratings & Reviews



5 star
43%
4 star
57%
3 star
0%
2 star
0%
1 star
0%



Durability
4.3
Value
4.6
Features
4.3
Design
4.5
Usability
4

Customer Reviews

Sort by:

Loading...

Good radio for cheap

Decent radio for under $100. I put them in my rental vehicles and haven't had to replace a broken one yet.

By Tallpat on December 9, 2014

6

found this helpful.

Amazing zing zing zing!

Love it works great the sounds great . Catches on fire a bit but the all m all quality of the product is out standing beside the smoke when it starts up but it's a nice burnt smell like something when you light plastic but it's a great item. Love it!

By Matt.M on November 14, 2014

3

found this helpful.

Great product for the price

Worked great...easy install.. can't beat the price. Liked the colour change to match instrument cluster.

By Gerry on September 29, 2014

3

found this helpful.

very pleased

overall design and color change is very cool, shipping was on time.

By Mark on August 10, 2014

3

found this helpful.

Great value

Certainly is a great value considering the price. I purchased this item primarily for the iPod/iPhone (Pandora) USB connection.
The menu system is a bit cumbersome and not easy to manage while driving.
It is an improvement over the stock radio without a doubt!

By Clifford on September 30, 2014

2

found this helpful.

Good

Its a good product and would buy again.

By Eric on June 16, 2014

2

found this helpful.

Great Radio!

I installed it in my 1994 Subaru Legacy to replace an old Eclipse Radio. It is great! It changes colors to match the dash lighting, the radio can handle high wattage without cutting. I am running a OEM Panasonic subwoofer with 2 Alpine 35w RMS speakers and 2 Kenwood 70w RMS speakers. It works great with what I have. Also, the iPhone connectivity works very well, there are controls on the head unit that allow you to shuffle your music, change the track, etc. The FM/AM portion works great. The mp3 and USB can pick up the Song Name, Artist Name, and Album. The AUX port is nice to for stuff like Windows Phones and Android Phones. The settings are great, you can adjust how much Bass/Treb/Mid you want for the speakers as well as the Subwoofer, and there are other various settings.. Lastly the price, for what you get in terms of features is great! It has front and rear AUX ports, front USB, iPhone/iPod connectivity through the USB, and mp3 disc support. Most Double Din head units cost well over $100 to even come close to this one.

By Cody on June 9, 2014

1

found this helpful.
