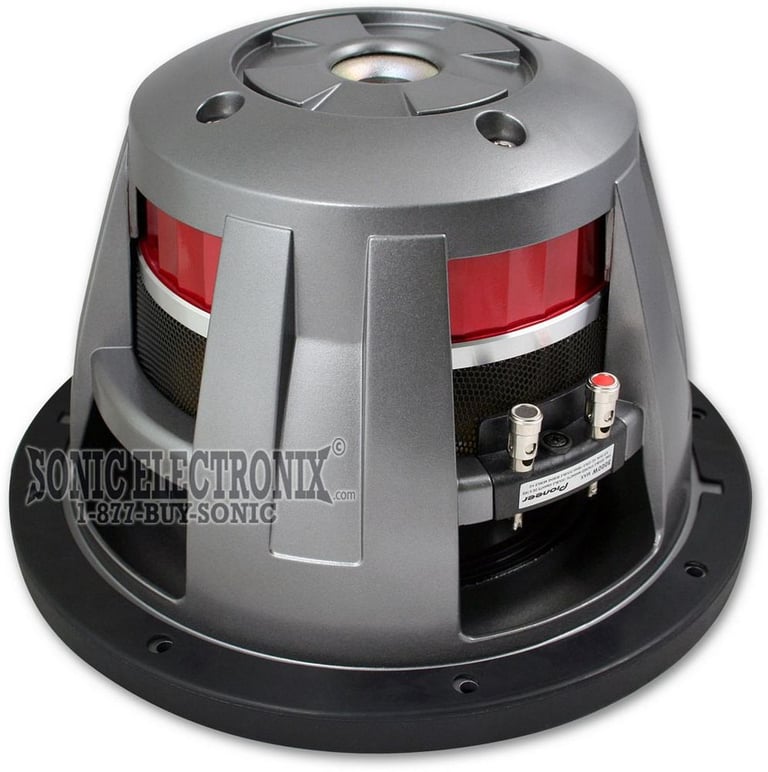

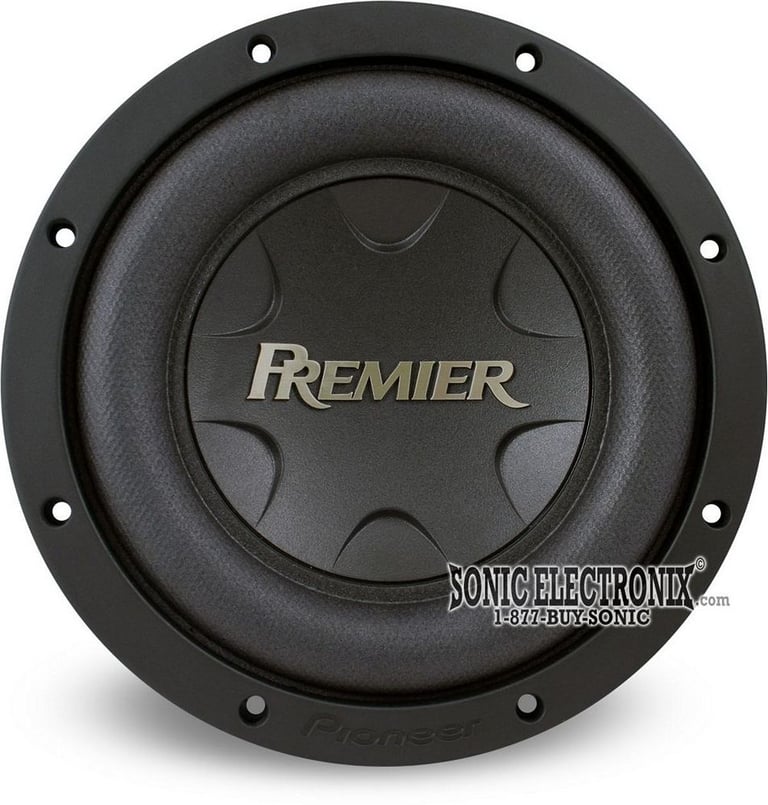

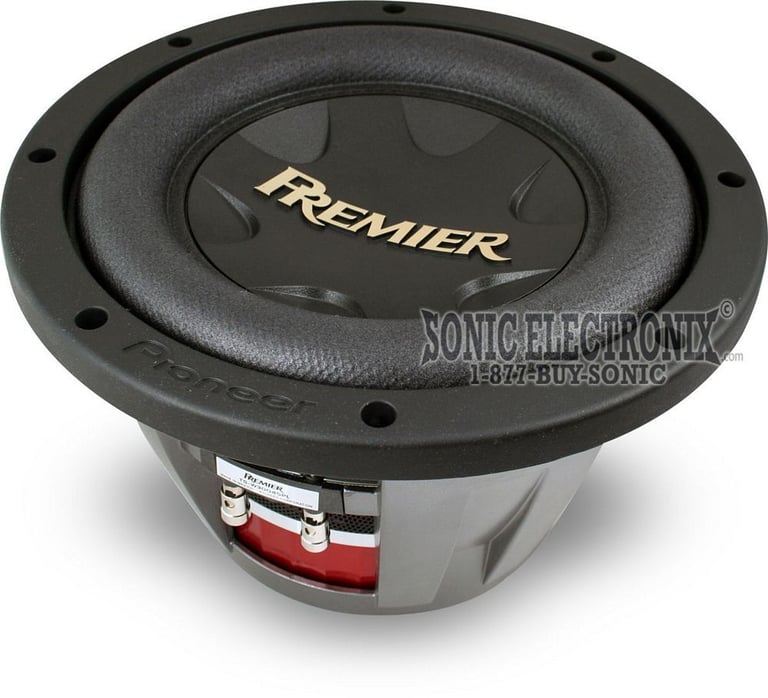

Pioneer Premier TS-W2502SPL

10" Dual 2 ohm Premier SPL Competition Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

10" subwoofer with dual 2-ohm voice coils • 2500 watts max power handling • 800 watts RMS power handling • Wide-Roll 3-Layer Fiber Radial Surround • IMPP Cone with Carbon Fiber/Glass Fiber Reinforcement

Learn more about the tsw2502spl

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

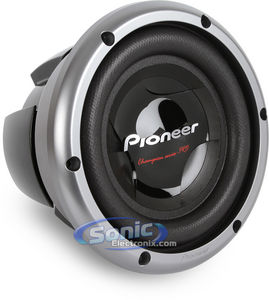

tsw2502d2 thumbnail

Pioneer Premier TS-W2502D2

OUR PRICE: $119.99

View item

Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
ZXI-44 main

DS18 ZXI-44

300W Peak (100W RMS) 4" ZXI Series 2-way 4-ohm Coaxial Car Speakers

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

Product Highlights


10" subwoofer with dual 2-ohm voice coils • 2500 watts max power handling • 800 watts RMS power handling • Wide-Roll 3-Layer Fiber Radial Surround • IMPP Cone with Carbon Fiber/Glass Fiber Reinforcement

Description


Pioneer brand icon

Authorized dealer

  • 10" subwoofer with dual 2-ohm voice coils
  • peak power handling: 2500 watts
  • RMS power handling: 800 watts
  • Wide-Roll 3-Layer Fiber Radial Surround
  • IMPP Cone with Carbon Fiber/Glass Fiber Reinforcement
  • Aluminum Heat Sink that cools the voice coil structure
  • Titanium Voice Coil Bobbin
  • Ceramic-Coated Voice Coil Wire which allows it to handle extreme heat
  • Double-Stack Magnet with Double-Stack Top Plate
  • Cast Aluminum Basket is a one-piece aluminum basket assembly holds the motor assembly, cone, and magnet structure securely in place. The advantages of this design: reduced internal stress, superior damping, and increased magnetic efficiency.
  • frequency response: 18 Hz - 1000 Hz
  • sensitivity: 87 dB
  • No warranty -- model is too old to be covered.

Product history:

Pioneer TS-W2502D2 thumbnail
(newest, current model)
Pioneer TS-W2501D2 thumbnail
(previous model, replaced by Pioneer Premier TS-W2502D2)
Pioneer TS-W2502SPL thumbnail
(previous model, replaced by Pioneer Premier TS-W2501D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer Premier TS-W2502SPL Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer Premier TS-W2502SPL Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer Premier TS-W2502SPL Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Pioneer Premier TS-W2502SPL Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
2500 watts
RMS Power Handling
800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
18 - 1000 Hz
Sensitivity
87 dB
Xmax (millimeters)
7.9 mm
Woofer Composition
Interlaced Carbon Fiber/Glass Fiber Reinforced
Woofer Surround
Wide-Roll, 3-Layer Fiber Woven Aramid Radial with Honeycomb Cloth
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
6-1/2"
Cutout Diameter
9-3/8"
Warranty and Return Policy
Parts Warranty Duration
Not warranted
Labor Warranty Duration
Not warranted
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W2502SPL

Weight:

26.00lbs

Internal SKU:

tsw2502spl

Internal Product ID:

9268
