See all parts that fit your 2005 Cooper

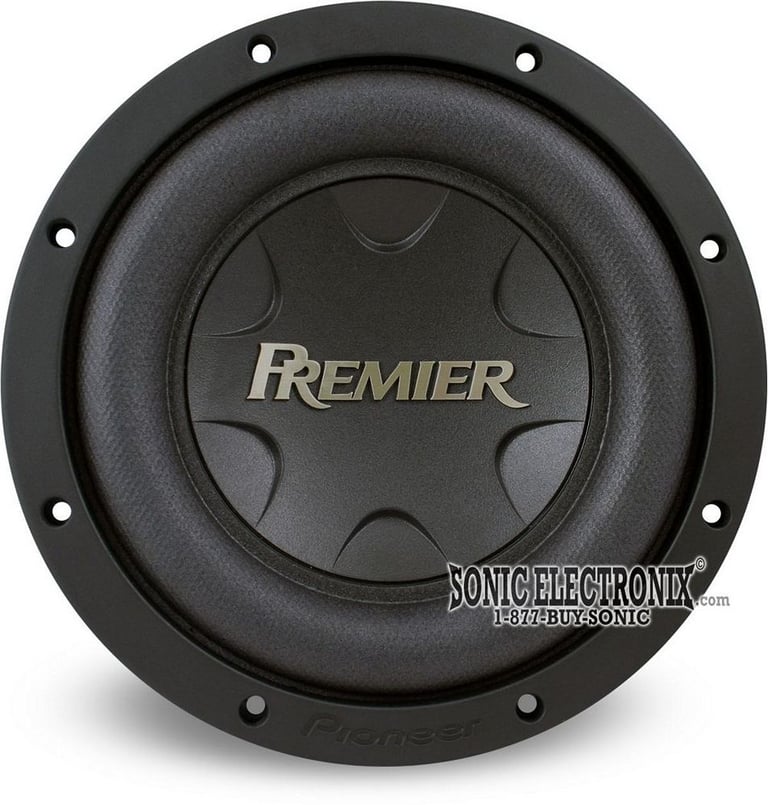

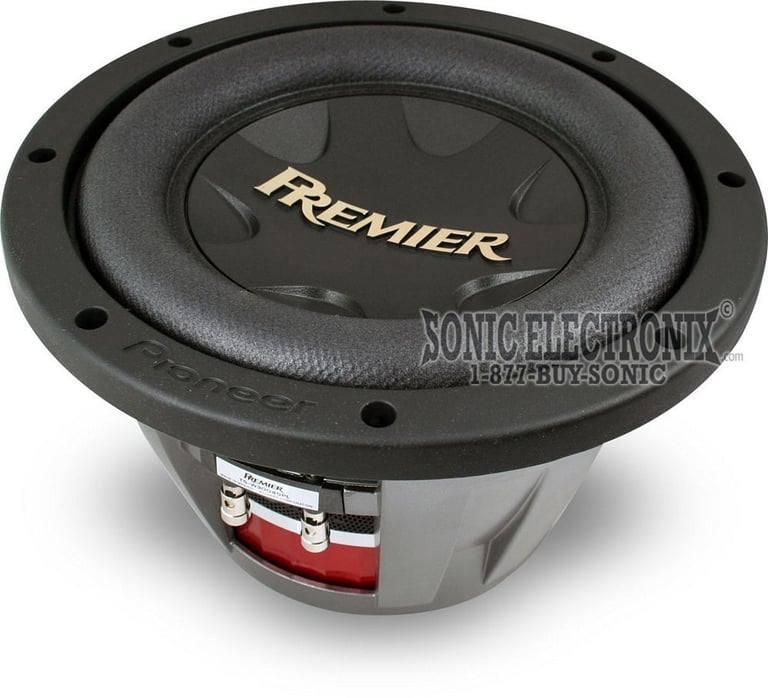

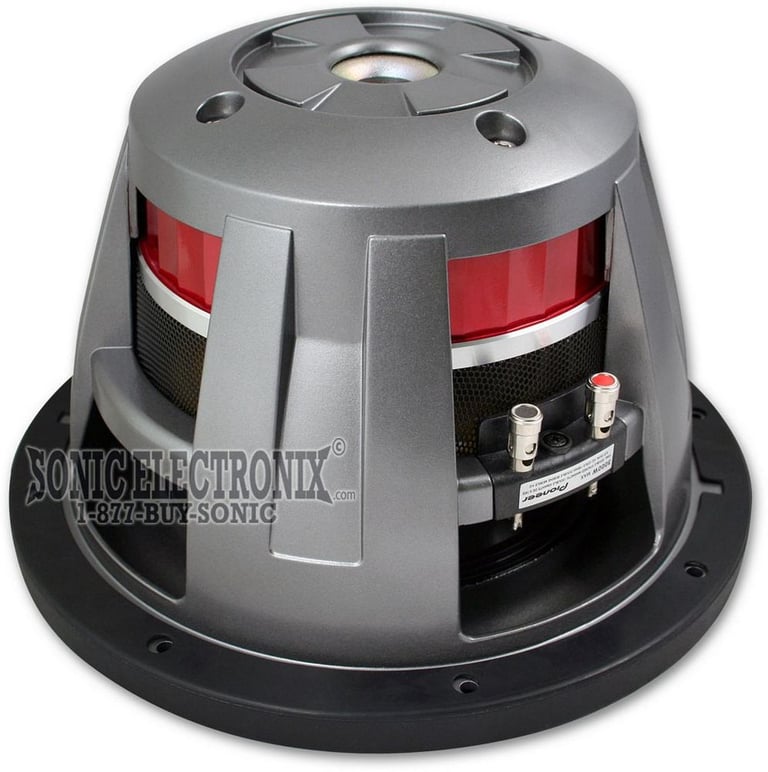

Pioneer Premier TS-W2504SPL

10" Dual 4 ohm Premier SPL Competition Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

10" subwoofer with dual 4-ohm voice coils • 2500 watts max power handling • 800 watts RMS power handling • Wide-Roll 3-Layer Fiber Radial Surround • IMPP Cone with Carbon Fiber/Glass Fiber Reinforcement

Learn more about the tsw2504spl

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw2502d4 thumbnail

Pioneer TS-W2502D4

OUR PRICE: $116.99

View item

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
-11.43%

$309.99

List price $349.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

P1692 main

Rockford Fosgate Punch P1 P1692

300W Peak (150W RMS) 6x9" Punch Series 2 Way Coaxial 4-ohm Speakers

82
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

VSP65KIT2F main

NVX VSP65KIT2F

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

11
-16.67%

$119.99

List price $143.99

Product Highlights


10" subwoofer with dual 4-ohm voice coils • 2500 watts max power handling • 800 watts RMS power handling • Wide-Roll 3-Layer Fiber Radial Surround • IMPP Cone with Carbon Fiber/Glass Fiber Reinforcement

Description


Pioneer brand icon

Authorized dealer

  • 10" subwoofer with dual 4-ohm voice coils
  • peak power handling: 2500 watts
  • RMS power handling: 800 watts
  • Wide-Roll 3-Layer Fiber Radial Surround
  • IMPP Cone with Carbon Fiber/Glass Fiber Reinforcement
  • Aluminum Heat Sink that cools the voice coil structure
  • Titanium Voice Coil Bobbin
  • Ceramic-Coated Voice Coil Wire which allows it to handle extreme heat
  • Double-Stack Magnet with Double-Stack Top Plate
  • Cast Aluminum Basket is a one-piece aluminum basket assembly holds the motor assembly, cone, and magnet structure securely in place. The advantages of this design: reduced internal stress, superior damping, and increased magnetic efficiency.
  • frequency response: 18 Hz - 1000 Hz
  • sensitivity: 87 dB
  • No warranty -- model is too old to be covered.

Product history:

Pioneer TS-W2502D4 thumbnail
(newest, current model)
Pioneer TS-W2501D4 thumbnail
(previous model, replaced by Pioneer TS-W2502D4)
Pioneer TS-W2504SPL thumbnail
(previous model, replaced by Pioneer Premier TS-W2501D4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer Premier TS-W2504SPL Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer Premier TS-W2504SPL Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer Premier TS-W2504SPL Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer Premier TS-W2504SPL Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
2500 watts
RMS Power Handling
800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
18 - 1000 Hz
Sensitivity
87 dB
Xmax (millimeters)
8.1 mm
Woofer Composition
Interlaced Carbon Fiber/Glass Fiber Reinforced
Woofer Surround
Wide-Roll, 3-Layer Fiber Woven Aramid Radial with Honeycomb Cloth
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
6-1/2"
Cutout Diameter
9-3/8"
Warranty and Return Policy
Parts Warranty Duration
Not warranted
Labor Warranty Duration
Not warranted
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W2504SPL

Weight:

26.00lbs

Internal SKU:

tsw2504spl

Internal Product ID:

9269
