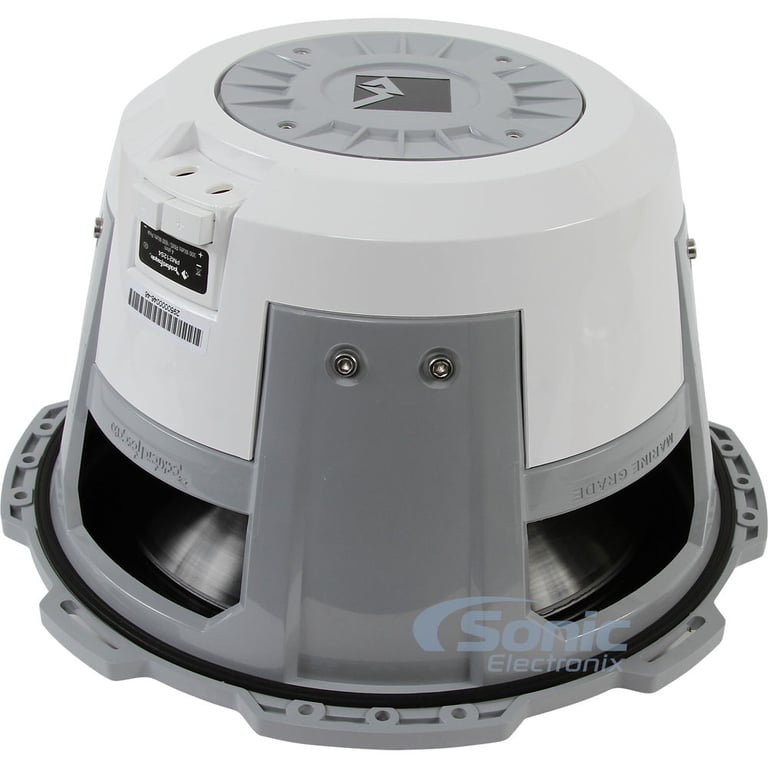

Rockford Fosgate PM212S4

600W 12" Punch M2 Series Single 4-ohm Marine Subwoofer - White

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• 300W RMS
• 600W Max
• 100% UV stable Centrex injection molded plastic parts
• UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• Ultra-flexible fully insulated silicone lead wire
• Linear, high excursion matched motor magnetics and suspension design

Learn more about the pm212s4

We apologize

This item has been discontinued


Loading...
460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8
Limited time!
DMX958XR main

Kenwood eXcelon DMX958XR

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

3
-25.08%

$899.00

List price $1200.00

Product Highlights


• 300W RMS
• 600W Max
• 100% UV stable Centrex injection molded plastic parts
• UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• Ultra-flexible fully insulated silicone lead wire
• Linear, high excursion matched motor magnetics and suspension design

Description


Rockford Fosgate brand icon

Authorized dealer

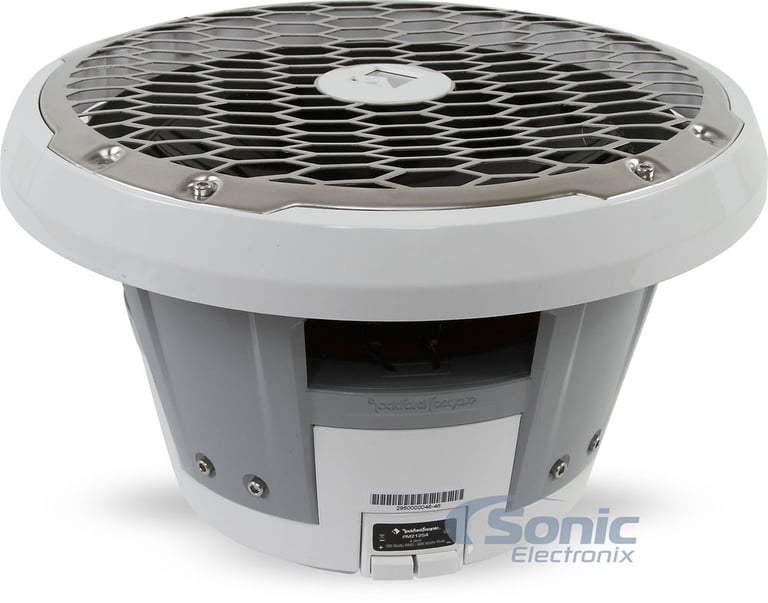

Rockford Fosgate 12" Punch M2 Subwoofer

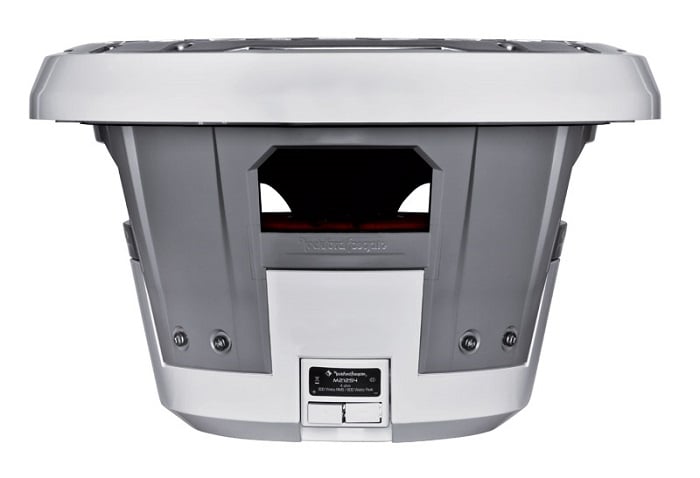

P2 Marine Subwoofer


Element Ready

The Punch M2 marine subwoofer series are purpose-built for marine watercraft or powersports applications. They set the bar with flexible enclosure options and high power handling so you can enjoy your setup in even the most demanding of environments. With a UV and Salt-Fog resistant TPE surround and 100% UV stable Centrex injection molded plastic parts, you can rest assured that the driver will be defended from the elements for many years to come. These subwoofers are protected against Dust, UV, Water, Corrosion, and feature Stainless hardware - including the provided grille.




Exceeding the Standard

The Rockford Fosgate following is a unique one, they push their gear to the extreme and expect nothing less than top quality performance. This is why Rockford Fosgate makes sure to take extra measures in the pursuit to exceed the expectations of all of us. This includes making sure that the Power handling on this drivers conform to CEA-2031 industry standards and that the drivers are Klippel Verified - all in order to deliver the best possible subwoofer to the Rockford Fosgate faithful.





General Features:













  • 12" Single 4-ohm Punch M2 Marine Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • CEA-2031 Compliant Subwoofer
  • Klippel Verified Subwoofer
  • Meets or exceeds ASTM test standards for Marine/Outdoor use
  • 100% UV stable Centrex injection molded plastic parts
  • UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround

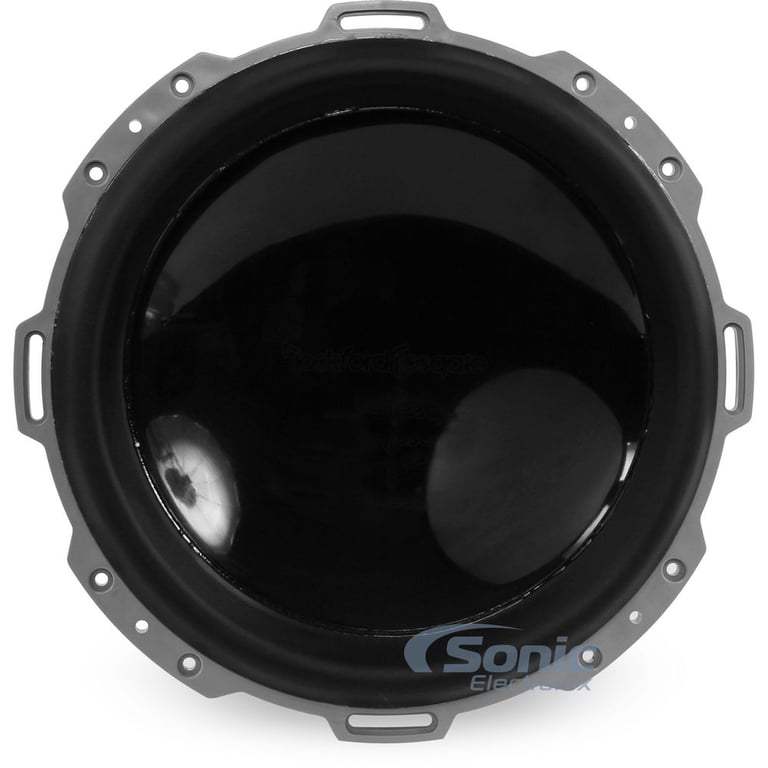

  • Injection molded mineral filled polypropylene cone body with UV inhibitors

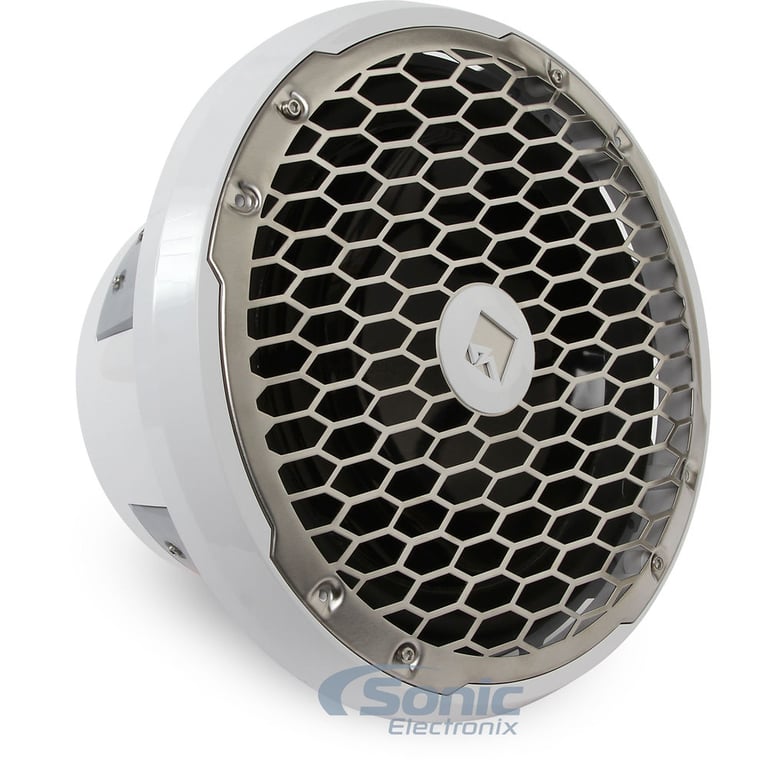

  • 18 gauge corrosion resistant removable Stainless Steel grille cover insert
  • Ultra-flexible fully insulated silicone lead wire
  • 2.0" 4-layer aluminum voice coil diameter
  • Proprietary corrosion resistant spring loaded push terminals
  • Moisture, tear and fatigue resistant Aramid fiber spider
  • Linear, high excursion matched motor magnetics and suspension design
  • VAST Surround, provides up to a 25% more cone area
  • Protected against Dust, UV, Water, Corrosion
  • Dual 8 AWG compression speaker terminals

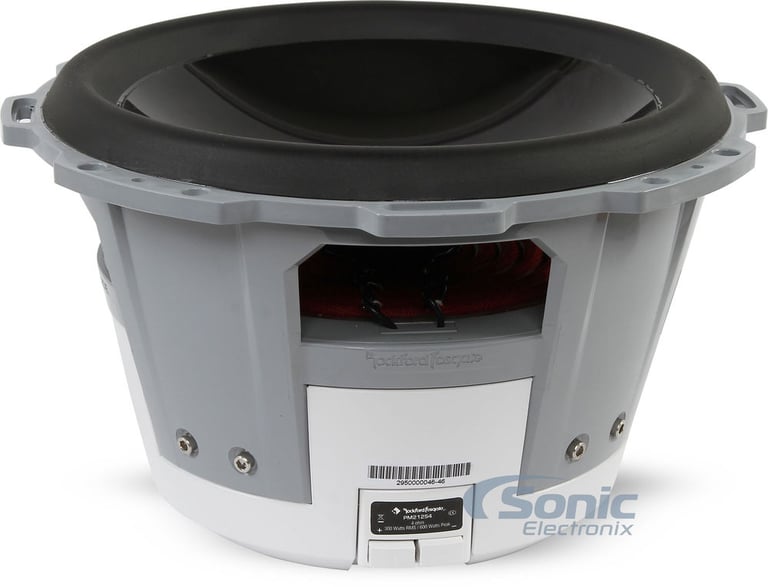

  • FlexFit slot mounted frame pattern basket
  • Anodized aluminum voice coil former
  • Internal magnetic shielding
  • User-removable trim ring/grille

  •
  • Top-mount depth: 6.60"
  • Cutout Diameter: 10.9"
  • Frequency Response: 30 - 250 Hz
  • Sensitivity: 87.0 dB
  • Xmax: 12 mm
  • Resonance Frequency (Fs): 25.5 Hz
  • Optimum Sealed Enclosure: 1.0 ft² (28.33L)
  • Optimum Vented Enclosure: 1.5 ft² (42.50L)
  • Also Optimized for Infinite Baffle (Free Air) Applications
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

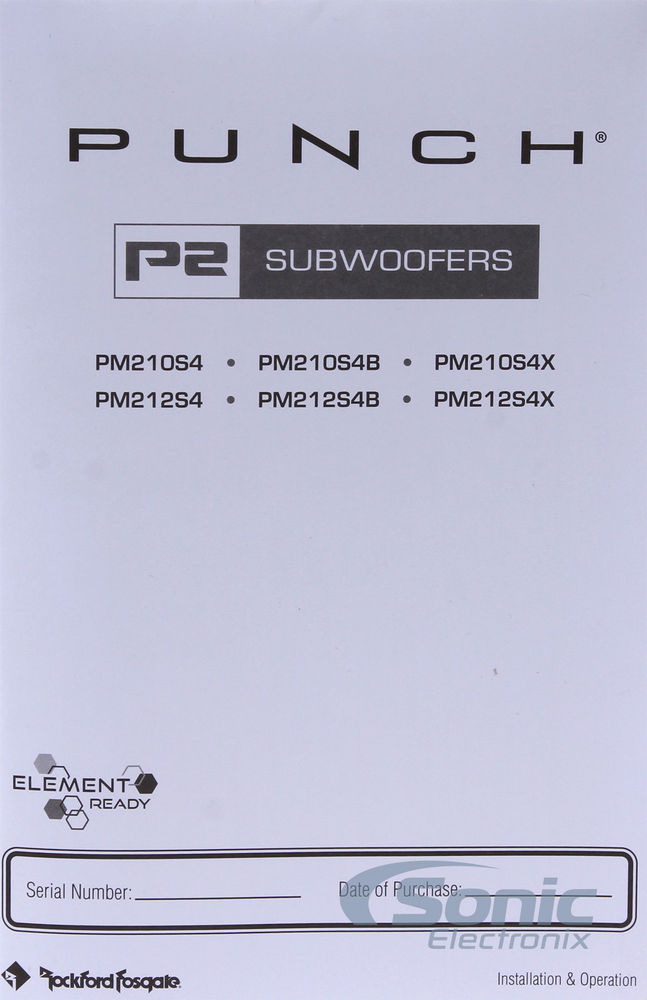

Check out the Rockford Fosgate PM212S4B Owner's Manual

Product history:

Rockford Fosgate PM212S4 thumbnail
(newest, current model)
Rockford Fosgate M212S4 thumbnail
(previous model, replaced by Rockford Fosgate PM212S4)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate PM212S4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate PM212S4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate PM212S4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate PM212S4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

M6-10IB-S-GwGw-4 small

JL Audio M6-10IB-S-GwGw-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5.9"
• Sensitivity: 86.1 dB

(3)

$479.99

List price $479.99

JBLMARSUBSD102GAM small

JBL Stadium Marine 102 (JBLSUBMASD10AM)

• Peak Power: 900 watts
• RMS Power: 300 watts
• Impedance: 2 or 4 ohm
• Multi-color RGB LED lights
• Plus One Polypropylene Cone
• Rubber Surround
• Mount depth: 4-7/8"
• Sensitivity: 89 dB

$149.95

List price $449.95

M6-8IB-S-GwGw-4 small

JL Audio M6-8IB-S-GwGw-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5.07"
• Sensitivity: 86.8 dB

$349.99

List price $349.99

STADIUMMW1000AM small

JBL Stadium Marine MW1000 (MW1000AM)

• RMS: 300 Watts / Peak: 900 Watts
• Plus One cones provide more overall speaker-cone area than other cones in its class
• Unique and eye-catching RGB illumination
• Features SSI (Switch-Selectable Impedance), which allows you to choose either 2 or 4 ohm load impedance
• Durable One-piece Polymer basket

$149.95

List price $449.95

XM1041WL small

Kenwood eXcelon XM1041WL

• Peak Power: 1300 watts
• RMS Power: 300 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 5-1/2"
• Sensitivity: 84 dB

$199.00

List price $580.00

PSW10.4D small

DS18 PSW10.4D

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Water Resistance Paper Cone
• Rubber Surround
• Mount depth: 3"
• Sensitivity: 84 dB

(1)

$179.95

List price $179.95

DB 1242 DVC small

Polk Audio DB 1242 DVC (DB1242DVC)

• Peak Power: 1110 watts
• RMS Power: 375 watts
• Impedance: Dual 4 ohm
• Polypropylene cone
• Santoprene Rubber surround
• Mount depth: 4.34"
• Sensitivity: 86 dB

(4)

$130.00

List price $149.99

M6-8IB-S-GmTi-i-4 small

JL Audio M6-8IB-S-GmTi-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.7 dB

$429.99

List price $429.99

M6-8IB-S-GwGw-i-4 small

JL Audio M6-8IB-S-GwGw-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.8 dB

(1)

$399.99

List price $399.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87 dB
Xmax (millimeters)
12 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Thermo-Plastic Elastomer
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.70 cubic feet
Maximum Sealed Box Volume
1.80 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
6.60"
Cutout Diameter
10.90"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PM212S4

Weight:

12.90lbs

Internal SKU:

pm212s4

Internal Product ID:

94326

Product and How-to Videos


Customer Ratings & Reviews


Rockford Fosgate PM212S4 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


ALFDC2 small

SoundGate ALFDC2 *Price Good Only While Supplies Last*

Add an Alpine M-Bus CD Changer to Select 1995-1998 Ford Vehicles

$29.99

List price $169.99

SC-C1+SNY-SC1 small

Sony SNY-SC1 + SIRIUS SC-C1

SIRIUS SiriusConnect Adapter for Sony + SIRIUS Connect Universal Tuner

(2)

$128.42

List price $169.98

KFC-1360s small

Kenwood KFC-1360s

5-1/4" 2-way Speakers

$31.99

List price $79.99

7607545500 small

Blaupunkt Car Stereo Bluetooth and USB Interface (7 607 545 500)

Add hands-free calling and a USB adapter to select Blaupunkt receivers (Part #7607545500)

$54.99

List price $169.99

SXXv2-15D2 small

RE Audio SXXv2-15D2 Refurbished to Like New

1200W 15" SXXv2 Series Dual 2 Ohm Subwoofer (SXX v2 15D2 , SXX15V2D2)

(1)

$179.99

List price $599.99

M212S4 small

Rockford Fosgate Marine M212S4 (White)

12" 4 ohm Marine M2 Series Subwoofer

(3)

$264.28

List price $369.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2006 Isuzu Ascender

2025 Ford Ranger

2004 Lincoln Navigator

2000 Chrysler Concorde

2013 Suzuki Kizashi

2019 Ford Mustang

2015 Ford Flex

2005 Nissan Maxima

2018 Audi A8 Quattro

2003 Ford Excursion

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
