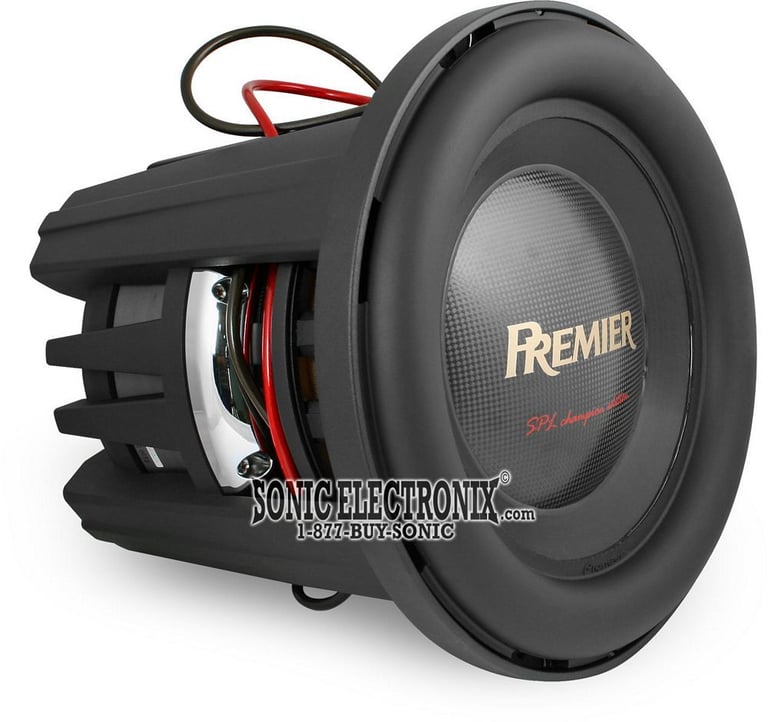

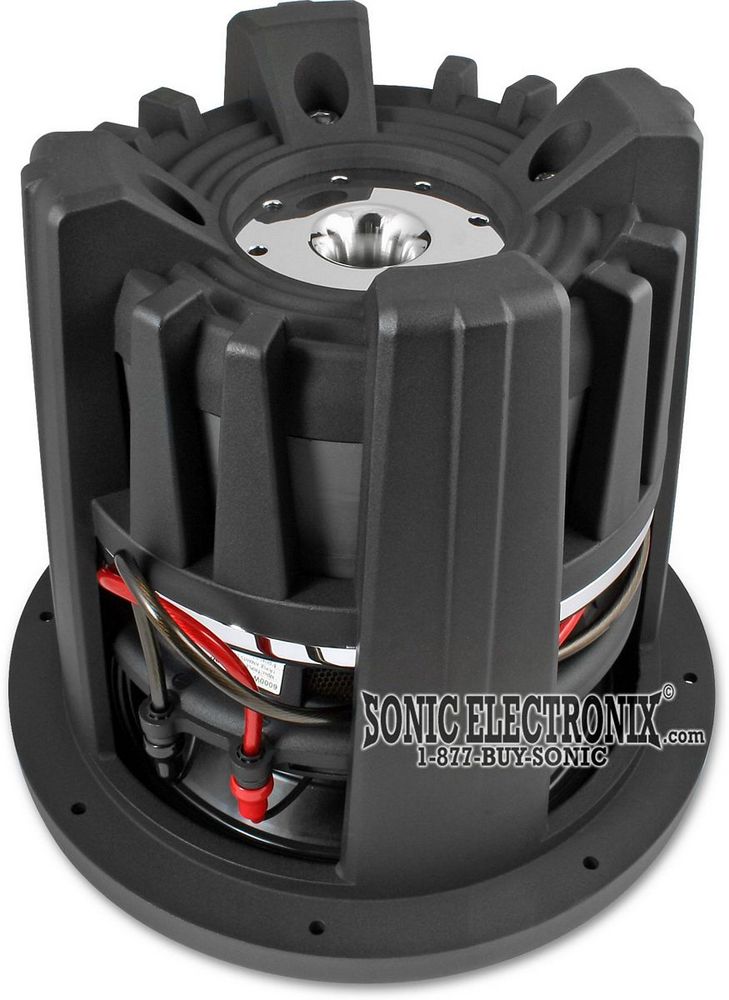

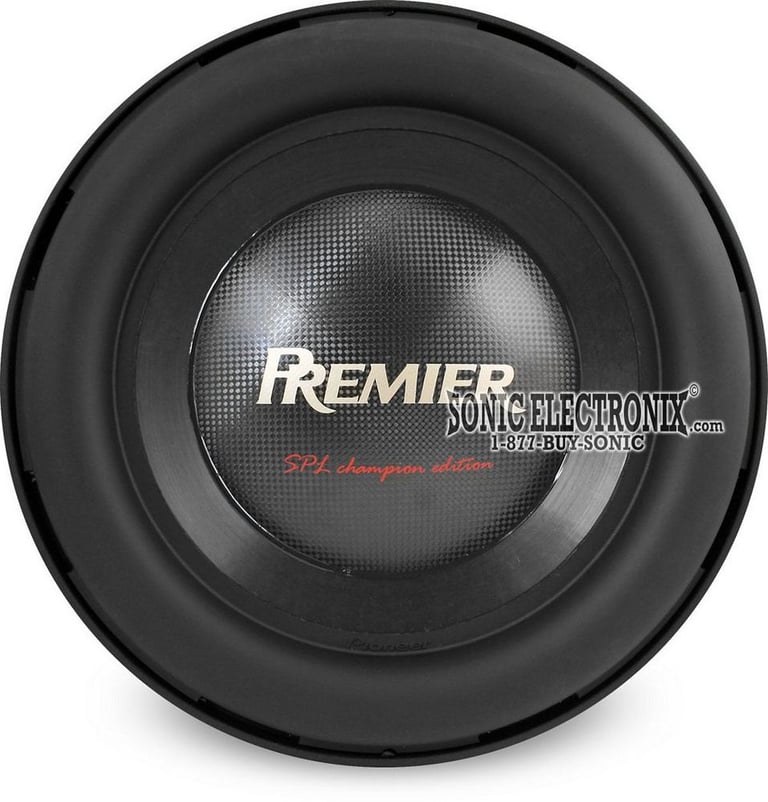

Pioneer Premier TS-W5102SPL

12" Dual 2 ohm SPL Champion Edition Series Car Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

12" Dual 2 Ohm DVC Premier SPL Subwoofer • 6000 watts Peak • 2500 watts RMS • Rubber radial surround • Interlaced Carbon Fiber Reinforced IMPP Cone • Cast Aluminum Basket

Learn more about the tsw5102spl

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Product Highlights


12" Dual 2 Ohm DVC Premier SPL Subwoofer • 6000 watts Peak • 2500 watts RMS • Rubber radial surround • Interlaced Carbon Fiber Reinforced IMPP Cone • Cast Aluminum Basket

Description


Pioneer brand icon

Authorized dealer

  • 12" Dual 2 Ohm DVC Premier SPL Subwoofer
  • Power Handling:
    • Peak: 6000 watts
    • RMS: 2500 watts
  • Impedance: Dual 2 ohm
  • Interlaced Carbon Fiber Reinforced IMPP Cone
  • Rubber radial surround
  • Ultra-Strong Dust Cap With Foamed Acrylic Polymer
  • Aero-Dynamic Magnetic Gap
  • Ceramic-Coated Voice Coil Wire
  • Pure Titanium 3" Dual Voice Coil
  • 320 oz. Triple-Stack Magnet Assembly
  • Cast Aluminum Basket
  • Frequency response: 18-2,000 Hz
  • Sensitivity: 88 dB
  • 2-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer Premier TS-W5102SPL Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer Premier TS-W5102SPL Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer Premier TS-W5102SPL Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Pioneer Premier TS-W5102SPL Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
12"
Peak Power Handling
6000 watts
RMS Power Handling
2500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
18 - 2000 Hz
Sensitivity
88 dB
Xmax (millimeters)
11.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Wide-Roll 3-Layer Fiber Radial
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
10-1/2"
Cutout Diameter
10-7/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W5102SPL

Weight:

75.00lbs

Internal SKU:

tsw5102spl

Internal Product ID:

9931

Product and How-to Videos


Customer Ratings & Reviews


Pioneer Premier TS-W5102SPL thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.8
Features
5
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

12'' subwoofer that makes 15's and 18's cry !!!

These are just insane subwoofers, they have a huge magnet on them !! Pioneer has some really awesome subwoofers that are over looked . There is only 1 subwoofer I know that has beat the Pioneer and it costs 3 times the amount of these !!!

By mazda2284 on January 5, 2011

12 found this helpful


Ground shaking subs

I own 2 of these subwoofer for 2yrs and I'm really happy with my boys and they are very tough lookin and im each of them of two T2500rms rockford fosgate at 2 ohms man they bang hard man get this sub you wont be disapointed im saving up to buy 2 more.

By TheLatinking28 on February 7, 2011

10 found this helpful


Rock Solid

When I first pulled this thing out of the box I was assured that this sub was no joke. Pioneer did their homework and built it VERY WELL for what it was intended to do and that's crushing the competition. Be careful though when installing this in your box cause you just might pinch your finger's like I did haha. Also be sure to have a buddie with you to help load this in your truck cause it's pretty heavy

By Joe on January 8, 2010

9 found this helpful


these subz r serious

Yo I got 2 of these things n a ported 12 box n I got them hooked up the my Mrs 7,500 watt amp n my 2003 toyota celica gt n OMG they hit so hard that that I feel that air all that way up to my seat driving and when I'm outside if my car my shirt just trimbles

By kwon on May 17, 2011

9 found this helpful


man!!!!!1

I have 1 that all i needed to get pulled over by the cops, and i have it in a 06 GMC Canyon that has the front of my truck shaking it hooked up to an old school concept C-D 2410 @1ohm with 0 gauge and neg back to battery MAN!!!! This is a MONSTOR!! aka kicker, mtx, p12 , p13 and hcca vega KILLER!!!! Headache giver!!!! Also is says 2500 rms but will handle easy 3500rms@ 1ohm.

By phatsam on November 4, 2011

7 found this helpful


Worth it's weight!!!!

I have one of this sub in my wagon,and had to change my windscreen twice,and the tailgate's trim was shredded!!Besides being powerful this speaker was built for destruction!!!

By M aster''P'' on February 9, 2013

6 found this helpful


Respect it or kill yourself

Hardest hitting 12 I've heard, with or without amp and EQ adjustments... Check your status you cant get a weak amp and think you going to even get a feel of how hard a pair of these hit.. Get your bars up or stick to the off brand and pawn shop, lol

By KillaFeeItwter on April 18, 2011

7 found this helpful


premier bass

these are the loudest 12s ive ever heard verry nice for the money these bad boys have 8 gauge titanium voice coils to get the most power to sub possible let me tell you if u have the money buy these and put them in a suv with a ported box and youll b godzilla in your town pioneer has the best subs ever period must buys these if ur a huge fan of big bass

By Captn. kush on May 1, 2009

6 found this helpful


KNOCKS

This sub knocks so hard,my friends could hear it 2 blocks away and feel the bass!!!

By edwin on August 29, 2007

6 found this helpful


great value

I don't on this but I have a pair of two Pioneer of TS-W3002d4. Will like to see how hard the hit. And what kind of amp I. Going to need if I buy this subwoofer I. Will like two have two of this subwoofer

By mildyddy on May 22, 2011

6 found this helpful
