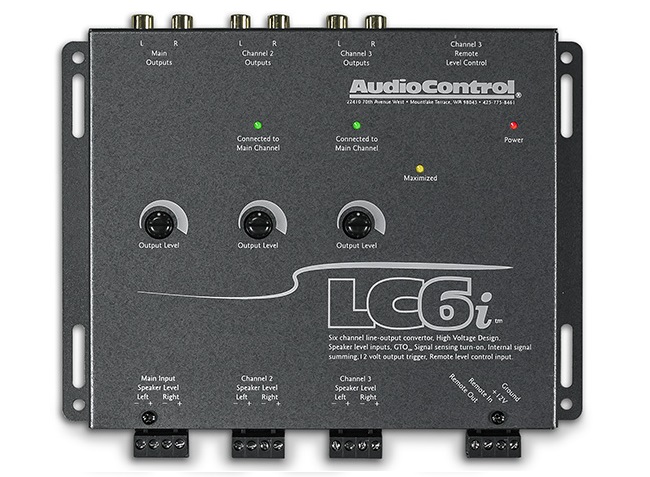

AudioControl LC6i (Gray)

6 Channel Line Out Converter with Internal Summing & 5-year warranty*!

highlight-star-icon

• Six Speaker Level Inputs – Can Accept 400 Watt Signals!
• GTO™ Signal-Sensing Input
• Internal Channel Summing
• Line Output Converter

Learn more about the lc6i-gray

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

lc6i-black thumbnail

AudioControl LC6i (Black)

OUR PRICE: $185.00

View item

Description


AudioControl brand icon

Authorized dealer

  NVX XLOC66X
NVX
XLOC66X
LC6i

Audiocontrol
LC6i
Price $109.99 $185
Load Selection Switch
Variable Remote Turn-on
 Ground Isolation Switch
9.5 Volt RCA Outputs
12-volt turn-on lead output
Low-Pass Filter & Bass Boost
Remote Bass Knob Included
Led Clip Indicator




For over two decades, AudioControl has been designing and manufacturing award-winning autosound products at our factory located in the rainforests of the Pacific Northwest. During this period, countless sound-off winning contestants have chosen AudioControl products to give them the competitive edge. "Can you really win without AudioControl", was part of an article written commenting on competition winning systems. Nothing sounds better than an awesome recording played back on a kickbutt system. Unfortunately, the acoustics of your vehicle can take away from your systems performance. While AudioControl products do not change the laws of physics (although they act like they do), autosound enthusiasts have long known that AudioControl products "make good stereo sound better"

LC6i - 6 Channel Line Out Converter

AudioControl continues to simplify OEM integration with the new LC6i Six Channel Line Output Converter with internal summing. The LC6i is built on the same technology as its predecessor, the LC6. The LC6i converts speaker level inputs from a factory radio or factory amplifier into high-quality pre-amp signals. The addition of internal summing capabilities and improved GTO™ signal-sense turn-on make the LC6i the perfect way to solve your OEM headaches.

The LC6i allows for the addition of aftermarket processors and amplifiers while maintaining use of the factory volume and steering wheel controls. Internal signal summing and AudioControl's new GTO™ signal-sense turn-on make the LC6i a perfect OEM interface for a performance audio system.

The LC6i follows in the steps of the rampantly successful LC8 Eight Channel Line Output Converter, offering all of the same features for 6 channel systems at a reduced price. The LC6i accepts speaker level signals, both crossed-over and full range, and converts them to high-quality pre-amp signals. Signals from factory radios with built-in crossovers can be overcome by summing them together, internally, to provide a full-range preamp signal.

The LC6i provides the type of clean pre-amp signals installers are familiar with. Those who desire custom control over the sound can easily add one of AudioControl's many crossovers or equalizers which offer unlimited system design flexibility, clearly different than traditional OEM interfaces.

Key Features:

Speaker-Level Inputs

If you are like many people who enjoy the look and features of your factory-installed source unit but feel your system overall is lacking power and bass, we have good news. The LC6i has high-impedance speakerlevel inputs that allow it to accept amplified signals from all known factory-installed source units (even Bose) and output a high-quality pre-amp signal via standard RCA connectors. This will allow you to add better-quality aftermarket amplifiers, processors and speakers while keeping the convenience features of your factory-installed source unit. Unlike inexpensive speaker-level and line-output converters, the LC6i offers the highest sound quality and can handle the full signal strength of a 400-watt amplifier.

GTO™ Signal-Sensing Inputs

Most factory-installed source units lack the features that make it easy to upgrade with really good-sounding, performance aftermarket products. One of those key features is a 12-volt trigger that will turn on devices like the LC6i and your external amplifiers. Therefore, we have equipped your LC6i with our unique GTO™ (Great Turn On) signal-sensing inputs. Once the GTO input of your LC6i detects a speaker-level signal on the Main Inputs, it powers up. When the speaker-level signal goes away, your LC6i will automatically turn-off. Optionally, your LC6i is also equipped with a standard 12-volt trigger (Remote In) that will allow you to turn on your LC6i in the traditional manner.

12-Volt Output Trigger

Since you will be using an external amplifier(s) and processor in your system, you will need the ability to "trigger" or turn-on these devices (a romantic dinner won't quite work here). Your LC6i has a high-current 12-volt output (labeled Remote Out) that will provide a trigger to these remote devices, when the LC6i is powered up. Please note that this output is not to be used as the main power for these devices.

Internal Channel Summing

The LC6i has the unique ability to internally sum together multiple (4 or 6) input channels from the factory source unit into 2 channels. This is particularly handy when using the LC6i with a factory system that has multiple, actively crossed-over signals being sent from the OEM source unit or amplifier(s). For example, in some vehicles there is an actively crossed-over tweeter, midrange, and woofer all in the front of the vehicle. The LC6i lets you take all of those signals and sum them together to get a high-quality, full-range, pre-amp signal without the use of any additional cables or hardware.

AutoMode Inputs

Sometimes in life (and car audio) we need more outputs than inputs. Therefore we have equipped your LC6i with AutoMode inputs that take the Channel 2 signal and automatically feeds it to the Channel 3 outputs, provided there is no signal present on the Channel 3 inputs. This means your LC6i will accept two input channels and give you four output channels. Or it can accept four input channels and give you six output channels.





AudioControl
LC2i
AudioControl
LC6i
AudioControl
LC7i
AudioControl
LC8i
AudioControl
LCQ-1
AudioControl
DQ-61
Your
Price
$99.99 $149.99 $189.99 $249.99 $299.99 $399.99
Line Out Converter 2 Channel 6 Channel 6 Channel 8 Channel 6 Channel 6 Channel
High Level Inputs
GTO™
Channel Summing
AccuBASS™
Remote Included
Auxiliary Input
Equalizer
Signal Delay
Input Level Control


General Features:

  • Six Input and Output Channels
  • 6 Speaker Level Inputs - Can Accept 400 Watt Signals!
  • Signal sensing inputs
  • Internal Channel Summing
  • AutoMode inputs
  • Level matching controls
  • 12 volt trigger output
  • Line Output Converter:
    • A device for converting a powered (or amplified) signal into a pre-amp line level (or non-powered) signal
  • Input for optional subwoofer level control: AudioControl ACR-1
  • Color: Salmon Gray
  • Also available in Sierra White: AudioControl LC6I White
  • Weight: 3.5 lbs
  • Size: 8.00" W x 6.00" D x 1.20" H
  • Authorized Dealer
  • 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

LC6i Specifications:

  • Maximum speaker-level input: 400 watts @ 4 ohms
  • Maximum output level: 9.5Vrms
  • Output gain: +/-12 dB
  • Frequency response: 10Hz-22kHz
  • Total harmonic distortion: 0.01%
  • Input Impedance: 20 Kohms
  • Power supply: High headroom PWM switching
  • Power draw: 200mA
  • Recommended fuse rating: 1 Amp
  • Remote Trigger Ouput Current: 1 Amp


Check out the AudioControl LC6i Owner's Manual

Product history:

AudioControl LC6i-Black thumbnail
(newest, current model)
AudioControl LC6i thumbnail
(previous model, replaced by AudioControl LC6i (Black))

Specifications & Details


Line Out Convertor Specifications
Number of Channels
6-Channel
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LC6i

Weight:

4.00lbs

Internal SKU:

lc6i-gray

Internal Product ID:

6359

Customer Ratings & Reviews



5 star
81%
4 star
19%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.8
Features
4.8
Design
4.7
Usability
4.6

Customer Reviews

Sort by:

Loading...

Great OEM integration

My set-up originally had a MTX Re-Q5 which I replaced with the LC6i to try and solve an issue I was having with a high noise floor (Hiss). The swap didn't solve my problem (OEM head-unit ended up being the problem) but I found that the LC6i to be more detailed and musical that the MTX Re-Q5. Installation was a breeze with the removable connectors and straight forward set-up/operating instructions. Eventually changed the head-unit and therefore no-longer use the LC6i.

By Sienna1 on March 18, 2010

74

found this helpful.

Able to Keep Factory Integrated Radio

I have had this since Mar 2008 and I have to say it's a great product. I wanted to keep the functionality of my factory radio, but have superior sound of an after market unit, and this product did the trick.

Works great using OEM amp output for a source...would definitely get another if get another vehicle with an integrated OEM radio.

By Walter on January 20, 2010

70

found this helpful.

LC6i

Quality line out converter for my BMW. It took the OEM deck output (line level) and converted to speaker level amp inputs. No complaints. Quality piece, made locally, definitely would by AudioControl products again.

By Brilliant on October 17, 2010

70

found this helpful.

Audio Control is the Gold Standard

When OEM integration is a must there is no other company I would trust. In my particular install is in a Honda Fit Sport. Just one of the reasons for keeping the factory deck included, the factory alarm is integrated with the deck. Furthermore, I need to step down from the deck's 200 rms to RCA's for my SPL install. Most decks don't even come close to 6 volts pre-outs which this product does. As of this review I am metering 145dbz.

By Soapbox on August 10, 2010

68

found this helpful.

Keep your factory radio

If you are like me and like the way your car look from factory this is the one to buy, easy to install and functionality is great, keep all your factory settings and get great sound, just as good as an aftermarket radio. I have Infinity components in the doors and 2 P3's 12in. You will not be disappointed.

By Luis on May 11, 2011

68

found this helpful.

Hell Yeah !!

If you want the best sound out of your factory CD player Buy this.. This LC6 made it sound like I had a after market CD player in my car.. If you hook up some amps to it, It sounds Really Good. Makes your subs and your highs sound great..

By Avian on August 14, 2008

67

found this helpful.

great value

Can't even tell I'm running a factory deck. Great product

By james on March 10, 2013

67

found this helpful.

great for factory radio

Its saves you money on having to buy a head unit and changing the look of your original vehicle. make the factory radio sound great!!!!!!

By Danny on April 12, 2009

65

found this helpful.

AudioControl LC6i (Gray LC6)

I purchased one of these for my 2011 Kia Sorento as I wanted to keep my Bluetooth and Sirus Radio in my SUV. This is the easiest LOC I have ever hooked up and it sounds great, much better than those cheaper versions and makes it easier to hook up amps and subs if you want to go that route.

By Joshua on January 4, 2012

64

found this helpful.

Great for OEM integration

I'm using this to send a signal from my factory head unit in a 2013 Mazda CX-5 to my 5 channel amp. I'm runnning inputs from the factory deck to channel 1 and 2 on the LOC and have channel 3 summed to send signal to my amp. This with some 9 conductor speed wire makes OEM integration very easy and I get a great quality, noise free listening experience. The auto turn on function works perfectly, and setting the levels is very easy.

By Gary on July 29, 2012

63

found this helpful.
