DLS Reference R5A

5-1/4" 2-way Component System (Reference R 5A -- 10-20005A)

DLS
Shop all DLS
highlight-star-icon

5.25" Reference Series Component System • 120W Max • 80W RMS • Non-pressed paper cone woofer • Rubber surround • 1" Silk dome tweeter • Crossovers with selectable tweeter level • 4 ohm impedance

Learn more about the dlsr5a

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Description


DLS brand icon

Authorized dealer

DLS Reference Series

The DLS Reference speakers will never fatigue your ears, and they offer an excellent listening experience that only a DLS speaker can provide. Being 80 watts RMS, these 2-way component speakers run great off a 4-channel amplifier for added clarity and response. The external crossover will separate high and low frequencies to their respective drivers. The 1" tweeter offers very quick response combined with a subtle presence for an excellent all around sound. The paper cone material ensures a quality sound that you and your passengers will love. Try the DLS Reference Series for your next quality system and you will not regret your purchase.

General Features:

  • 5-1/4" Reference Series Component System
  • Power Handling:
    • Peak: 240 watts per set / 120 watts each side
    • RMS: 160 watts per set / 80 watts each side

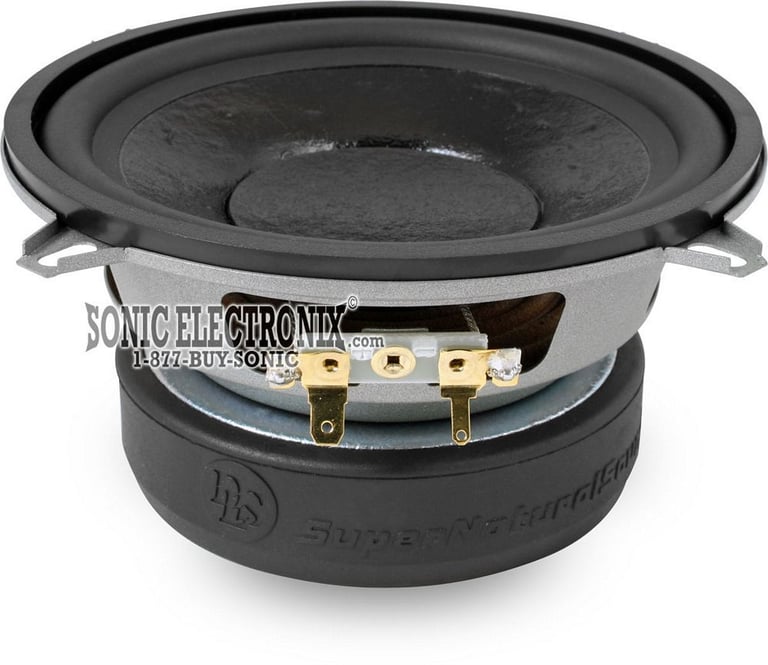

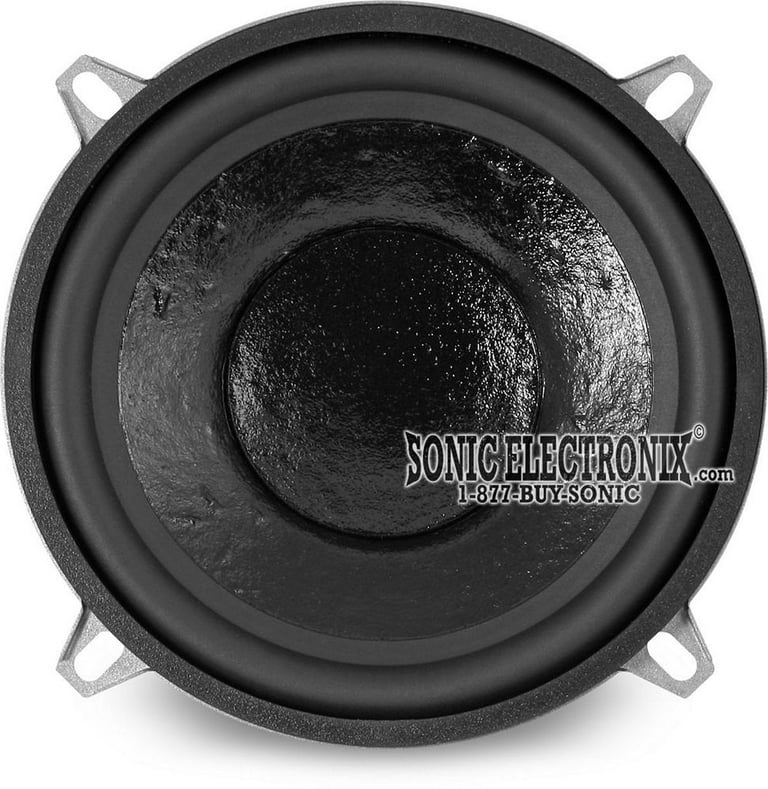

  • Non-pressed paper cone woofer
  • Rubber surround

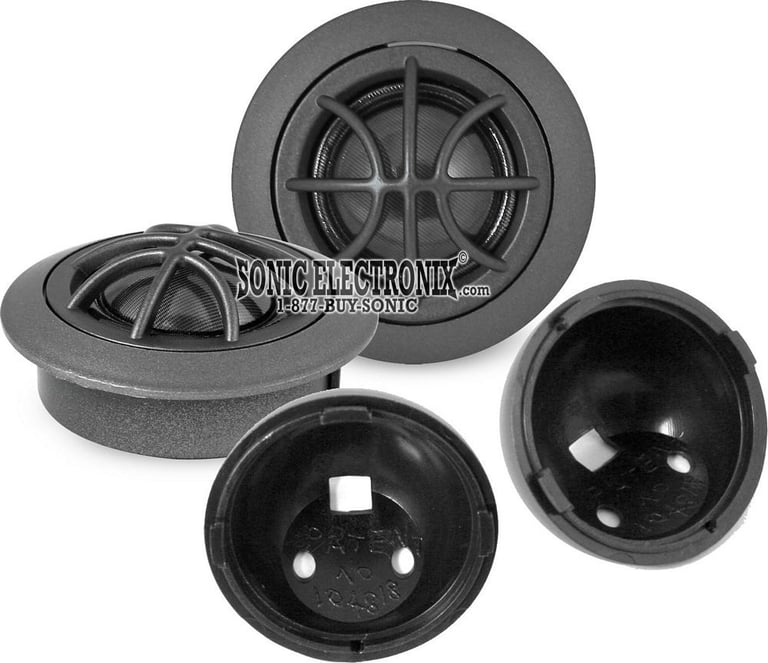

  • 1" Silk dome tweeter

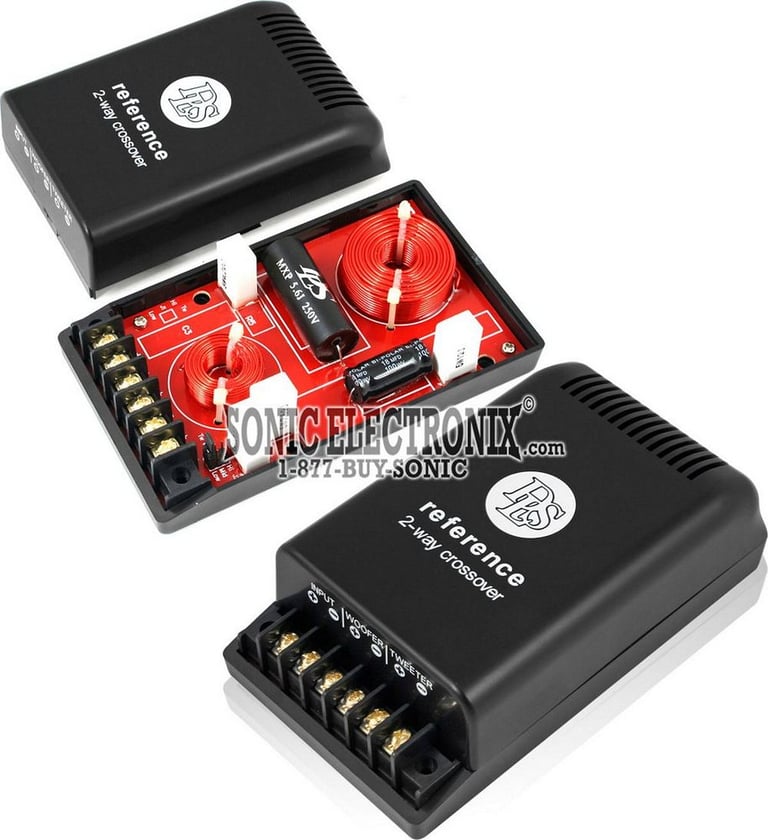

  • Crossovers with selectable tweeter level
  • Filter box with 6/12 dB slope (LP/HP)
  • 4 ohm impedance

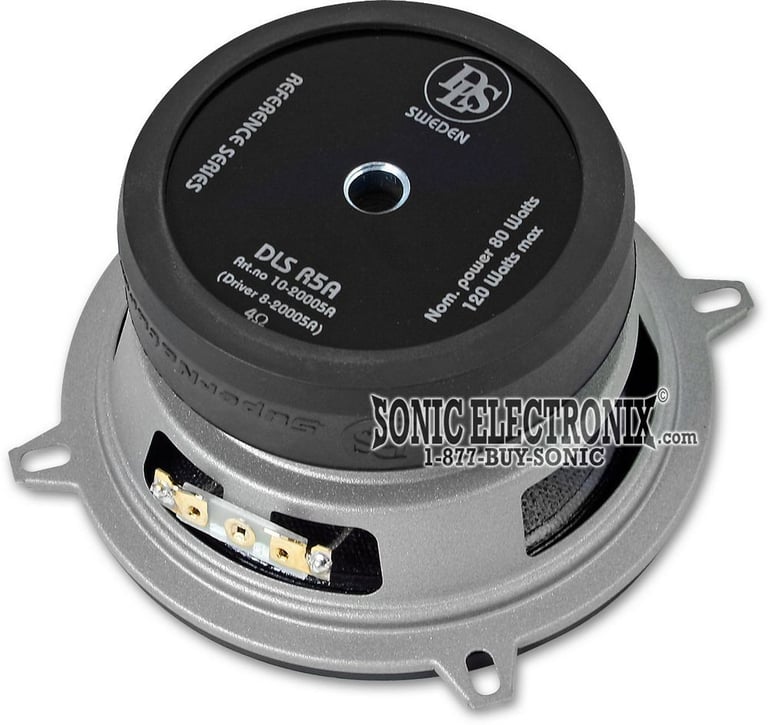

  • 3.15" Wide magnet
  • Top-mount depth: 2.36"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

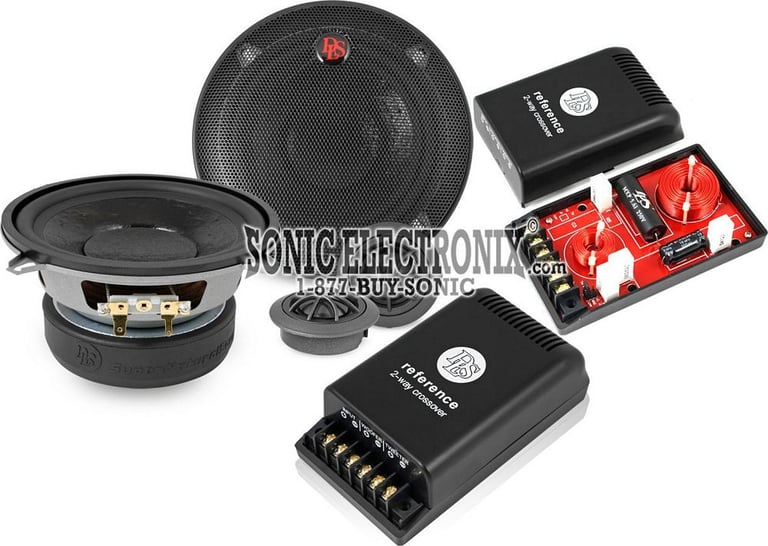

Priced Per Complete 2-way Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

VSP525KIT small

NVX VSP525KIT

• 375 watts Peak Each, 125 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 2.04"

(27)

$99.99

List price $119.99

REF507CF small

Infinity REF507CF (INFSPKRF507CFUS)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$219.95

List price $249.95

XED525C small

Cerwin-Vega XED525C

• 250 watts Peak Each, 30 watts RMS Each
• 1/2" Metal Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(8)

$59.99

List price $71.99

C2-525 small

JL Audio C2-525

• 60 watts RMS Each
• 3/4" Silk Dome tweeters
• Mica Injected Polypropylene - MIPP cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

(9)

$254.99

List price $329.99

DSK 130.3 small

Hertz DSK 130.3

• 120 watts Peak Each, 60 watts RMS Each
• 1" PEI (Polyetherimide) Dome-Cone tweeters with high-energy neodymium magnets
• Water-repellent Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

DB5252 small

Polk Audio DB5252 (DB 5252)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" dual Silk Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(25)

$200.00

List price $209.99

51KSS504 small

Kicker KSS5 (51KSS504)

• 200 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(2)

$249.99

List price $279.99

THUNDER51 small

MTX Audio THUNDER51

• 180 watts Peak Each, 90 watts RMS Each
• 1" Silk Soft Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(9)

$199.96

List price $239.95

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
Non-Pressed Paper
Woofer Surround
Rubber
Peak Power Handling
120 watts
RMS Power Handling
80 watts
Sensitivity
93 dB
Frequency Response
55 - 20000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2.36"
Cutout Dimensions
4.72" x 4.72"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

DLS

Model Number:

R5A

Weight:

9.00lbs

Internal SKU:

dlsr5a

Internal Product ID:

10492
