Product Features:
![]() |

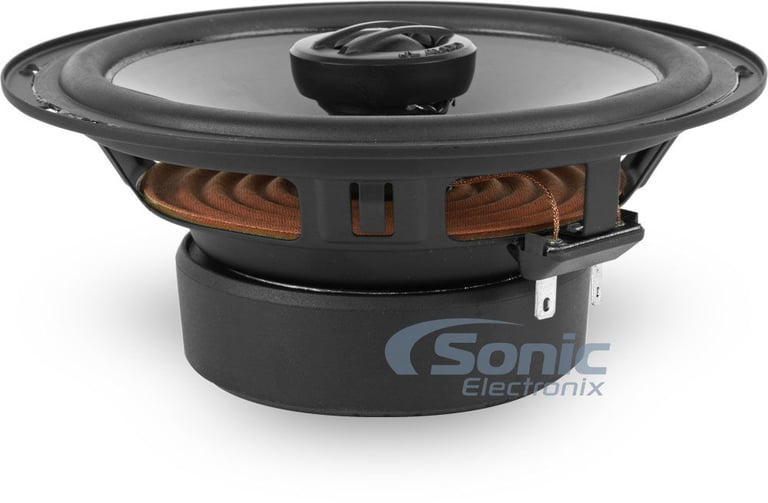

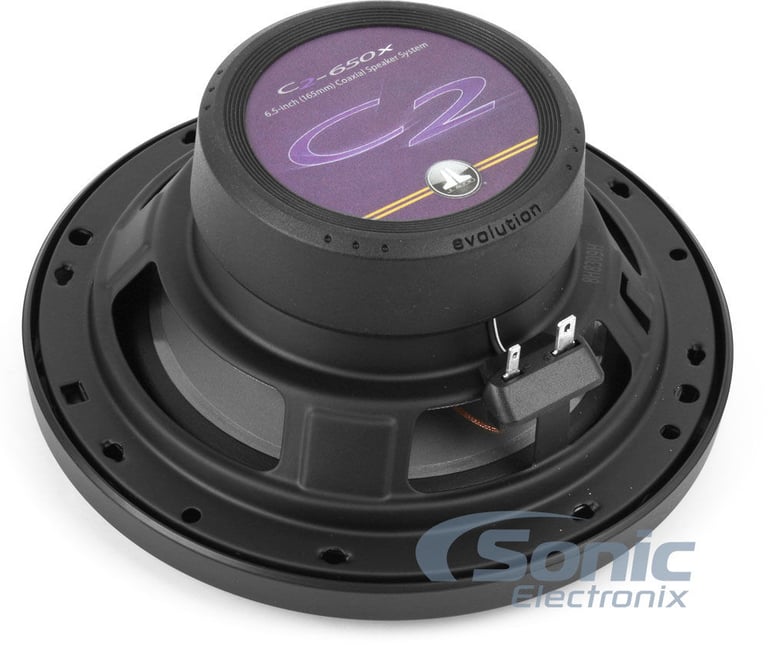

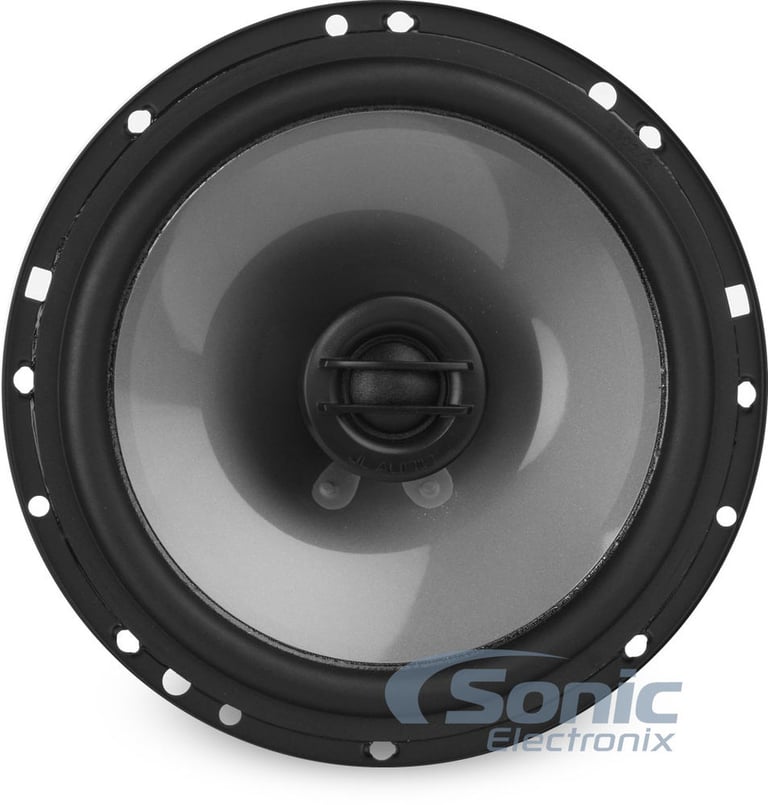

- 6.5" Evolution C2 Series 2-way Coaxial Car Speakers
- Power Handling:
- Peak: 900 watts per set / 225 watts each
- RMS: 240 watts per set / 60 watts each
- Recommended Power Range: 15 - 100 watts per channel
- Injection Molded, Mica-filled Polypropylene Cone
- Butyl Rubber Surround
- 1.00" Voice Coil on Kapton® Former
- Symmetrical Roll Spider
- Ferrite Woofer Magnet
- 0.75" Silk Dome Tweeter
- Ferrofluid Cooling/Damping Neodymium Tweeter Magnet
- Natural Roll-Off Low-Pass, 1st Order High-Pass Filter with Electrolytic Capacitor

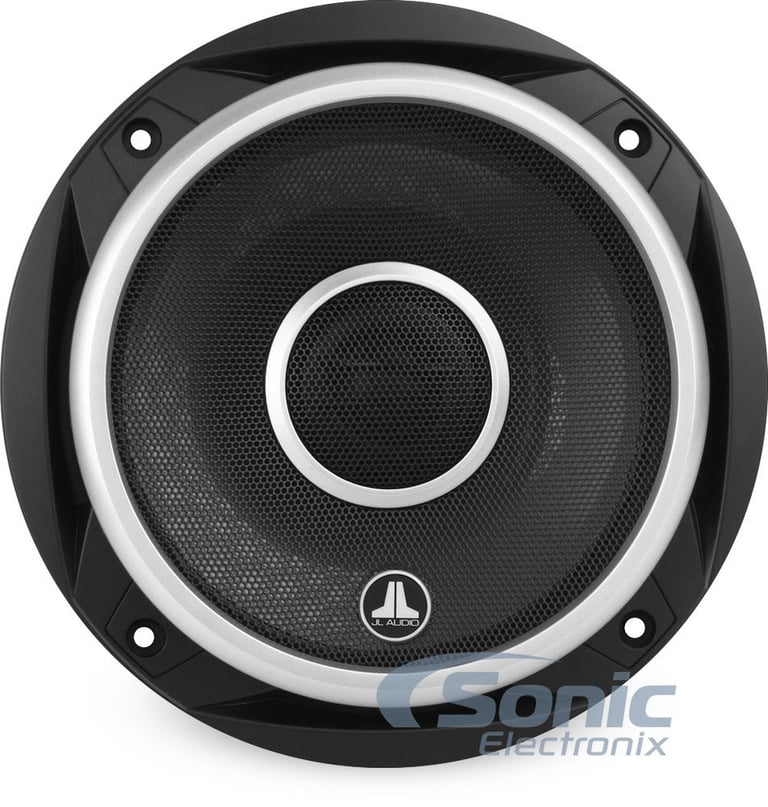

- Black steel mesh grille with satin silver accents Included
- Top-mount depth: 2.44"
- Cutout Dimensions: 5.56"
- Nominal Impedance: 4 ohm
- Efficiency: 91.0 dB @ 1 watt / 1 meter
- Frequency Response: 59 Hz - 22 KHz ± 3 dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Priced Per Set of Four Speakers
Product Features:
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

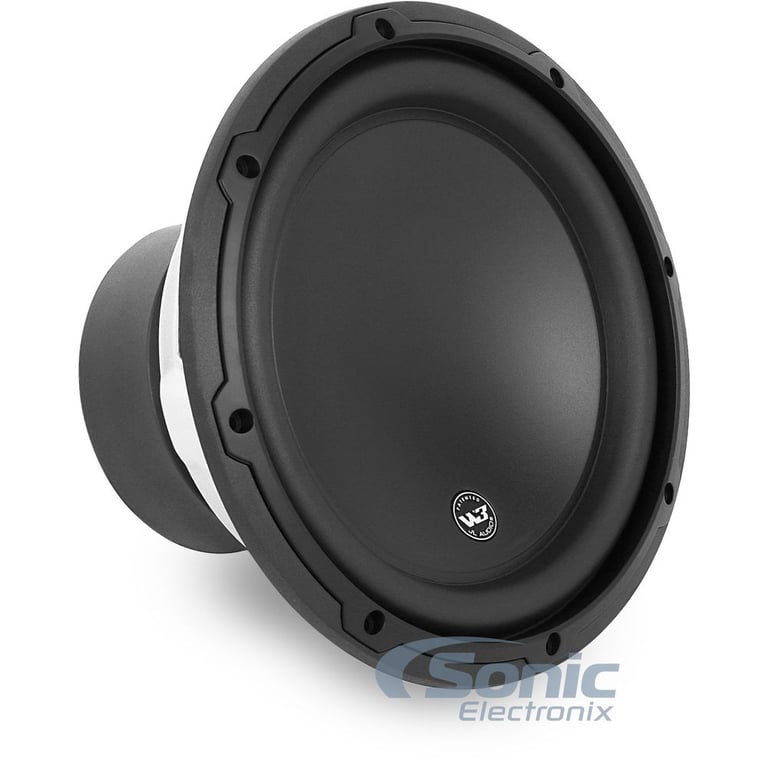

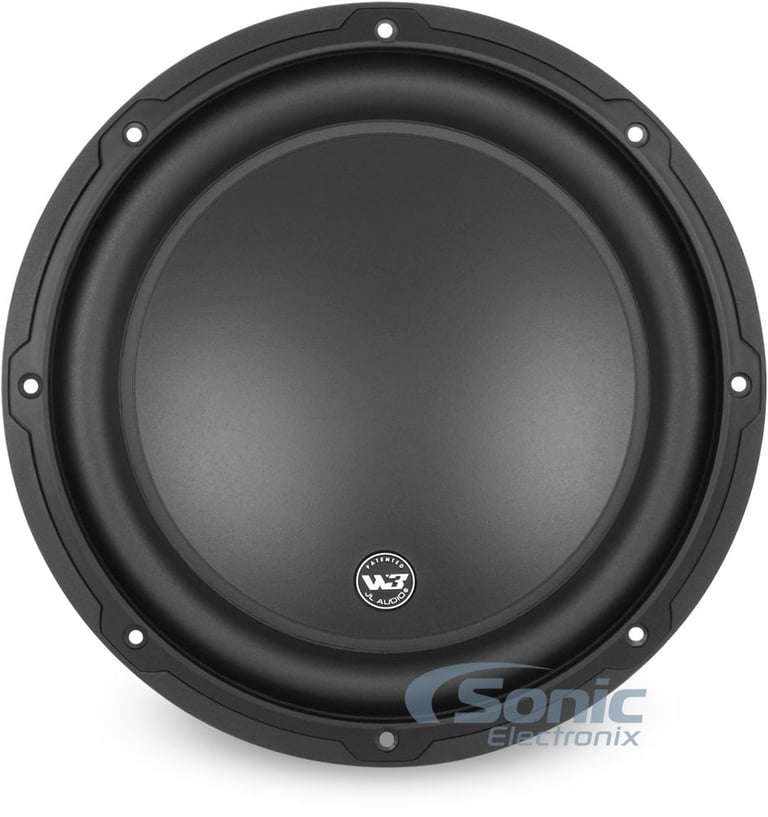

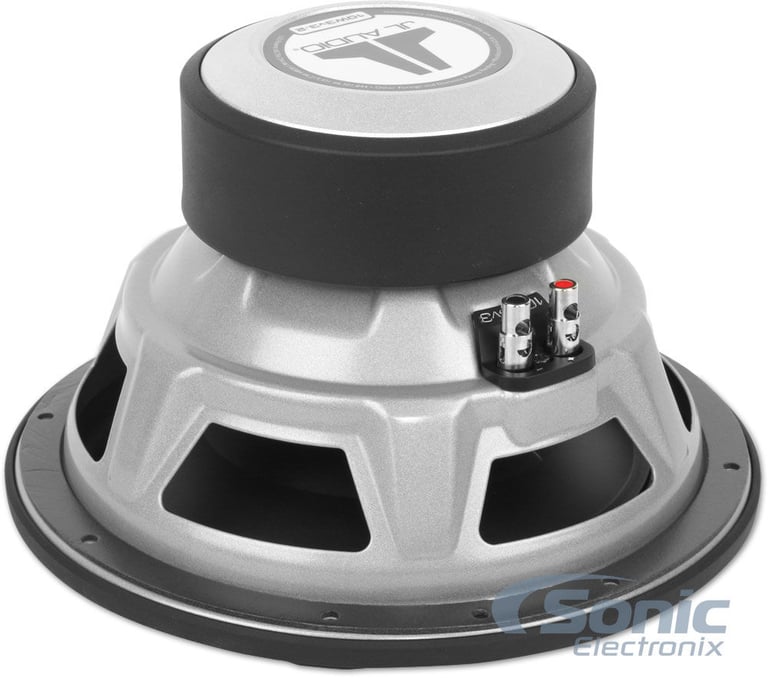

- 10" W3v3 Series Subwoofer Driver
- Power Handling:
- RMS: 500 watts
- Recommended Power Range: 150 - 500 watts
- Impedance: Single 2-Ohm
- Injection-molded, mineral-filled polypropylene cone
- Nitrile butadiene rubber surround
- Stamped steel basket
- Customization trim ring
- Floating-cone attach method
- Highly linear, DMA-Optimized motor system
- Insert molded suspension, coil and terminal sub-assembly
- Patented vented reinforcement collar (VRC®)
- Elevated frame cooling design
- Nickel plated brass spring terminals
- Engineered lead-wire design and attachments
- Black Steel-Mesh Grille Insert Available: JL Audio SGRU-10
- Mounting depth: 5.93 "
- Cutout dimensions: 9.0625 "
- Free Air Resonance (Fs): 32.97 Hz
- Sensitivity: 85.37 dB
- Xmax: 14.0 mm
- Reference Efficiency (no): 0.2100%
- Frequency response: ~25 ~ 250 Hz
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Product Features:
![]() |
![]() |

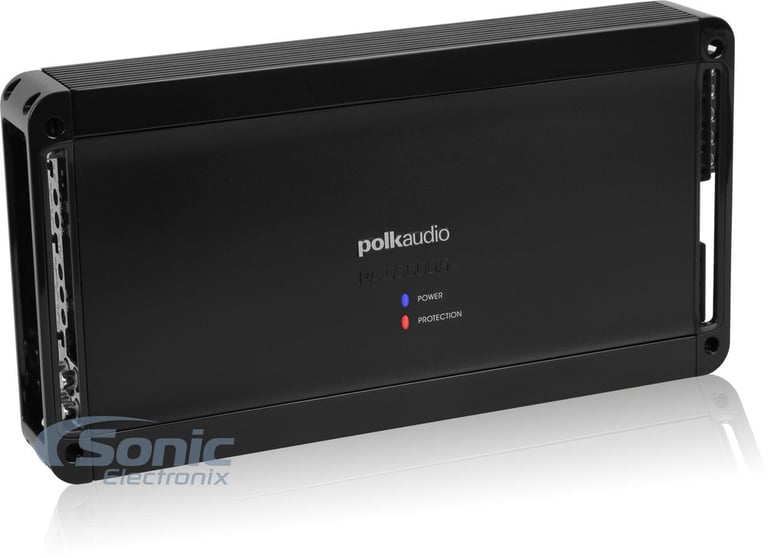

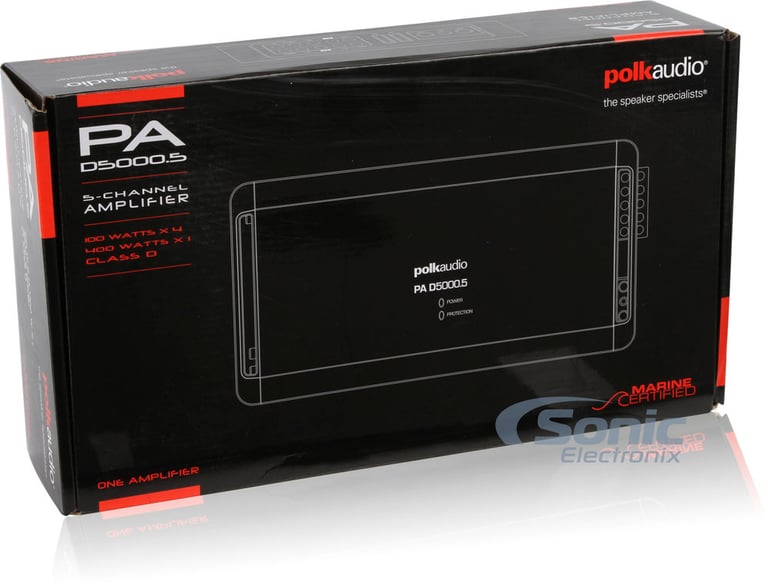

- PA D Series 5-Channel Class D Car Amplifier
- RMS Power Rating:
- 4 ohm: 70 watts x 4 chan. + 200 watts x 1 chan.
- 2 ohm: 100 watts x 4 chan. + 400 watts x 1 chan.
- Bridged, 4 ohm: 200 watts x 2 chan.
- Subwoofer Channel (1 ohm): 500 watts x 1 chan.
- CEA-2006 Compliant Amplifier
- Pulse Width Modulated MOSFET power supply

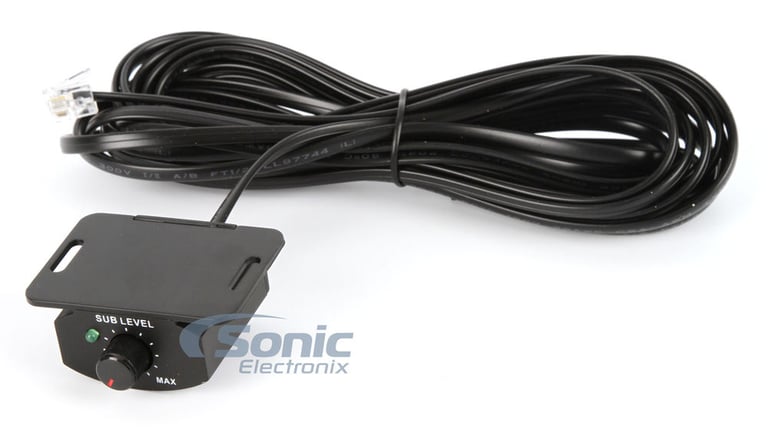

- Wired remote bass level control included
- LED power (blue) and protect (red) indicators
- Soft start turn-on
- 5, 4, and 3 Channel Operation
- Stable at 2 ohm for full range channels and 1 ohm at subwoofer channel
- 4-way protection circuitry (thermal, overload, reverse polarity & speaker short protection)
- Heavy duty aluminum alloy heat-sink
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals
- Subwoofer source selectable: Internal / RCA
- Input sensitivity: 200mV - 6V
- Frequency Response: 20 - 20,000 Hz
- Total Harmonic Distortion (THD): <0.1%
- Signal to Noise Ration: 105 dBA

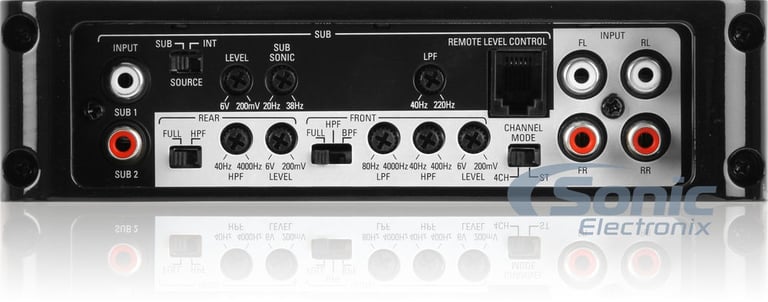

- Selectable crossover modes: FULL / HPF / LPF
- Variable high-pass filter (front): 40 - 400 Hz, 12 dB/octave
- Variable high-pass filter (rear): 40 - 4,000 Hz, 12 dB/octave
- Variable low-pass filter (front): 80 - 4,000 Hz, 12 dB/octave
- Variable low-pass filter (sub): 40 - 220 Hz, 12 dB/octave
- Variable subsonic filter (sub): 20 - 38 Hz , 12 dB/octave

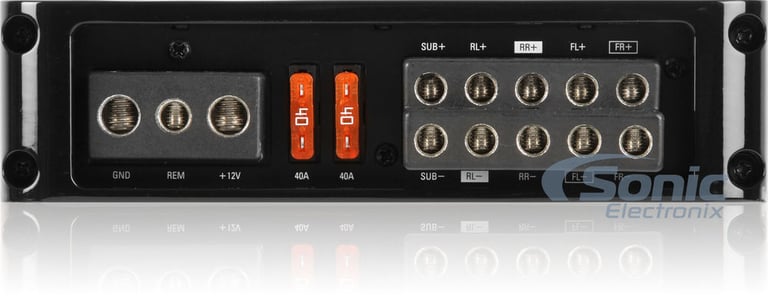

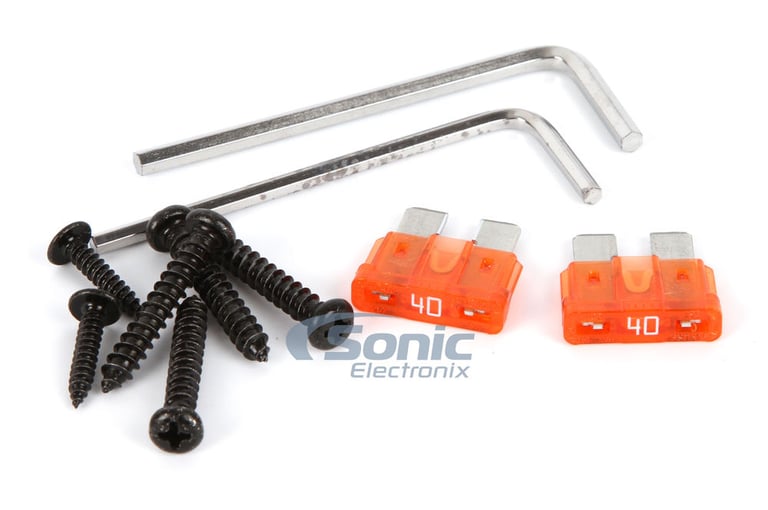

- Fuse Rating: 40A x 2
- Supply Voltage: 10V - 16V
- 12 AWG Speaker Connections
- 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- Dimensions: 6-3/4"W x 13-5/16"L x 1-13/16"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

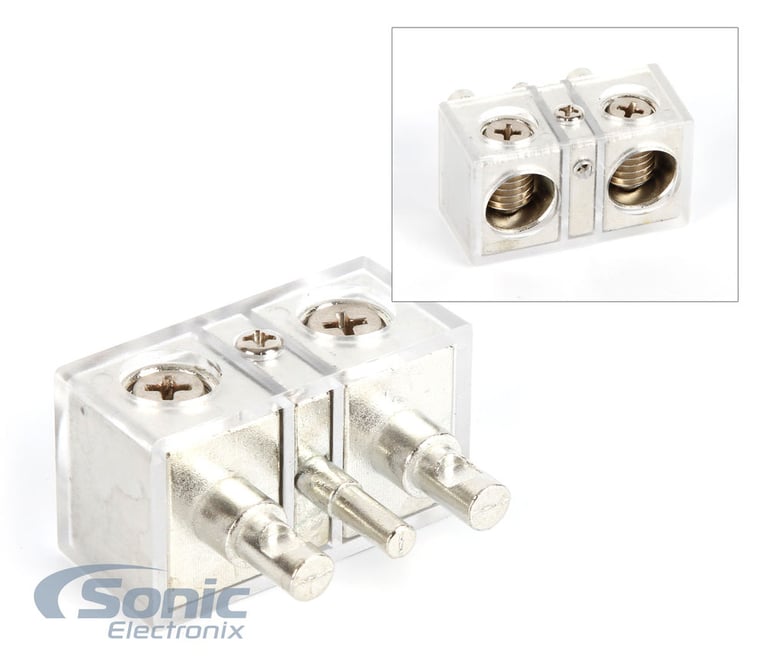

Important Note: Early versions of this amplifier included a "Terminal Adapter". As of 2016, Polk Audio has confirmed that they are no longer sending this adapter with their amplifier, albeit referenced in the user manual. We apologize for any inconvenience, and suggest browsing our selection of "Gauge Adapters" if you wish to use larger than recommended wiring. Thank you!
