See all parts that fit your 2011 Enclave

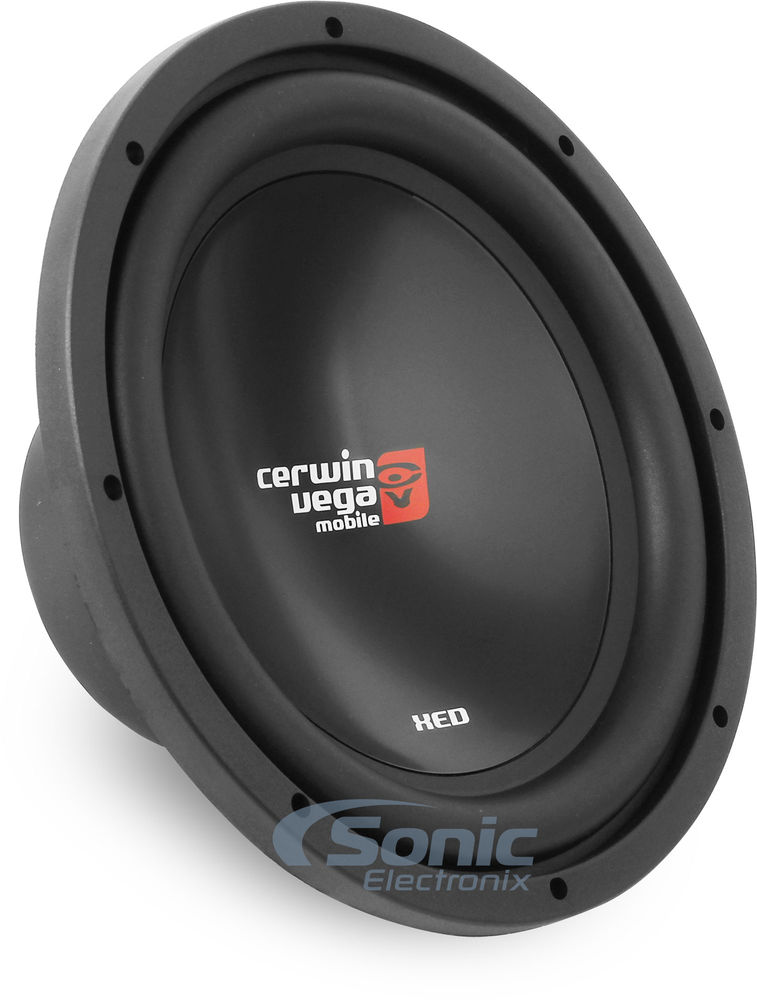

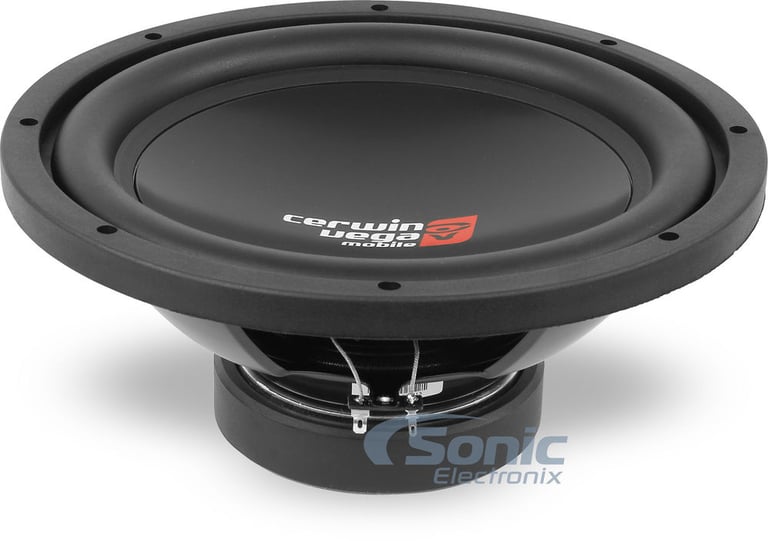

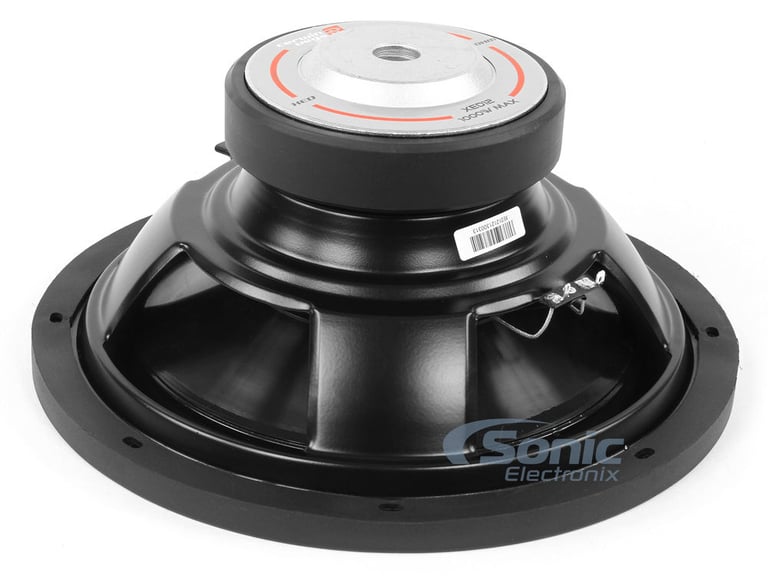

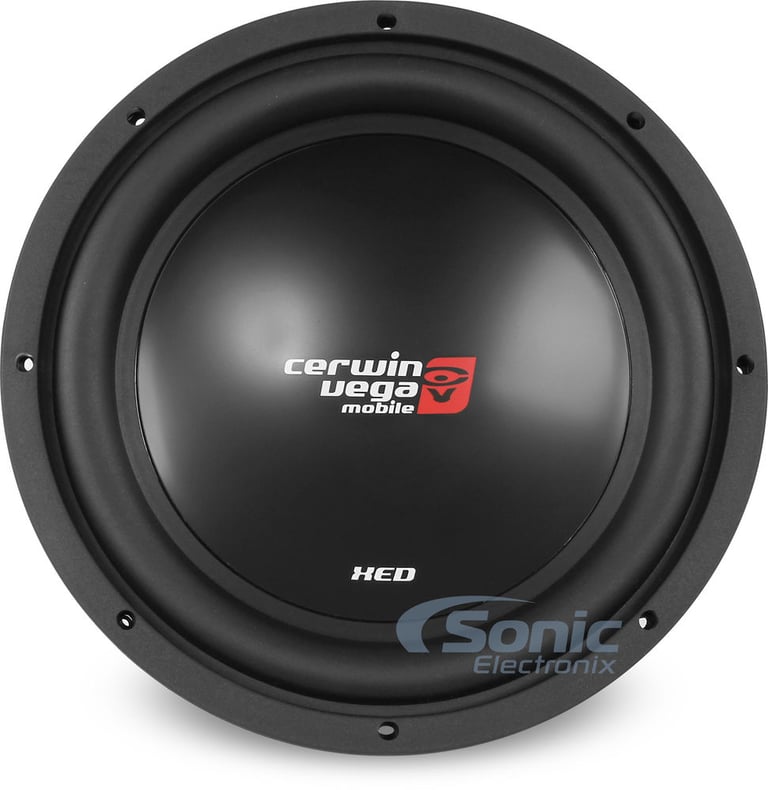

Cerwin-Vega XED1202

1000W 12" XED Series Single 2 ohm Subwoofer

Cerwin-Vega
Shop all Cerwin-Vega
Product videos
highlight-star-icon

• Peak Power: 1000W
• RMS Power: 150W
• Sensitivity: 85.5 dB
• Parabolic Polypropylene Cone
• Unique Foam Blend High Roll Surround
• Bumped Back Plate For Maximum Excursion
• Vented Pole Piece for Extended Play Time

Learn more about the xed1202

We apologize

This item has been discontinued


Loading...
DKGM-49 main

Crux DKGM-49 Stereo Replacement Interface

Stereo Replacement Interface with Steering Wheel Control Retention and Double DIN Dash Kit for select 2006-2020 vehicles from GMC, Chevrolet, Buick

41
-35.71%

$129.60

List price $201.60

AXBUCH-GM29 main

Axxess AXBUCH-GM29

Install a New Car Stereo and Retain Backup Camera in select 2006-2017 vehicles from GMC, Chevrolet, Cadillac

1
-16.68%

$9.99

List price $11.99

AXRSEH-GL29 main

Axxess AXRSEH-GL29

Install a New Car Stereo and Retain Rear Seat Entertainment (RSE) in

-10.35%

$25.99

List price $28.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-16.67%

$119.99

List price $143.99

Limited time!
KW-V660BT main

JVC KW-V660BT

6.8" Double DIN CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
-16.70%

$399.00

List price $479.00

Limited time!
ILX-W770-M main

Alpine ILX-W770M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, SiriusXM Ready, and iDataLink Maestro Ready

-25.01%

$449.95

List price $600.00

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

ESP65 main

NVX ESP65

360W Peak (120W RMS) 6.5" E-Series 2 Way Coaxial Car Speakers

13
-18.19%

$44.99

List price $54.99

Limited time!
CS-DF620 main

JVC CS-DF620

600W Peak (50W RMS) 6.5" DRVN DF Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

4
-39.08%

$38.99

List price $64.00

Product Highlights


• Peak Power: 1000W
• RMS Power: 150W
• Sensitivity: 85.5 dB
• Parabolic Polypropylene Cone
• Unique Foam Blend High Roll Surround
• Bumped Back Plate For Maximum Excursion
• Vented Pole Piece for Extended Play Time

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • 12" XED Series Single 2 Ohm Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 150 watts
  • Impedance: 4 ohm
  • Parabolic polypropylene cone
  • Unique foam blend high roll surround
  • Bumped back plate for maximum excursion
  • Vented pole piece for extended play time
  • Top-mount depth: 5.23"
  • Mounting Diameter: 10.82"
  • Sensitivity: 85.5 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega XED1202 Subwoofer

Mono Amp

Wiring Guide to Wire 2 Cerwin-Vega XED1202 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega XED1202 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega XED1202 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
XED Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
150 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
Sensitivity
85.5 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
High Roll Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.88 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5.23"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XED1202

Weight:

10.60lbs

Internal SKU:

xed1202

Internal Product ID:

105867
