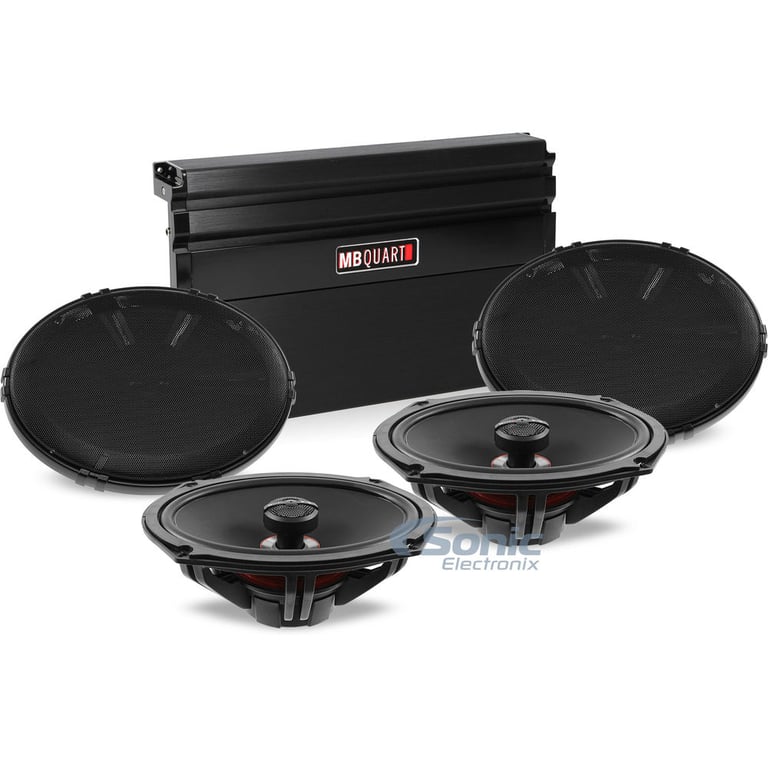

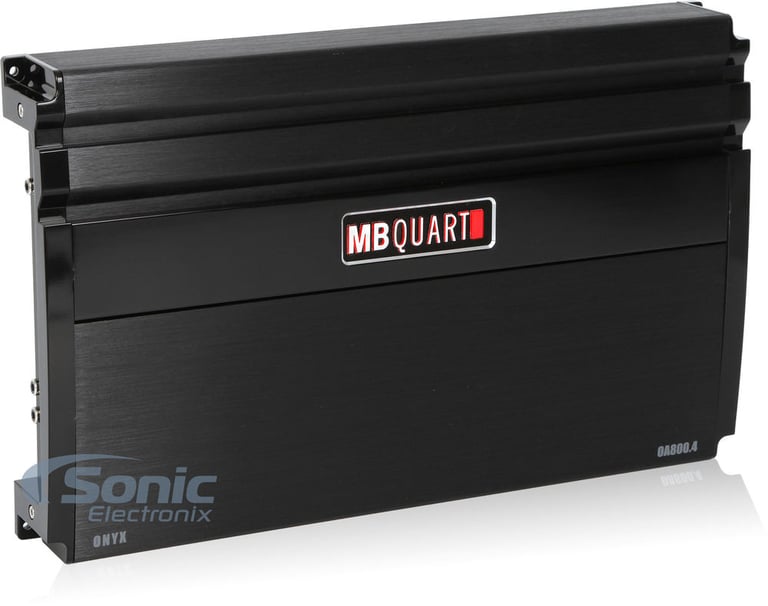

MB Quart OA800.4
800W RMS 4-Channel Onyx Series Class SQ Full-Range Bridgeable Power Amplifier
Quantity: 1
|
General Features:
- Onyx Series 4-Channel Class SQ Car Amplifier
- RMS Power Rating:
- 4 ohm: 100 watts x 4 chan.
- 2 ohm: 200 watts x 4 chan.
- Bridged, 4 ohm: 400 watts x 2 chan.
- FLUID-FETS MOSFET Circuit maximizes power efficiency while improving sound quality

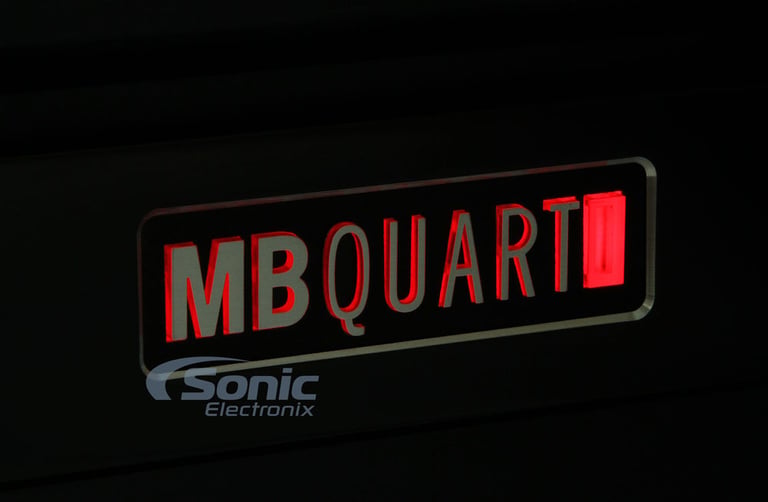

- Heavy duty aluminum alloy heat-sink with illuminated MB Quart logo
- LED power (green) and protect (red) indicators
- Unbalanced RCA jack inputs
- Built-in system diagnostics
- 2-Ohm Stable operation, bridgeable to 4-ohm

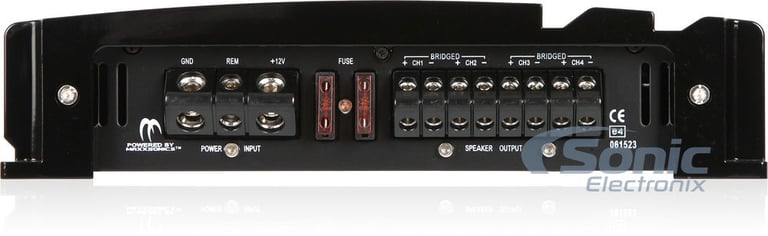

- 16 AWG speaker output connections
- Full-range Preamp RCA outputs to daisy chain multiple amps
Full-range only if a full range signal is connected to input - 3-way protection circuitry (thermal, overload, and speaker short protection)

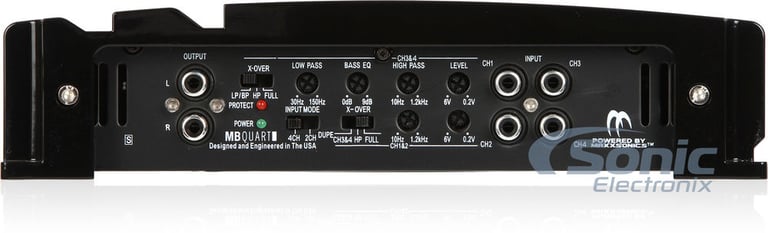

- Selectable input modes: 4ch / 2ch , allows for one set of inputs to be used
- Input sensitivity: 200mV - 6V
- Selectable crossover modes: LP / HP / FULL
- Variable high-pass filter: 10 - 1,200 Hz
- Variable low-pass filter (Ch 3 & 4 only): 30 - 150 Hz
- Variable Bass Boost (Bass EQ, Ch 3 & 4 only): 0 - +9 dB at 45Hz
- Frequency response: 10 - 45,000 Hz
- Damping factor: >180
- Signal-to-noise Ratio: >92dB
- Total harmonic distortion: 0.05%
- Channel separation: >80dB
- Recommended Fuse Rating: 40A x 2
- Dimensions: 14.17"L x 9.45"W x 2.23"H
- 4 gauge power and ground wiring is recommended for installation
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

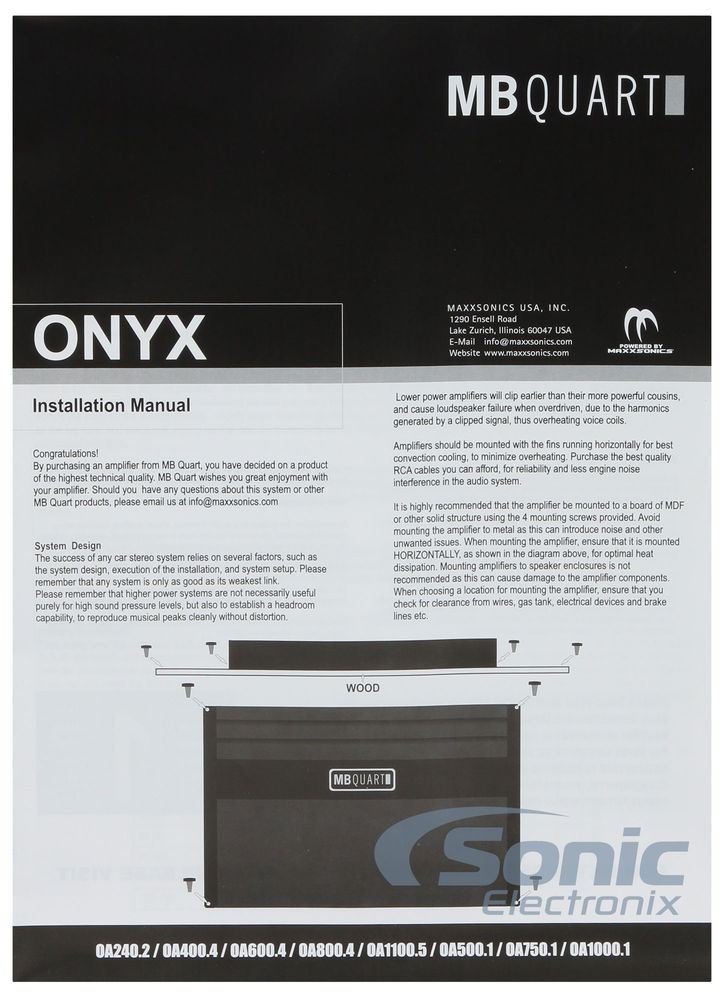

Check out the MB Quart OA800.4 Owner's Manual

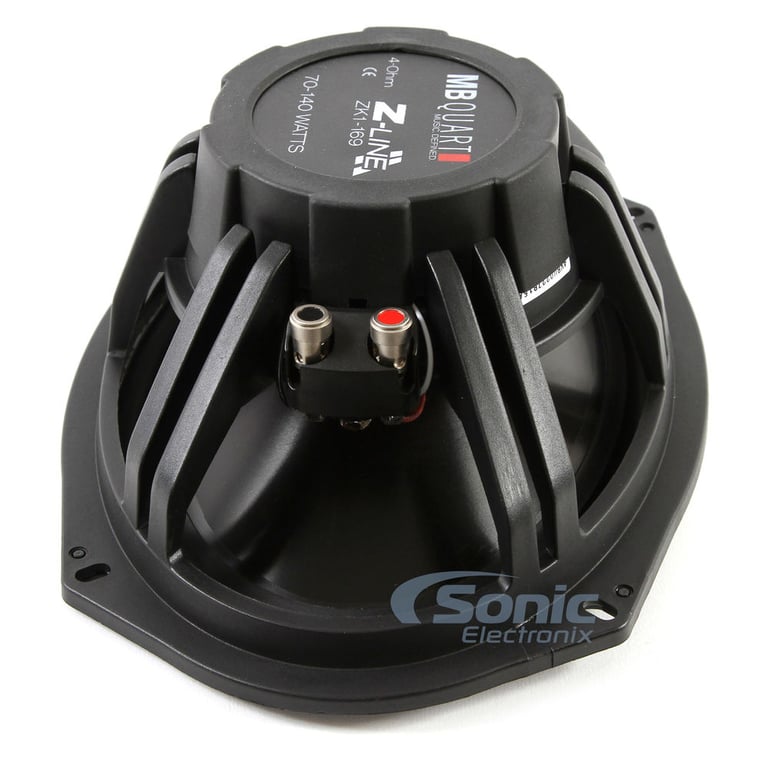

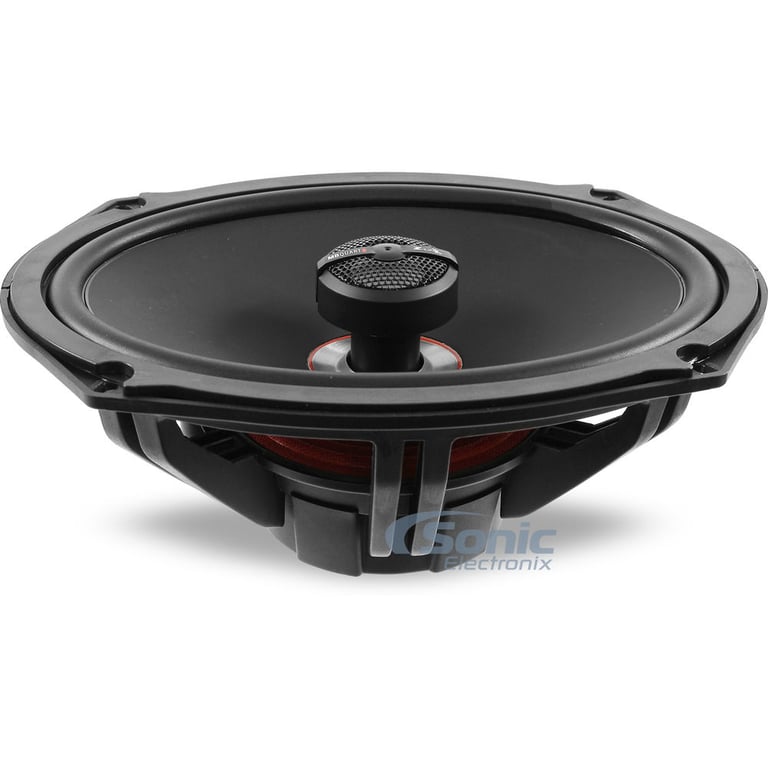

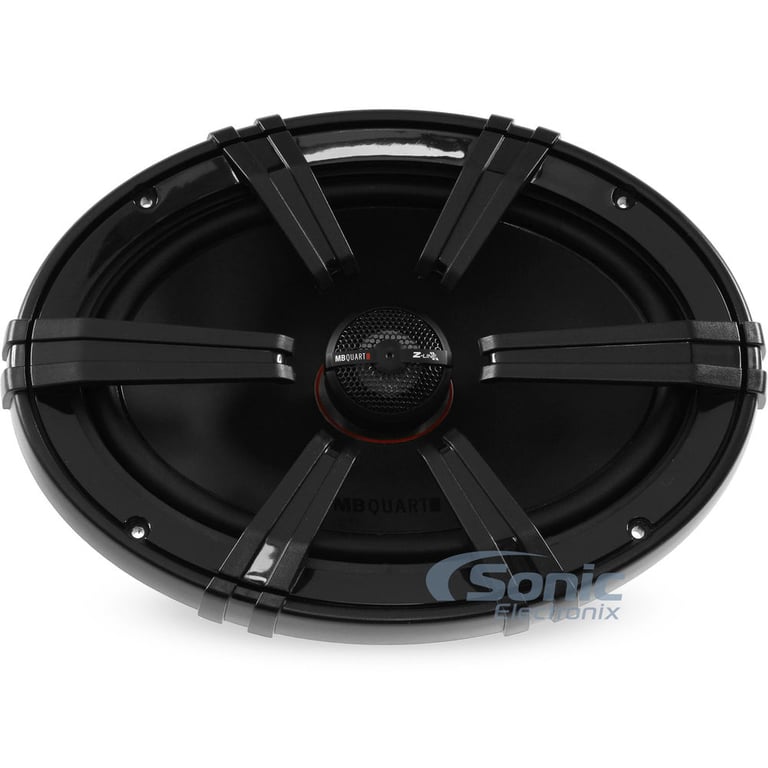

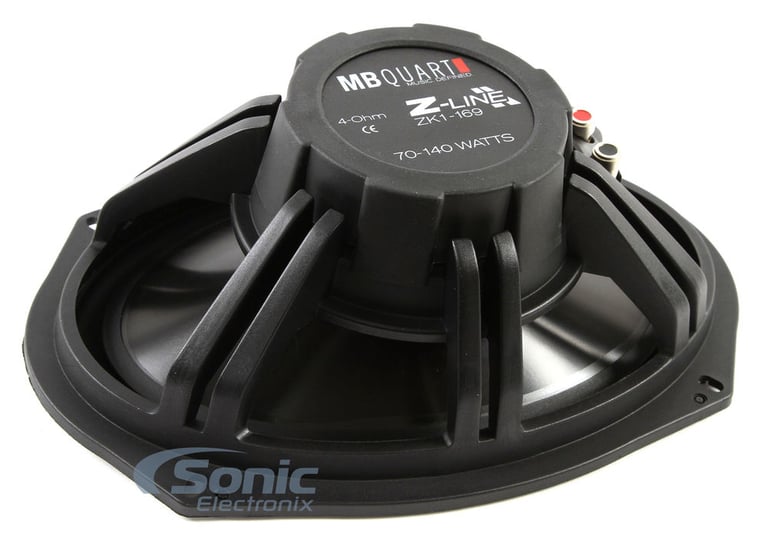

MB Quart ZK1-169
6 x 9" Z-Line Series 2-Way Coaxial Car Speakers
Quantity: 2 (Two Pairs, Four Speakers Total)
General Features:
- 6 x 9" Z-Line Series 2-Way Car Speakers
- Power Handling:
- Peak: 560 watts per set of four / 140 watts each
- RMS: 280 watts per set of four / 70 watts each
- Mica-filled PP cone mated to UV butyl surround
- Composite basket w/original German-spec material
- 1" (30mm) ceramic coated titanium dome tweeter
- Military grade “A” titanium Dome
- Nano ceramic coating for extended range
- High heat tolerance handles more power
- Greatest weight to strength ratio of any metal
- Smooth response within the audible range
- Tweeter features nylon surround for lower fs
- 12bd/octave crossovers used throughout line
- Removable phase lens allows the tweeter to be tuned for the application
- 4 ohm impedance
- Frequency Response: 20-20,000 Hz
- Sensitivity: 89dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Priced Per Set of Four
