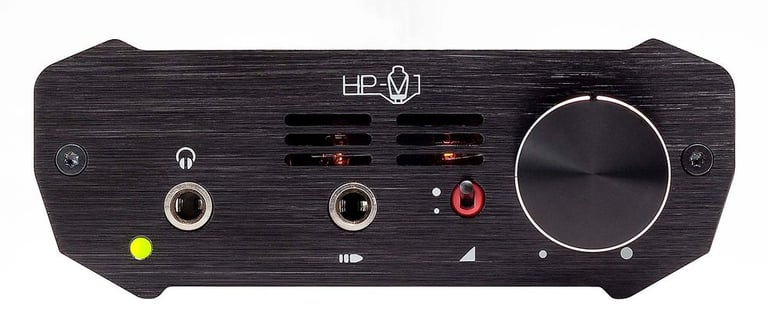

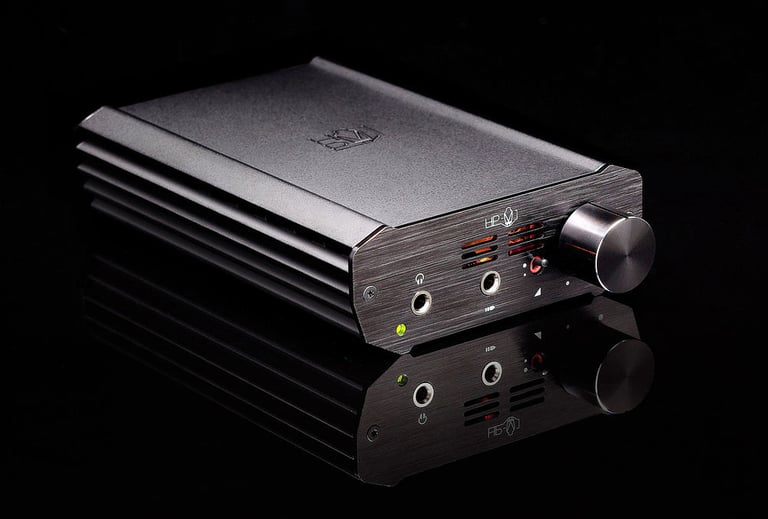

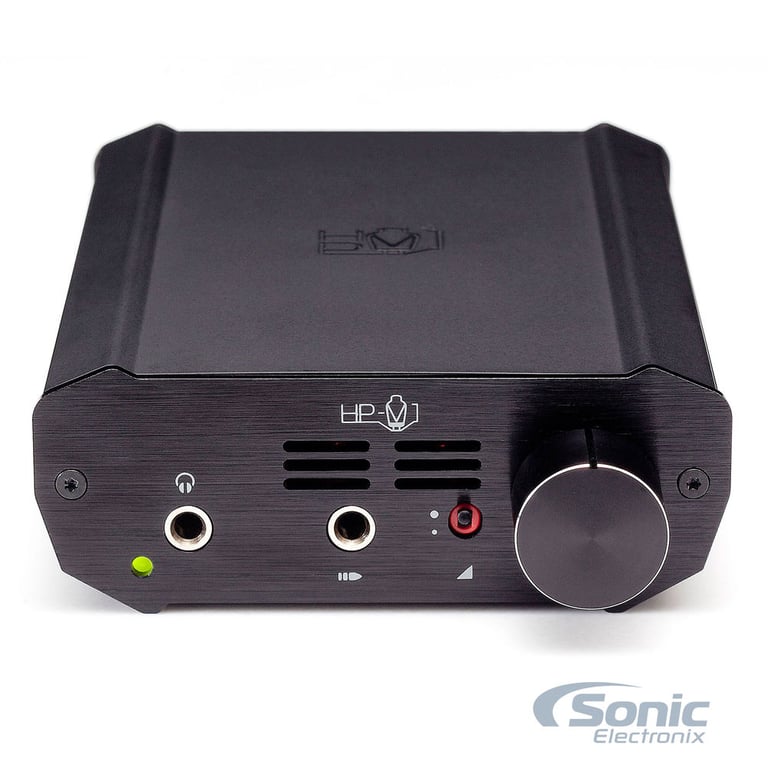

Fostex HP-V1

General Features:

• Fostex HP-V1 Vacuum-Tube Portable Headphone Amplifier
• Headphone amplifier adopting a vacuum tube (6N16B-Q) on the primary stage and OPAMP on the secondary stage (no DAC built in)
• Easy-to-carry light weight and robust aluminum chassis
• 2 x 3.5mm stereo mini jack inputs on Front (priority) and Rear to fit to any type of player unit
• The coupling capacitors consist of Fostex’ original large film capacitor and electrolytic capacitor, which were designed based on the Fostex’s hi-fi speaker engineering
• Comes with 100 mm high quality HiFC stereo mini cable as standard
• Hi/Lo Gain switch to drive various type of headphones
• Approx. 10 hours continuous operation from the rechargeable Lithium Ion battery
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Specifications

• Line Connector: 3.5mm stereo mini jack x 2 (front & rear)
• Applicable Load Impedance: more than 10k ohm
• Headphone Connector: 3.5mm stereo mini jack
• Maximum Output: 200mW (32 ohm loaded)
• Applicable Load Impedance: more than 16 ohm
• Frequency Response: 20Hz – 100kHz +/- 2dB
• Power Supply: Internal Lithium Ion rechargeable battery or DC 15V
• Power Consumption: 4W (32 ohm loaded)
• Battery Operational Hours: Approx. 10 hours
• Measurements: 88mm (W) x 33mm (H) x 139mm (D) including protrusion
• Weight: 390g
• Accessories: AC Adapter, 100mm Stereo mini cable, Operation Manual
