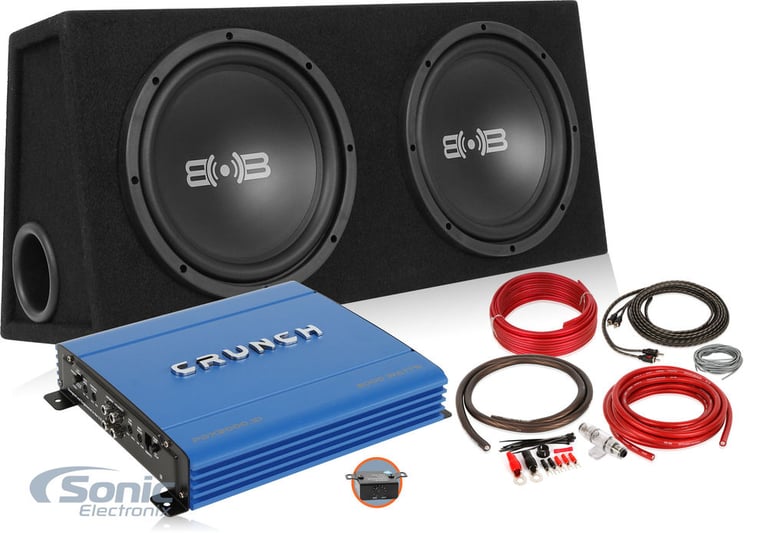

Belva Dual 10" Loaded Enclosure with Crunch Amp and Wiring Kit Package

Subwoofer Features:

• Two 10" Belva Subwoofers Included
• Power Handling:
• Peak: 1000 watts total (500 watts each)
• RMS: 500 watts total (250 watts each)
• Final Impedance: 2 ohm
• Each subwoofer is 4 ohm and the system is pre-wired down to 2 ohm
• Polypropylene cone
• Durable rubber surround
• 1.5" black aluminum voice coil
• 37 oz. ferrite magnet motor structure
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

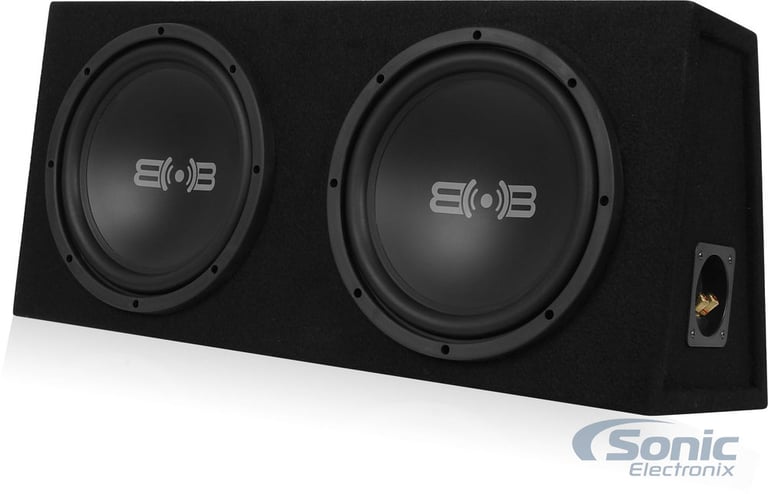

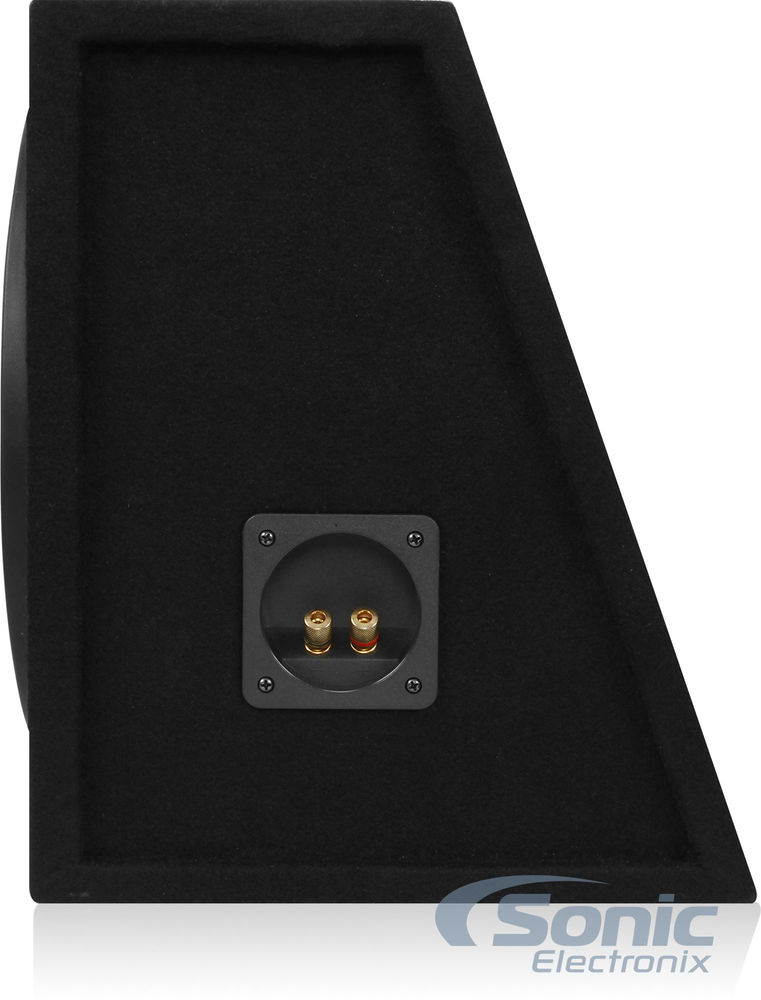

Enclosure Features:

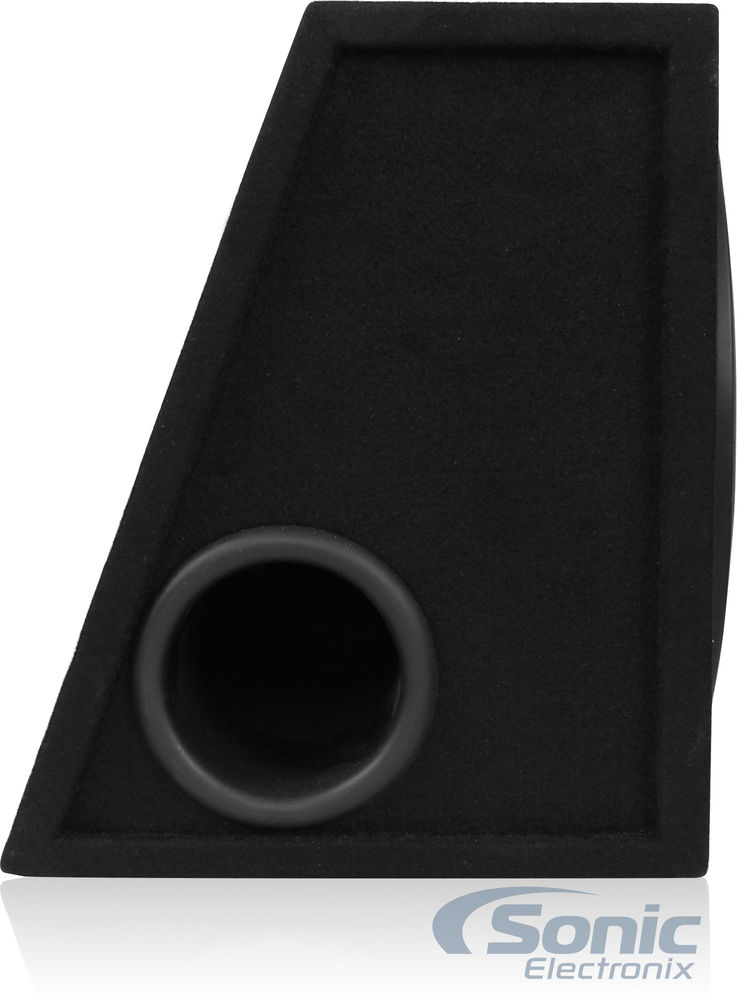

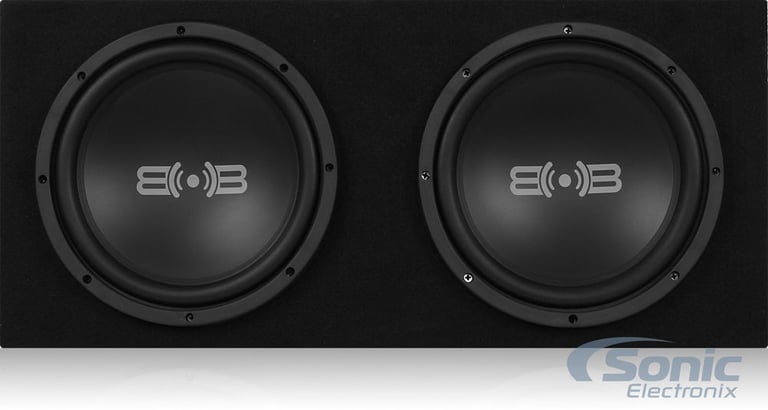

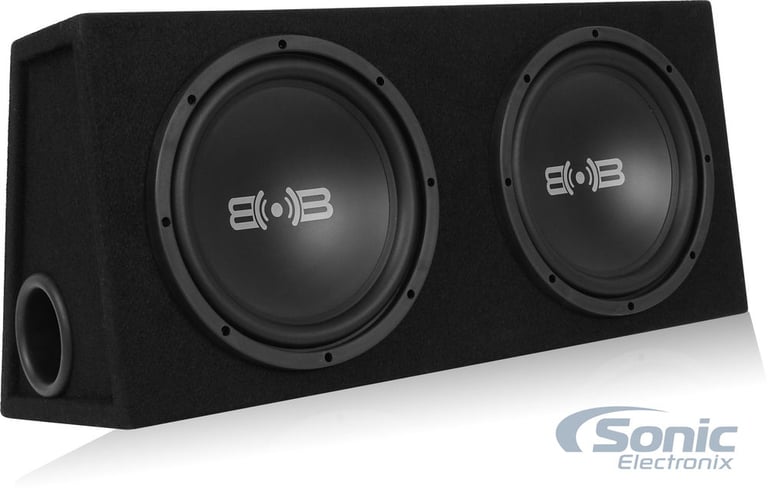

• Dual 10" Ported Subwoofer Enclosure
• Preloaded with Belva subwoofers
• Tuned perfectly to get the best bass from the BELVA subs

General Features:

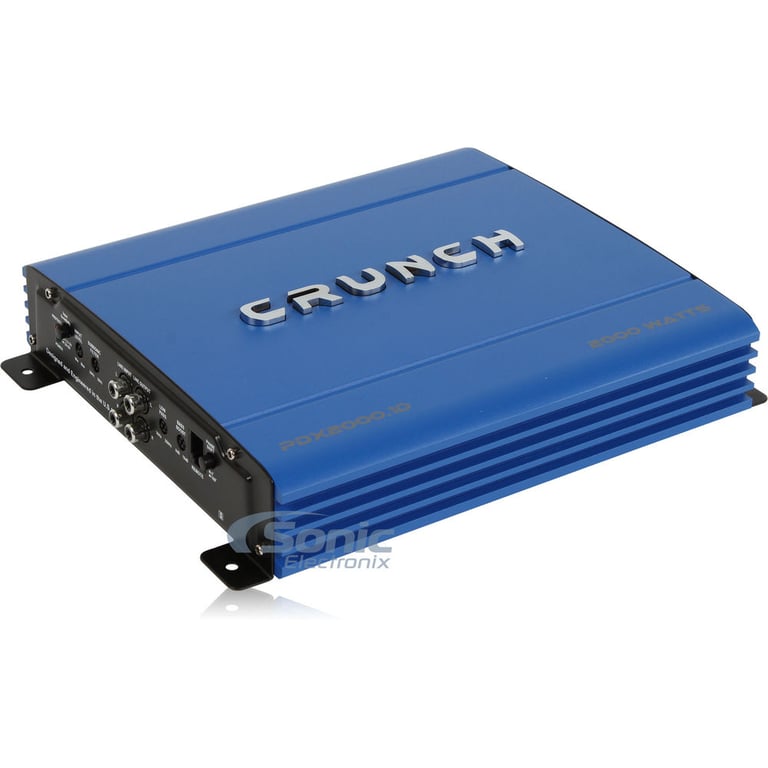

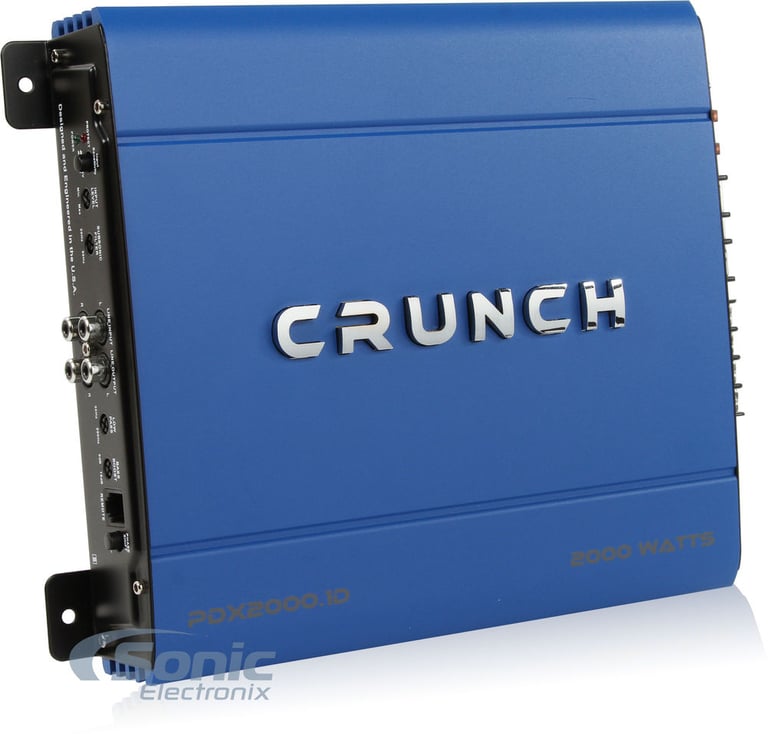

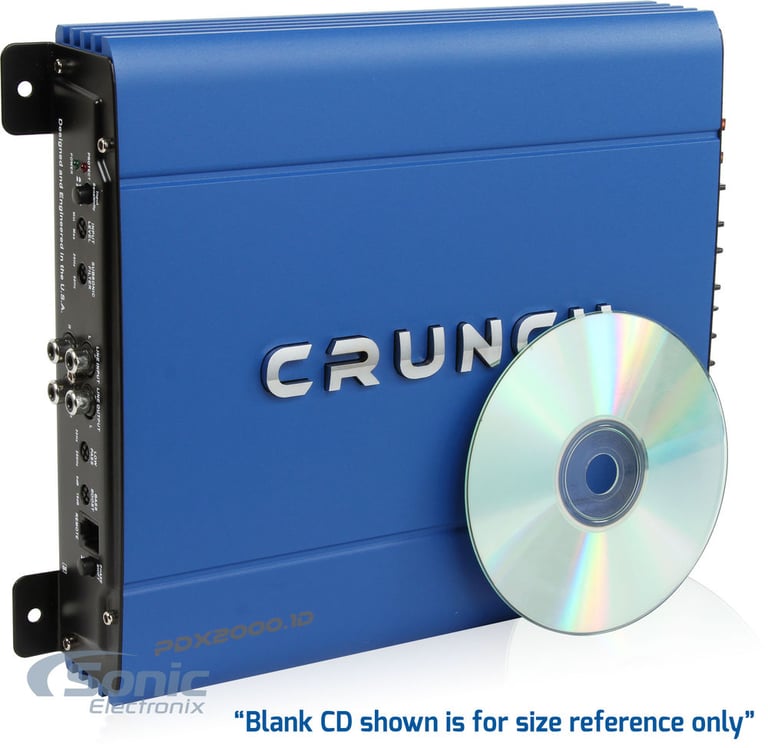

• PDX Series Monoblock Class D Car Amplifier
• MAX Power Rating:
• 4 ohm: 400 watts x 1 chan.
• 2 ohm: 1000 watts x 1 chan.
• 1 ohm: 2000 watts x 1 chan.
• RMS Power Rating:
• 4 ohm: 200 watts x 1 chan.
• 2 ohm: 500 watts x 1 chan.
• 1 ohm: 1000 watts x 1 chan.
• SEPP (Single Ended Push-Pull) output technology
• Pulse Width Modulated power supply
• LED power (green) and protect (red) indicators

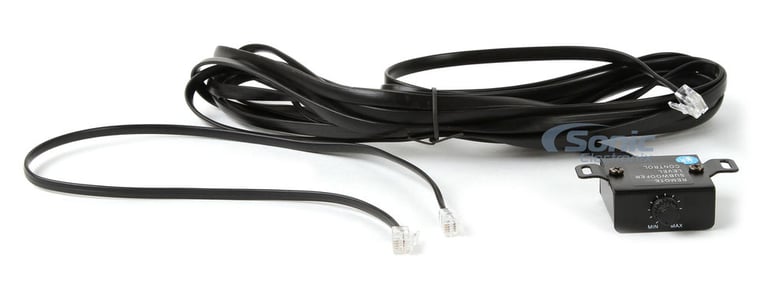

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Slow un-mute soft start turn-on
• Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

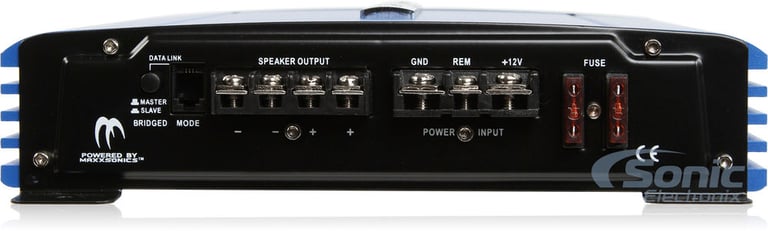

• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Silver-plated RCA level inputs
• Silver-plated screw terminals
• Master/Slave power strapping capable

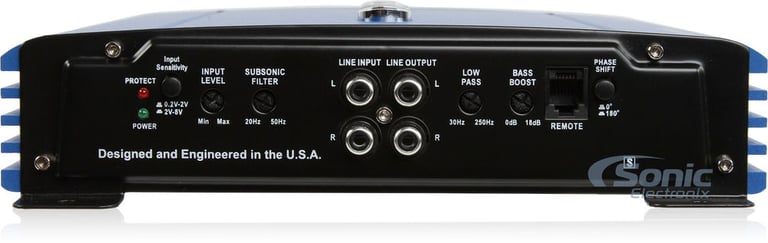

• Input sensitivity: 200mV-6V
• Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
• Variable Subsonic filter:20 - 50 Hz
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• Damping factor: >200
• Frequency response: 20 - 250 Hz
• Fuse rating: 40A x 2
• Dimensions: 15-3/4"L x 9-7/8"W x 2-1/16"H
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

General Features:

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available in Black, Blue and as a 4-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

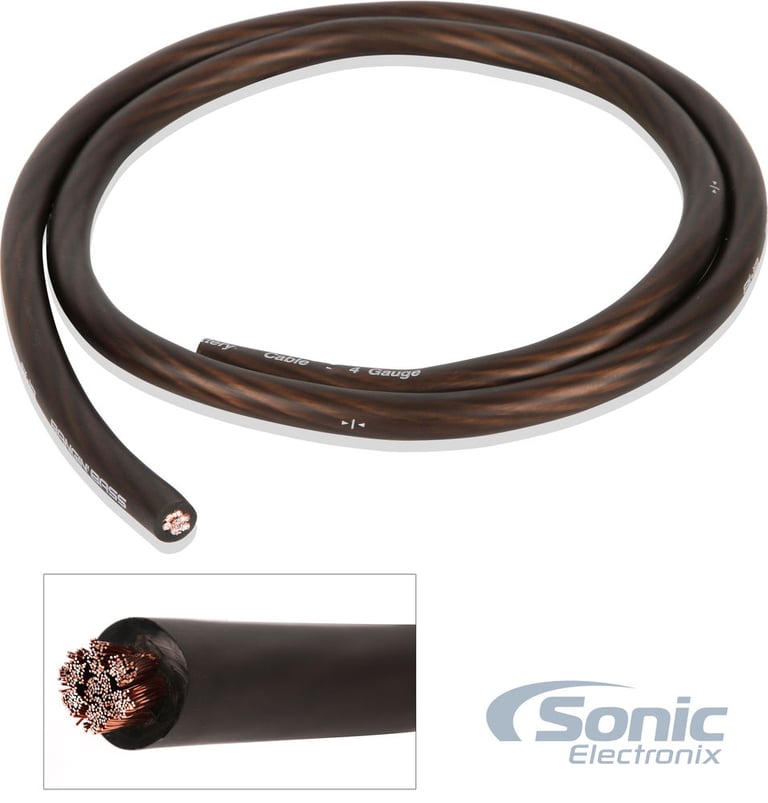

1. 17 ft. (5.2 meters) Red 4 gauge power wire
2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
5. 20 ft. (6.1 meters) 16 Gauge Speaker cable
6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. One 4 Gauge red chrome plated ring terminals
9. One 4 Gauge black chrome plated ring terminal
10. Three 18 Gauge red Spade terminal
11. Two 18 Gauge black Spade terminal
12. One 18 Gauge red butt connector
13. Ten 4" Black zip ties
