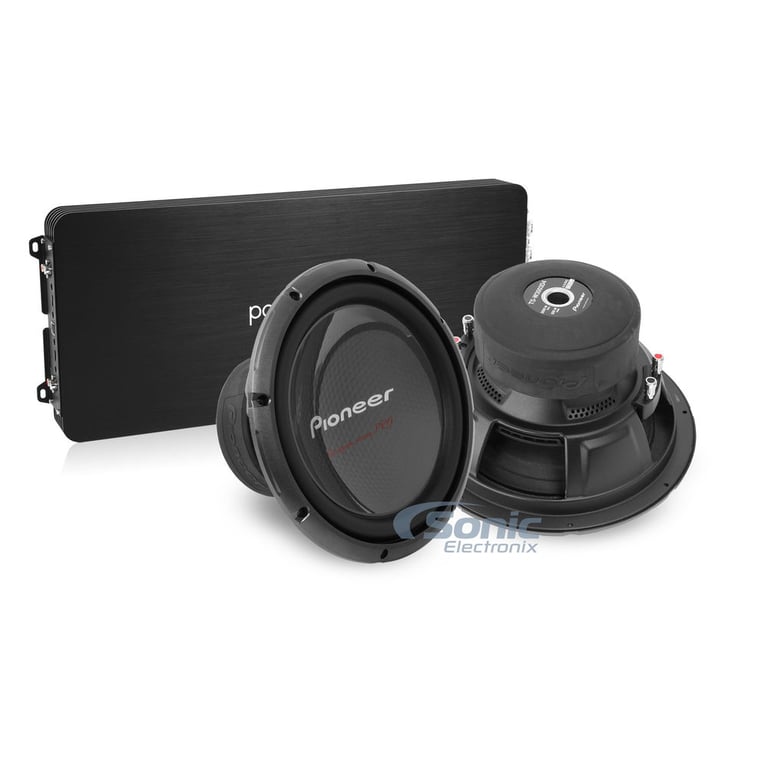

Pair of Pioneer TS-W3003D4 + PowerBass ASA 1200.2x Amplifier

(2) 600W 12" Champion Pro Series Dual 4 ohm Subwoofer + 2400W Max 2-Channel Class A/B Auto Sound Series Amplifier (ASA1200.2x)

Pioneer
Shop all Pioneer
EXCLUSIVE
Product videos
highlight-star-icon

• 1200 Watts RMS x 1 @ 4 ohm, Bridged
• 600W RMS Each
• IMPP Composite Seamless Woofer Cone
• Dual-Layer Elastic Polymer Surround
• Larger Magnet Combined With Dual Spider Design
• Frequency Response: 20-80 Hz
• Sensitivity: 96 dB
• Total Peak Power: 2400 Watts
• 2 or Mono channel operation
• Frequency Response: 20 - 22,000 Hz
• 3-Way System Protection circuitry (thermal, overload, and speaker short

Learn more about the 2-tsw3003d4_asa12002x

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

47
H735 main

Cerwin-Vega H735

500W Peak (60W RMS) 3.5" HED Series 2-Way Coaxial 4-ohm Speakers

34
-16.67%

$59.99

List price $71.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

15
-33.36%

$79.96

List price $119.99

Limited time!

Pioneer TS-A879

900W Peak (200W RMS) 3.5" A-Series 2 Way Coaxial 4-ohm Speakers

5
-33.34%

$59.99

List price $90.00

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

Product Highlights


• 1200 Watts RMS x 1 @ 4 ohm, Bridged
• 600W RMS Each
• IMPP Composite Seamless Woofer Cone
• Dual-Layer Elastic Polymer Surround
• Larger Magnet Combined With Dual Spider Design
• Frequency Response: 20-80 Hz
• Sensitivity: 96 dB
• Total Peak Power: 2400 Watts
• 2 or Mono channel operation
• Frequency Response: 20 - 22,000 Hz
• 3-Way System Protection circuitry (thermal, overload, and speaker short

Description


Pioneer brand icon

Authorized dealer

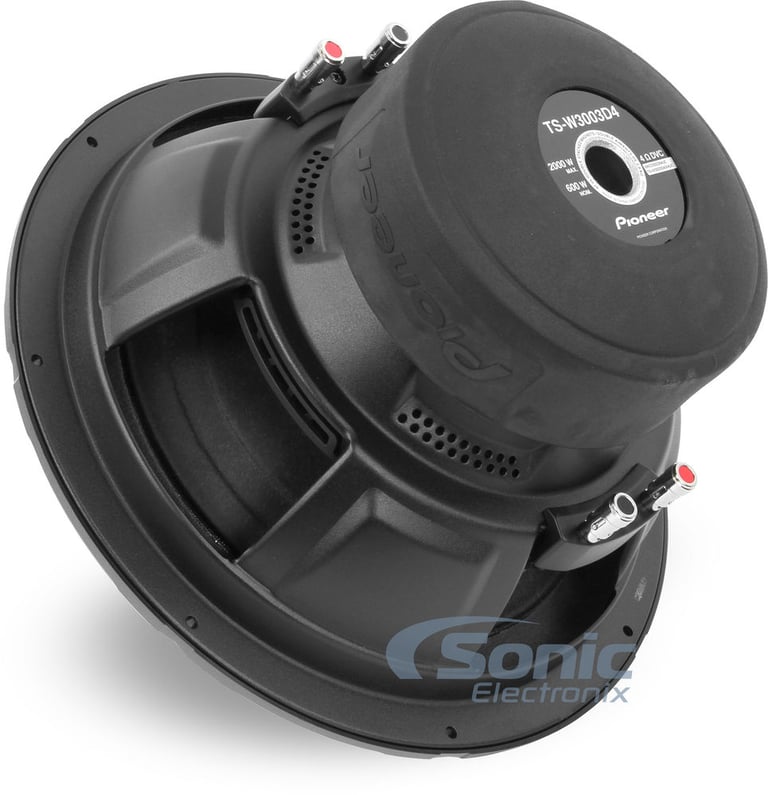

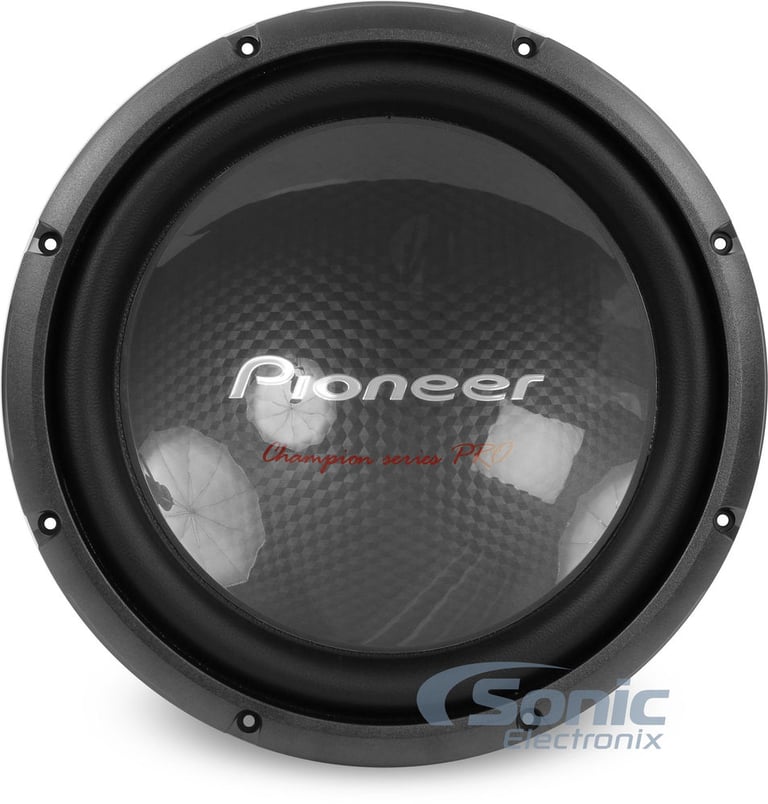

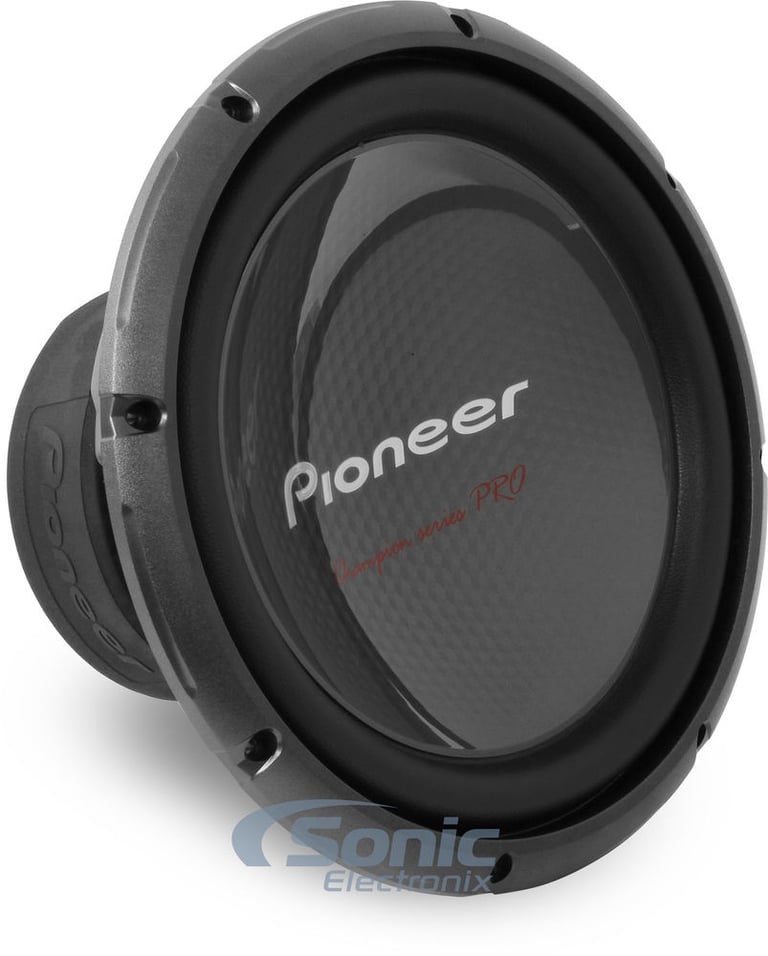

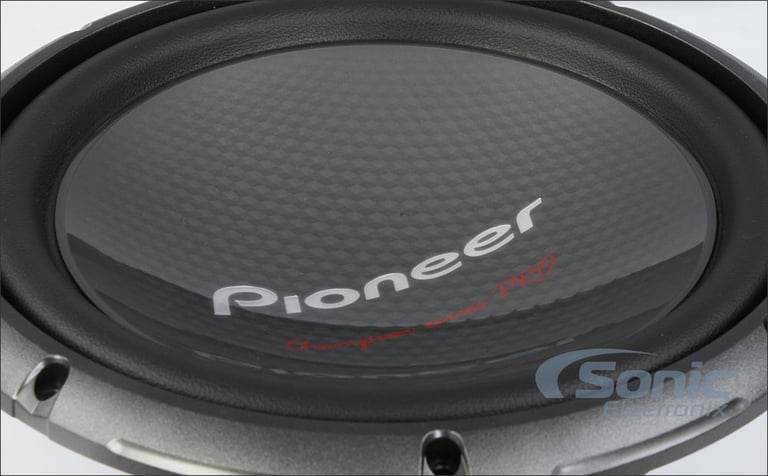

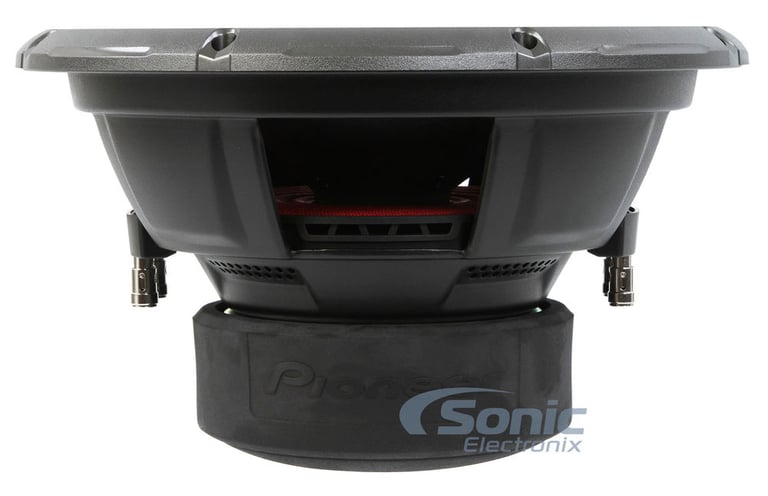

Pioneer TS-W3003D4

600W 12" Champion Pro Series Dual 4 ohm Subwoofer
Quantity: 2

General Features:

  • 12" Champion Series Pro Subwoofer
  • Power Handling:
    • Peak: 4000 watts total / 2000 watts each
    • RMS: 1200 watts total / 600 watts each
  • Impedance: 4 ohm final load, when Wired in Series/Parallel
  • IMPP composite seamless woofer cone
  • Dual-layer elastic polymer surround
  • Spring-loaded speaker terminal posts
  • Perfect for a ported or sealed enclosure
  • Features larger magnet combined with a dual spider design
  • Frequency Response: 20-80 Hz
  • Top-mount depth: 6.90"
  • Cut-Out Dimensions: 11.10"
  • Sensitivity: 96 dB
  • 1-year Sonic Electronix Warranty

Also found as: TSW-3003D4, TSW 3003D4

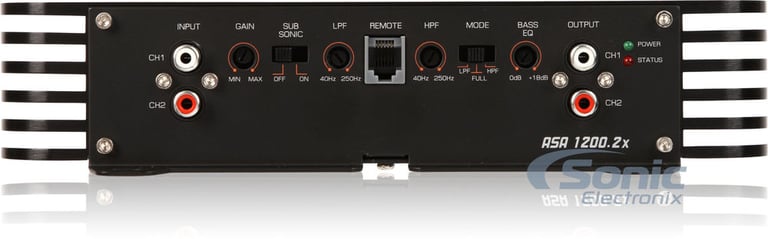

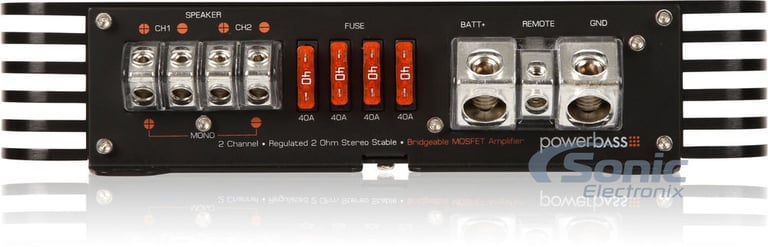

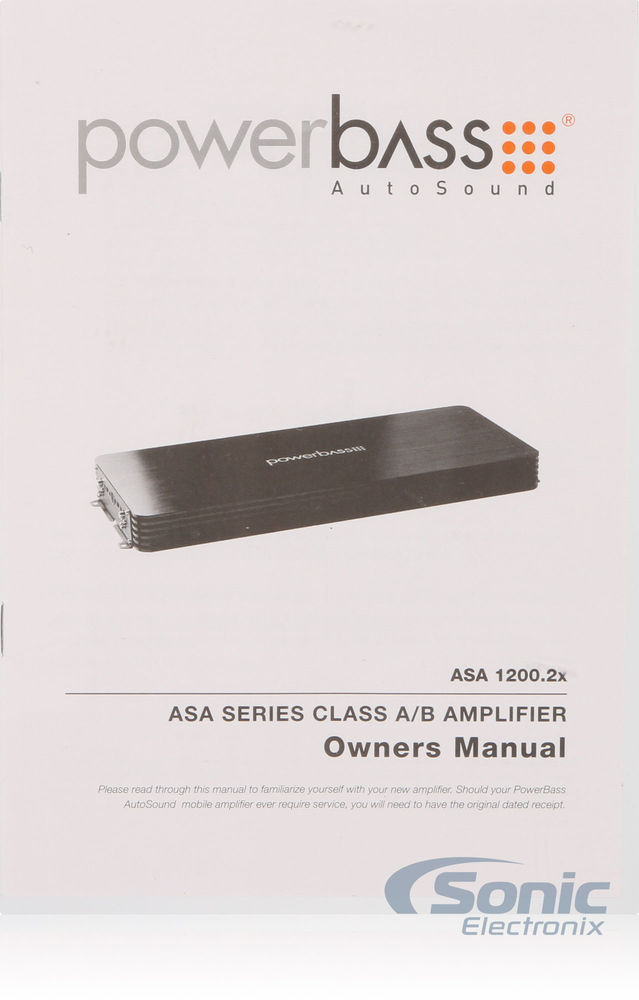

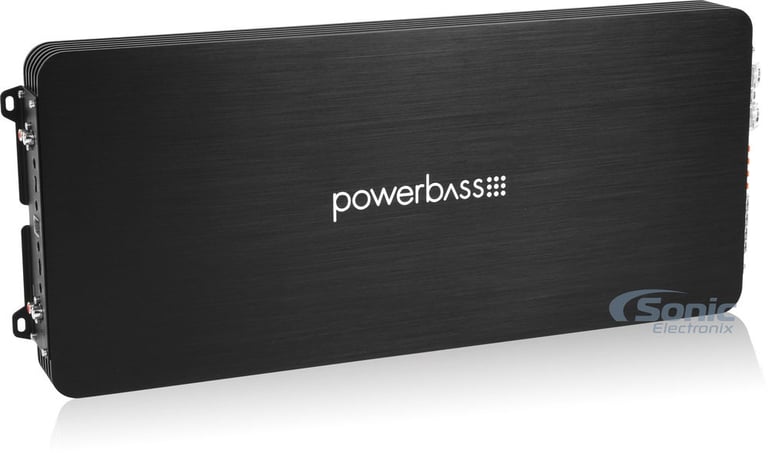

PowerBass ASA 1200.2x

2400W Max 2-Channel Class A/B Auto Sound Series Amplifier (ASA1200.2x)
Quantity: 1

General Features:

  • Auto Sound Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 2 chan.
    • 2 ohm: 600 watts x 2 chan.
    • Bridged, 4 ohm: 1200 watts x 1 chan.
  • Max power output: 2400 watts
  • Pulse Width Modulated MOSFET power supply
  • ASA Bass remote level control sold separately
    no longer available
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy ribbed heatsink for maximum heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity: 500mV - 8V
  • Frequency Response: 20 - 22,000 Hz
  • Total Harmonic Distortion (THD): <0.5%
  • Signal to Noise Ration: 90dB
  • Damping factor: >150
  • Selectable crossover mode: LPF / FULL / HPF
  • Variable high-pass filter: 40 - 250 Hz, 12 dB/octave
  • Variable low-pass filter: 40 - 250 Hz, 12 dB/octave
  • Selectable Subsonic filter: 28 Hz , 12 dB/octave
  • Variable Bass Boost: 0 to +18 dB bass boost at 40 Hz
  • Fuse Rating: 40 A x 4
  • 0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 21.40"L x 9.30"W x 1.90"H
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
300 watts x 2 channel
RMS Power @ 2 ohms
600 watts x 2 channel
Bridged RMS Power
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
2400 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Subsonic
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Subsonic Filter
28 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
40A x 4
CEA-2031 Compliant
No
Subwoofer Specifications
Series
Champion PRO Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
600 watts
Peak Power Handling
2000 watts
Woofer Surround
Elastic Polymer
Woofer Composition
Injection Molded Polypropylene Composite
Minimum Sealed Box Volume
0.85 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.00 cubic feet
Sensitivity
96 dB
Frequency Response
20 - 80 Hz
Top-Mount Depth (Mounting Depth)
6.90"
Cutout Diameter
11.10"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-TS-W3003D4_ASA1200.2X

Weight:

56.00lbs

Internal SKU:

2-tsw3003d4_asa12002x

Internal Product ID:

107471

Product and How-to Videos


  • Powerbass AutoSound Series Car Amplifiers
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Pair of Pioneer TS-W3003D4 + PowerBass ASA 1200.2x Amplifier thumbnail image

5 star
88%
4 star
11%
3 star
0%
2 star
0%
1 star
1%



Durability
4.8
Value
4.9
Features
4.8
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Nostril Vibration

The following review is for TS-W3003D4, which is a part of the bundle you are viewing.

I blew my Memphis MClass 12 running 300 watts at 4 ohms with an Alpine MVR500 ( great amp). This website had THE BEST price on this Pioneer sub after doing a week of homework. You will not find another sub within $200 of this one that as high a sensitivity (96 bd) & this much Xmax (13mm). I put this into my same sealed box (1.25 sq ft) & I bangs!! It's super clean but still makes your nostrils vibrate, which the Memphis never did. I'm running it @ 2 ohm @ 540 rms. Next I will be putting in a larger ported box. Nobody around here believes it's only 1 12 my RSX. I nearly bought a sundown audio 12, but after much homework comparing the specs, this was the sub for me & I'm beyond impressed!!! You won't be disappointed with this sub or with Sonicelectronix! They got it here in 2 days as promised.

By Jesse on July 6, 2014

111 found this helpful


Amazing subwoofers

The following review is for TS-W3003D4, which is a part of the bundle you are viewing.

I purchased two of these subs to replace my single pioneer ts-w3002d2 with hopes of having louder and clearer bass reproduction without having to upgrade electricals(my cars year makes it expensive to upgrade) and i was definately pleased. I have them both wired at 2 ohms to my pioneer amp pushing the 600 Rms to both and they hit hard, loud and clear. I would highly recommend these subs to anyone wanting inexpensive, high quality sound without needing a high powered amp.

By Elliott on December 8, 2014

101 found this helpful


Great investment!

The following review is for TS-W3003D4, which is a part of the bundle you are viewing.

I wish I would have found them sooner.These Speakers are some serious quakers.

By Stoney Coleone Capone on October 25, 2014

101 found this helpful


OMG.

The following review is for TS-W3003D4, which is a part of the bundle you are viewing.

These things pound hard more than worth the money! buy these now

By Logan on June 6, 2014

97 found this helpful


Great sub

The following review is for TS-W3003D4, which is a part of the bundle you are viewing.

This is a great sub just one of these knocks hard and I have the bass boost half way! you can't beat the price for the quality of this pioneer!

By Marco on February 10, 2015

96 found this helpful


Impressive for the money !

The following review is for TS-W3003D4, which is a part of the bundle you are viewing.

I bought two of these for my Ford ranger extra cab, and built a ported box five cubic feet net, not including port volume. Each sub has its own port tuned to 33hz and 16 sq in port area. I have a Massive Audio N4 loaded to 1 ohm, which is putting out 1444 watts at 13.5 volts, with box rise the subs won't get that much power. About a month of playing they are starting to sound better now that that dual spiders are breaking in. Needless to say the bass is incredible ! Flexing the back of the cab quite a bit. These pioneer subs "suspension" is in my opinion more durable than the new alpine type r sub which has a single spider. My last type r spider separated from the cone completely and then failed. Sorry alpine.

By Ranger on October 28, 2014

98 found this helpful


These are awesome!

The following review is for TS-W3003D4, which is a part of the bundle you are viewing.

I upgraded from 2 ts-w310d4s to a pair of these. The 310s are a great sub for getting loud with minimal power required. I A/B swapped the 310s to these with the same box/ amp. The 3003s obviously draw a little harder on electrical, but without being broke-in yet, they are as loud as the 310s that have over 150 hours on them. They move the windshield a bit more than the 310s already, after a very short 4-hour break-in. The build quality is literally "impressive". You would be hard-pressed to find build quality like this under $120-150. I have seen $200-plus subs that aren't built this nice. They sound smooth and have a nice curve with a moderate-sized enclosure.

These AND the 310s are excellent products for their price. I recommend these if you have over 500W of clamped, daily power per sub, but if you have under 500W a sub, def go with the 310s. Also go with the 310s if you have a puny electrical system, and don't see yourself upgrading it, as the 3003s will draw a considerable amount. The 310s will shine under 500W per sub.

By Satisfied customer on May 9, 2014

92 found this helpful


They are worth it

The following review is for TS-W3003D4, which is a part of the bundle you are viewing.

These speakers are the truth I have 2 with a hifonics 1200 watt super d class ample in a grand am and it sound great

By lileast on March 17, 2014

94 found this helpful


Great sounding woofer

The following review is for TS-W3003D4, which is a part of the bundle you are viewing.

Set this woofer up at 2 ohms in a ported Belva box with an SSL 1500 watt mono amp. The woofer sounds amazing with very smooth and deep bass. Very efficient woofer as the amp's gain and bass boost are set at 1/4 . Definitely would recommend.

By Bob_H on December 15, 2014

92 found this helpful


Awesome product

The following review is for TS-W3003D4, which is a part of the bundle you are viewing.

I ordered 2 and they're great. Have them in a ported box wired at 800 watts and they bump. Would 100% recommend these to someone else.

By Ryan on August 11, 2014

91 found this helpful



Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Audi A6

2000 Honda CR-V

2012 Audi S5

2005 Subaru Impreza

2011 Land Rover Range Rover

2006 Subaru Outback

2007 Chevrolet TrailBlazer

2023 Kia Seltos

2009 Infiniti FX35

2008 Volkswagen Beetle

Vehicle
Store
Delete

2008 Harley Davidson FLTR Road Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
