Omega IB-TBKIV

Universal Transponder Bypass Kit IB-TBK IV

Omega
Shop all Omega
highlight-star-icon

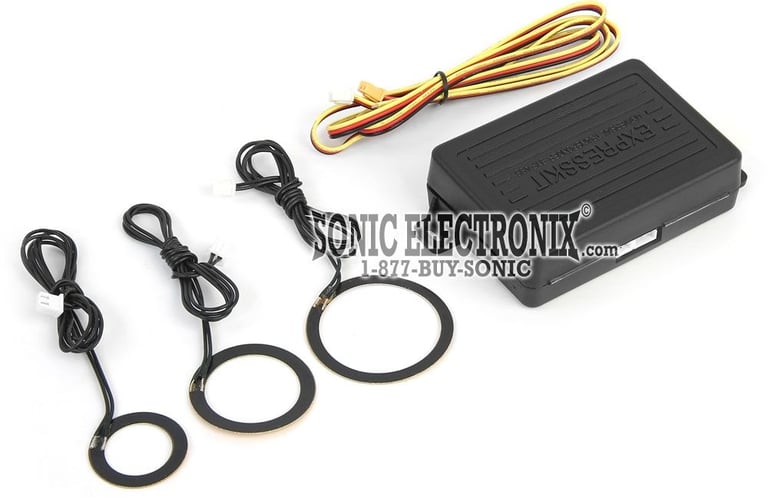

Universal Transponder Bypasskit flexi-loop stick-on antenna ring designed to temporarily bypass via RF induction most OEM transponder ignition immobilizer systems when remote starting

Learn more about the ibtbkiv

We apologize

This item has been discontinued


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Description


TBKIV is a 4 th generation Universal Transponder Bypass Kit(Key required), designed to temporarily bypass most OEM transponder type ignition immobilizer systems when remote starting. TBKIV operates by using one of the vehicles spare keys to transmit the original keys uniquely coded RF ID to the Receiver COIL in the key cylinder. The coded signal identifies to the vehicles computer that a valid key is present thereby enabling the fuel management system. The TBKIV will only operate as a bypass when the vehicle has been remote started. As soon as either the brake is depressed or an ignition key is inserted into the key cylinder(optional Keysense Circuit must be connected) the Transponder Bypass Kit (TBKIV) shuts off. The keysense circuit is an optional shut OFF circuit and does NOT have to used on all vehicles.

KEYSENSE SHUT-OFF Circuit
Yellow Wire Input Wire +/- (THIS IS AN OPTIONAL CONNECTION)
This 4 th generation Universal Transponder Bypass Kit is equipped with a singe wire (*optional USE*). This circuit is a relayed(-) or (+) input designed to shut off the Transponder Bypass Kit as soon as the driver inserts the ignition key into the key cylinder. This circuit prevents the vehicle from detecting two RFID keys at the same time, a problem on some vehciles which can cause the immobilizer system to trigger a or worse eliminate the two RFID key codes altogether and shut down vehicle.Installer selects input polarity (+) or (-) by jumper position. Put jumper On (+) if vehicles keysense wire goes to positive when key is inserted, put jumper On (-) if vehicle keysense wire switches to ground when key is inserted.
  • Compatible with any remote car starter
  • Compact design easy to mount
  • Compatible with manufacturer's anti-theft system
  • Maintains integrity of factory vehicle anti-theft system
  • No programming required
  • Simple 2-wire connection to vehicle
  • Flexible stick-on style antenna loop
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
