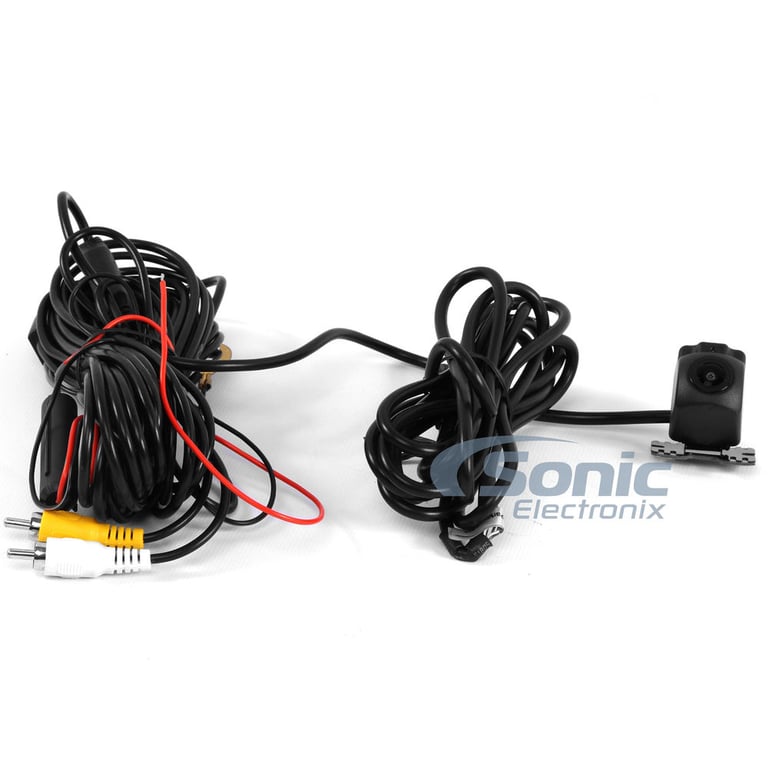

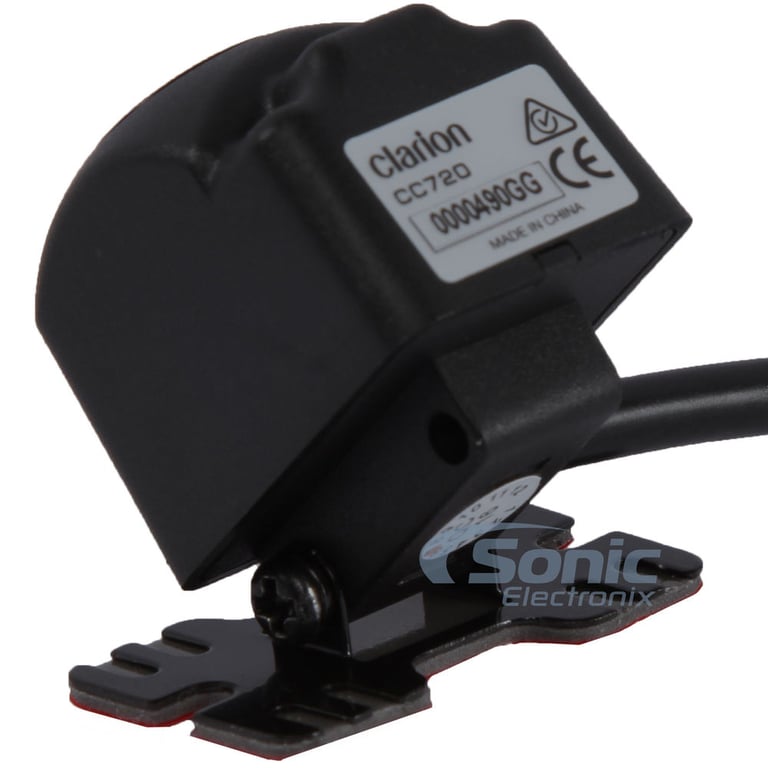

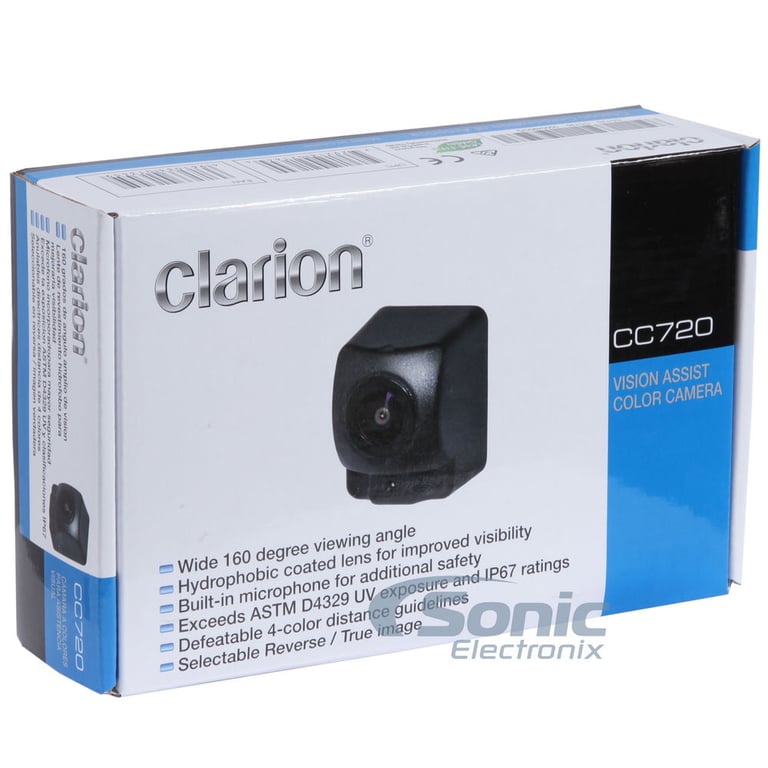

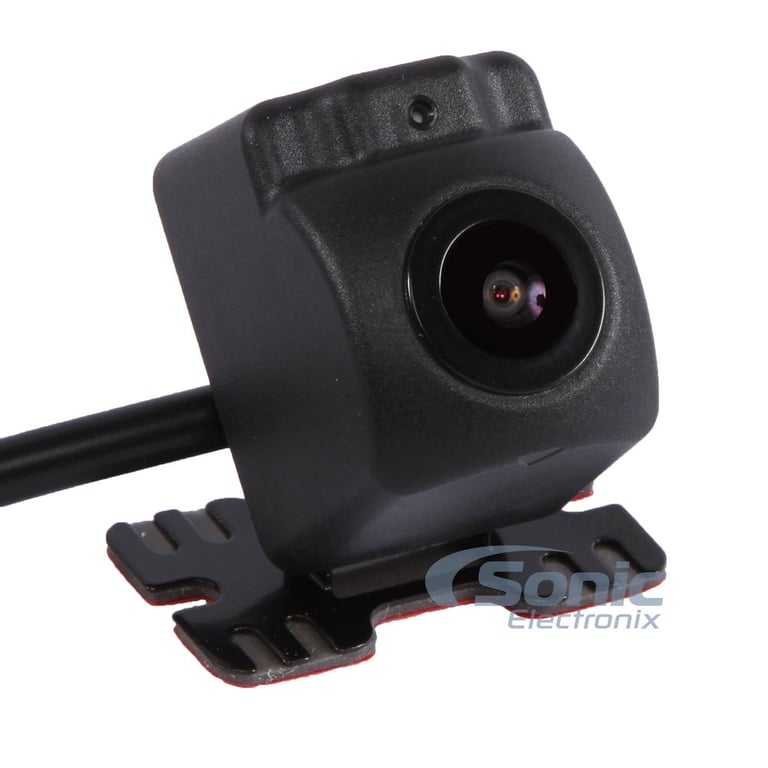

Clarion Surface Mount Backup Camera CC720

Universal Waterproof Surface Mount Reverse Camera

Clarion
Shop all Clarion
highlight-star-icon

• 1/4” Color CMOS Sensor Technology
• High Visibility Day and Night
• Hydrophobic coated lens repels water to improve visibility
• 120 Degree Vertical Viewing Angle
• 160 Degree Horizontal Viewing Angle
• Auto Gain Control (AGC)
• Auto White Balance

Learn more about the cc720

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Description


Clarion brand icon

Authorized dealer

General Features:

  • Waterproof Surface Mount Rear View Camera
  • 1/4” Color CMOS Sensor Technology
  • High Visibility Day and Night
  • Low Light Sensitivity: 0.1 lux
  • 160 Degree Horizontal Viewing Angle
  • 120 Degree Vertical Viewing Angle
  • IP67 Water Ingress Protection
  • ASTM D4329 (UV) Certified
  • Auto Gain Control (AGC)
  • Auto White Balance
  • Mirror / Normal Image Selectable Active Pixels: 348,160
  • (680 horizontal × 512 vertical)
  • Tilt Adjustable Mounting Bracket Included
  • Hydrophobic coated lens repels water to improve visibility
  • Video Output: NTSC
  • Audio Input (Microphone)
  • 23-feet (7m) RCA and Power Connections
  • Dimensions (inches): 29/32 (H) × 29/32 (W) × 7/8 (D)
  • Compatible with CAU002 Concealed License Plate Bracket and CAU001 Illuminated License Plate Frame
  • Defeatable Distance Guide Lines (Red, Orange, Yellow, Green)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the CC720 Owner's Manual

Best selling similar products

XCADJ1 small

NVX XCADJ1

• Universal Rear View Backup Camera
• High Resolution 1089 HDCCD Image Sensor
• Mounting Style: Bracket Mount
• Viewing Angle: 170 ° (wide viewing)
• Resolution: 800 x 533
• Waterproof: Yes (IP68 waterproof)
• Night vision: Low-light

(35)

$39.99

List price $119.99

BLPCAM2 small

Belva BLPCAM2

• Universal Rear View Backup Camera
• Mounting Style: Full License Plate Frame
• Resolution: 720 x 480
• Waterproof: Yes
• Nightvision: Infrared LED's

(57)

$39.99

List price $99.99

RVCCH-75C small

Crux RVCCH-75C

• Rear-View Integration System with Camera
• For select 2013-2017 vehicles from Dodge, Jeep, Chrysler
• Activates Uconnect touchscreen radio
• Aftermarket backup camera included
• Forced reverse camera view features
• Includes VIM function

(1)

$261.90

List price $407.40

CFD-03E small

Crux CFD-03E

• Ford Emblem Camera For Select Ford Vehicles
• IP67 Waterproof Rating
• Resolution: 480 TV Lines
• Viewing Angle: 170°
• Dimensions: 10"L x 7.75"W x 3.25"H

(1)

$216.00

List price $336.00

BARCAM221 small

NVX BARCAM221

• Universal Rear View Backup Camera
• High-Resolution CMOS PC1089 Image Sensor
• Mounting Style: Top of License Plate Frame
• Viewing Angle: 170 ° (super wide viewing angle)
• Resolution: 510 x 496
• Waterproof: Yes (IP67/68 waterproof)
• Night vision: Infrared LED's

(39)

$39.99

List price $99.99

XCAMLP small

NVX XCAMLP

• Universal Rear View Backup Camera
• Mounting Style: Full License Plate Frame
• Viewing Angle: 170 °
• Resolution: 720 x 480
• Waterproof: Yes
• Night vision: LED's

(51)

$49.99

List price $59.99

RVCCH-75D small

Crux RVCCH-75D

• Rear-View Integration System with Camera
• For select 2013-2017 1500 and 2500 and 3500
• Activates Uconnect touchscreen radio
• Aftermarket backup camera included
• Forced reverse camera view features
• Includes VIM function

(1)

$303.75

List price $472.50

MD-8400 small

Momento MD-8400

• 4K UHD Front and Rear Dash Camera
• Advanced Parking Mode
• Wi-Fi Connectivity for Easy Access
• MicroSD Card Included
• Sleek and Compact Design

$349.99

List price $399.99

Specifications & Details


General Features
Sensor Type
CMOS
Resolution (pixels)
680 x 512
Video Output
RCA Composite Cable
Mounting Type
Surface Mount
Adjustable Tilt
Yes
Weatherproof
Yes
Reverse Image
Adjustable
Parking Guidelines
Yes
Primary Color
Black
Minimum Illuminance
0.1 lx
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CC720

Weight:

0.90lbs

Internal SKU:

cc720

Internal Product ID:

108621
