NVX Speakers + Belva Dual Loaded Sub + Kicker Amp Complete Upgrade

General Features:

• 6-1/2" V-Series Coaxial Car Speakers
• Power Handling:
• Peak: 200 watts per pair / 100 watts each
• RMS: 100 watts per pair / 50 watts each
• Lightweight polypropylene cone provides accurate mid and low notes
• Nitrile Butadiene rubber surround supports linear movement for optimal accuracy
• 25mm Silk dome tweeter delivers rich, warm treble with remarkable clarity and definition
• Stamped steel basket for a sturdy foundation
• Y30 Ferrite motor structure maintains exceptional control over the driver for tight, crisp reproduction
• High temperature TSV voice coil provides superior current distribution while effectively dissipating heat
• Optional Grills Also Available: NVX XGR665
• 4 Ohm impedance
• Frequency Response: 70-20,000 Hz
• Top-mount Depth: 2.50" (64mm)
• Cutout Diameter: ~5.625" (142mm)
• Sensitivity: 89dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Subwoofer Features:

• Two 10" Belva Subwoofers Included
• Power Handling:
• Peak: 1000 watts total (500 watts each)
• RMS: 500 watts total (250 watts each)
• Final Impedance: 2 ohm
• Each subwoofer is 4 ohm and the system is pre-wired down to 2 ohm
• Polypropylene cone
• Durable rubber surround
• 1.5" black aluminum voice coil
• 37 oz. ferrite magnet motor structure
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Enclosure Features:

• Dual 10" Ported Subwoofer Enclosure
• Preloaded with Belva subwoofers
• Tuned perfectly to get the best bass from the BELVA subs

General Features:

• KX Series 5-Channel Class D-IC Car Amplifier
• Channel 1-4 RMS Power Rating:
• 4 ohm: 50 watts x 4 chan.
• 2 ohm: 100 watts x 4 chan.
• Subwoofer Channel RMS Power Rating:
• 4 ohm: 200 watts x 1 chan.
• 2 ohm: 400 watts x 1 chan.
• Max power output: 800 watts x 1 chan.
• Remote bass level control included
• High-efficiency regulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Variable Bass Boost (Variable 0-18 dB @ 40 Hz)
• Soft start turn-on
• 5/4/3/2 and mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• Equipped with FIT (Fail-Safe Integration Technology) to accept output from virtually any source
• FIT’s lab-grade, balanced differential inputs offer best possible noise rejection
• Speaker-level input compatible (switchable) through RCA connection, Kicker 09ZISL required and sold separately
• Double-sided fiberglass circuit board
• Built-in crossovers and adjustable KickEQ for dialing it in
• DC offset or 12v remote auto turn-on modes
• Angled custom-tooled power connectors
• Stylish magnetic panels cover controls and glass-fiber composite end panels
• Heavy duty high-mass aluminum alloy heat-sink
• Input sensitivity:
• Low level: 125mV-5V
• High level: 250mV-10V
• Variable low-pass filter (40-500 Hz, 24 dB/octave)
• Variable high-pass filter (10-500 Hz with 10x multiplier, 24 dB/octave)
• Frequency Response: 10-20,000 Hz
• CEA-2006 compliant amplifier
• 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
• Dimensions: 8-5/16"W x 12-3/4"L x 2-1/8"H
• Authorized Internet Dealer
• 2-year Manufacturer's Warranty (extends to 3 years when purchased with a Kicker amp kit)

Amplifier Kit Features:

• Complete 4 Gauge Amplifier Installation Kit for 5- or 6-Channel Amplifiers
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium power and ground wire provides optimal power transfer
• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
• Direct-connect engineering
• Fewer connections for less signal distortion
• ANL/mini ANL Fuse holder offers ideal protection for high powered systems
• Envy-Flex cable and wire
• Full spec cable is true to gauge
• Strand Count: 1862
• BC-5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Kit includes:

1. 20 ft. (6.1 meters) Frosted Blue 4 gauge main power wire with seamless crimp ring terminal and 6 ft. expandable sleeving

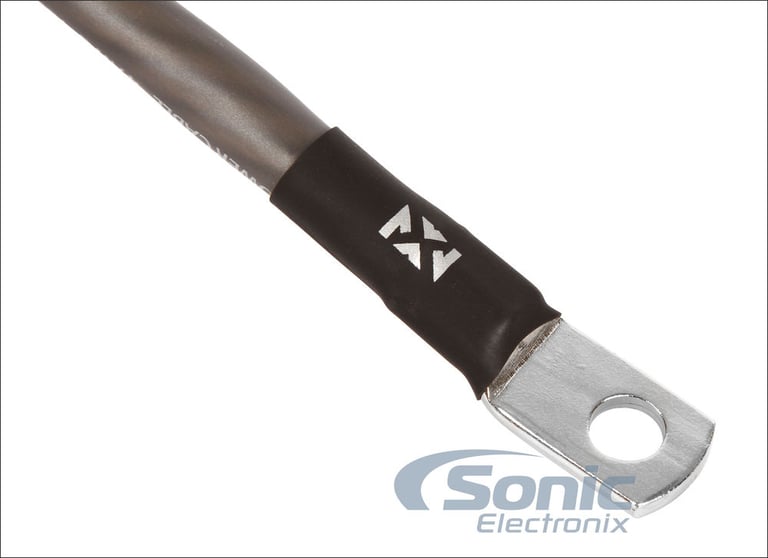

2. 3 ft. (.91 meters) Frosted Gray 4 gauge main ground wire with seamless crimp ring terminal
3. 2 Sets of RCAs Included: One 16 ft. (5 meters) 4-channel (NVX XIV45) and One 16 ft. (5 meter) 2-Channel (NVX XIV25) twisted construction RCA interconnect Cable
4. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire
5. 60 ft. Total (18.29 meters) of Frosted Black/Blue 16 gauge speaker wire
6. One NVX XMANL04 ANL/Mini-ANL fuse holder with 100 amp Mini-ANL fuse
7. One 1/2" black rubber firewall grommet
8. Two black 4 gauge nickel-plated spade terminals
9. Three blue 16 gauge spade lugs
10. Four 16 gauge quick disconnects
11. Two black 16 gauge spade terminal
12. Two 18 gauge red butt connector
13. Ten 6" black zip ties
