DC Audio Level 5 15 m4 D2

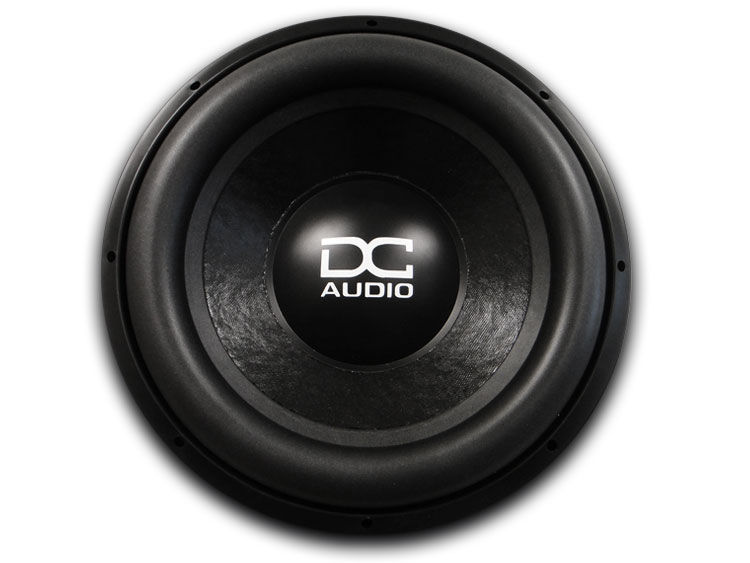

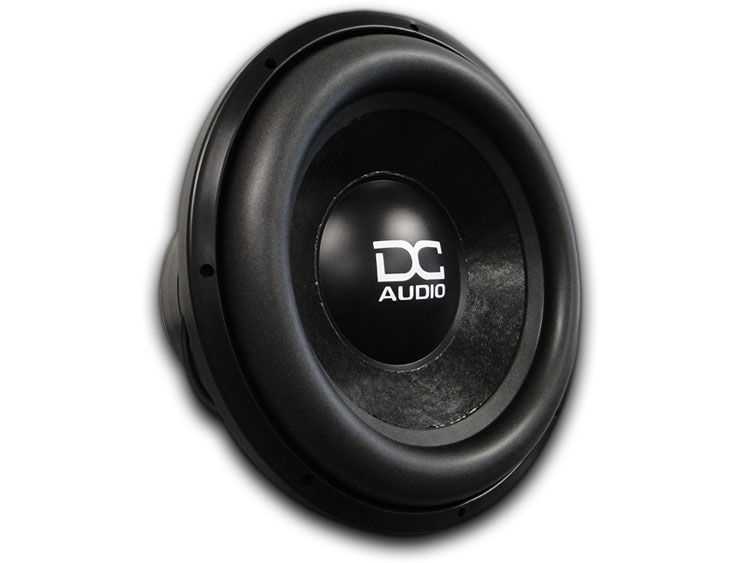

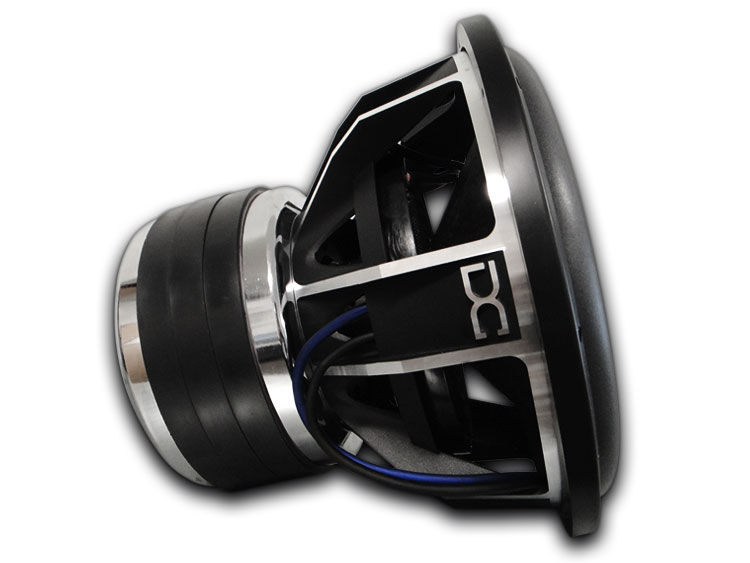

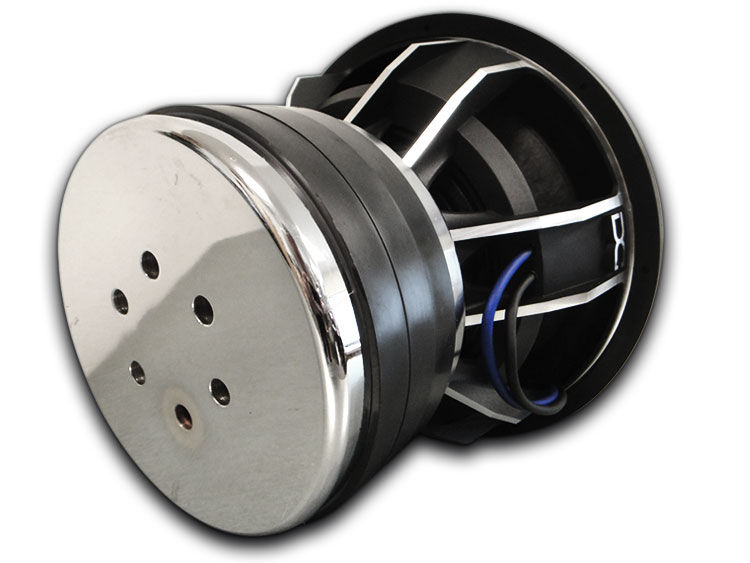

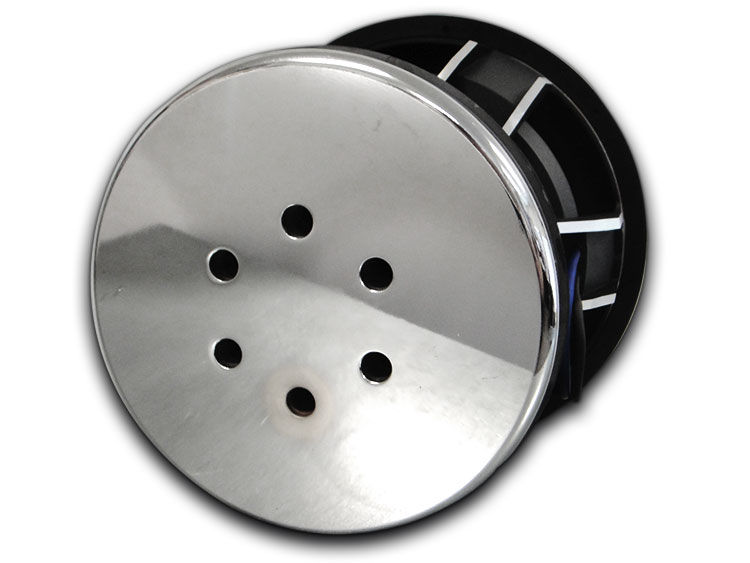

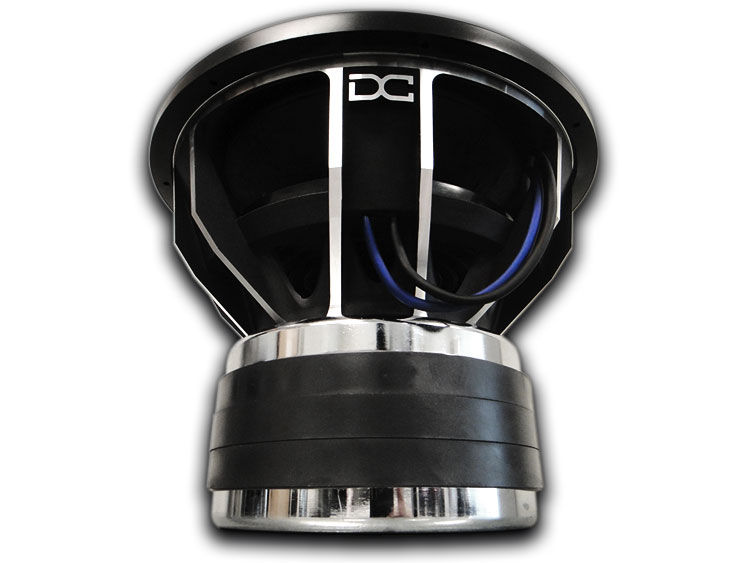

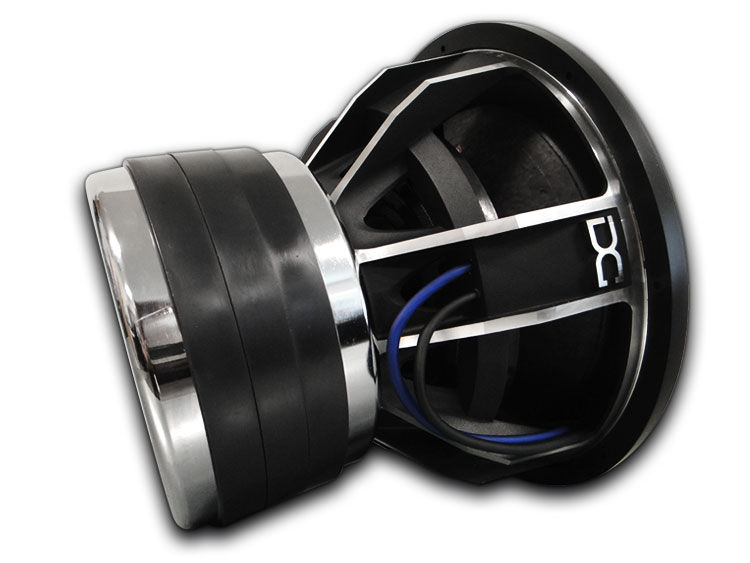

7000W Peak (3500W RMS) 15" Level 5 Series m4 Version Dual 2-Ohm High SPL Car Subwoofer with 3.5" Voice Coils

Product videos
highlight-star-icon

• 3500 Watts RMS
• 7000 Watts Max
• Kraft Pulp Fiber Reinforced Cone
• Wide Long Throw Foam Surround
• Dome Propylene dust cover with white DC logo
• Dual 3.5” 8 Layer Hi-temp Aluminum voice coil
• Top-mount depth: 11.75"

Learn more about the m4lv515d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m5lv515d2 thumbnail

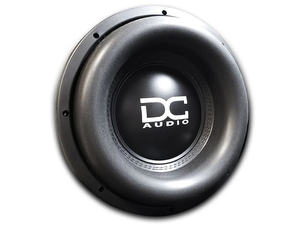

DC Audio (Soundlab) M5LV515D2

OUR PRICE: $1084.99

View item

Product Highlights


• 3500 Watts RMS
• 7000 Watts Max
• Kraft Pulp Fiber Reinforced Cone
• Wide Long Throw Foam Surround
• Dome Propylene dust cover with white DC logo
• Dual 3.5” 8 Layer Hi-temp Aluminum voice coil
• Top-mount depth: 11.75"

Description


DC Audio (Soundlab) brand icon

Authorized dealer

General Features:

  • 15" Dual 2-Ohm Level 5 M4 Series Subwoofer
  • Power Handling:
    • Peak: 7000 watts
    • RMS: 3500 watts
  • Recommended power range: 1750 - 3500 RMS
  • Kraft Pulp Fiber Reinforced Cone
  • Wide Long Throw Foam Surround
  • Dome Propylene dust cover with white DC logo
  • 10” OD Spaced Spiders
  • Extra heavy duty sewn tinsel lead wire
  • Cast DC Series aluminum black frame 15”/18”
  • Dual 3.5” 8 Layer Hi-temp Aluminum voice coil
  • Fully CNC machined FEA analyzed and optimized motor assembly
  • Black Anodized Aluminum voice coil former with high current input strips
  • Rubber mounting gasket
  • Direct Leads
  • Top-mount depth: 11.75"
  • Cutout diameter: 14.25"
  • Sd: 815.00cm2
  • Suggested Ported Enclosure: 3.0ft3
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Product history:

DC Audio (Soundlab) M5LV515D2 thumbnail
(newest, current model)
DC Audio (Soundlab) M4LV515D2 thumbnail
(previous model, replaced by DC Audio (Soundlab) M5LV515D2)
DC Audio (Soundlab) M3LV515D2 thumbnail
(previous model, replaced by DC Audio Level 5 15 m4 D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 5 15 m4 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 5 15 m4 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 5 15 m4 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 5 15 m4 D2 Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Level 5 Series
Subwoofer Size
15"
Peak Power Handling
7000 watts
RMS Power Handling
3500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohms
Voice Coil Diameter
3.5"
Woofer Composition
Kraft Pulp
Woofer Surround
Wide Long Throw foam surround
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
3.0 cubic feet
Top-Mount Depth (Mounting Depth)
11.75"
Cutout Diameter
14.25"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M4LV515D2

Weight:

82.00lbs

Internal SKU:

m4lv515d2

Internal Product ID:

109787
