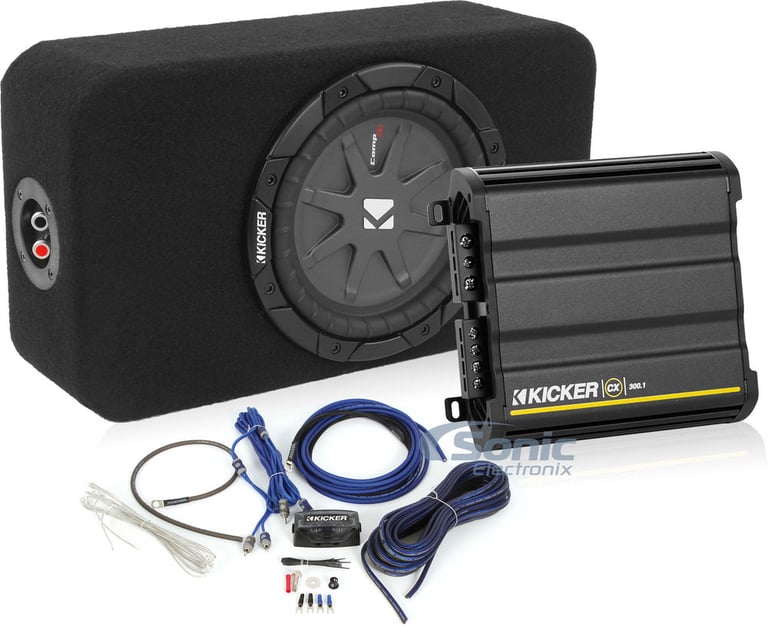

Kicker Complete Ultra Compact Amplified Subwoofer System

Subwoofer Features:

• 8" CompRT Series Ultra Thin Subwoofer
• Power Handling:
• Peak: 600 watts
• RMS: 300 watts
• Recommended power range: 100 - 300 watts RMS @ 2ohm
• Enclosure impedance: 2 ohm
• Kicker CWRT81, Dual-1ohm Subwoofer wired in Series to 2 ohm
• Injection-molded polypropylene cone
• Tough Santoprene surround with interlocking front gasket
• Weather-proof for outdoor powersports applications
• Double venting for max cooling
• Inverted-bumped back plate and bumped top plate
• High-temp voice coil for increased power handling
• Resonance Frequency (Fs): 49.2 Hz
• Top-mount depth: 2-11/16"
• Sensitivity: 84.8dB
• Frequency response: 30 - 500 Hz
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

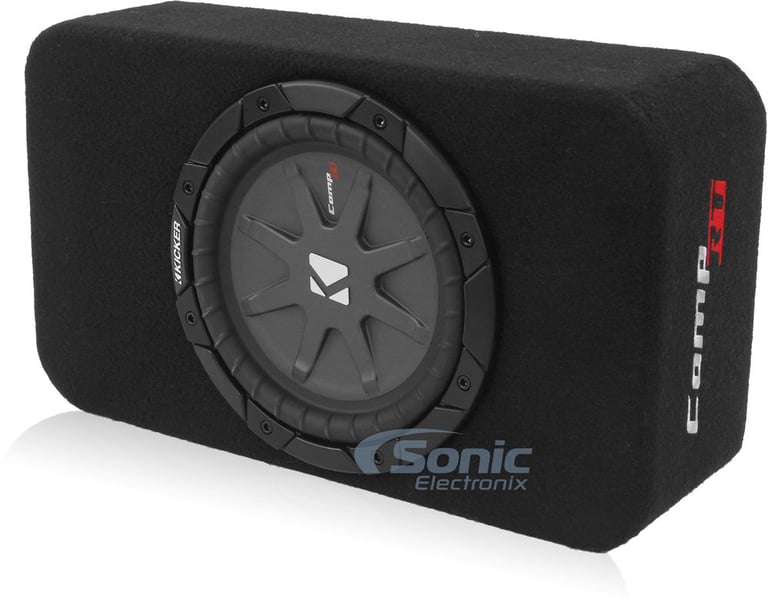

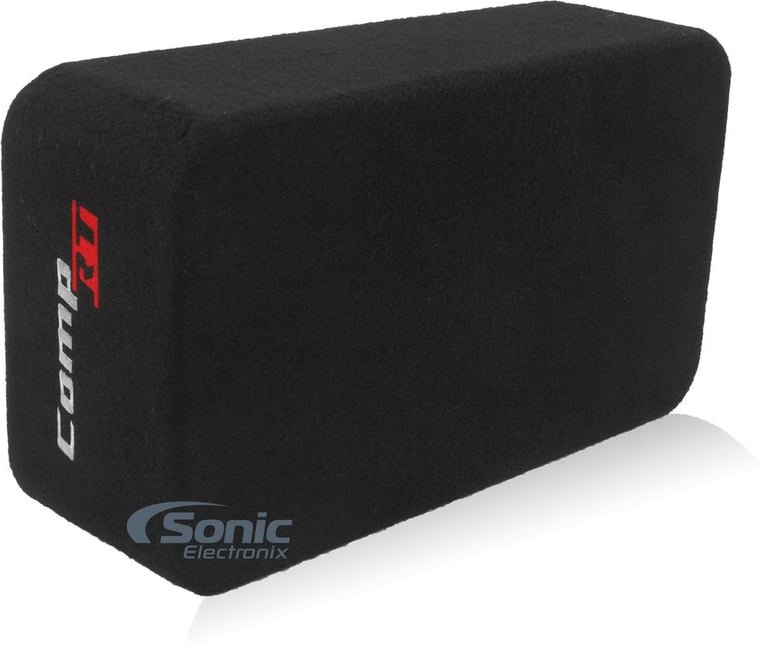

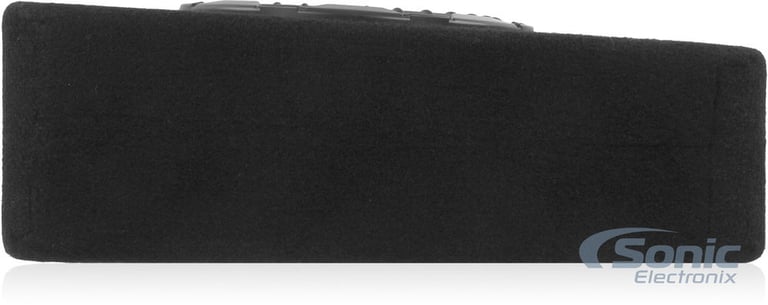

Enclosure Specifications:

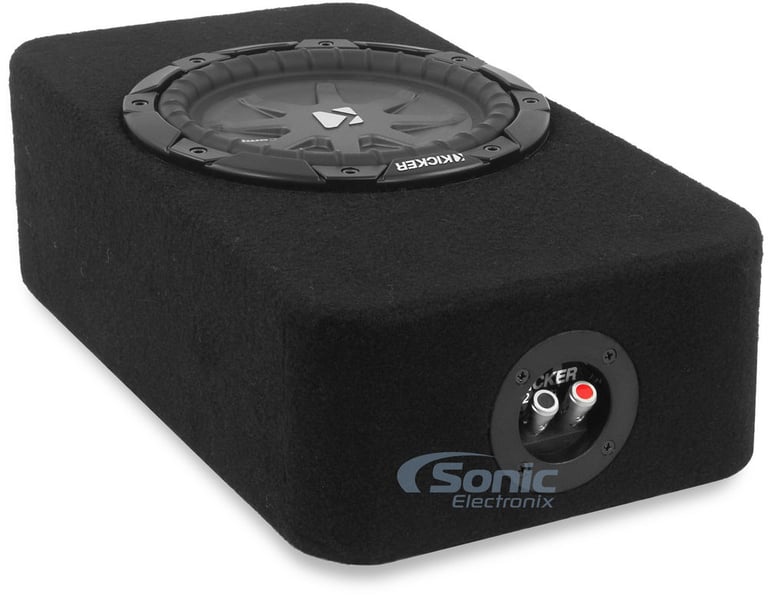

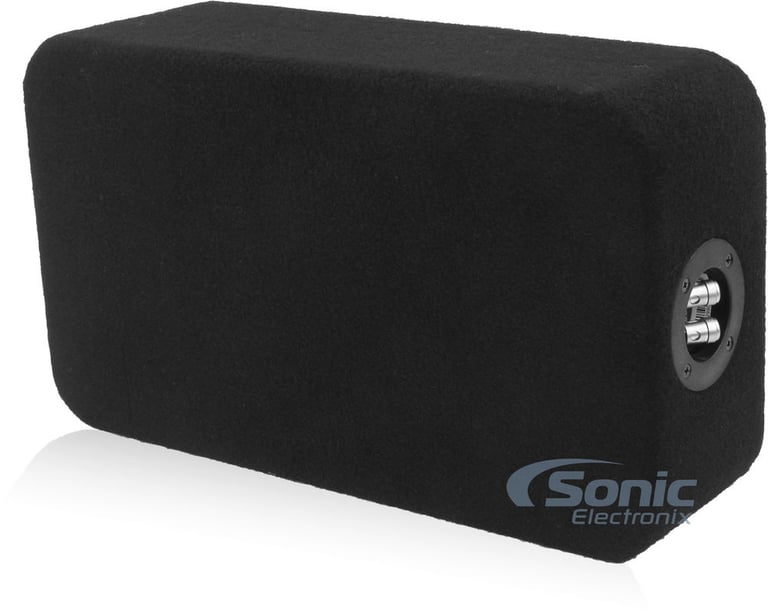

• Single 8" Sealed Compact Enclosure
• Smallest sub-loaded enclosures from KICKER
• Compact, Truck enclosure style

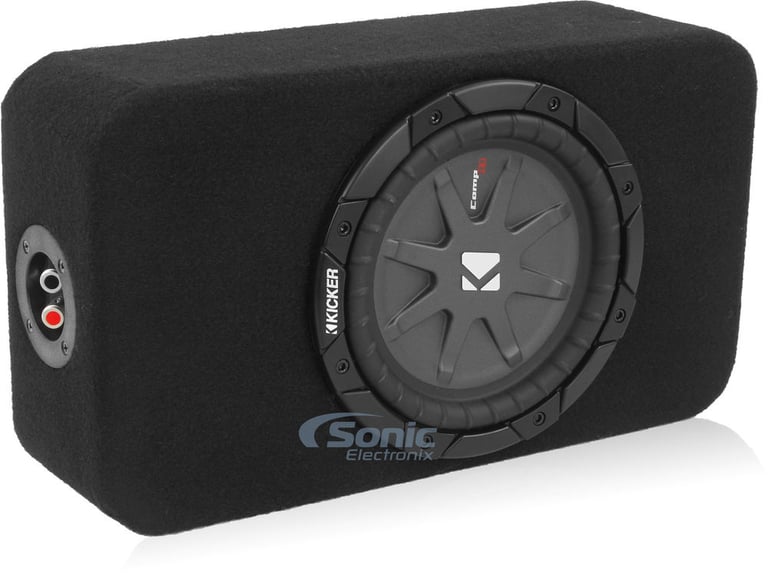

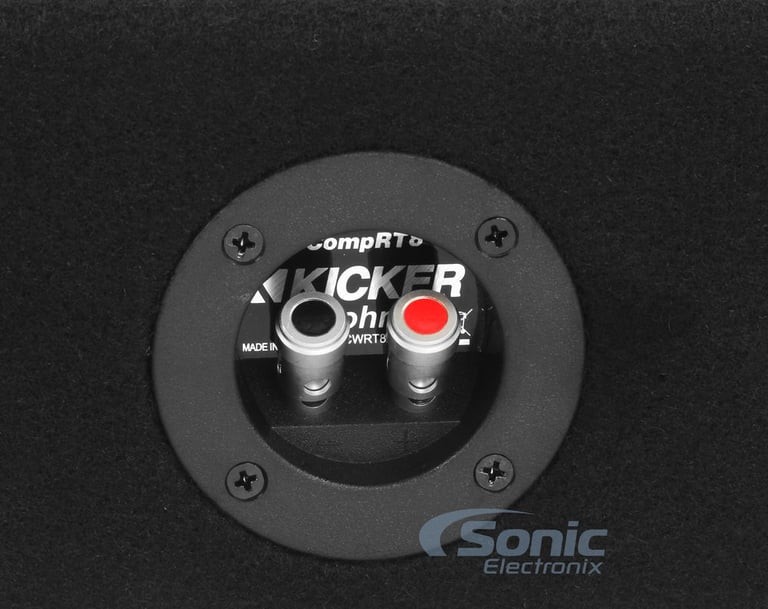

• Easy-to-use impedance designated at the terminal cup assembly
• Tough KICKER wood enclosure
• Dense gray carpeting
• 10AWG Nickle plated, spring post terminals
• Dimensions: 4-3/8"TD x 5-3/8"BD x 16-1/8"H x 9"W

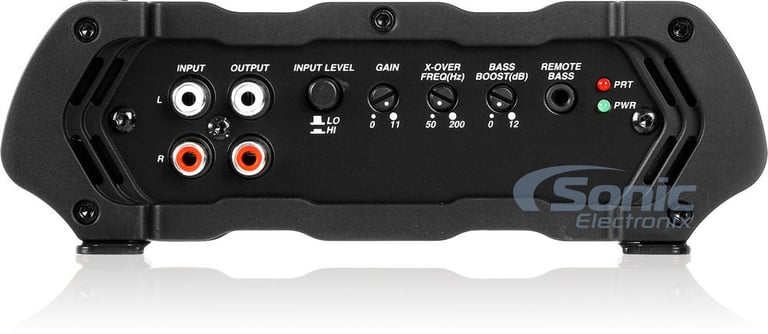

General Features:

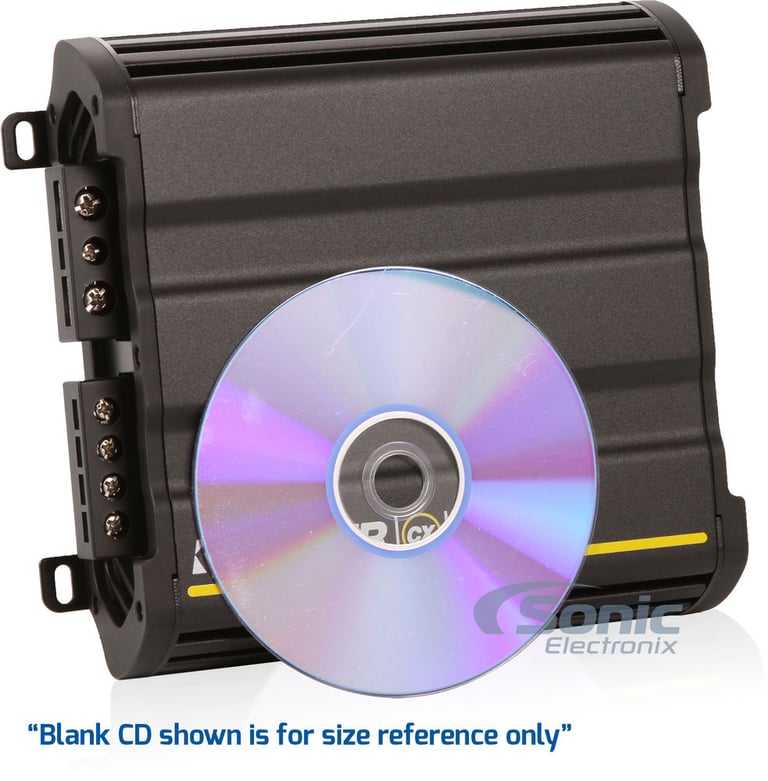

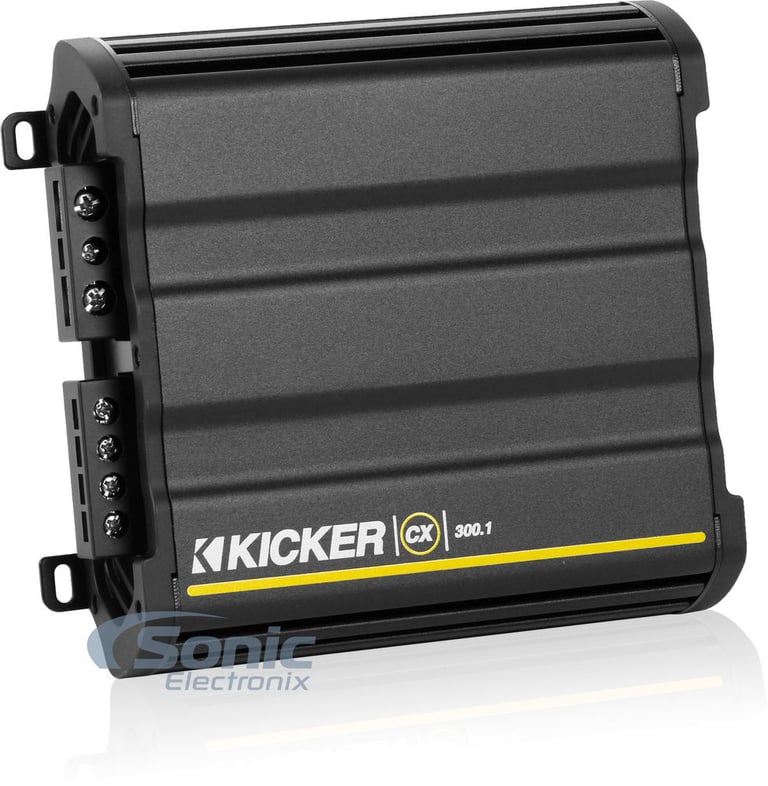

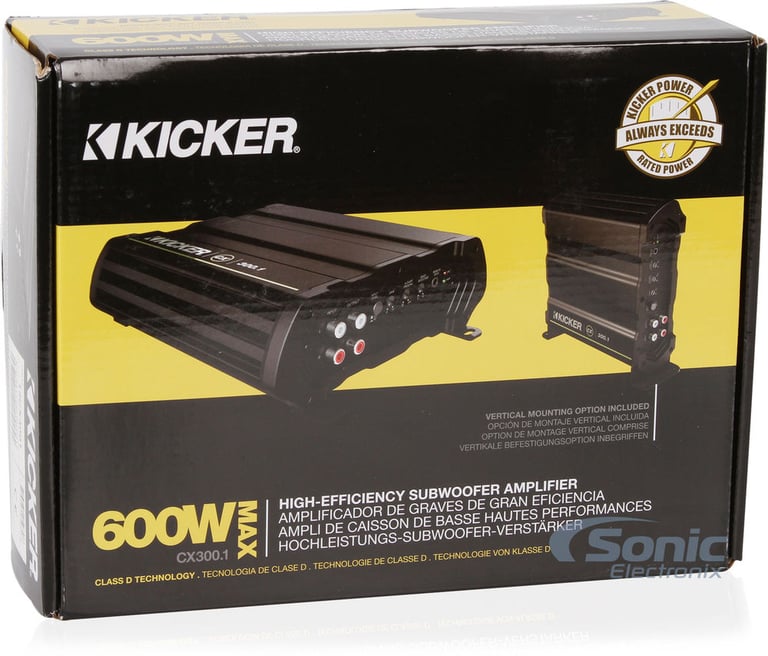

• CX Series Single-Channel Class D Car Amplifier
• RMS Power Rating:
• 4 ohm: 150 watts x 1 chan.
• 2 ohm: 300 watts x 1 chan.
• Max power output: 600 watts x 1 chan.
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +12 dB bass boost at 40 Hz)
• Single channel operation
• Speaker-level (high-level) inputs with signal sensing for automatic turn-on
• Requires Kicker KISL, sold separately
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)

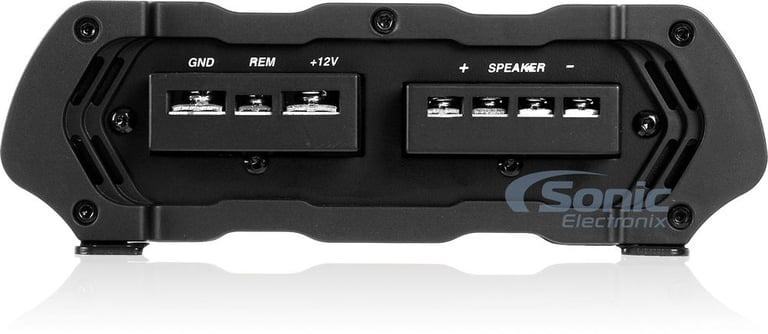

• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Options Level Remote available, sold separately: Kicker CXRC
• Input sensitivity:
• Low level: 125mV-5V
• High level: 250mV-10V
• Variable low-pass filter (50-200 Hz, 12 dB/octave)
• Subsonic filter (24 dB at 25 Hz)
• CEA-2006 compliant amplifier
• Frequency response: 25-200 Hz
• 8 gauge power and ground wiring is recommended for installation.
• KICKER® will provide an additional One-Year Extended Warranty when you purchase a qualifying KICKER® Installation Kit at the time of your KICKER® amplifier purchase.
• Dimensions: 7-3/16"W x 8-1/8"D x 2-3/8"H
• Authorized Internet Dealer
• 3-year Manufacturer's Warranty (extends to 3 years when purchased with a Kicker amp kit)

Product Features:

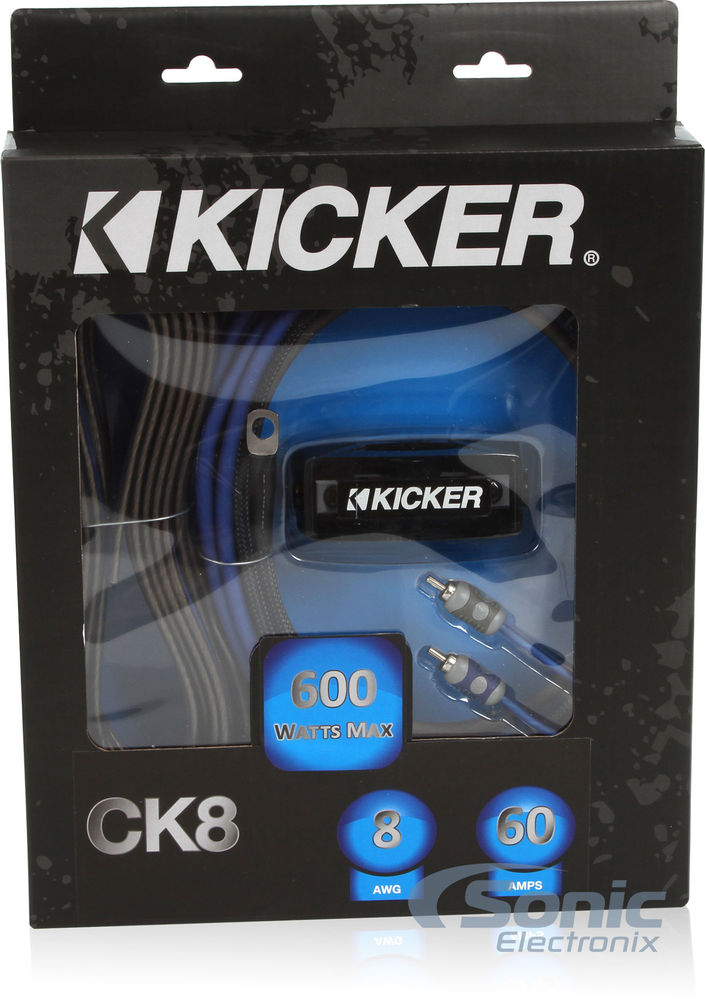

• Complete 8 Gauge OFC K-Series 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts
• Premium power and ground wire provides optimal power transfer
• Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
• Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
• RCA Interconnects are made with twisted-pair technology for noise reduction
• Terminals are gold-plated for excellent signal transfer
• MAXI Fuse holder offers ideal protection for high powered systems
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

What's in the Box:

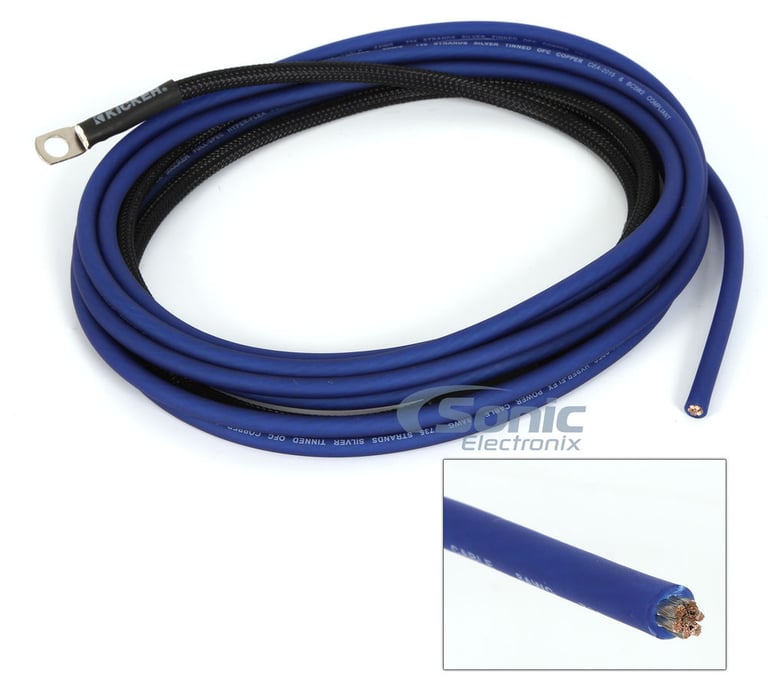

• 17ft. CK-Series 8 Gauge OFC matte blue multi-strand power wire

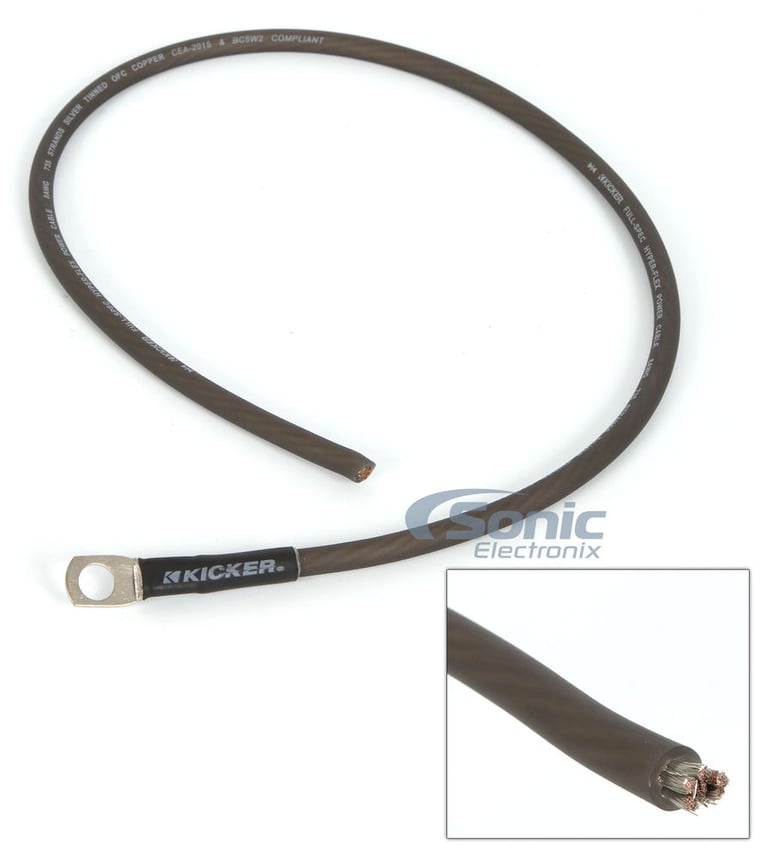

• 2ft. CK-Series 8 Gauge OFC matte smoked multi-strand ground wire

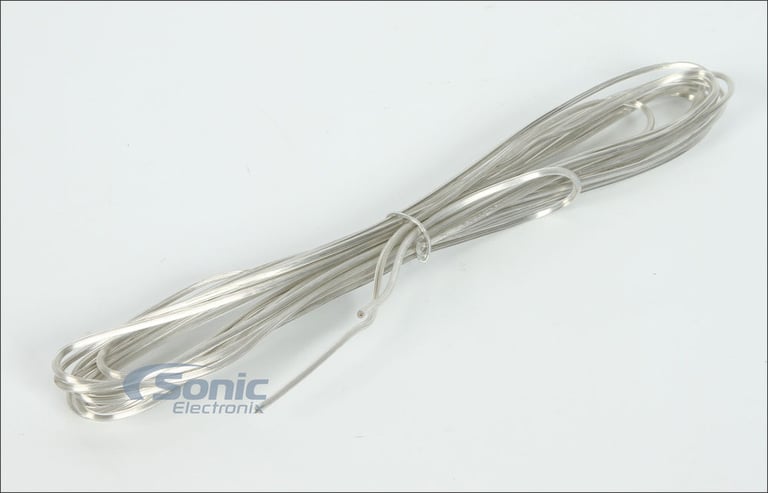

• 17ft. 16 Gauge OFC clear remote turn-on wire

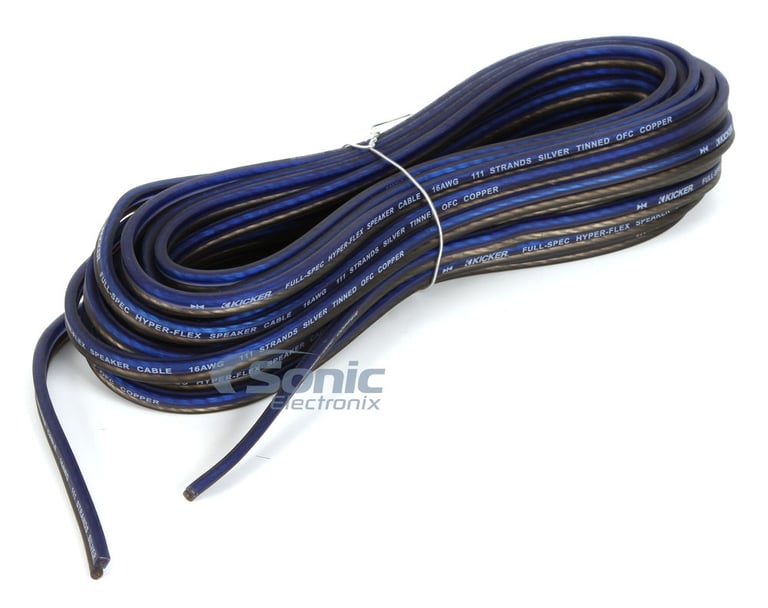

• 40ft. 16 Gauge OFC two-color speaker wire

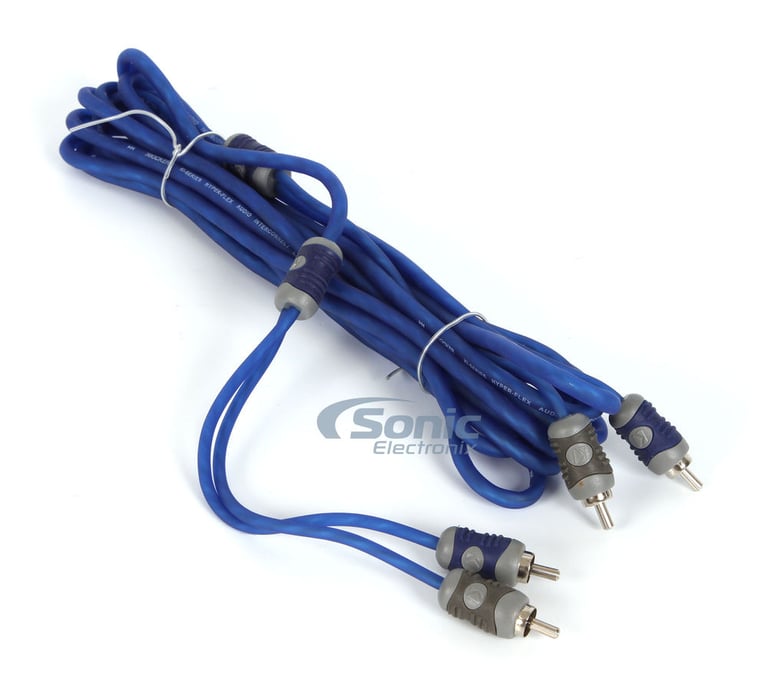

• 17ft. CK-Series noise rejecting braided three conductor RCA cable with precision machined ends

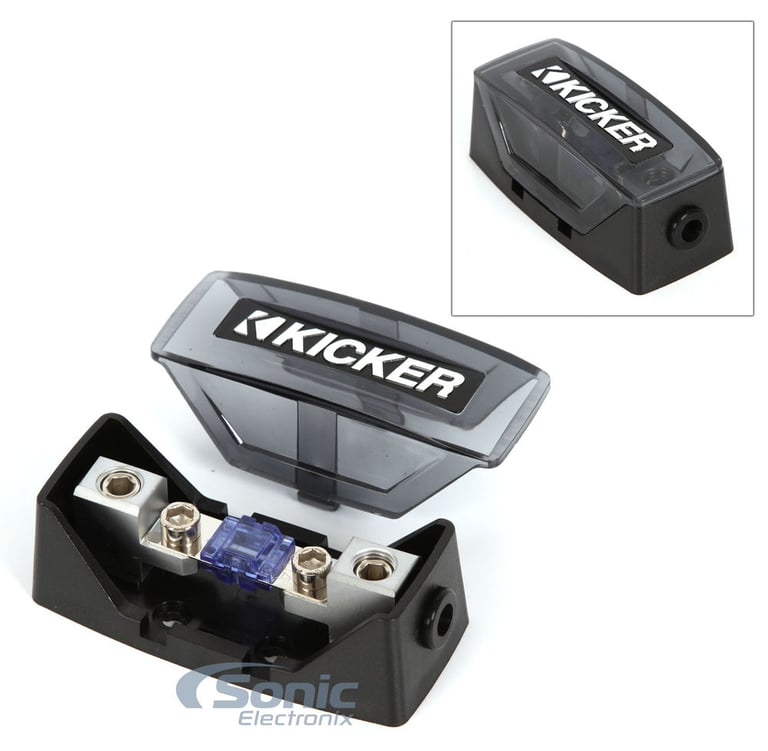

• CK-Series compact brass AFS fuse holder with 60A fuse

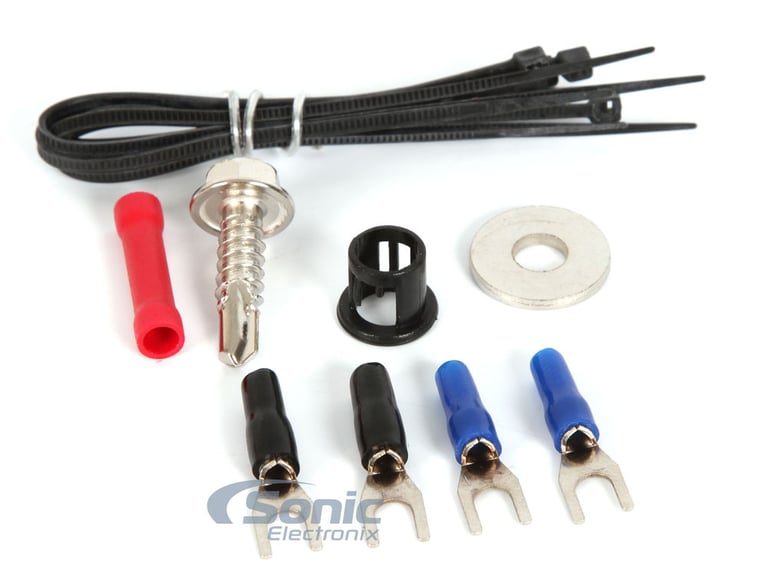

• 8 Gauge spade terminals, with red and black boots for amp connection
• Miscellaneous connectors, terminals and wire ties
