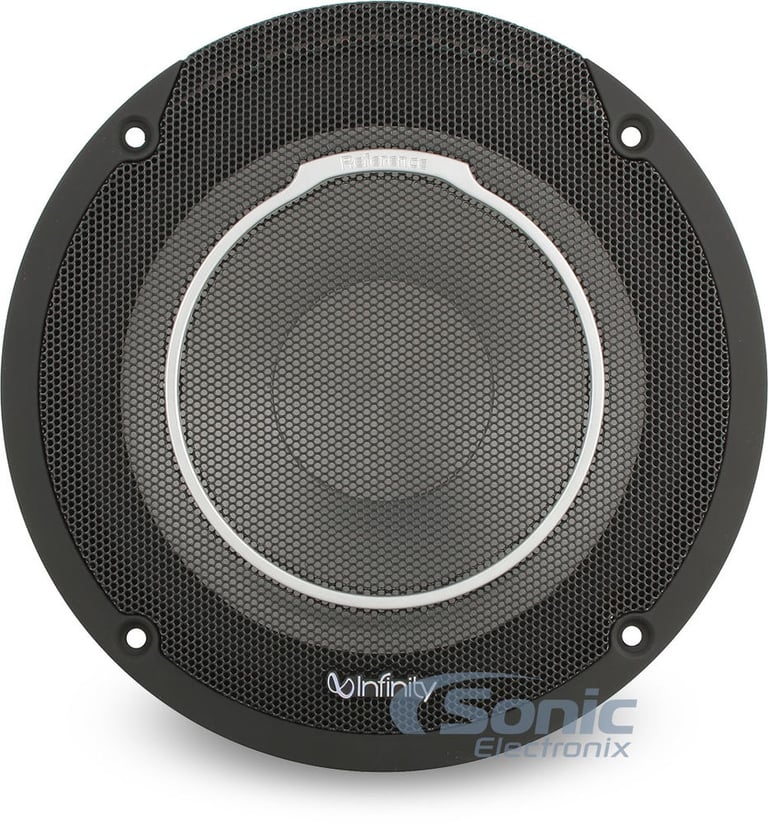

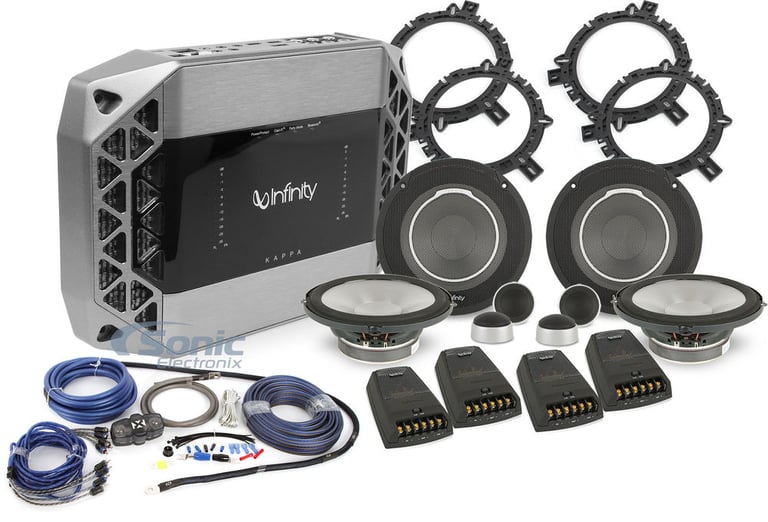

Infinity Reference 6030cs
540W 6.5" 2-Way Reference Series Component Car Audio Speaker System
Quantity: 2
General Features
- 6-1/2" 2-way Reference Series Component System
- Power Handling:
- Peak: 540 watts per set / 270 watts each side
- RMS: 180 watts per set / 90 watts each side
- Recommended Power Range: 10 - 150 watts RMS per channel
- Nominal Impedance: 2 ohm

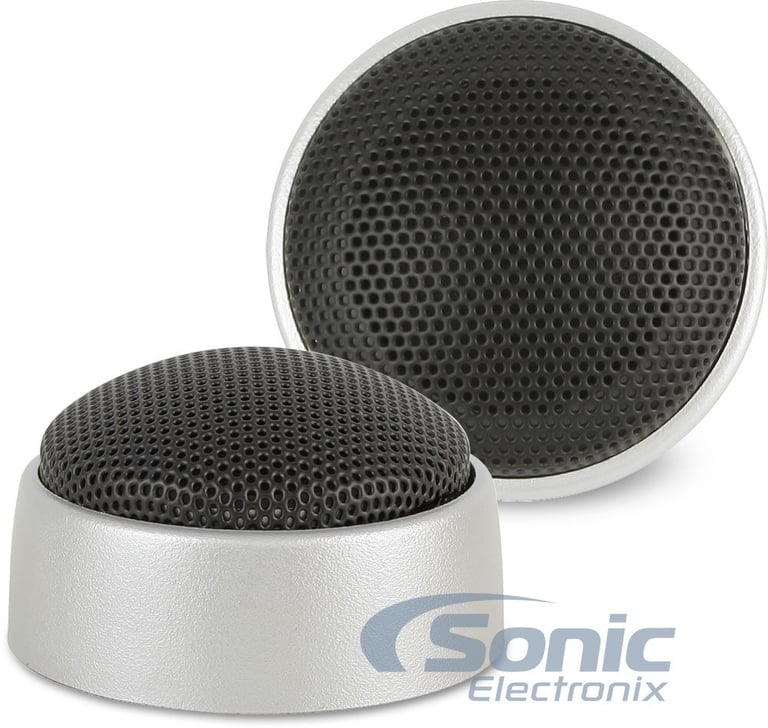

- 1" Edge-driven textile dome tweeter
- Plus One+ woofer cone design offers greater bass output and increased efficiency

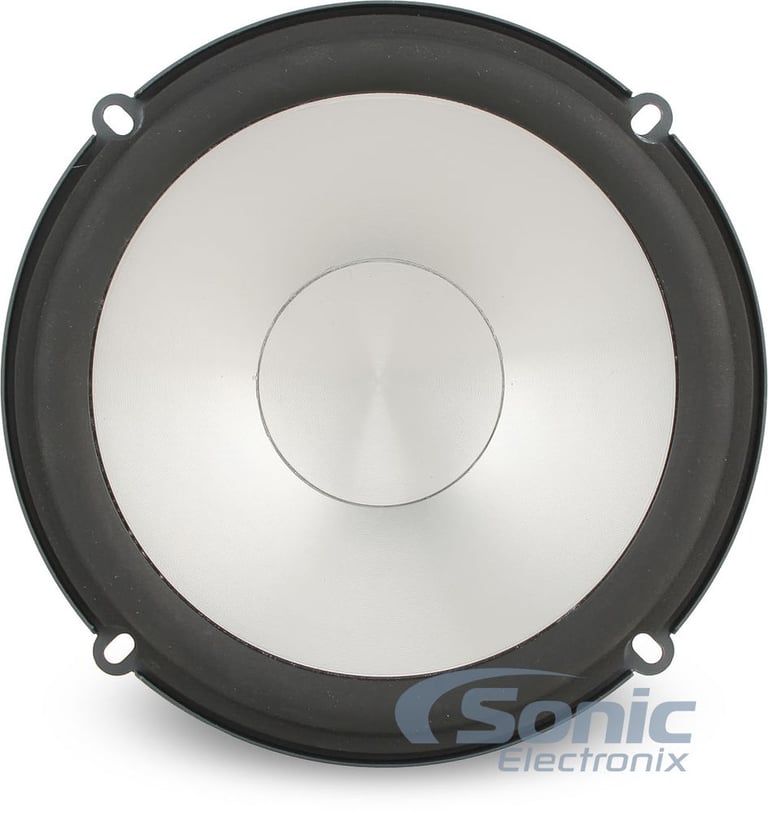

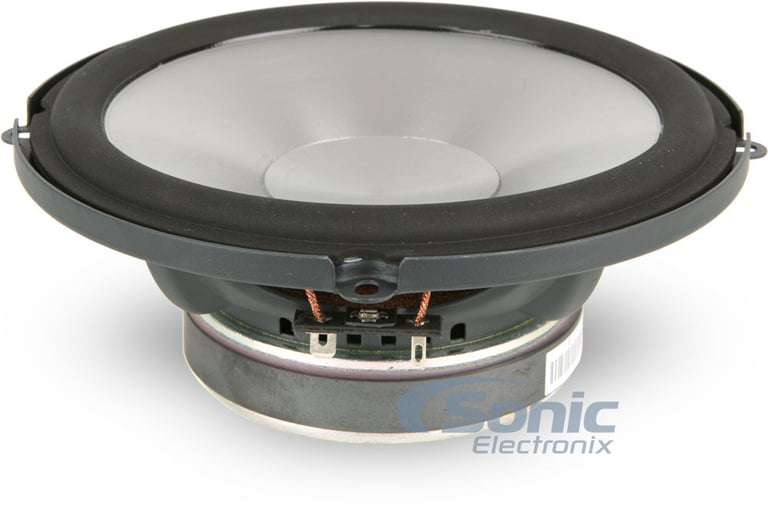

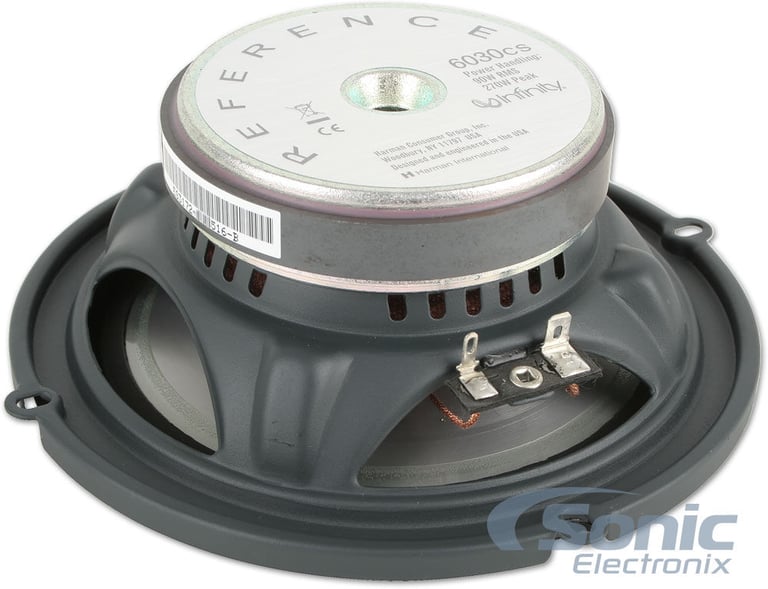

- Injection-molded polypropylene cone woofer
- Hi-Roll rubber surround
- Selectable tweeter output level: 0 / +3 dB

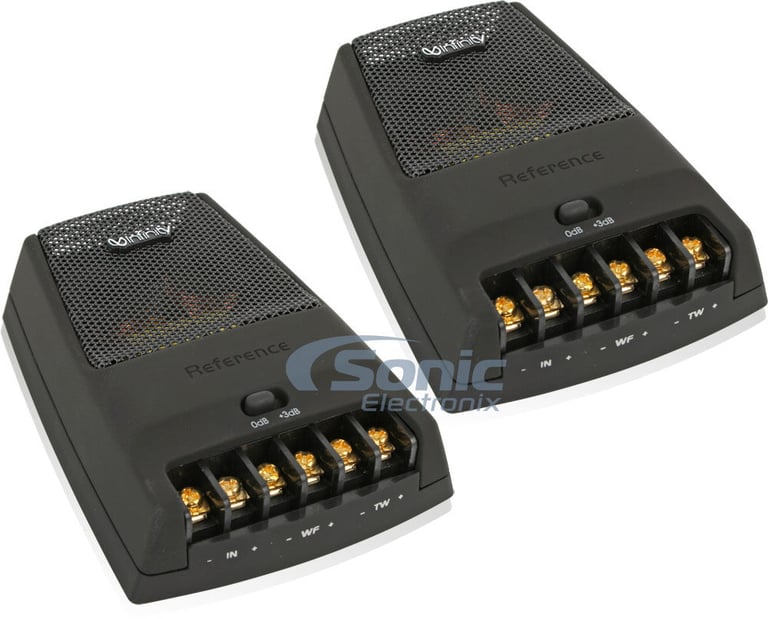

- 2-way external crossover network (18 dB/octave, 3,500 Hz crossover point)

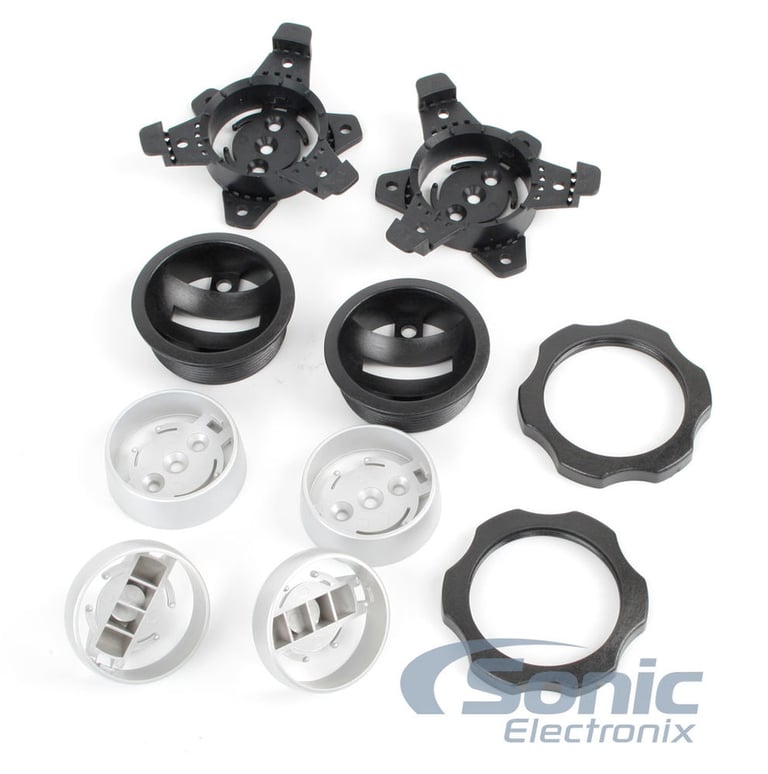

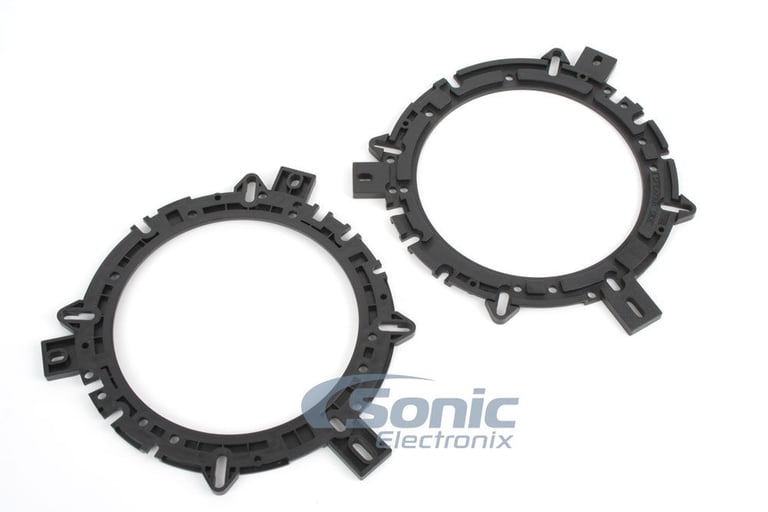

- Starfish mounting brackets for easy tweeter installation included
- True Four Ohm Technology - speaker's 2 ohm impedance combines with OEM speaker wire impedance for a 4 ohm load. Aftermarket speaker wire greater than 18 gauge will gain natural 2 ohm load.
- Top-mount Depth (woofer): 2-1/16"
- Cutout Dimensions (woofer: 5"
- Top-mount Depth (tweeter): ~7/8"
- Cutout Dimensions (tweeter): 1-13/16"
- Frequency Response: 53 - 21,000 Hz
- Sensitivity: 93dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- Also Found As: Reference X REF-6500cfx

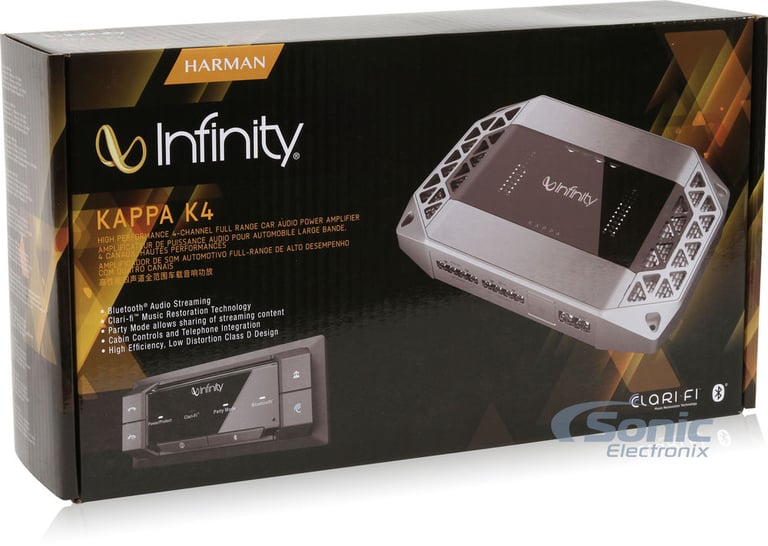

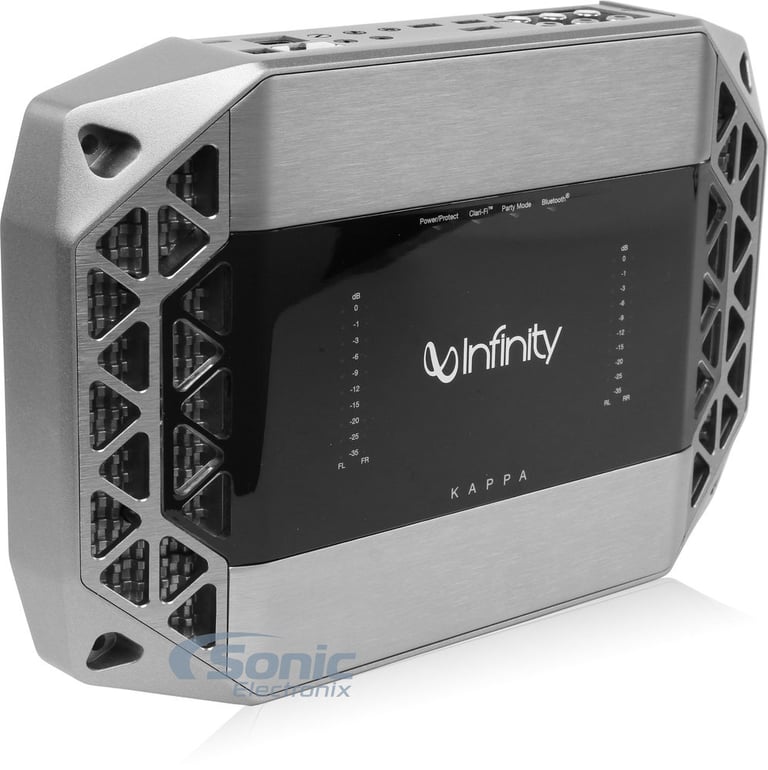

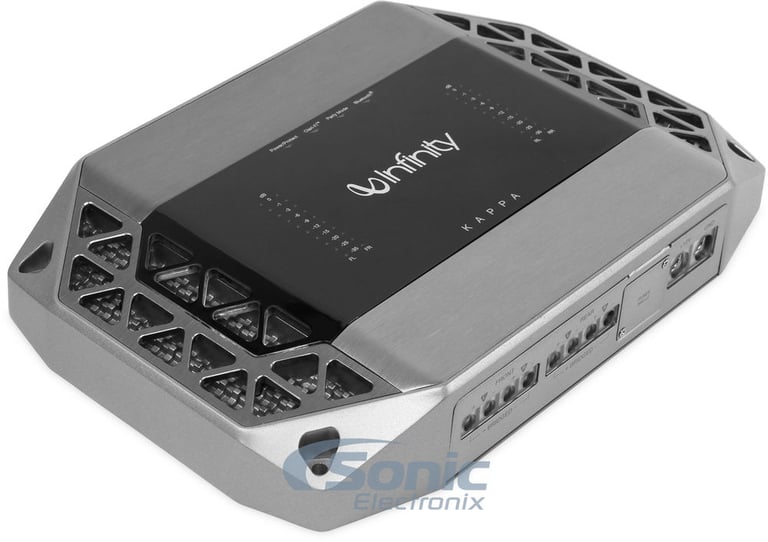

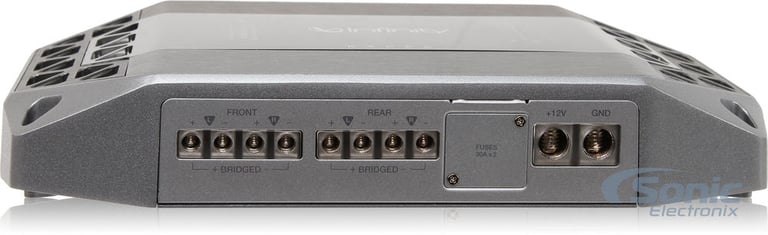

Infinity K4 Amplifier with Clari-fi Technology
1500W Peak (480W RMS) High Performance Kappa Series Class-D 4-Channel 2-Ohm Stable Amplifier with Bluetooth and Clari-Fi Technology
Quantity: 1
General Features:
- Infinity Kappa Series K4
- Class-D FullRange 2-Ohm Stable 4-Channel Amplifier
- RMS Power Rating:
- 4 ohm: 100 watts x 4 chan.
- 2 ohm: 120 watts x 4 chan.
- Bridged, 4 ohm: 240 watts x 2 chan.
- Total power output: 700 watts
- Pulse Width Modulated MOSFET power supply

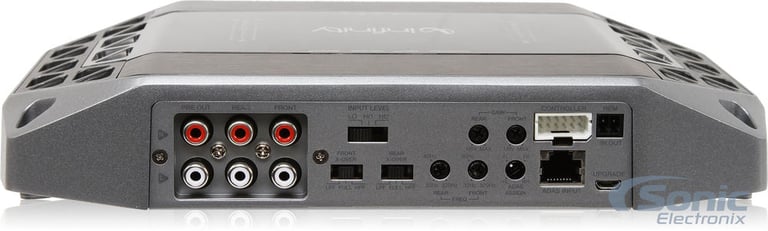

- Speaker-level (high-level) inputs
- Full range line outputs to daisy chain multiple amps
- Signal to Noise Ration: >75dB
- Sleek, brushed steel industrial design
- Bluetooth Streaming: wireless audio streaming from phones and other devices. Receive phone calls by touching a button on the control panel. Plays through the car audio system In Party Mode, multi-pairing capability that enables Bluetooth devices to stream audio individually. When Party Mode is selected from the cabin-mounted control panel, anyone in the car can drive the music.
- Clari-fi™ Technology: A predictive algorithm that analyzes music files and improves highly compressed digital music files in real time.

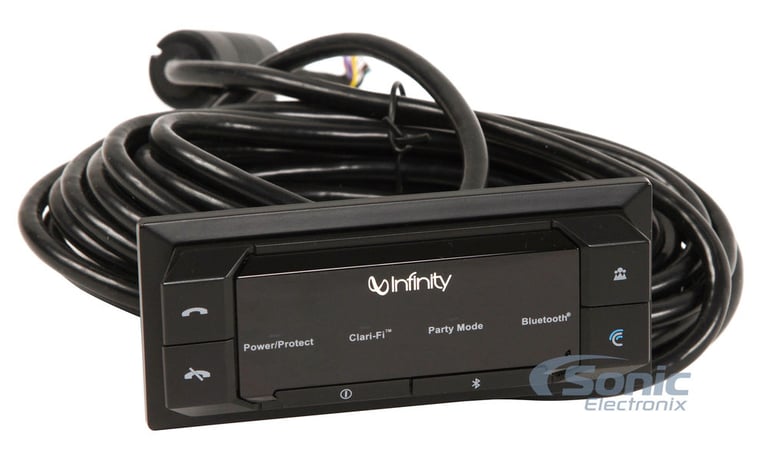

- Wired control panel: has an omni-directional microphone and puts functions at your fingertips. Activate Bluetooth pairing, accept/end phone calls, select Party Mode and cancel Clari-Fi™
- ADAS Input: The ADAS input will override the audio signal when connected to Advanced Driver Assistant System (ADAS) accessories for safety.
- Upgradable Firmware via the microUSB port
- 16.14"W x 9.02"D x 4.02"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
What's in the Box
- Amplifier
- Cabin-mounted control panel
- Spare fuses (2)
- Owner's Manual

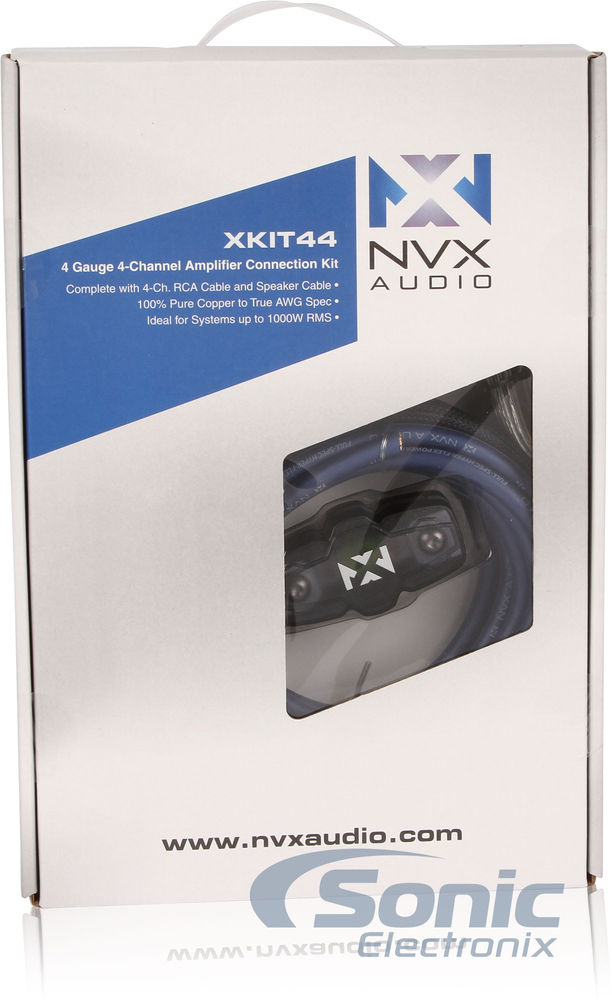

NVX XKIT44
100% Copper, 4-Chan. True Spec 4 Gauge Amp Installation Kit w/RCA Interconnect & 60 ft Speaker Cable
Quantity: 1
Amplifier Kit Features:
- Complete 4 Gauge Amplifier Installation Kit
- Designed specifically for car audio systems up to 1000 watts RMS
- Premium power and ground wire provides optimal power transfer
- Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
- Direct-connect engineering
- Fewer connections for less signal distortion
- ANL/mini ANL Fuse holder offers ideal protection for high powered systems
- Envy-Flex cable and wire
- Full spec cable is true to gauge
- Strand Count: 1862
- BC-5W2 Compliant
- Authorized Internet Dealer
- 1-year Manufacturer's warranty
Kit includes:

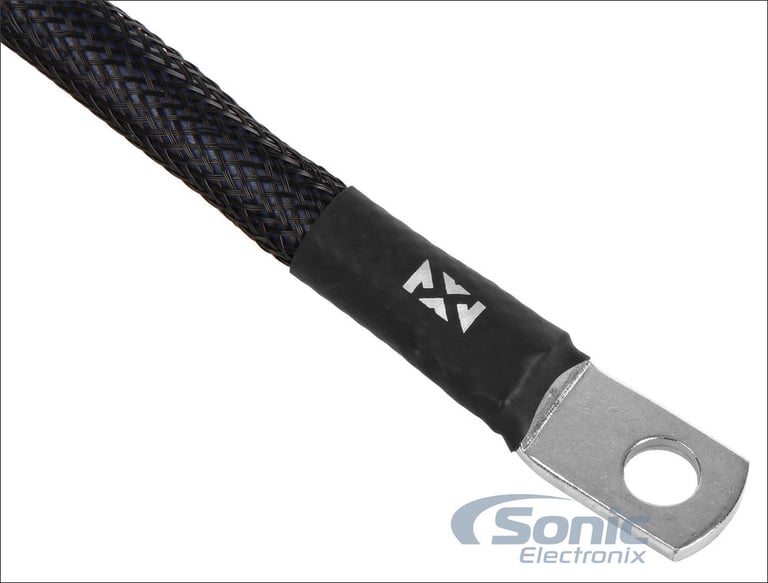

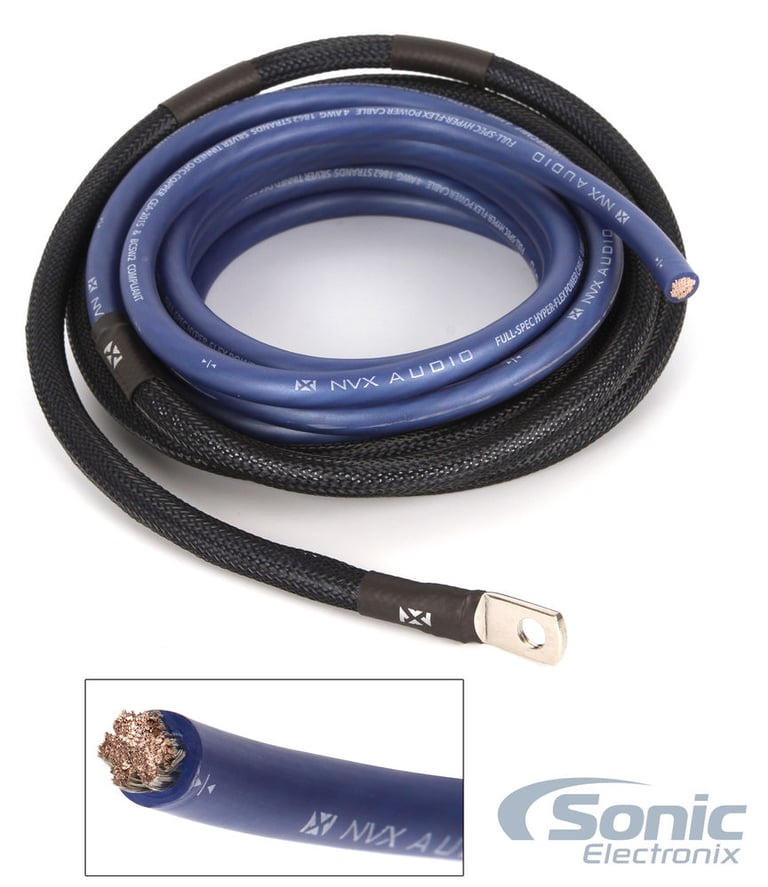

- 20 ft. (6.1 meters) Frosted Blue 4 gauge main power wire with seamless crimp ring terminal and 6 ft. expandable sleeving

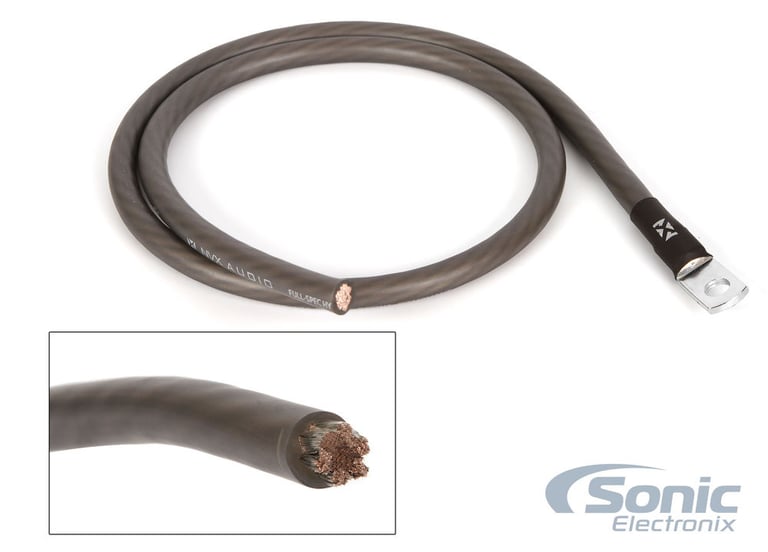

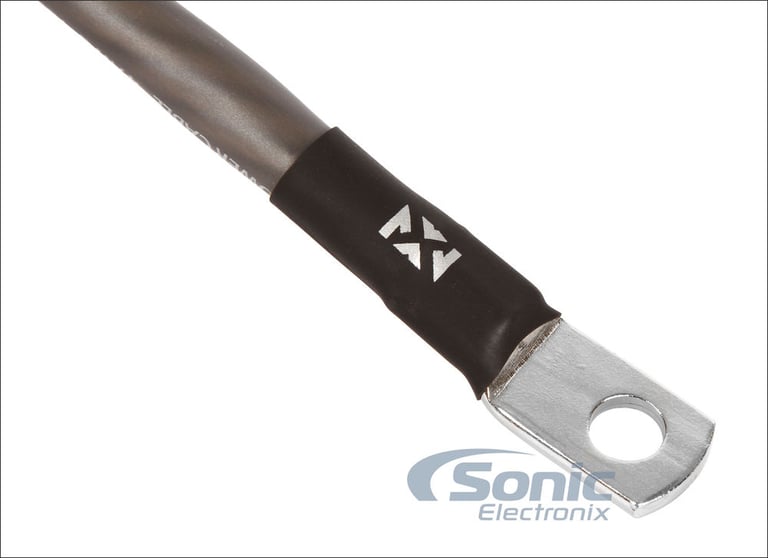

- 3 ft. (.91 meters) Frosted Gray 4 gauge main ground wire with seamless crimp ring terminal

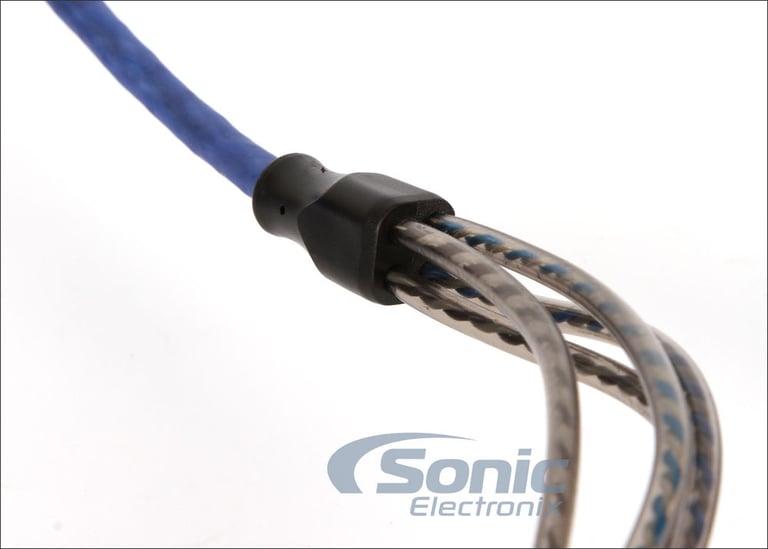

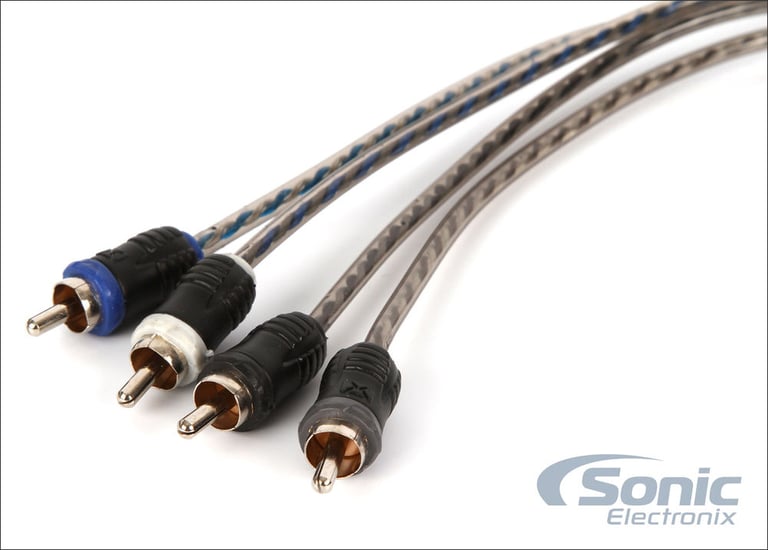

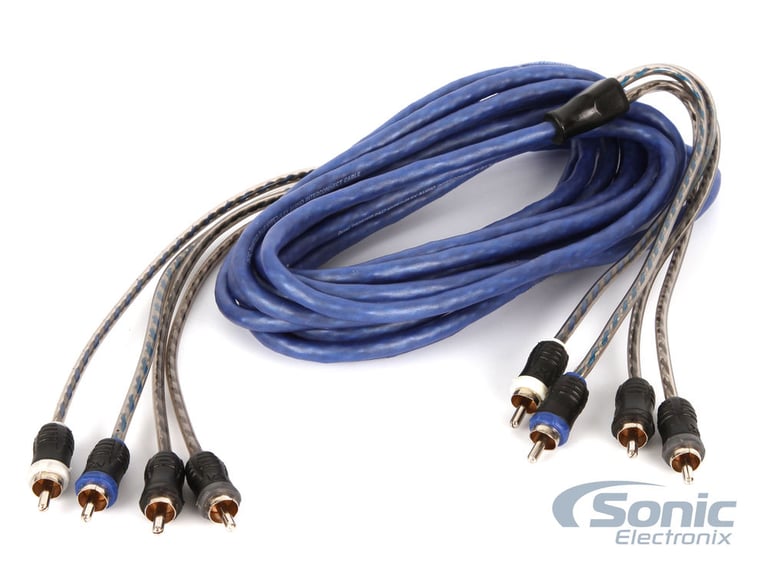

- One 16 ft. (5 meters) 4-channel twisted construction RCA interconnect Cable (NVX XIV45)

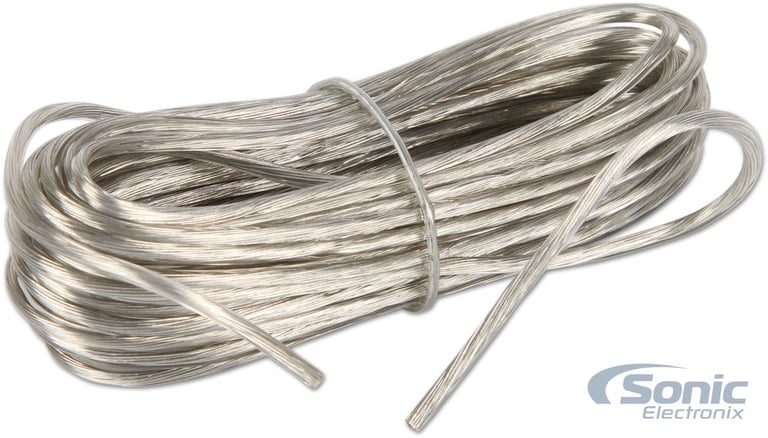

- 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

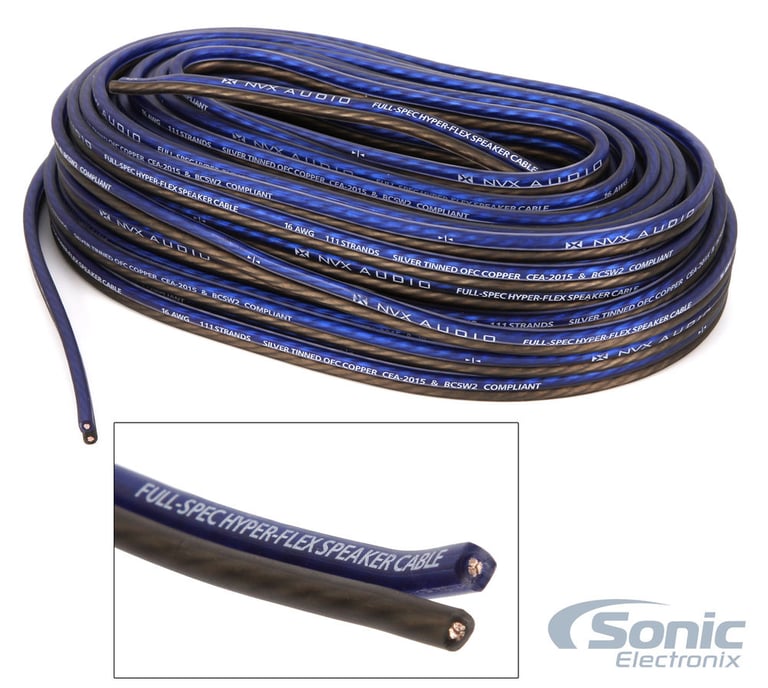

- 60 ft. (18.29 meters) Frosted Black/Blue 16 gauge speaker wire

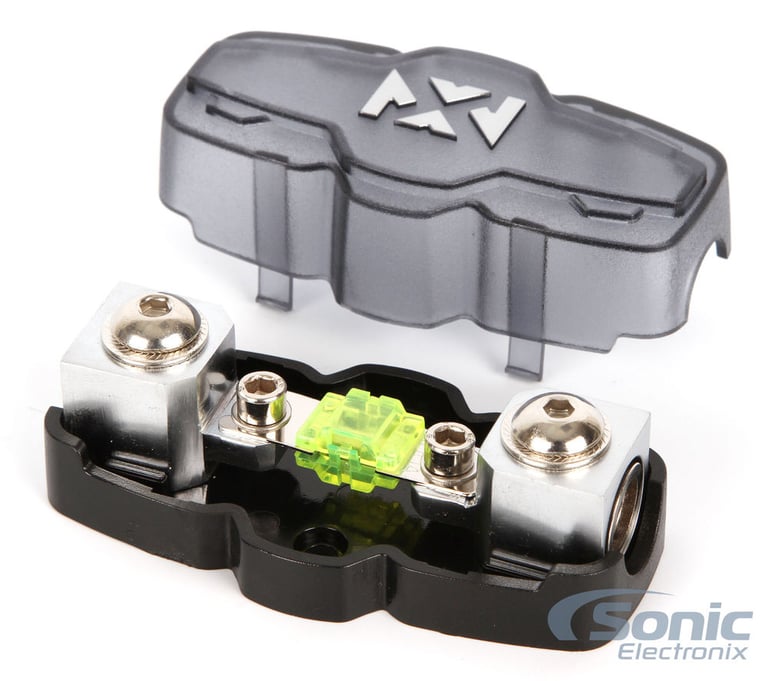

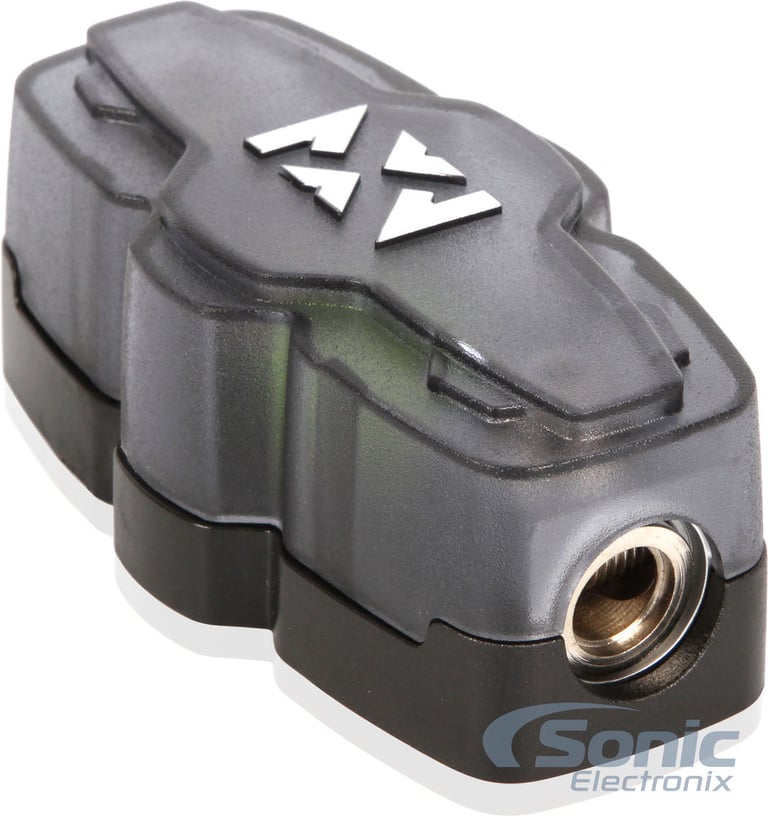

- One NVX XMANL04 ANL/Mini-ANL fuse holder with 100 amp Mini-ANL fuse

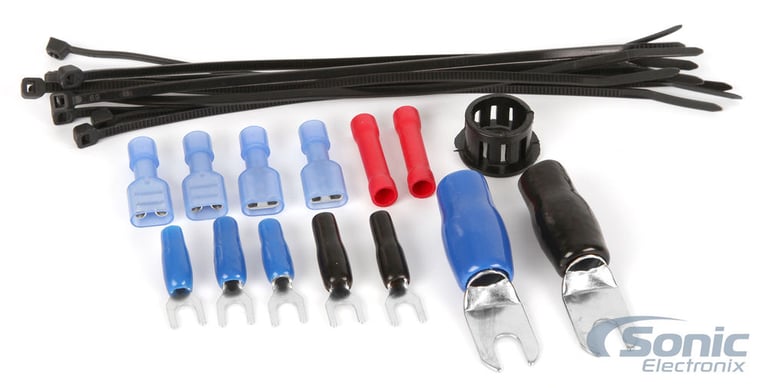

- One 1/2" black rubber firewall grommet
- Two black 4 gauge nickel-plated spade terminals
- Three blue 16 gauge spade lugs
- Four 16 gauge quick disconnects
- Two black 16 gauge spade terminal
- Two 18 gauge red butt connector
- Ten 6" black zip ties
