Bazooka MBT1014

The Bass Tube Difference:

Introducing the Bazooka Marine Bass Tubes. They bring the superior performance of Bazooka products to the water and you will be able to hear the incredible difference. Each of these Bazooka Marine Bass Tube subwoofers are equipped with critical features that greatly enhance their performance and reliability in the harsh marine environment. In comparison to the other marine subwoofer enclosures, these Bass Tubes last longer and produce more accurate bass. The subwoofers and enclosures are waterprrof and can be mounted just about anywhere on the boat. In addition to all of this, they feature plated speaker terminals, stainless steel hardware, UV resistant enclosure, and a nylon composite mounting system for the tubes. Your boat will never sound the same.

Acoustic Dampening Fiber

Quick Links:

• Product Overview and Description
• Marine BassTube Details
• Marine BassTube Features
• How Do I Install a Bazooka Bass Tube?
• What's in the Box?
• Bass Tube Accessories

Bazooka MBT1014 Features:

• Marine Certified 10" Passive Non-Amplified Bass Tube
• Power Handling:
• RMS: 200 watts
• Patented Bass Tubes enclosure design
• Polypropylene cone material
• Water resistant enclosure
• Weather resistant Velcro reinforced mounting straps
• Salt, fog, and UV certified for 5 years


  Bazooka's Patented Tube Enclosure

• White paint finish

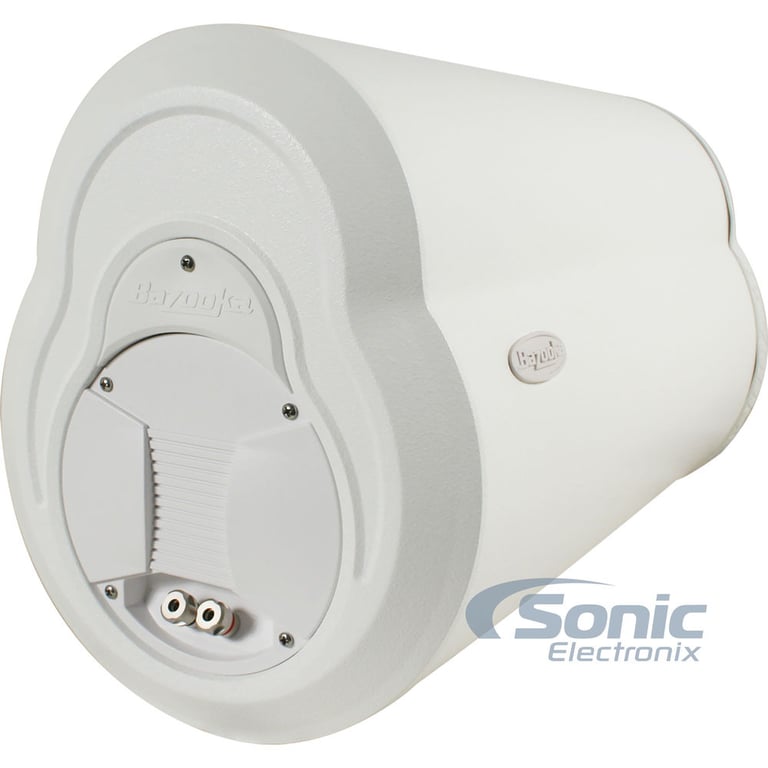

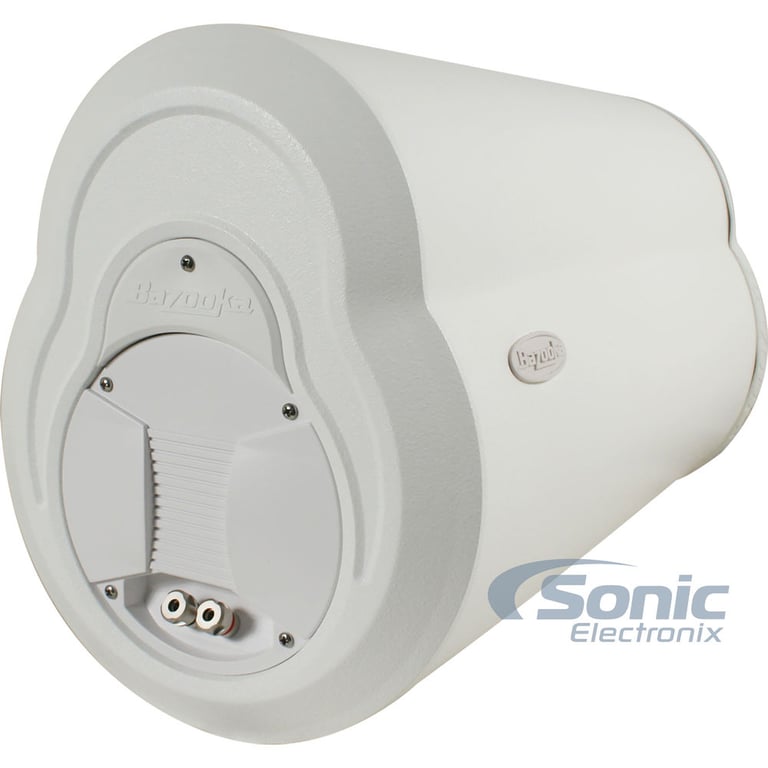

• Nickel-Plated thumb screw terminals
• Impedance: 4 ohm
• Power Handling: 200 watts
• Sensitivity: 104 dB
• Frequency Response: 35-250 Hz
• Magnet Size: 36 oz.
• Dimensions: 20.875"L x 10.3"W x 12.2"H
• Authorized Internet Dealer
• 30 Day Sonic Electronix warranty

Bazooka Bass Tube Unique Features:

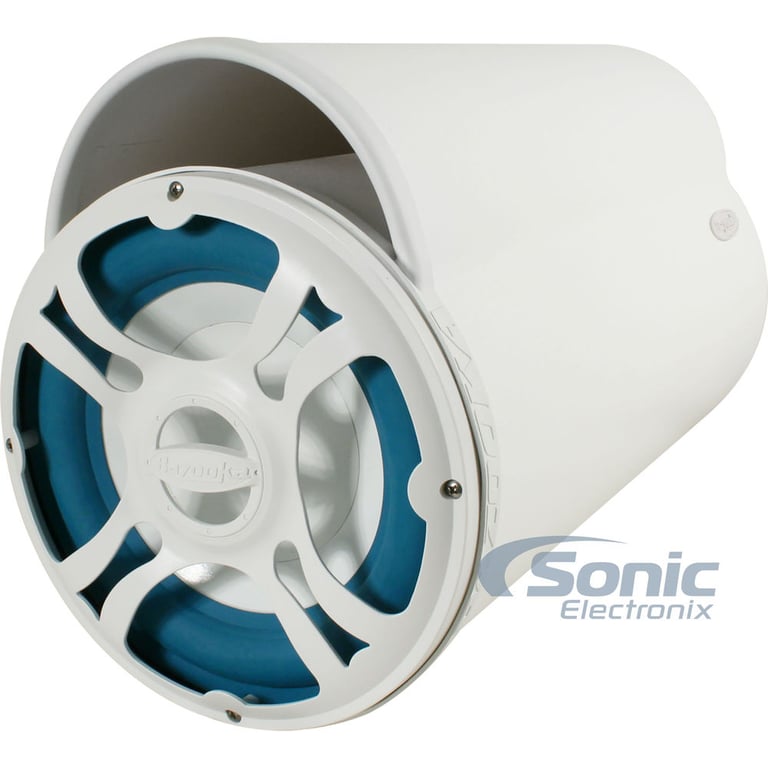

Woofer
Bazooka's highly efficient, customized woofers are specially designed and reinforced for use in the Bazooka Bass Tube enclosure, producing a pure piston action and generating the maximum bass output possible.

Edge Roll
All Bazooka Woofers used in Bass Tube enclosures feature large, high excursion, lightweight foam edge rolls to maximize their efficiency and overall bass output.

Tube Enclosure
A tube is a natural pressure vessel, and Bass is about pressure. The patented Bass Tube enclosure creates a natural, uniform, hydraulic transfer of the Bass energy produced by the woofer.

Port
The port opening between the Tube Enclosure and the Port Tube allows for efficient transfer of bass. Bass Tubes enclosures utilize "Bass Reflex" technology to take advantage of both the forward and backward of the woofer, wasting no bass energy.

Port Tube
The bass energy created by both the forward and backward motion of the woofer are time aligned so that 100% of the woofer's output is concentrated into one output point.

Acoustic Damping Fiber
The acoustic damping material helps lower the resonance of the enclosure and simulates an increased air space.

Integrated Amplifier
The integrated amplifiers are performance matched to the specific woofers used in Bass Tube enclosures to ensure that every watt of power is efficiently turned into bass performance. Having the amplifier integrated into the enclosure simplifies the installation and eliminates power loss.

Corner Loading
Bass Tube enclosures are specifically designed to take advantage of the natural amplification characteristics that occur when a subwoofer is placed into the corner of a vehicle. The corner acts like a megaphone, substantially increasing bass performance.

back to top of description

How Do I Install a Bazooka Bass Tube?

Installation is Simple! The bass tube comes with straps to keep the sub securely mounted, while still making removal quick and easy if you need even more cargo room. Optional Chrome-Plated UMS Brackets give a flashier look, as well as a more secure, permanent mounting when removal isn't a problem.

back to top of description

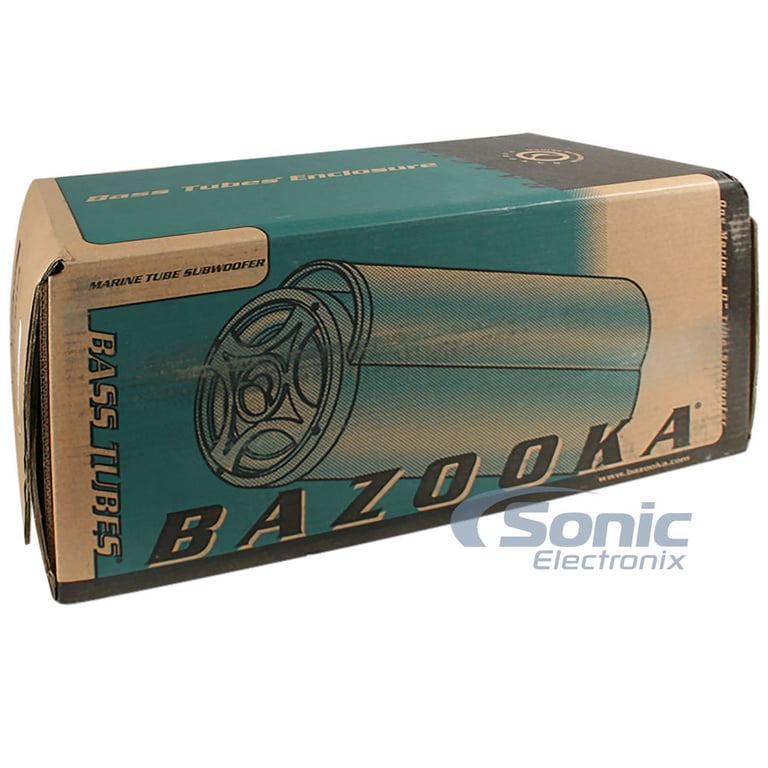

Package Contents:

1. Bazooka MBT1014 White amplified marine tube-style subwoofer with attached grille
2. 2 White mounting straps
3. 2 White mounting plates
4. Four 1" stainless steel self-tapping screws
5. Power/Input wiring harness with 14-pin Molex plug
6. 7.5-amp blade fuse with fuse holder
7. 1 Crimp-on power ring
8. 3 Butt connectors
9. 1 Self-tapping screw
10. Installation manual
11. Bazooka product guide

Available Accessories:

1. Bazooka RBCM-100
2. Bazooka UMS10A
3. Bazooka FAST-9999
4. Bazooka FAST-BTAH
