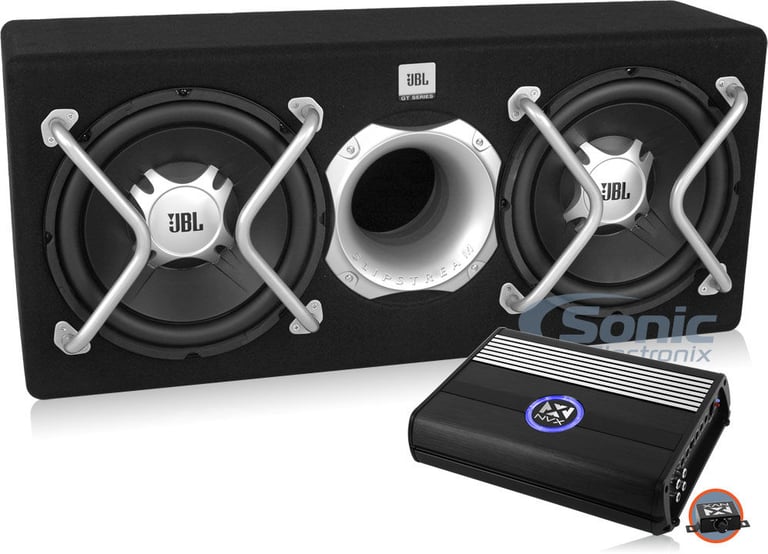

750W RMS JBL and NVX 12" Ported Bass Package

1600 Watt Dual 12" GT Series, Bass-Reflex (Ported) Loaded Subwoofer Box/Enclosure + True 750W RMS BD-Series Monoblock Class D Amplifier

JBL
Shop all JBL
EXCLUSIVE
highlight-star-icon

• JBL Dual Loaded Tuned Slipstream Ported Enclosure
• 12" Dual GT Series Subwoofer
• 550 Watts RMS
• 1600 Peak
• 2 Ohm Final Impedance
• Durable Black Carpet
• Silver Grill
• True RMS Power: 450W x 1 @ 4 ohm, 750W x 1 @ 2 ohm
• CEA-2006 Compliant

Learn more about the gt52402br_bda7501

We apologize

This item has been discontinued


Loading...
72-9001 main

Metra 72-9001

Install New Speakers in select 1998-2023 vehicles from Volkswagen, Porsche, Mercedes-Benz

4
40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

DKVW-52 main

Crux DKVW-52 Dash Kit

Install a new Double-DIN or Single-DIN car stereo in select 2002-2014 vehicles from Volkswagen (Matte Black)

2
-35.71%

$164.70

List price $256.20

LPHVW01 main

PAC LPHVW01

Vehicle Specific Audio Integration T-Harness for select 2001-2017 vehicles from Volkswagen, BMW, MINI

-53.49%

$60.00

List price $129.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

R1675-S main

Rockford Fosgate Prime R1675-S

160W Peak (80W RMS) 6.75” Prime Series 2 Way Component 4-ohm Speakers

16
DMX125BT main

Kenwood DMX125BT

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
-26.30%

$199.00

List price $270.00

PRO-GM6.4 main

DS18 PRO-GM6.4 (Sold Individually)

480W Peak (140W RMS) 6.5" PRO-GM Series Pro Audio Mid-Range 4-ohm Loudspeaker

2

Description


JBL brand icon

Authorized dealer

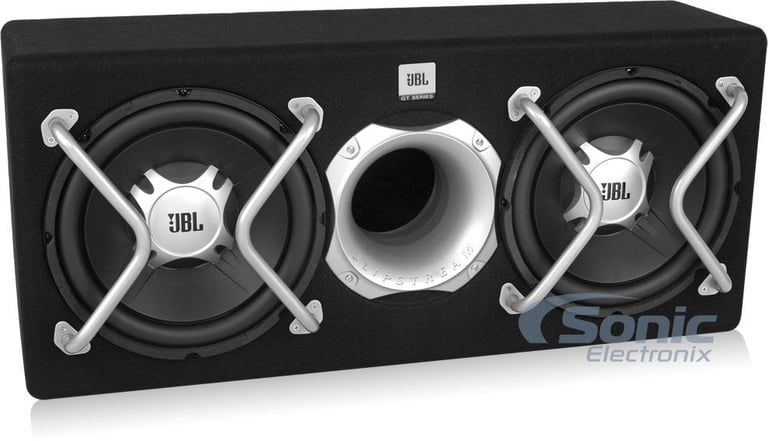

JBL GT5-2402BR - Pair of GT5-12 Loaded in Ported Enclosure

1600 Watt Dual 12" GT Series, Bass-Reflex (Ported) Loaded Subwoofer Box/Enclosure
Quantity: 1

Subwoofer Features:
  • Factory Loaded, Dual 12" GT Series Subwoofer Enclosure
  • Power Handling:
    • Peak: 1600 watts (800 watts each)
    • RMS: 550 watts (225 watts each)
  • Recommended power range: 200 - 600 watts RMS
  • Final Impedance: 2 ohm
  • Polypropylene cone woofer
  • Rubber surround
  • Rubber coated tinsel leads
  • Vented motor structure
  • Dual-stacked, oversized magnets
  • Sensitivity: 95 dB
  • Matching Amplifiers:
    • JBL GX-A3001 - 300 Watts, GTX Series Monoblock Amplifier
    • JBL MS-A5001 - >500 Watts, MS Series Monoblock Amplifier
      ✔ Preferred Match
    • JBL GTX 500 - 500 Watts, GX Series Monoblock Amplifier
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty (Subwoofer only)

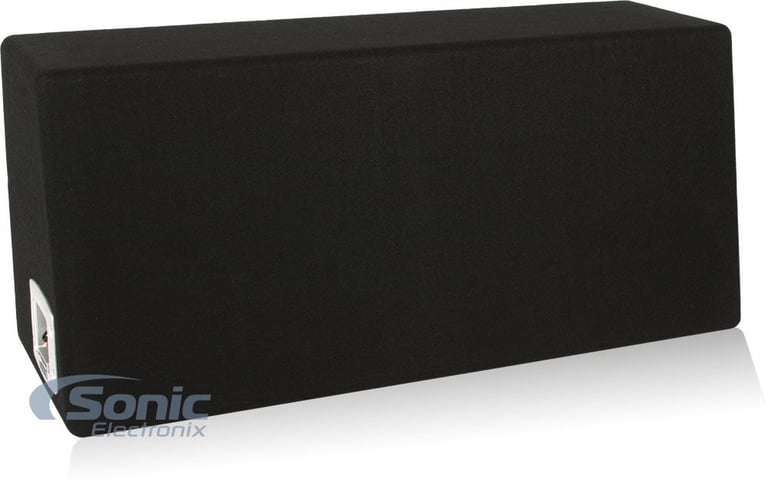

Enclosure Specifications:
  • JBL Tuned Slipstream Ported Enclosure
  • Designed specifically for the JBL GT5-12 subwoofer
  • Tuned to an optimal 40-200 frequency response
  • Recommended power handling: 200-550 watts RMS
  • Wired internally for a final impedance of 2 ohm
  • Covered in black carpet for looks and durability
  • Sturdy grill protects the subwoofer from unnecessary damage

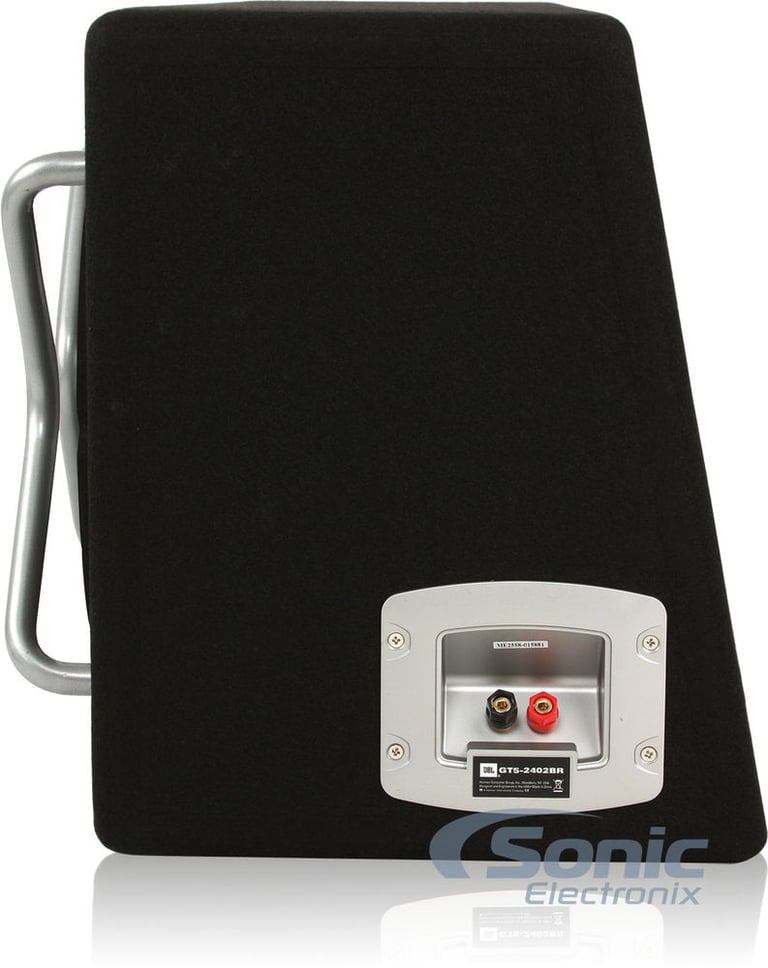

  • Gold plated terminals or excellent connectivity
  • Banana clip ready
  • Made from durable 3/4" MDF (Medium Density Fiberboard)
  • Dimensions: 11-5/16"D1 x 14-3/8"D2 x 35-3/16"W x 15-7/16"H

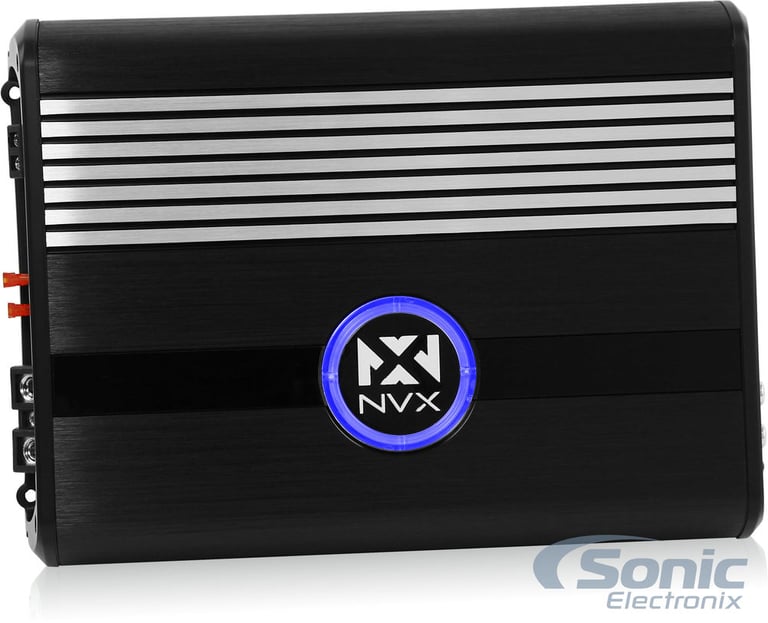

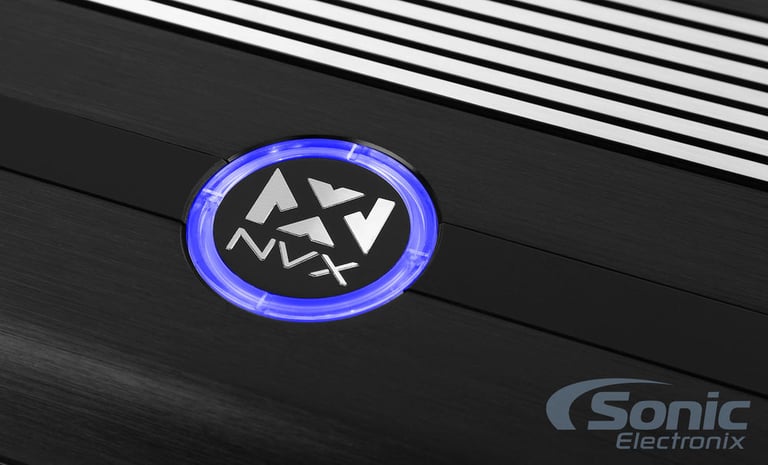

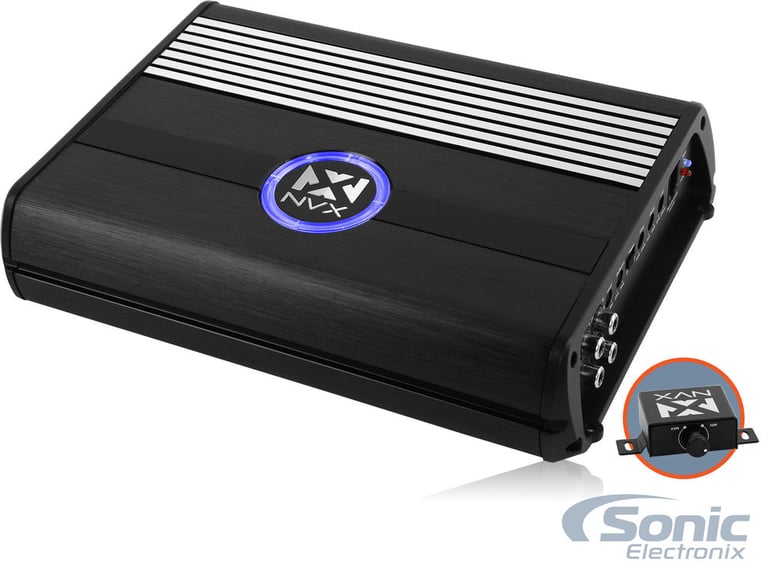

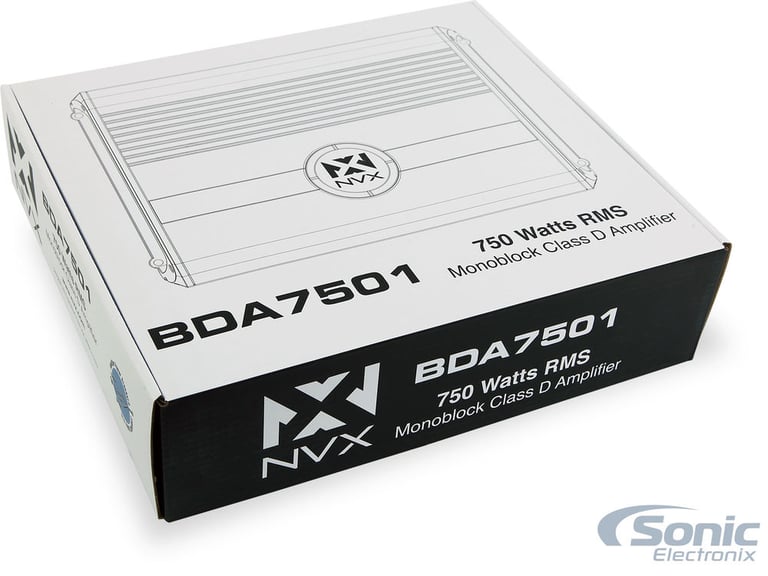

NVX BDA7501 BD Series Amp

True 750W RMS Monoblock Class D Amplifier Specifically made for BD Series
Quantity: 1

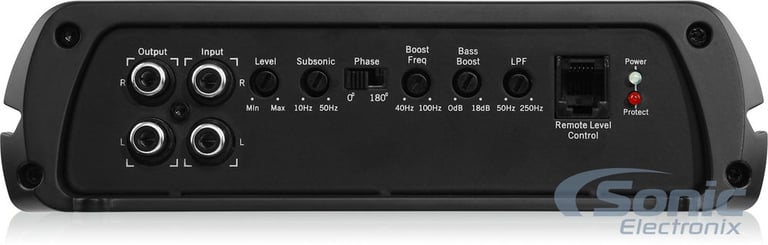

General Features:

  • BD-Series Monoblock Class D Car Amplifier
  • True RMS Power Rating:
    • 4 ohm: 450 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 451 watts x 1 chan.
    • 2 ohm: 782 watts x 1 chan.

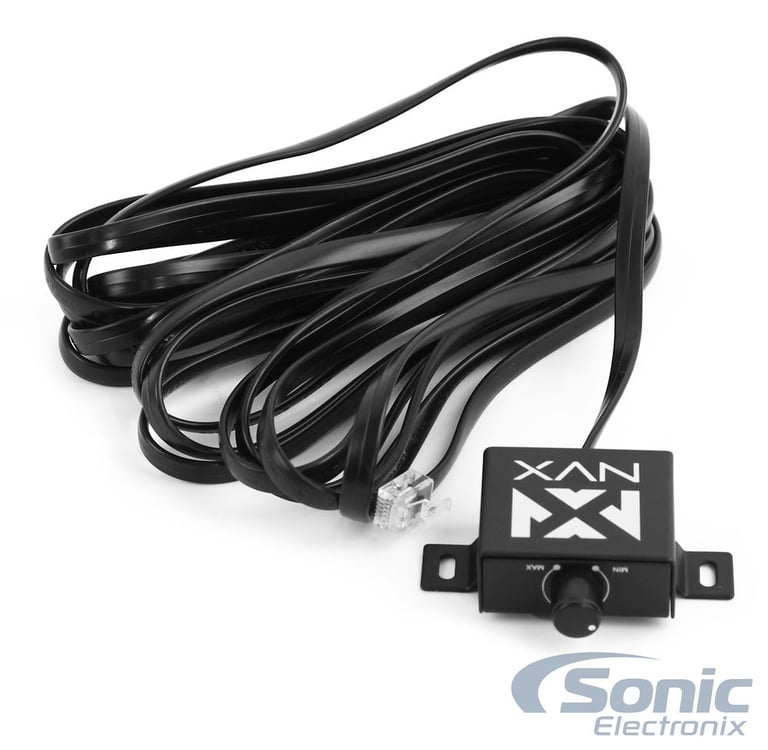

  • Wired remote bass level control included
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Mono channel operation
  • Variable low-pass filter (50-250 Hz, 24 dB/octave)
  • Subsonic filter (24 dB at 15 Hz)
  • Frequency Response: 20-500 Hz
  • Signal to Noise Ratio: 90dB
  • Input Sensitivity: .25-6.0 V

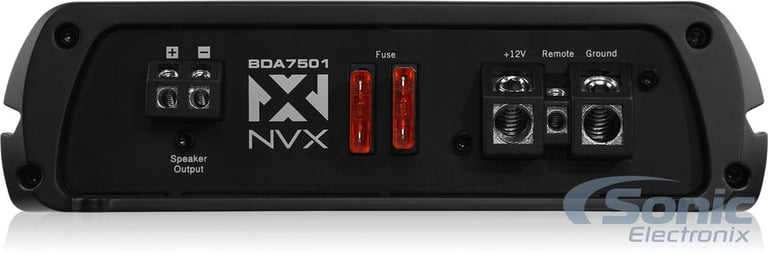

  • High quality platinum finish connections provide solid electrical connection and resist corrosion
  • Integrated overload, short circuit, thermal and reverse polarity circuit protection
  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 7"W x 9.75"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

R2S-1X10 small

Rockford Fosgate Prime R2S-1X10

• Sealed truck enclosure with 1 10" Prime R2 Series Subwoofer
• 200 watts RMS (400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 19" L x 13.5" H x 5.25" W x 3.25" W2

(17)

$239.99

List price $239.99

BE-GM-SLVDC-G4 small

NVX Loaded BOOST Box - 2019-2024 Chevrolet Silverado/GMC Sierra - BE-GM-SLVDC-G4

• Sealed BOOST truck enclosure with 2 12" S Series Subwoofer
• Fits select 2019-2024 Sierra and Silverado 1500 / 3500 HD / 2500 HD / 1500 LD
• 400 watts each RMS (800 watts each Peak)
• Final Impedance: 1-ohm

(1)

$499.99

List price $719.99

44TL7S102 small

Kicker L7S102 (44TL7S102)

• Ported truck enclosure with 1 10" Solo-Baric L7S Series Subwoofer
• 600 watts RMS (1200 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 21-1/2" L x 15" H x 10" W x 6-1/2" W2

(5)

$429.99

List price $459.99

49L7TDF122 small

Kicker L7TDF122 (49L7TDF122)

• Sealed truck enclosure with 1 12" Solo-Baric L7 Series Subwoofer
• 300-600 watts RMS Power Rating
• Final Impedance: 2-ohm
• Dimensions: 23 7/8" L x 6 1/2" H x 15" W

(5)

$399.99

List price $429.99

SB-GM-SLVCC3/10TW3/BK2 small

JL Audio Stealthbox® SB-GM-SLVCC3/10TW3/BK2

• Sealed truck enclosure with 2 10" TW3 Shallow Mount Series Subwoofer
• Designed for select 2007-2013 vehicles from Chevrolet, GMC
• 800 watts per pair / 400 watts each RMS
• Final Impedance: 4-ohm
• Includes two JL Audio 10TW3-D8 subwoofers
• Installs easily under the truck's rear seat location

(4)

$1999.99

List price $1999.99

TL7T122 small

Kicker TL7T122 (46TL7T122)

• Sealed truck enclosure with 1 12" Solo-Baric L7T Series Subwoofer
• 600 watts RMS power handling
• Final Impedance: 2-ohm
• Dimensions: 21.5" L x 13.75" H x 7.75" W x 4.375" W2

(9)

$295.96

List price $399.99

LVE-TOY-TUNDCG2-D12S small

NVX Loaded BOOST Box - 2007-2017 Toyota Tundra - LVE-TOY-TUNDCG2-D12S

• Custom-Fit BOOST Sealed truck enclosure with 2 12" S Series Subwoofers
• Compatible with select 2007-2017 Tundra Double Cab
• 400 watts RMS (800 watts Peak)
• Final Impedance: 1-ohm

(1)

$389.99

List price $467.99

BXSQ112 small

NVX BXSQ112

• Sealed enclosure with 1 12" SQ Series Subwoofer
• 600 watts RMS (1200 watts Peak)
• Final Impedance: 2-ohm

$349.99

List price $479.99

F250X00C20-TN small

MTX Audio Thunderform F250X00C20-TN

• Sealed enclosure with 2 10" MTX ThunderForm Series Subwoofer
• 200 watts RMS
• Final Impedance: 4-ohm
• Dimensions: 55-1/8" L x 6-24/25" H x 10-3/4" W

$649.95

List price $689.99

TL7T102 small

Kicker TL7T102 (46TL7T102)

• Sealed truck enclosure with 1 10" Solo-Baric L7T Series Subwoofer
• 500 watts RMS power handling
• Final Impedance: 2-ohm
• Dimensions: 20-1/4" L x 12" H x 4-3/8" W x 7-1/4" W2

(2)

$255.96

List price $349.99

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
450 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
12"
Total RMS Power Handling
550 watts
Total Peak Power Handling
1600 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Voice Coil(s)
N/A
Impedance (Per Voice Coil)
2 ohm
Sensitivity
95 dB
Frequency Response
40 - 200 Hz
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
2
Box Style/Shape
Hatchback Style, Angled Back
Height
15-7/16"
Width
35-3/16"
Depth
11-5/16"
Second Width
14-3/8"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Final Wired Impedance
2-ohm
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

GT5-2402BR_BDA7501

Weight:

76.00lbs

Internal SKU:

gt52402br_bda7501

Internal Product ID:

116603

Customer Ratings & Reviews


750W RMS JBL and NVX 12

5 star
88%
4 star
8%
3 star
3%
2 star
2%
1 star
0%



Durability
4.8
Value
4.9
Features
4.9
Design
4.9
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Works as expected

The following review is for BDA7501, which is a part of the bundle you are viewing.

The amp is working as expected nice power and it offers the ability to adjust gain and cut off which is helpful when trying to tune the system.
Build quality is poor this due to my amp arriving with both adjustment knobs pushed in a bent.
This did not happen in shipping (as the amp was well packed) so it was in the build and as such this should not have passed QC at the factory.

Sonic requested photos which I sent but did not peruse the issue as the damage did not affect the amps performance and circumstances (I was out of the country and the car was at the installers) prevented me from returning the amp for a replacement.

It was not Sonics fault as the amp was sealed but they are the seller so the responsibility lays with them.

By Steve on August 17, 2015

99 found this helpful


This amp is the best

The following review is for BDA7501, which is a part of the bundle you are viewing.

I did lots of research before i spent my hard earned money , and this amp is more than expected it has lots of power running it @ 2 ohm and it delivers every watt that it says and then some . I would say if you need some major power look no further because this amp is awesome .

By George on April 19, 2018 Checkmark Icon Verified purchase

83 found this helpful


Great value

The following review is for BDA7501, which is a part of the bundle you are viewing.

I would recommend this amp to anybody.
Only downfall is the set screw for the remote turn on was stripped quite easily. Other then that its awesome.

By DAM on January 15, 2020

76 found this helpful


Lots of power

The following review is for BDA7501, which is a part of the bundle you are viewing.

This thing has plenty of power when testing the rms power in 2ohm it goes beyond 750rms it reaches a solid 785rms with good 4 gauge power cable that is also nvx. I definitely recommend this amplifier.

By Anonymous on August 17, 2019 Checkmark Icon Verified purchase

73 found this helpful


Awesome

The following review is for BDA7501, which is a part of the bundle you are viewing.

Packaging was great and the actual amp has more power than expected ????????

By Anonymous on December 20, 2018 Checkmark Icon Verified purchase

74 found this helpful


Good small amp

The following review is for BDA7501, which is a part of the bundle you are viewing.

I have Never used NVX before. This amps is very strong for how small it is...

By Anonymous on August 16, 2018

71 found this helpful


Great buy

The following review is for BDA7501, which is a part of the bundle you are viewing.

Awesome product. Great small compact size. It has a good weight to it as well. Solid amp. I'm running a 10" NVX DVC and at 4 ohms this thing sounds great. Quality bass and clear when you set it up correctly. I would recommend it all day.

By Philip on May 4, 2020 Checkmark Icon Verified purchase

72 found this helpful


Good little amp on kicker Q Class.

The following review is for BDA7501, which is a part of the bundle you are viewing.

Put this amp on a 10” round kicker Q Class in a jeep. My Jeep never has doors on it so I wanted something cheap incase of water intrusion or theft. Have a brand new kicker 800 watt amp in my car. I Am serious about car audio. I have built systems in at least 9 of my own vehicles since I was a boy. I am 38 now. I Can’t tell a difference in the power. I would say this amp will suffice for 90% of car audio builds. Will look at this brand again in future.

By Anonymous on October 14, 2019 Checkmark Icon Verified purchase

72 found this helpful


NVX BDA7501 750W RMS Monoblock Amplifier

The following review is for BDA7501, which is a part of the bundle you are viewing.

This mono block is perfect, is small and is powerful. it fits perfectly under my car seat.

By Anonymous on May 27, 2018 Checkmark Icon Verified purchase

71 found this helpful


Best amp I have ever owned with real power

The following review is for BDA7501, which is a part of the bundle you are viewing.

I love this amp replaced it after using the 500x1d prime amp which is good but this amp is perfect for what I am running in my SUV I think I'm going to get 2 nvx subs and see how it sounds with 2 because my on 12 hits so hard off this little powerful beast

By larry on January 27, 2017 Checkmark Icon Verified purchase

74 found this helpful




No picture

Rockford Fosgate Punch P300-10 (Open Box, Complete)

600W Peak (300W RMS) Class-D Amplified Single 10" Punch Series Subwoofer Enclosure with Remote Bass Level Control Included

$219.99

List price $279.99

VSW102V2_HFi1500D_XKIT42 small

Two NVX 10" Subwoofers + Hifonics HFi1500D Amplifier Bundle

Two VSW102V2 500W 10" VS-Series V2 Dual 2-ohm Car Subs with HFi1500D 1500 Watt RMS Monoblock Amp and XKIT42 2-Ch 4G OFC Amp Installation Kit

(278)

$469.96

List price $1031.96

MRV-M500, STAGE1210_2, BAK42 small

Alpine MRV-M500 + (2) JBL Stage1210 Subwoofers + 4 Gauge Amp Kit

500W Class D Monoblock Digital Amplifier + JBL 12" 250W Subwoofers + BAK42 Amp Kit

(118)

$319.95

List price $469.89

TA1250.2, 2-TSW106M small

(2) 10" Pioneer TS-W106M 500W Subs + 1200W Amplifier TA1250.2 + Box and Amp Kit

Two Pioneer 500 Watt Subwoofers + 2-Channel Amplifier, Amp Kit and Enclosure

$185.99

List price $489.93

165-V3E small

Focal 165 V3E

6-1/2" + 4" 3-way Component System (165V3E)

(1)

$449.99

List price $749.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Volkswagen Golf

2004 Mazda MX-5 Miata

1993 Dodge Dakota

2016 Honda Civic

2003 Dodge Sprinter

2011 Ford Fusion

2008 Subaru Legacy

2017 Cadillac CT6

1971 Ford Thunderbird

2012 Toyota Sequoia

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
