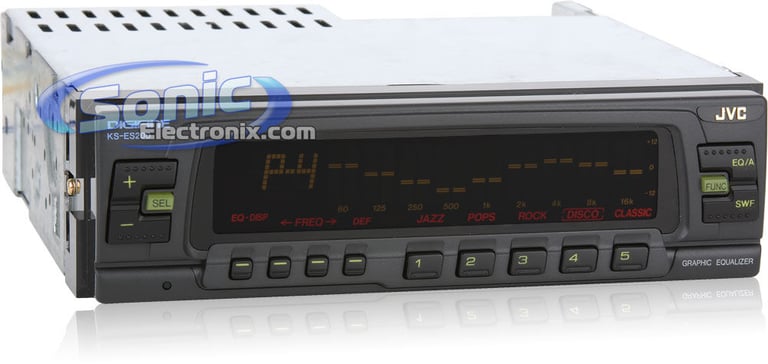

JVC KS-ES200

9-Band Graphic Equalizer EQ with Built-in Subwoofer Control

JVC
Shop all JVC
Product videos
highlight-star-icon

9 Band Graphic Equalizer � Continuously Variable Crossover Frequencies � Q Adjust Switch � Phase Adjust � Gold Plated Terminals � 5 Pre-programmed and 5 User-Programmed Equalization Patterns

Learn more about the kses200

We apologize

This item has been discontinued


Loading...
VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Product Highlights


9 Band Graphic Equalizer � Continuously Variable Crossover Frequencies � Q Adjust Switch � Phase Adjust � Gold Plated Terminals � 5 Pre-programmed and 5 User-Programmed Equalization Patterns

Description


JVC brand icon

Authorized dealer

Product Features:
  • S.E.A. 9 Band Graphic Equalizer
  • Continuously variable crossover frequencies
  • Subwoofer Control (subwoofer input with Stereo/Mono switch)
  • Q Adjust switch, phase adjust switches, filter through/On switches
  • Gold Plated Terminals
  • 5 Preprogrammed and 5 user-programmed equalization patterns (including subwoofer level)
Product Specification:
  • Frequency Response: 10-30,000 Hz (+/- 3 dB)
  • Signal to Noise Ratio: 95 dB
  • Distortion: 0.009%
  • Input Sensitivity and Impedance:
    • CD (Full Scale): 1.5V / 20 kOhm
    • Tape/Tuner: 0.5V / 20 kOhm
  • Output Sensitivity and Impedance:
    • CD (Full Scale): 0.75V / 1 kOhm
    • Tape/Tuner: 0.25V / 1 kOhm
  • Subwoofer Output Level and Impedance:
    • CD (Full Scale): 3.0V / 1 kOhm
    • Tape/Tuner: 1.0V / 1 kOhm
  • Subwoofer cutoff frequency: 100 Hz (Fixed)
  • Fixed equalization center frequencies: 60-16,000 Hz
  • Control ranges: +/-12 dB (2 dB step)
  • Power Requirement: DC 14.4V (11V-16V allowable)
  • Width: 7-1/16"
  • Height: 2"
  • Depth: 6-1/2"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
