Pioneer Premier TS-D520C

5-1/4" 2-way D-Series Component Speakers System

Pioneer
Shop all Pioneer
highlight-star-icon

5.25" 2-Way Premier D-Series Component System • 180W Max • 35W RMS • Dual-layer IMX Aramid/basalt fiber composite cone • Butyl rubber surround • Rear chamber tweeter design • 1-1/8" Soft dome tweeter • 4 ohm impedance • OFC Copper voice coil wire

Learn more about the tsd520c

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


Pioneer brand icon

Authorized dealer

  • 5-1/4" D Series Component System
  • Power Handling:
    • Peak: 360 watts per set / 180 watts each side
    • RMS: 70 watts per set / 35 watts each side

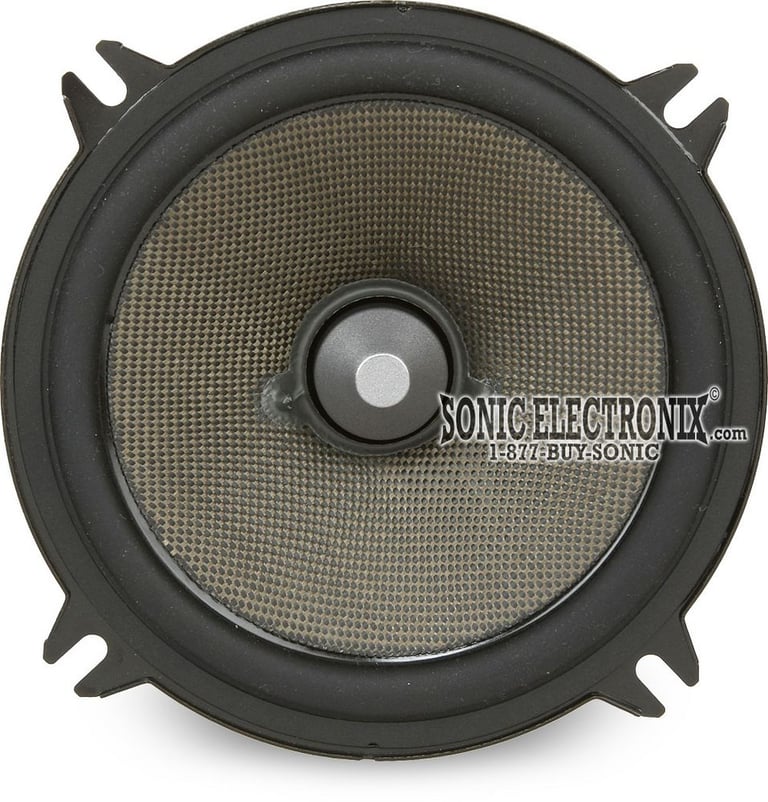

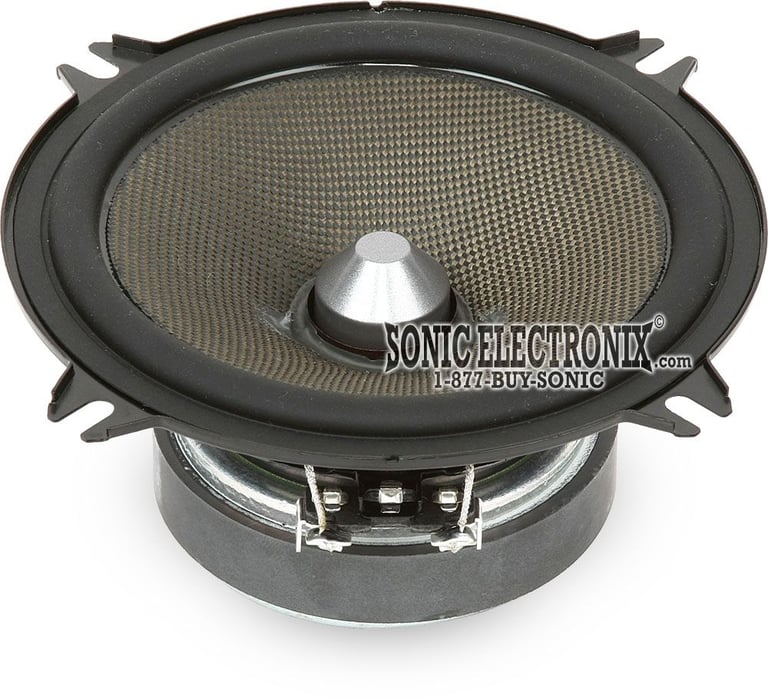

  • Dual layer IMX aramid-basalt fiber composite cone woofer
  • Butyl rubber surround

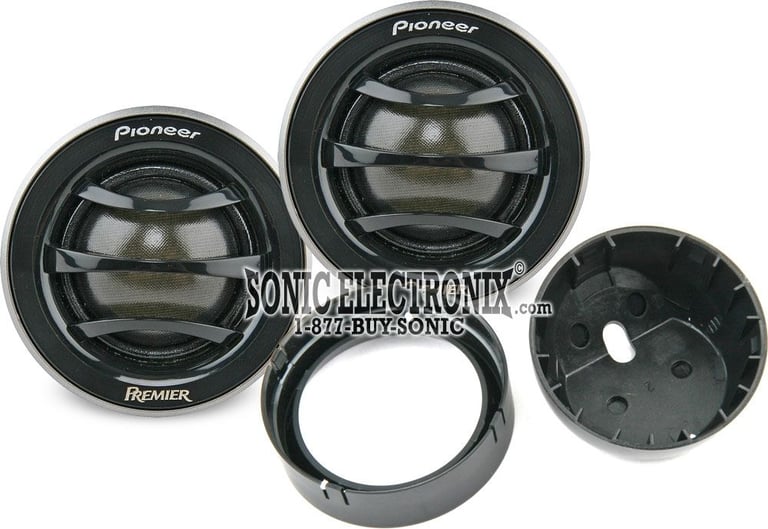

  • 1-1/8" Soft dome tweeter with magnetic fluid and neodymium magnet
  • Rear chamber design for lower crossover frequency
  • Surface/angled, flush, or invisible tweeter mounting options

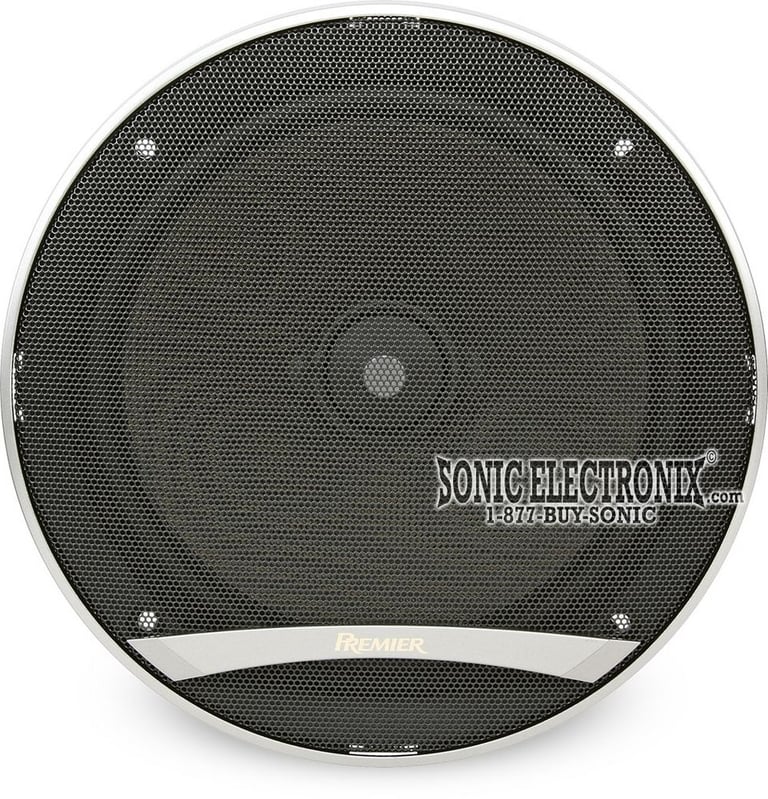

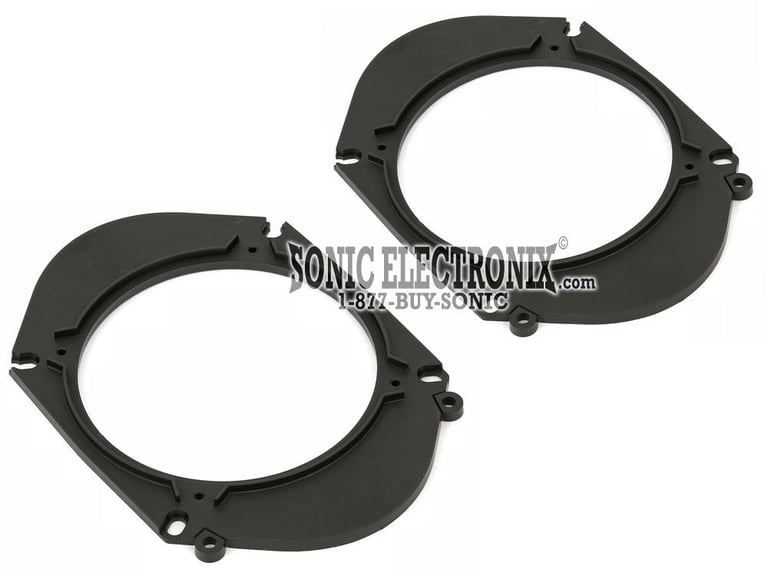

  • 6" x 8" Installation adapter and grille included

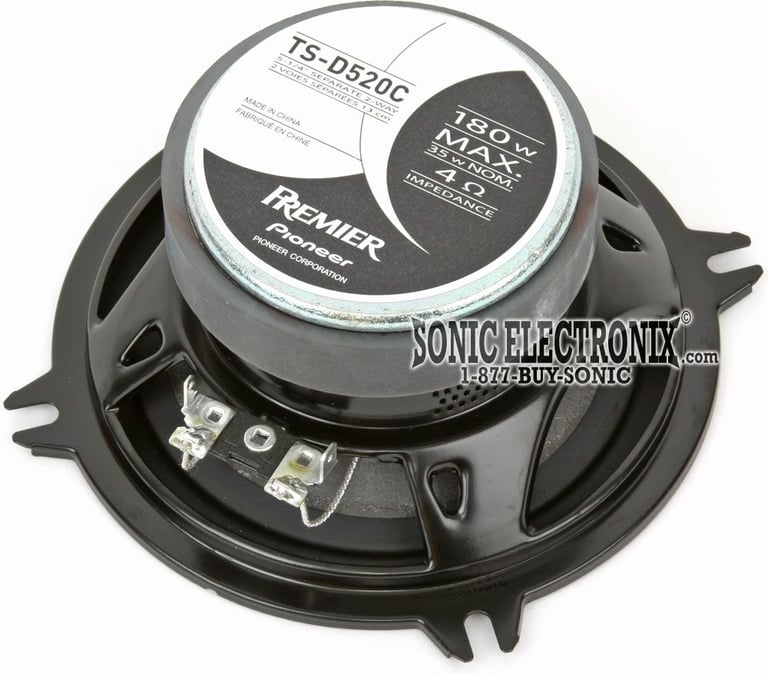

  • Deep basket for better bass reproduction
  • Glass-imide voice coil bobbin

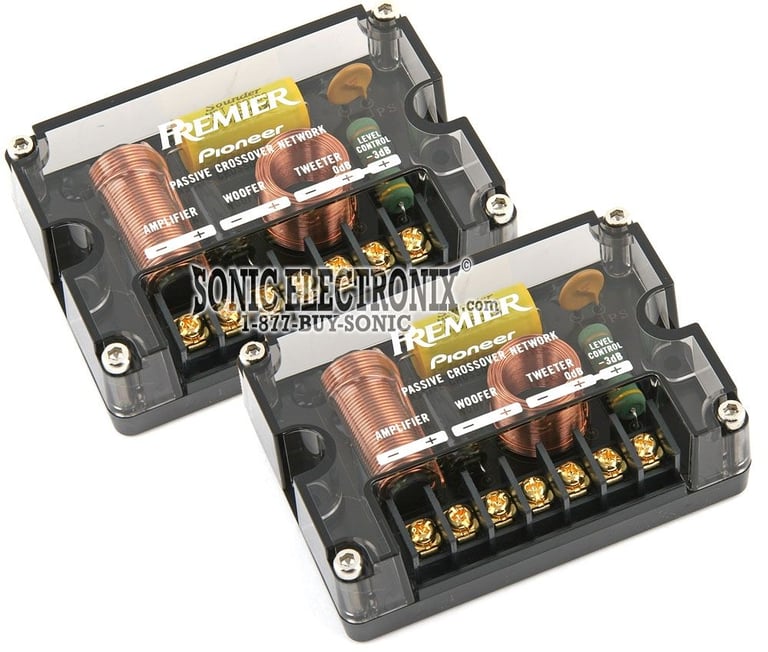

  • High-quality external crossover with 12 dB/octave high and low pass filters
  • 4 ohm impedance
  • OFC copper voice coil wire
  • Top-mount depth: 2-1/4"
  • 2-year SonicElectronix.com warranty

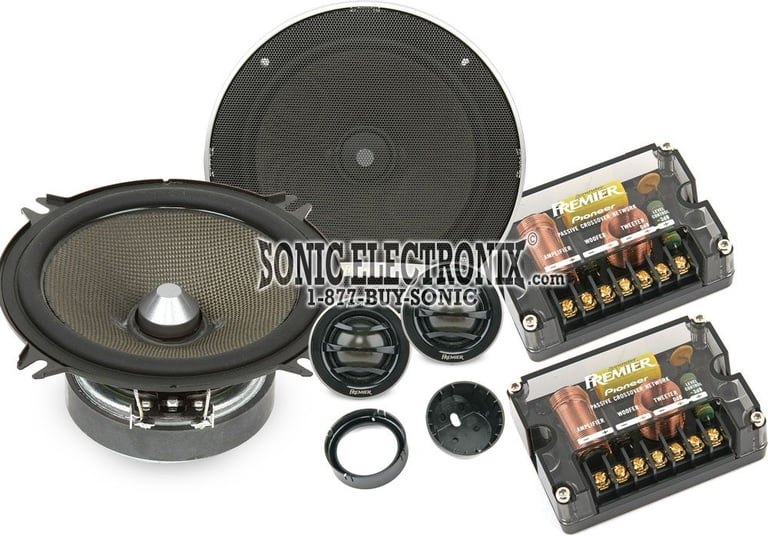

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

REF507CF small

Infinity REF507CF (INFSPKRF507CFUS)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$219.95

List price $249.95

VSP525KIT small

NVX VSP525KIT

• 375 watts Peak Each, 125 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 2.04"

(27)

$99.99

List price $119.99

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Dome
Woofer Composition
Dual-Layer IMX Aramid/Basalt Fiber Composite
Woofer Surround
Butyl Rubber
Peak Power Handling
180 watts
RMS Power Handling
35 watts
Sensitivity
88 dB
Frequency Response
35 - 33000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/4"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-D520C

Weight:

6.50lbs

Internal SKU:

tsd520c

Internal Product ID:

11926

Customer Ratings & Reviews


Pioneer Premier TS-D520C thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great

the highs are nice, and lows are ok. but the lows are for the subs! Sound good with a amp hooked up as well. Overall, 9/10

By Jacking on May 1, 2009

4 found this helpful
