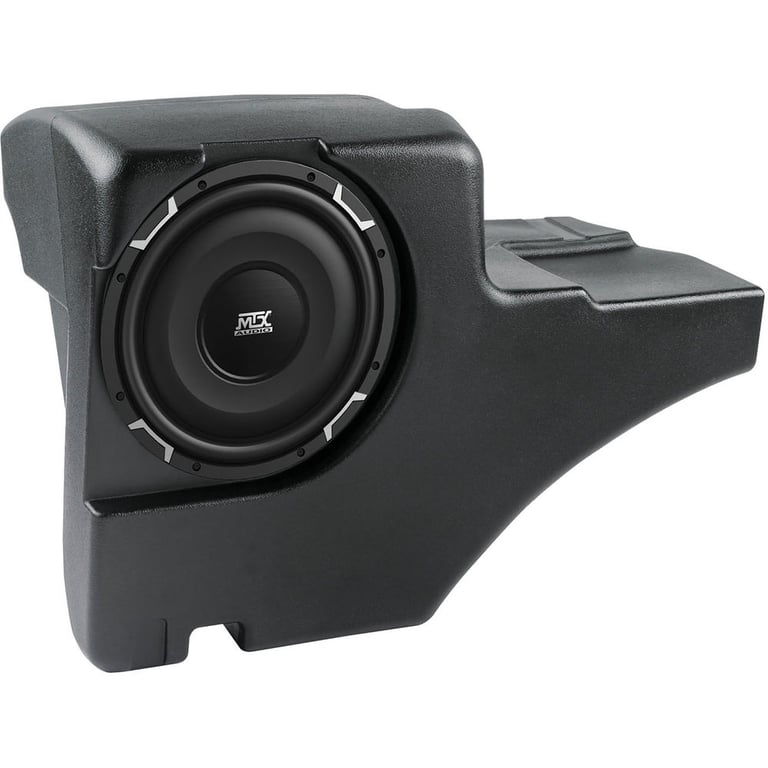

MTX CTYE01BK10A-FPR

Fits Select Chevrolet/GMC Vehicles - Amplified 10" 200W Loaded Thunderform Subwoofer Enclosure - Black

MTX
Shop all MTX
highlight-star-icon

• 200W Single 10" Sealed Subwoofer Enclosure with Built-In Amplifier
• RMS: 200 W Total
• Preloaded with single 10" FPR-Series Subwoofers
• 10" Sealed Vehicle Specific Enclosure
• Sealed enclosure with factory finish - Black

See compatible vehicles Learn more about the ctye01bk10afpr

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Description


MTX brand icon

Authorized dealer

General Features:

  • 200W Single 10" Sealed Subwoofer Enclosure with Built-In Amplifier
  • Power Handling:
    • Peak: 400 W Total
    • RMS: 200 W Total
  • Final Impedance: 4 ohm
  • Preloaded with single 10" FPR-Series Subwoofer
  • Built-in Class D amplifier
  • Sealed enclosure with factory finish - Black
  • EBC and Wire Harness Included
  • Enclosure Dimensions: 27-13⁄16" H x 17" W x 10" D
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Subwoofer Features:

  • One Piece Spider Cone Assembly design
  • High Roll Surround
  • Shallow Mount Design
  • 1.75" Voice Coil
  • Frequency Response: 28-150 Hz
  • Sensitivity: 82 dB

Enclosure Features:

  • 10" Sealed Vehicle Specific Enclosure
  • High Grade ABS Plastic Construction

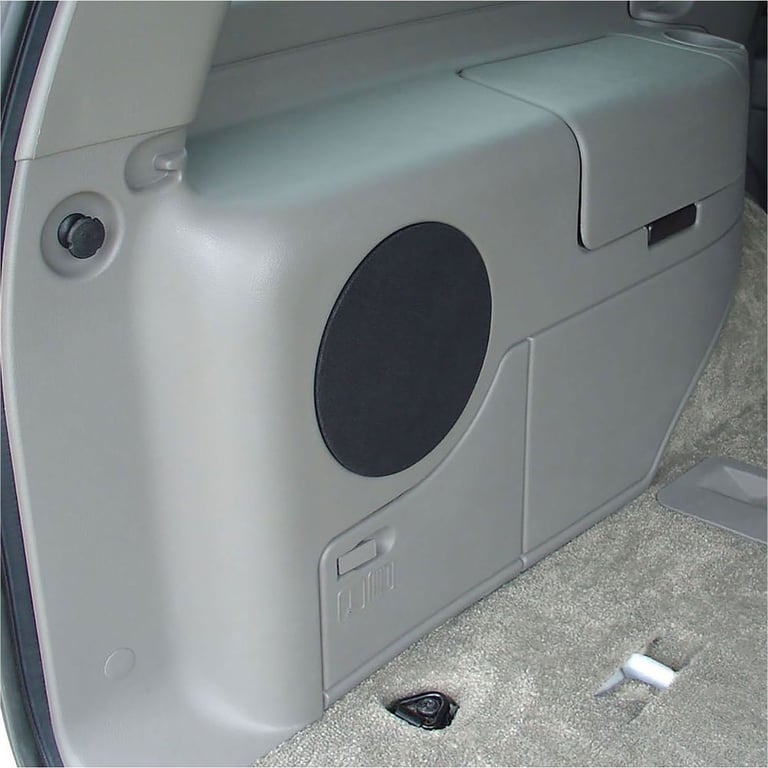

  • Installs Under the Driver Side Rear Window in the Cargo Area Behind the Factory Panel
  • Install Hardware Included

Vehicle Compatibility

  • Chevrolet
    • 2001 - 2006 Tahoe
  • GMC
    • 2000 - 2006 Yukon Crew
  • Cadillac
    • 2002 - 2006 Escalade Cab (not EXT or ESV)


Check out the CTYE01BK10A-FPR Installation Guide



Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 2011 Cadillac STS is not compatible. Change vehicle or See list of compatible similar products


Best selling similar products

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F250X00C20A-TN small

MTX Audio Thunderform F250X00C20A-TN

• 10" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Compatible with select 2000-2014 F-250 Super Duty

$929.95

List price $747.95

C1500C-07A small

MTX C1500C-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

DRQC20AC-TN small

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

• Dual 10" Loaded Amplified MTX Thunderform Subwoofer Enclosure
• For Dodge Ram Quad Cab 2002-2014
• Loaded with Dual Terminator Series Subwoofers
• 800W Max
• 400W RMS
• 4 Ohm

(2)

$899.95

List price $802.95

J-WRANGLER-07L small

MTX J-WRANGLER-07L

• 1 10" MTX ThunderForm Series Subwoofer
• 250 watts RMS ( Peak)
• Final Impedance: 4-ohm
• Dimensions: 17-4/5" L x 16-5/16" H x 6-9/16" W

$719.95

List price $639.95

DRQC20C-TN small

MTX Audio Thunderform DRQC20C-TN (Charcoal, Loaded)

• Dual 10" Loaded MTX Thunderform Subwoofer Enclosure
• For Dodge Ram Quad Cab 2002-2014
• Loaded with Dual Terminator Series Subwoofers
• 800W Max
• 400W RMS
• 4 ohm
• Polypropylene Cone

$719.95

List price $637.95

C1500EX-07A small

MTX C1500EX-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F-150C-09A small

MTX F-150C-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F150C04BK12A-TN small

MTX Audio Thunderform F150C04BK12A-TN (Black, Amplified)

• Amplified 12" Loaded MTX Thunderform Sealed Subwoofer Enclosure
• For 2004-2008 Ford F-150 Crew/Ext Cab
• Loaded with 12" Terminator Series Subwoofers
• 400W Max
• 200W RMS
• 4 Ohm

$719.95

List price $637.95

Specifications & Details


Subwoofer Specifications
Subwoofer Design
Round / Circle
Impedance (Per Voice Coil)
4 ohm
Sensitivity
82 dB
Frequency Response
28 - 150 Hz
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
1
Box Style/Shape
Vehicle Specific
Height
27-13⁄16"
Width
17"
Depth
10"
Box Exterior Color
Black
Box Finish
Paint
Final Wired Impedance
4-ohm
Type of Enclosure
Loaded and Amplified
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

CTYE01BK10A-FPR

Weight:

22.00lbs

Internal SKU:

ctye01bk10afpr

Internal Product ID:
