Pioneer Premier TS-A702C

6-3/4" (Oversized 6-1/2") 2-way A-Series Component Speakers System

Pioneer
Shop all Pioneer
highlight-star-icon

6.5" (oversized 6-1/2") A-Series Component System • 230W Max • 50W RMS • Composite injection molded polypropylene cone with interlaced Aramid Fiber woofer • Butyl rubber surround • 7/8" Soft dome tweeter • Aramid fiber damper • 4 ohm impedance

Learn more about the tsa702c

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


Pioneer brand icon

Authorized dealer

  • 6-3/4" (oversized 6-1/2") A-Series Component System
  • Power Handling:
    • Peak: 460 watts per set / 230 watts each side
    • RMS: 100 watts per set / 50 watts each side

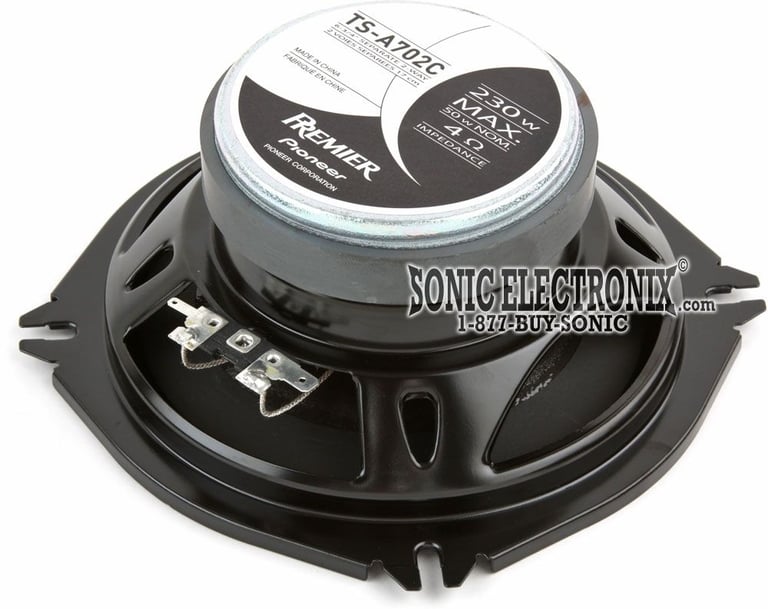

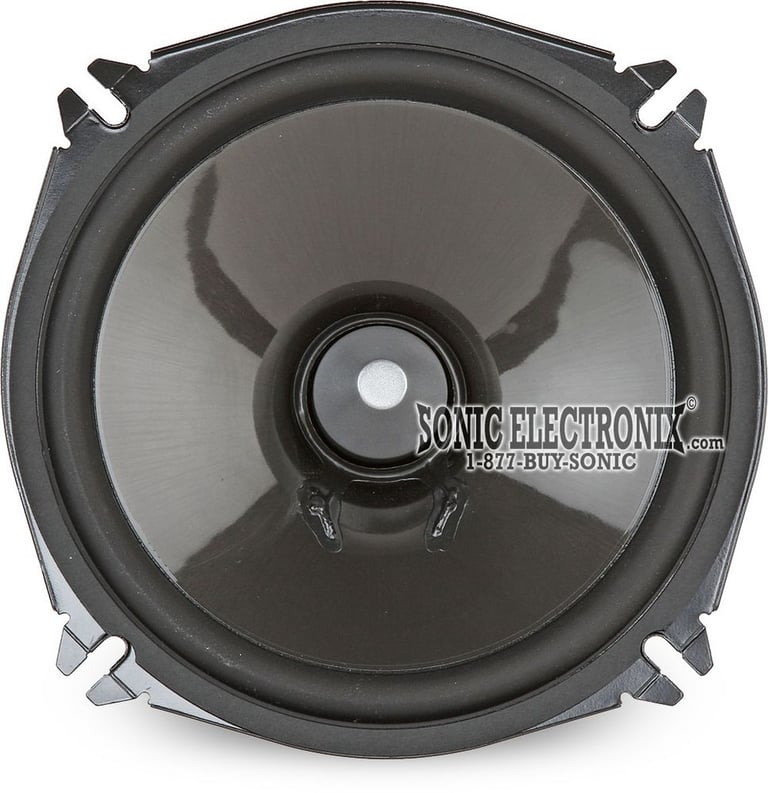

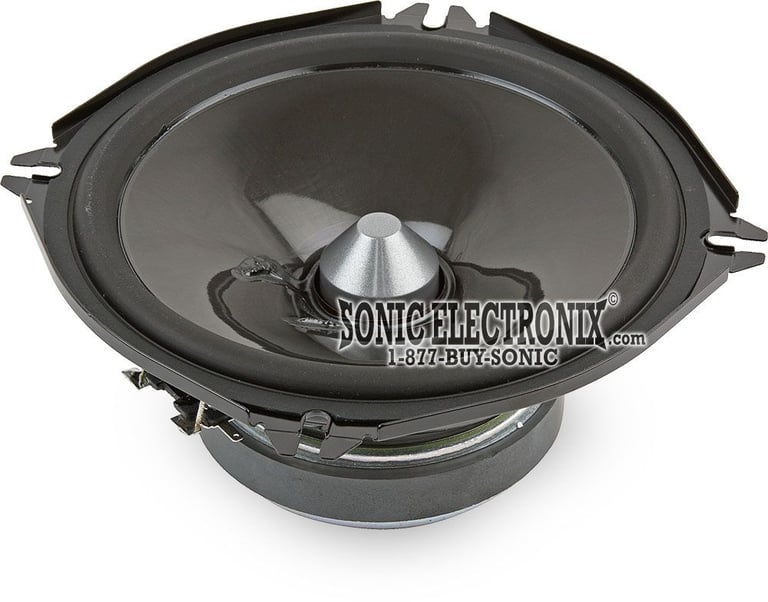

  • Composite injection molded polypropylene cone with interlaced Aramid Fiber woofer
  • Butyl rubber surround

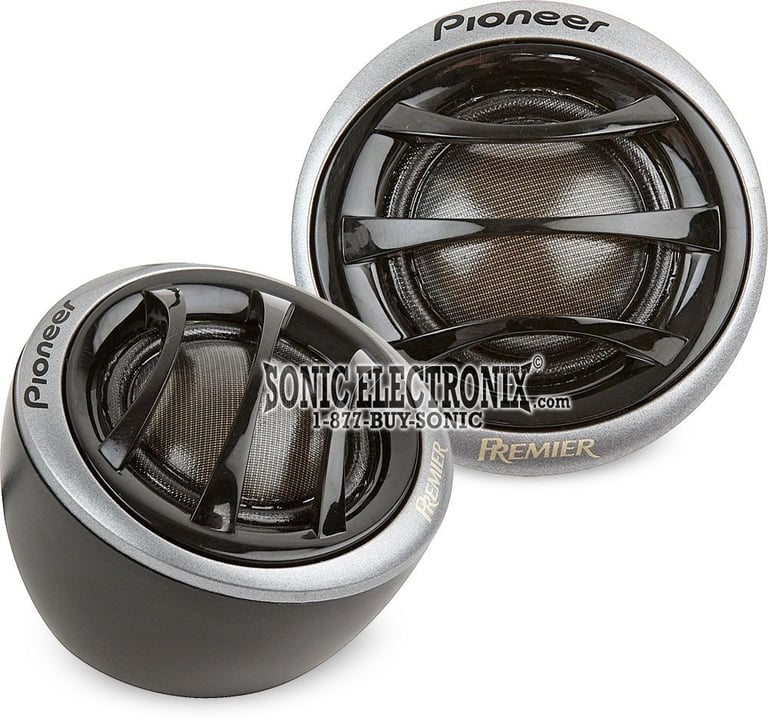

  • 7/8" Tetron Soft dome tweeter with magnetic fluid and neodymium magnet

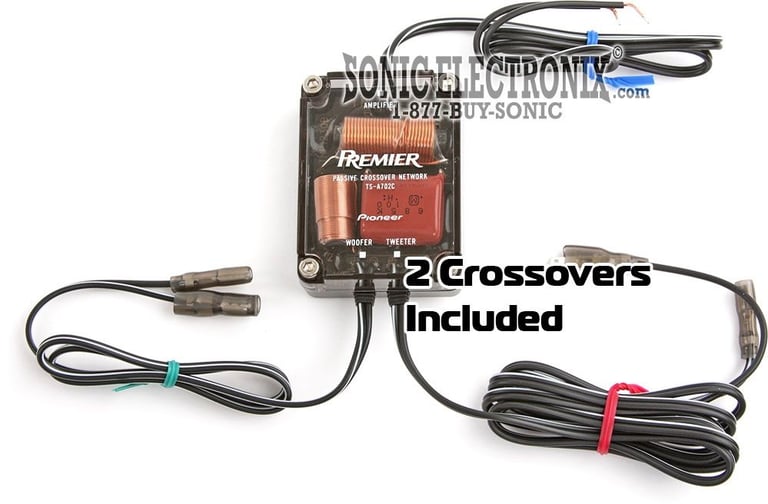

  • 2-Way external crossovers with low pass and high pass filter at 12 dB/octave

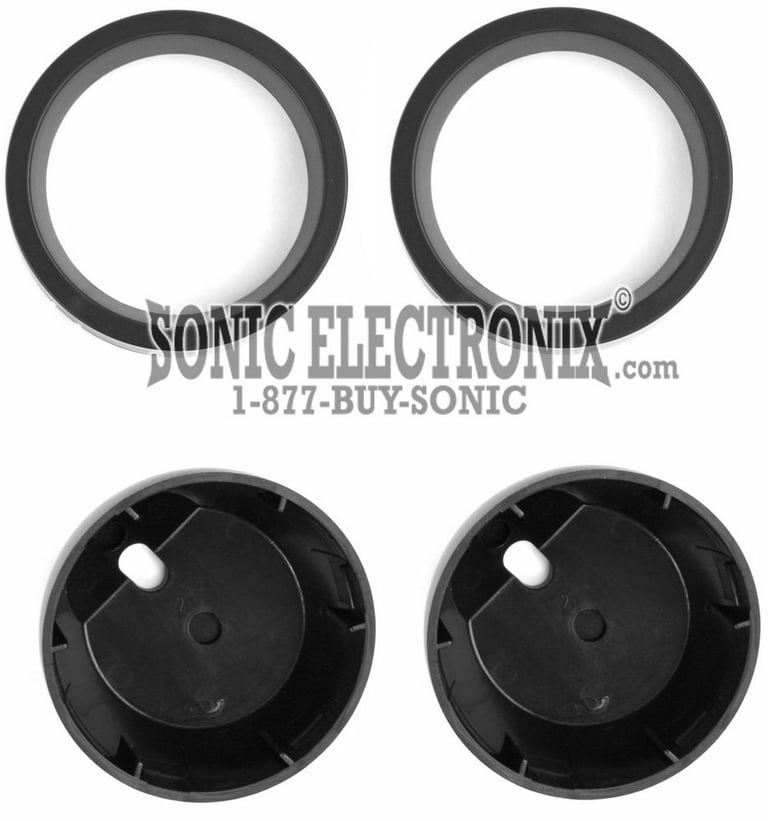

  • Surface, flush, or invisible tweeter mounting
  • Aramid fiber damper
  • Glass-Imide voice coil bobbin
  • 4 ohm impedance
  • OFC Copper voice coil wire
  • Top-mount depth: 2-1/2"
  • 2-year SonicElectronix.com warranty

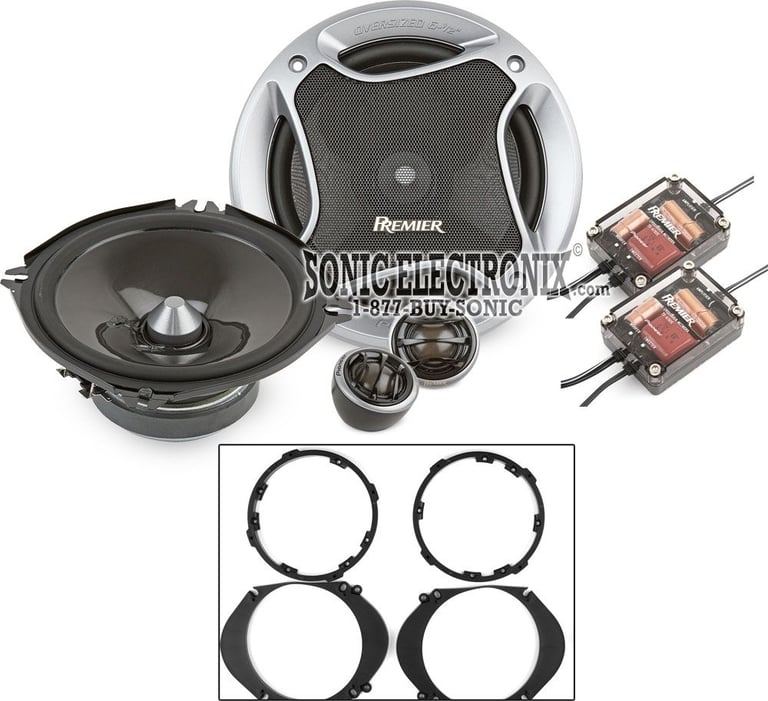

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Best selling similar products

P1V2-675 small

Rockford Fosgate Punch P1V2-675

• 150 watts Peak Each, 75 watts RMS Each
• 3/4" Tetolon Inverted Dome tweeters
• 3/8" Polypropylene-Piezo super tweeters
• Mica reinforced Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

$179.99

List price $239.99

H672 small

Cerwin-Vega H672

• 270 watts Peak Each, 90 watts RMS Each
• 1" PEI (Polyetherimide) Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB

$159.99

List price $191.99

DMDX675 small

Diamond Audio DMDX675

• 150 watts Peak Each, 50 watts RMS Each
• Dome Tweeters
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB

$159.99

List price $159.99

P1675 small

Rockford Fosgate Punch P1 P1675

• 120 watts Peak Each, 60 watts RMS Each
• 3/4" PEI (Polyetherimide) Dome tweeters
• Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(48)

$109.99

List price $109.99

46CSS674 small

Kicker CSS67 (46CSS674)

• 300 watts Max Each, 100 watts RMS Each
• 3/4" Titanium Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB
• Mounting Depth: 1-7/8"

(2)

$143.96

List price $199.99

H675C small

Cerwin-Vega H675C

• 360 watts Peak Each, 120 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Responsive Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

$189.99

List price $227.99

T1675 small

Rockford Fosgate Power T1 T1675

• 150 watts Peak Each, 75 watts RMS Each
• 1" Aluminum Dome tweeters
• Carbon Fiber Reinforced IMPP cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

(17)

$219.99

List price $219.99

V675 small

Cerwin-Vega V675

• 360 watts Peak Each, 120 watts RMS Each
• 3/4" Silk Balanced Dome Tweeters
• Carbon Fiber Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

$139.99

List price $139.99

DSK 170.3 small

Hertz DSK 170.3

• 160 watts Peak Each, 80 watts RMS Each
• 1" PEI (Polyetherimide) Dome-Cone tweeters
• Paper cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(1)

$199.99

List price $230.00

Specifications & Details


Speaker Specifications
Speaker Size
6-3/4" (Oversized 6-1/2")
Design
2-way Component System
Tweeter Design
Dome
Tweeter Composition
Teteron
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
230 watts
RMS Power Handling
50 watts
Sensitivity
90 dB
Frequency Response
31 - 35000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/2"
Cutout Dimensions
5-1/2" x 5-1/2"
General specifications

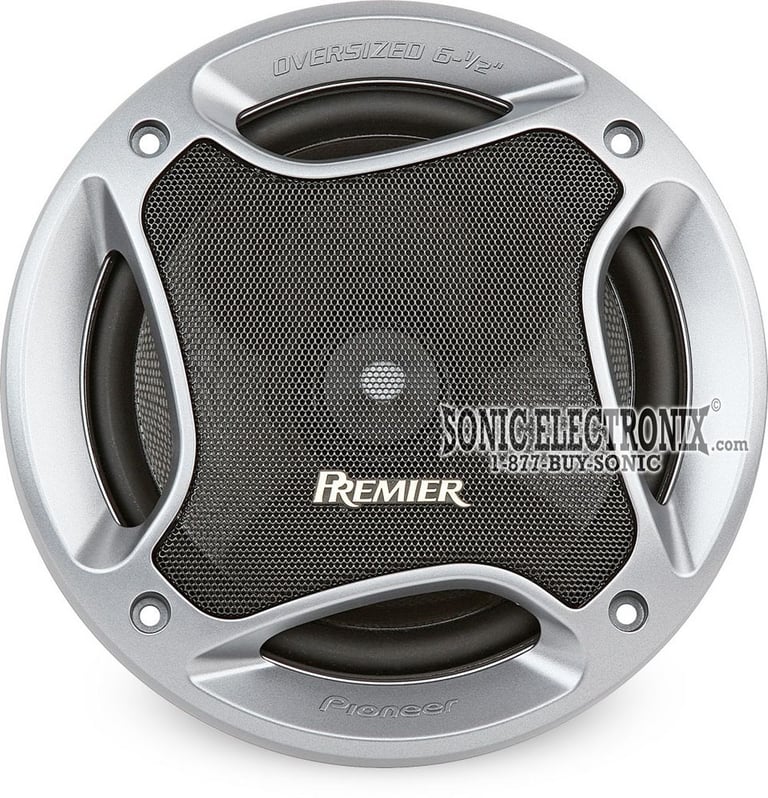

Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-A702C

Weight:

7.00lbs

Internal SKU:

tsa702c

Internal Product ID:

12229

Customer Ratings & Reviews


Pioneer Premier TS-A702C thumbnail image

5 star
40%
4 star
60%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4.4
Features
4.4
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

Great speakers for an awesome price

I would definitely recommend these speakers to anyone looking for a good component set at an affordable price they sound great hooked up to my 600 watt 4 channel amp the bass is not bad if you seal them to the door good but i also have a sub for the low bass. The only issue i have with them is the crossover comes pre-wired with a thinner gauge wire. I would have rather wired them my self with a thicker wire but they still perform very well.

By Dan on August 12, 2010

6 found this helpful


Excellent sound

Installed these speakers in place of factory set and now I can actually hear better quality in the music. Great price, perfect fit, speedy delivery....can't wait to upgrade my other vehicle.

By Carlos on May 12, 2009

7 found this helpful


Great bang for the buck!!

This component set is as good as any set that I have purchased. The only real issue that I have with these speakers is that they are very bright, so you'll need to cover the woofer to create more bass, or just turn the bass up.

By Joe Six-Pack on November 19, 2009

6 found this helpful


Not bad...

Compared to my old factory speakers these sound great. i can hear little instruments in the background that i would NEVER hear on the other speakers. The bass isnt the best in the world but if you need some great sounding speakers and you dont want to spend a lot i say get these speakers. The ONLY thing i have to warn you about is that the tweeters DO crackle here and there when the volume is almost all the way up. i dont know if thats because i still have my factory amp in there where it might not be getting enough juice or it just cant handle it.

By Mike on April 30, 2009

6 found this helpful


Very good

I hooked em up to GM6... (forgot the model) Pionner amp and they sound great. They don't get very low as far as bass goes, but they are not subs. My benz bose speakers are same size but put out more bass, however, these have the greatest quality of sound i've ever heard. It is a pure pleasure to be in the car now. They are kind of expensive, and i , personally, don't like the bass response, as it is crappy on low frequencies and too loud on mids (just my opinion). But i would still recommend the product because if not pushing them to absolute limits, these speakers sound nice.

By Evgeniy on November 20, 2008

5 found this helpful
