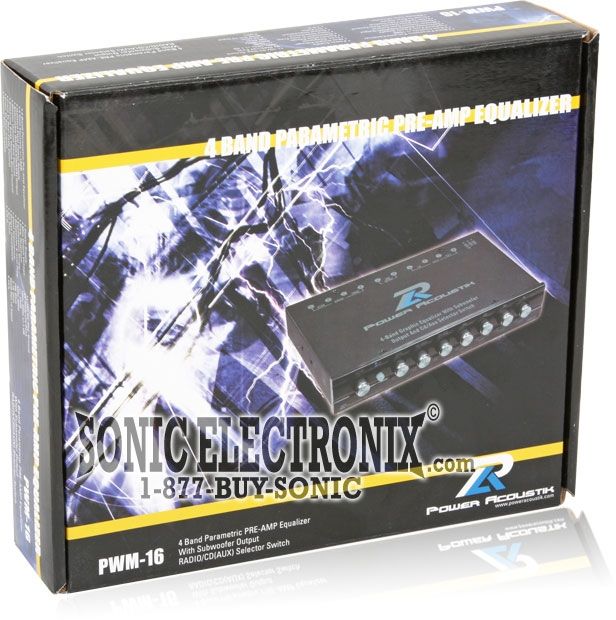

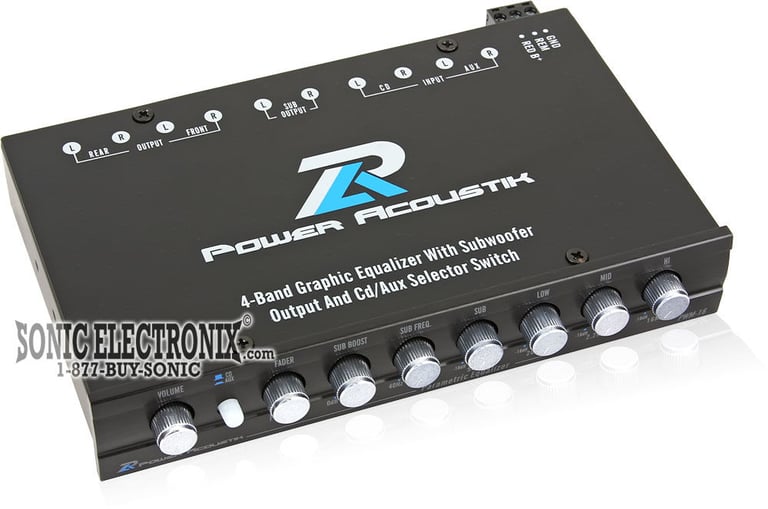

Power Acoustik PWM-16 Open Box Complete (Very Good, Used)

4-Band Graphic Equalizer with Built-In Pre-Amp and Subwoofer Control and CD/Aux Selector Switch

Power Acoustik
Shop all Power Acoustik
highlight-star-icon

• Item Condition: Open Box
• 4-Band Graphic Equalizer with Built-In Pre-Amp and Subwoofer Control and CD/Aux Selector Switch
• 4 Gain controls (± 18dB)
• Isolated PWM (Pulse Width Modulated) power supply
• Selectable Radio/CD/Auxiliary outputs
• Master volume gain control

Learn more about the ls-pwm16-obc6

We apologize

This item has been discontinued

Description


Power Acoustik brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.



Open Box (Complete): Item was previously installed and used. Item is in good condition and has been tested to be fully functional. Nonessential accessories (screws) may have been replaced with generic parts.

PWM-16 Features:

  • 4-Band Graphic Equalizer with Built-In Pre-Amp and Subwoofer Control and CD/Aux Selector Switch
  • 4 Gain controls (± 18dB)
  • Isolated PWM (Pulse Width Modulated) power supply
  • Selectable Radio/CD/Auxiliary outputs
  • Master volume gain control
  • Separate bass volume gain control
  • Front to rear fade control
  • Front to rear inputs
  • Remote turn-on leads
  • Dimensions: 7"L x 4-1/4"W x 1-1/4"H
  • 1-year Manufacturer's Warranty

PWM-16 Specifications:

  • Power Supply: 11-16 DC Neg. Ground
  • Max Output Voltage: 8V RMS/13V Peak
  • Frequency Response: 10-50000 Hz ± 1 dB
  • Equalization Range: ± 12 dB
  • Subwoofer Crossover Frequency: 43-60 Hz
  • Input Impedance: 10K Ohm
  • Output Impedance: 4.7K Ohm
  • S/N Ratio: 80 dB Ref. 1V Input
  • T.H.D.: 0.05%

Specifications & Details


Equalizer Specifications
Type of Equalizer
Graphic
Equalizer Bands
4 band
Built-in Crossover
Low-Pass (LP)
Built-in Bass Reconstruction
No
Line Driver
No
Speaker Level Inputs
No
Total Number of Inputs
2
Total Number of Outputs
3
Display Color
Blue
Signal Boost/Cut
18 dB
Max Output Level
13 volts
Frequency Response
10 - 50,000 Hz
THD (Total Harmonic Distortion)
0.05%
Signal-to-Noise Ratio
80 dB
Width
7"
Height
1-1/4"
Depth
4-1/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PWM-16 Open Box Complete-2

Weight:

1.75lbs

Internal SKU:

ls-pwm16-obc6

Internal Product ID:

131971
