JL Audio MX10IB3-CG-TB (Open Box Complete)

175W 10" MX-Series Single 4-ohm Infinite-baffle Marine Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

10" MX Series Infinite Baffle Marine Subwoofer Driver • 175W RMS • Injection-Molded Mica-Filled Polypropylene Cone • Synthetic Rubber Surround • Centrex Polymer Baskets • Proprietary Dynamic Motor Analysis Technology

Learn more about the ls-mx10ib3cgtb-obc

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.


JL Audio MX10IB3

JL Marine MX10IB3 - MX-Series 10-inch Marine Subwoofer Driver

Purpose-engineered and built for real marine duty, the MX-Series infinite-baffle subwoofers are designed to operate without a dedicated enclosure and are targeted towards moderate power applications. The MX10IB3 is best used with amplifier power in the 50W - 175W RMS range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft.). If you need a subwoofer driver that operates in a small sealed enclosure, select the M10W5, instead. Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.



General Features:

  • Item Condition: Like New, Open Box, Complete
    Not Refurbished






  • 10" MX Series Infinite Baffle Marine Subwoofer
  • Power Handling:
    • RMS: 175 watts
  • Impedance: 4 ohm
  • Recommended power range: 50 - 175 watts RMS
  • Injection-Molded mica-filled polypropylene cone bodies
  • Synthetic rubber surround specifically formulated with UV inhibitors
  • Marine grade progressive roll synthetic fiber spider
  • Gold-Plated marine-grade brass connection terminals
  • Proprietary Dynamic Motor Analysis (DMA) technology
  • Long linear excursion for enhanced output and reduced distortion
  • Vented motor design with marine-grade, stainless steel rear diffuser plate
  • Specifically engineered Centrex polymer baskets are corrosion & UV-resistant

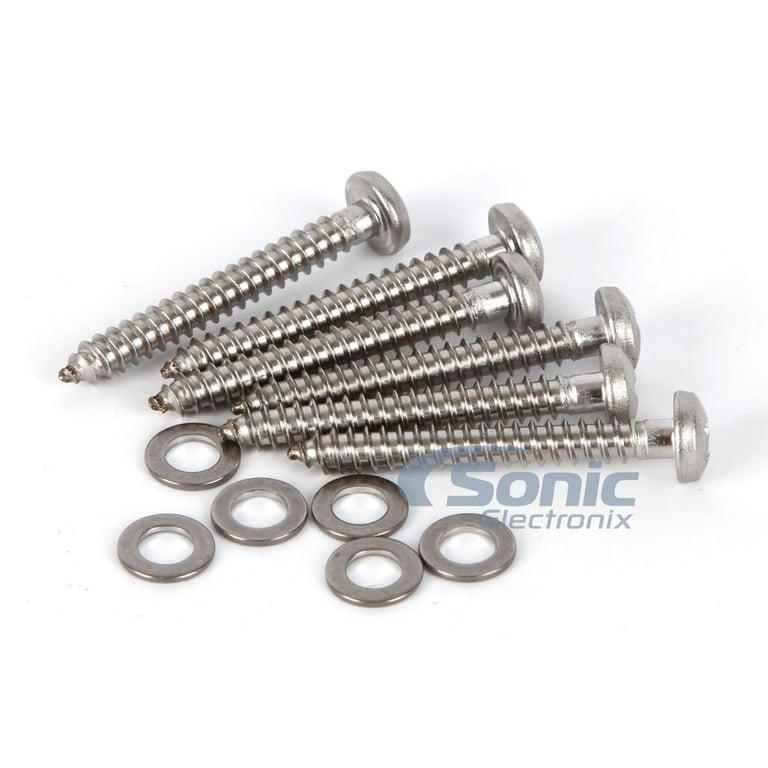

  • Stainless steel mounting hardware included
  • Efficiency: 87.23 dB
  • Xmax: 11 mm
  • Mounting Depth: 5.12"
  • Cutout Diameter: 8.875 "
  • Minimum Sealed Enclosure Volume: 2.0 cu ft / 56.6 L (or larger)
  • Optimum Sealed Enclosure Volume: 2.5 cu ft / 70.8 L
  • Infinite Baffle Use: Yes
  • Color: Titanium/Black
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 90 Day Manufacturer's Warranty
JL Audio 12W6v2D4 Recommended Power Range

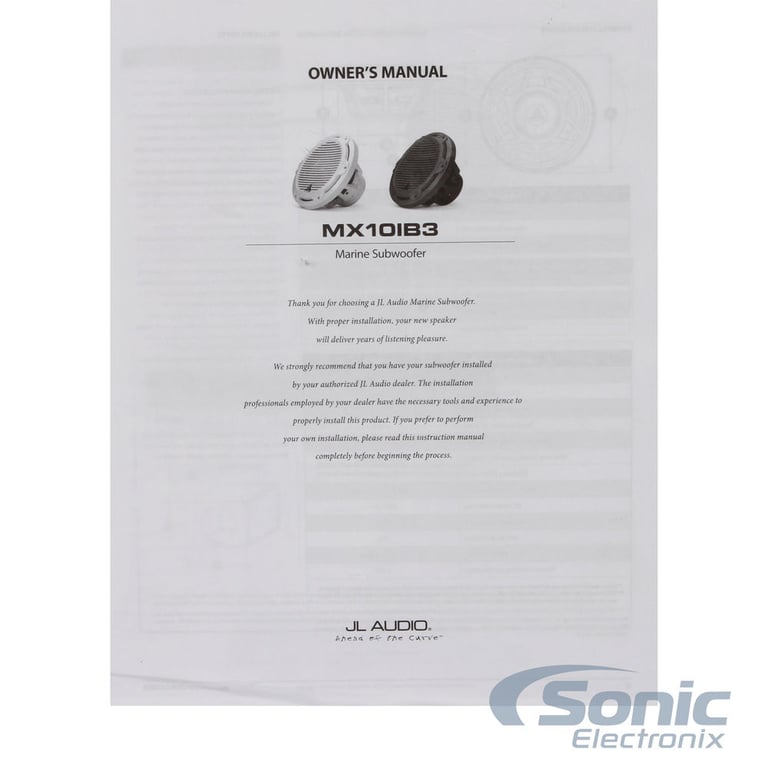

Check out the JL Audio MX10IB3 Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio MX10IB3-CG-TB (Open Box Complete) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio MX10IB3-CG-TB (Open Box Complete) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio MX10IB3-CG-TB (Open Box Complete) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio MX10IB3-CG-TB (Open Box Complete) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
175 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87.23 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Synthetic Rubber
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Minimum Sealed Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
5.12"
Cutout Diameter
8.875"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MX10IB3-CG-TB-2

Weight:

8.00lbs

Internal SKU:

ls-mx10ib3cgtb-obc

Internal Product ID:

124447
