JL Audio M10W5-CG-TB (Open Box Complete)

250W 10" M-Series Single 4-ohm Marine Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• 75 - 250W RMS
• Injection-Molded Mica-filled Polypropylene Cone
• Synthetic rubber surround specifically formulated with UV inhibitors
• Polymer Basket is Corrosion and UV-Resistant
• Marine-grade Stainless Steel Mounting Hardware
• Marine Grade Synthetic Spiders

Learn more about the ls-m10w5cgtb-obc

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

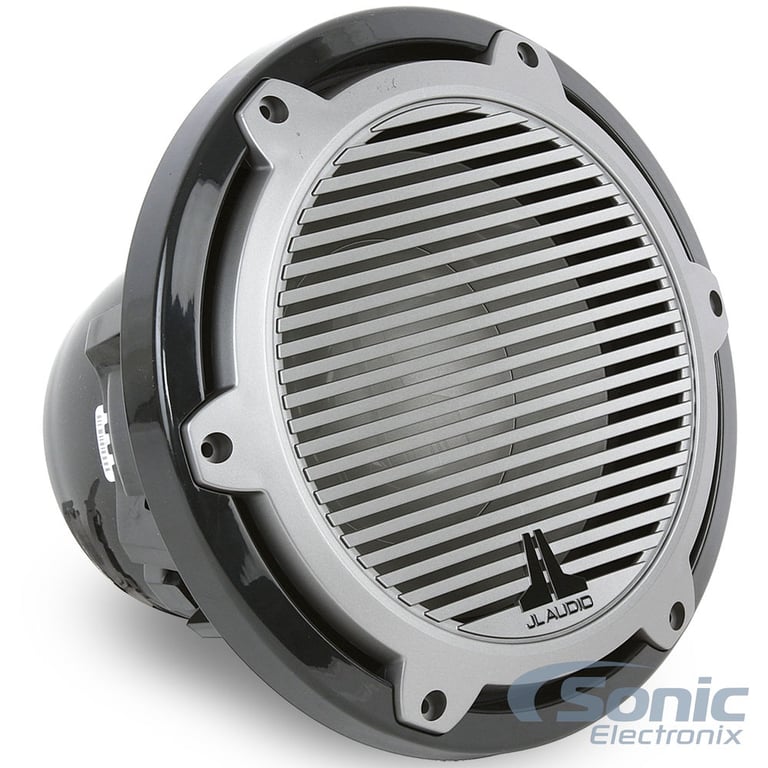

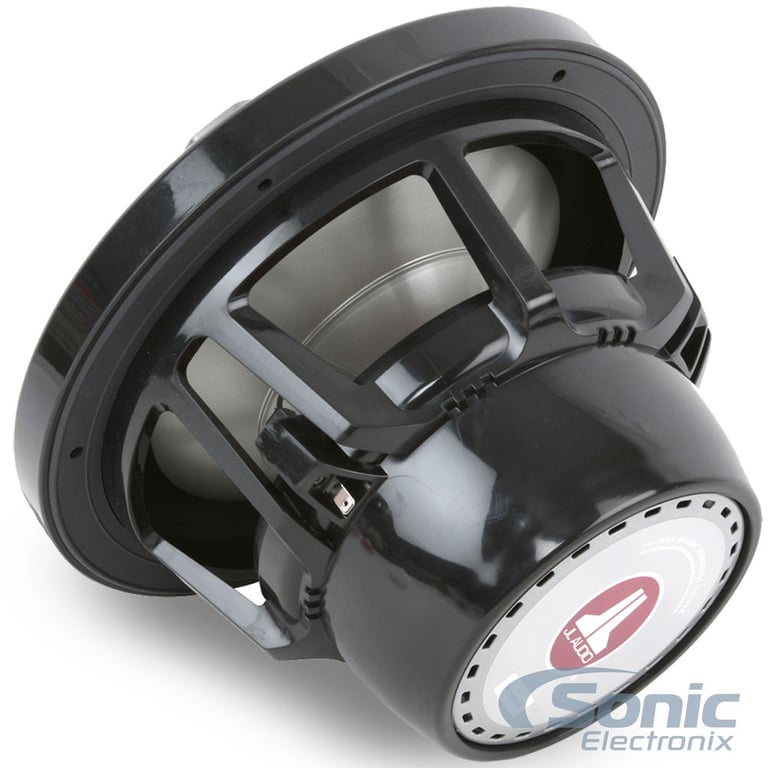

M-Series 10-inch Marine Subwoofer Driver for an Enclosure

JL Audio M10W5-CG-WH

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M-Series M10W5 woofers are designed to operate within a dedicated enclosure. The M10W5 is best used with amplifier power in the 75W - 250W range and are optimized to operate in a compact enclosure (0.5 to 1.0 cu.ft.). Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system. If you need a subwoofer driver that operates without a dedicated enclosure (i.e. Infinite Baffle), select the M10IB4, instead.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.


JL Audio M10IB5 Power Range


General Features:

  • Item Condition: Like New, Open Box, Complete
    Not Refurbished






  • 10" M-Series Marine Subwoofer for an Enclosure
  • Power Handling:
    • RMS: 250 watts
  • Impedance: 4 ohm
  • Recommended power range: 75 - 250 watts RMS
  • Injection-Molded mica-filled polypropylene cone bodies
  • Synthetic rubber surround specifically formulated with UV inhibitors
  • Marine grade progressive roll synthetic fiber spider
  • Plated marine-grade brass connection terminals
  • Proprietary Dynamic Motor Analysis (DMA) technology
  • Long linear excursion for enhanced output and reduced distortion
  • Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
  • Stainless steel mounting hardware included
  • Efficiency: 86.7 dB
  • Xmax: 13.2 mm
  • Mounting Depth: 5.93"
  • Cutout Diameter: 8.875"
  • Recommended Sealed Enclosure: 0.875ft³
  • Recommended Ported Enclosure: 1.25ft³
  • Infinite Baffle Use: No
  • Color: Titanium Grille w/ Black Frame
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 90 Day Manufacturer's Warranty
Check out the JL Audio M10W5 Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio M10W5-CG-TB (Open Box Complete) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio M10W5-CG-TB (Open Box Complete) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio M10W5-CG-TB (Open Box Complete) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio M10W5-CG-TB (Open Box Complete) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86.7 dB
Xmax (millimeters)
13.2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Synthetic Rubber
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
5.93"
Cutout Diameter
8.875"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M10W5-CG-TB-2

Weight:

15.00lbs

Internal SKU:

ls-m10w5cgtb-obc

Internal Product ID:

124453
